Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11526 - EXZ RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#124402) — 47 parça
◀

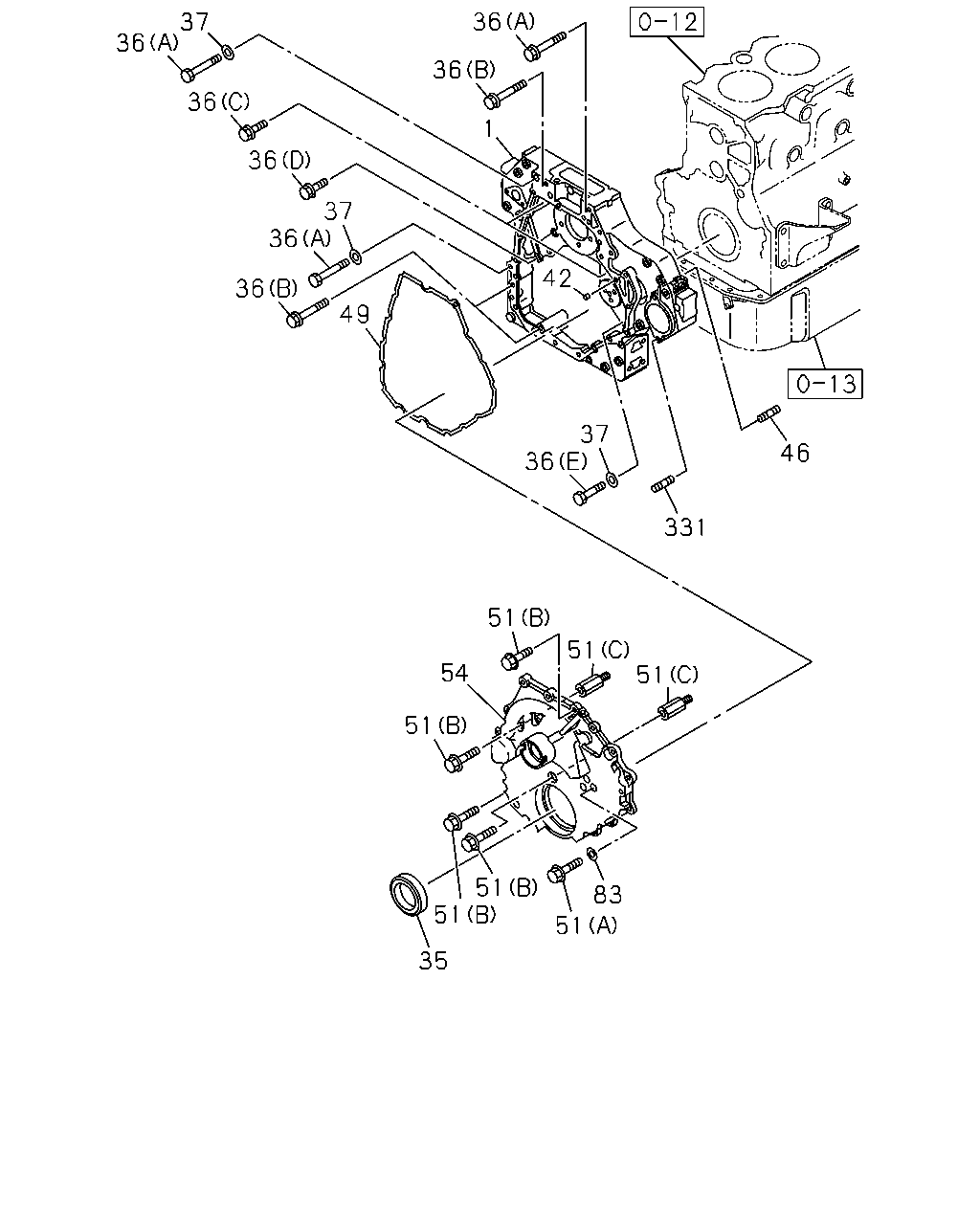

[020A] TIMING GEAR CASE AND COVER (18 parça)

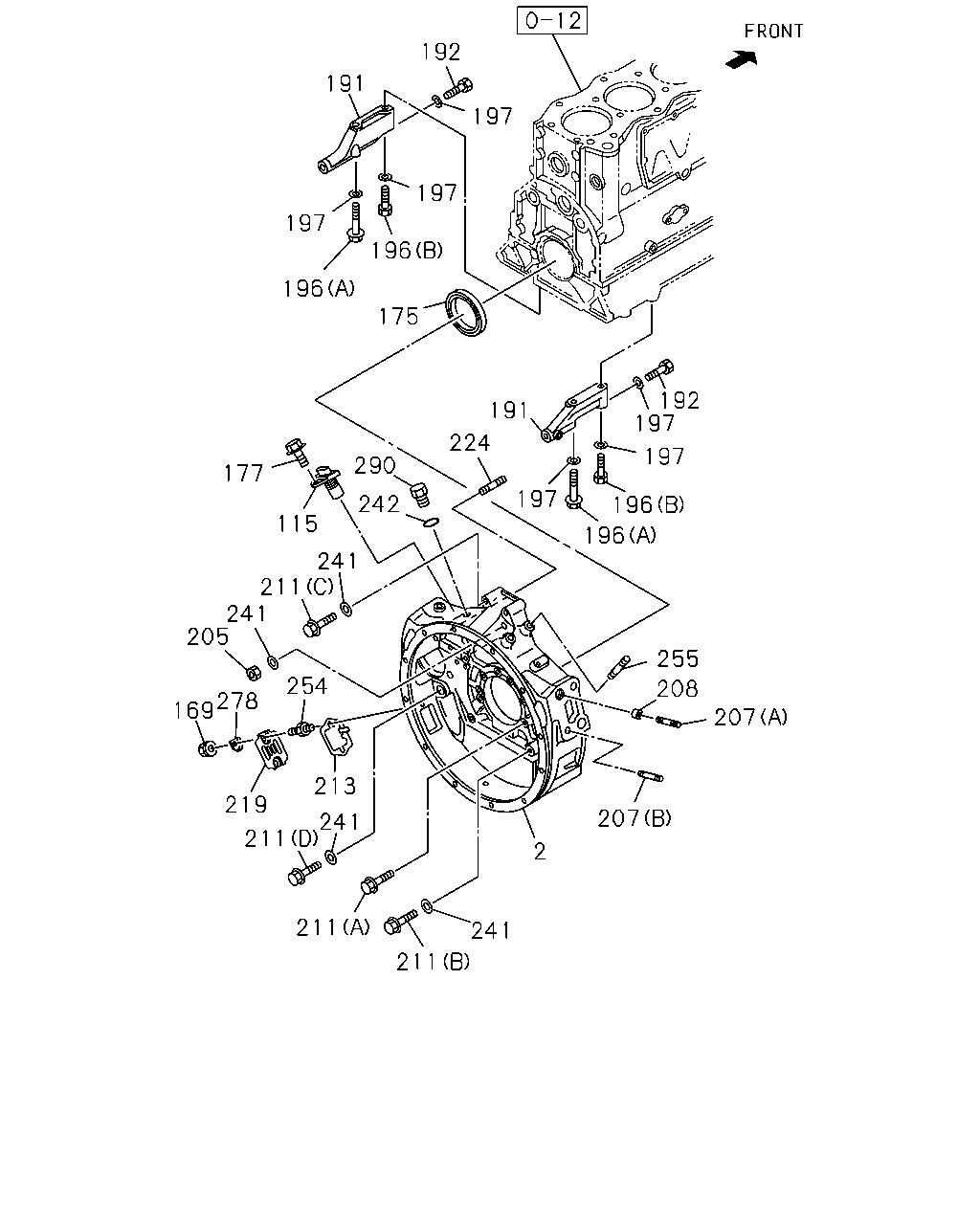

[020A] FLYWHEEL HOUSING AND STAY (29 parça)
▶
46
331
37
36
42
36
36
1
37
36
36
36
37
36
36
49
51
51
51
54
51
83
51
51
51
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-98032-286-5
01
1
1306-1309
1
CASE; TIMING GEAR
8-98249-369-0
01
1
1310-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER
8-97617-308-0
01
1
1306-
36
BOLT; GEAR CASE
(B) M10X100 FLANGE
0-28151-000-0
03
1
1306-
36
BOLT; GEAR CASE
(C) M10X25 FLANGE
0-28151-025-0
04
1
1306-
36
BOLT; GEAR CASE
(D) M10X35 FLANGE
0-28151-035-0
01
1
1306-
36
BOLT; GEAR CASE
(A) M14X110
1-09020-007-0
07
1
1306-
36
BOLT; GEAR CASE
(E) M14X60
1-09020-146-0
01
1
1306-
37
WASHER; PL,GEAR CASE
ID=15 OD=26
0-91614-514-0
08
1
1306-
42
DOWEL; GEAR CASE COVER
1-13119-004-0
01
1
1306-
46
STUD; BRG COVER,RR
M14X45 L=66
0-44011-445-0
01
1
1306-
49
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98061-423-0
01
1
1306-
51
BOLT; GEAR CASE COVER
(A) M8X40
0-10955-840-0
03
1
1306-
51
BOLT; GEAR CASE COVER
(B) M10X30 FLANGE
0-28151-030-0
17
1
1306-
51
BOLT; GEAR CASE COVER
(C) M10X90
8-97603-482-0
03
1
1306-
54
COVER; GEAR CASE
1-11321-174-3
01
1
1306-
83
WASHER; PL,COVER
ID=8.5 OD=20
5-09503-111-0
03
1
1306-
331
STUD; P/S PUMP
M10X28 L=39
8-98178-056-0
02
1
1306-
192
197
191
197
196
197
196
175
177
115
241
211
241
205
254
278
169
219
241
211
213
211
211
241
2
208
207
255
207
192
197
191
197
196
197
290
224
242
196
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-98182-194-0
01
1
1306-1403
2
HOUSING; FLYWHEEL
8-98182-183-2
01
1
1404-
115
SENSOR; REVOLUTION,ENG SPD
8-94390-279-0
01
1
1306-
169
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
1306-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY
8-97617-309-0
01
1
1306-
177
BOLT; SENSOR
M6X16 FLANGE
0-28650-616-0
01
1
1306-
191
STAY; FLYWHEEL HSG
1-11349-196-1
01
1
1306-
191
STAY; FLYWHEEL HSG
1-11349-195-1
01
1
1306-
192
BOLT; STAY TO HSG
M14X135
1-09020-055-0
02
1
1306-
196
BOLT; STAY TO C/BL
(A) M14X100
0-16956-400-0
02
1
1306-
196
BOLT; STAY TO C/BL
(B) M14X70
9-91666-470-0
02
1
1306-
197
WASHER; PL,STAY
ID=15 OD=26
9-09164-514-0
06
1
1306-
205
NUT; HSG
M14
0-91110-514-0
01
1
1306-
207
STUD; ENG FOOT
(B) M18X60 L=96
0-43211-860-0
04
1
1306-
207
STUD; ENG FOOT
(A) M18X80 L=116
0-43211-880-0
04
1
1306-
208
DOWEL; ENG FOOT
1-43249-001-0
04
1
1306-
211
BOLT; HSG
(B) M14X50
0-16956-450-0
02
1
1306-
211
BOLT; HSG
(A) M8X35 FLANGE
0-28050-835-0
08
1
1306-
211
BOLT; HSG
(C) M14X70
9-91666-470-0
02
1
1306-
211
BOLT; HSG
(D) M14X45
9-92361-445-0
10
1
1306-
213
POINTER; FLYWHEEL HSG
1-11327-045-1
01
1
1306-
219
COVER; POINTER
1-11349-131-0
01
1
1306-
224
STUD; STARTER
M14X35 L=56
0-44011-435-0
03
1
1306-
241
WASHER; PL,HSG
ID=15 OD=26
9-09164-514-0
15
1
1306-
242
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
01
1
1306-
254
STUD; POINTER & COVER
M8X14,M8X14 L=33
1-09300-058-1
02
1
1306-
255
STUD; RELAY LEVER BRKT
M12X30 L=48
8-98059-951-0
03
1
1306-
278
WASHER; COVER FIX
1-11349-127-0
01
1
1306-
290
PLUG; SENSOR HOLE
M20X10.5
8-98009-333-0
01
1
1306-
