3-01 — FRONT WHEEL BRAKE (#1244) — 113 parça

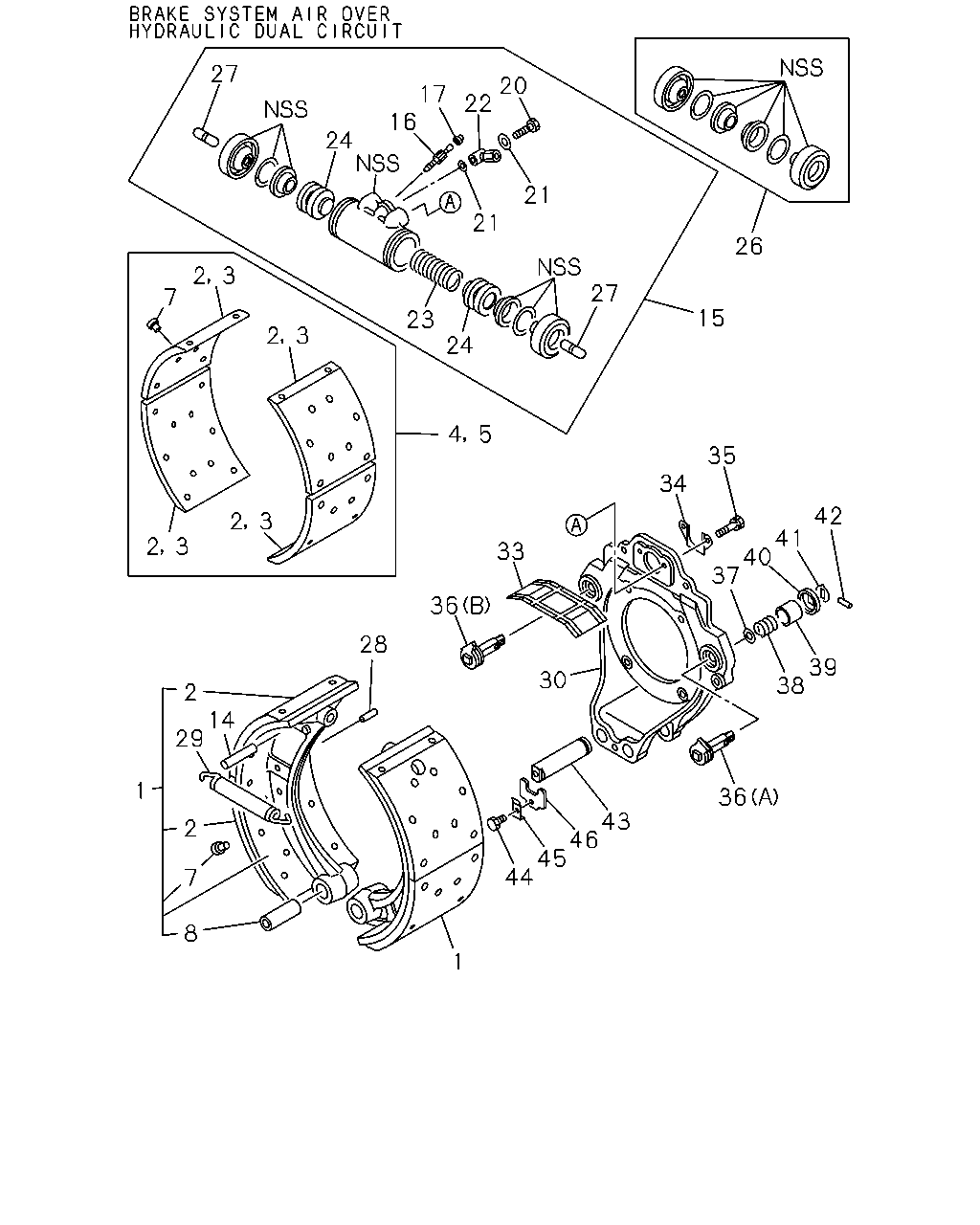

27 20 22 17 16 24 21 21 26 27 2 3 7 15 23 2 3 24 5 4 35 34 42 2 3 41 40 37 2 3 33 36 28 39 38 30 2 14 29 1 36 43 46 45 44 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT	1-87061-766-0	04	1	9202-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-766-0	04	1	9202-		●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9202-		●
2	LINING; FRT BRK SHOE,STANDARD	1-87061-767-0	08	1	9202-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-767-0	08	1	9202-		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	9202-		●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	9202-		●
4	LINING SET; FRT BRK,STANDARD	1-87061-768-0	01	1	9202-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-768-0	01	1	9202-		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-956-0	02	1	9202-		●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-001-0	02	1	9202-		●
7	RIVET; LINING,FRT BRK	1-87061-377-0	80	1	9202-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-377-0	80	1	9202-		●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	9202-		●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	9202-		●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=73.5	1-47119-017-1	04	1	9202-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-690-0	01	1	9202-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-689-0	01	1	9202-		●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	9202-		●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9202-		●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47634-006-0	02	1	9202-		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15.2	1-09630-019-0	02	1	9202-		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	1-09630-020-0	02	1	9202-		●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	9202-		●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09940-435-0	02	1	9202-		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-47624-211-0	04	1	9202-		●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=33.3	1-87830-525-0	02	1	9202-		●
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9202-		●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-87061-313-0	02	1	9202-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87061-313-0	02	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-87061-384-0	04	1	9202-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87061-384-0	04	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9202-		●
30	BRACKET; ANCHOR,FRT	1-87061-770-0	01	1	9202-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-770-0	01	1	9202-		●
30	BRACKET; ANCHOR,FRT	1-87061-769-0	01	1	9202-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-769-0	01	1	9202-		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9202-		●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	9202-		●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	9202-		●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9202-		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9202-		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9202-		●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9202-		●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	04	1	9202-9506		●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-		●
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9202-		●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9202-		●
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9202-		●
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9202-		●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	9202-		●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	9-02041-016-0	02	1	9202-9204		●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20801-016-0	02	1	9205-		●
45	WASHER; LK	1-87061-403-0	08	1	9202-	●
45	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-403-0	08	1	9202-		●
45	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-011-0	02	1	9202-		●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	9202-		●

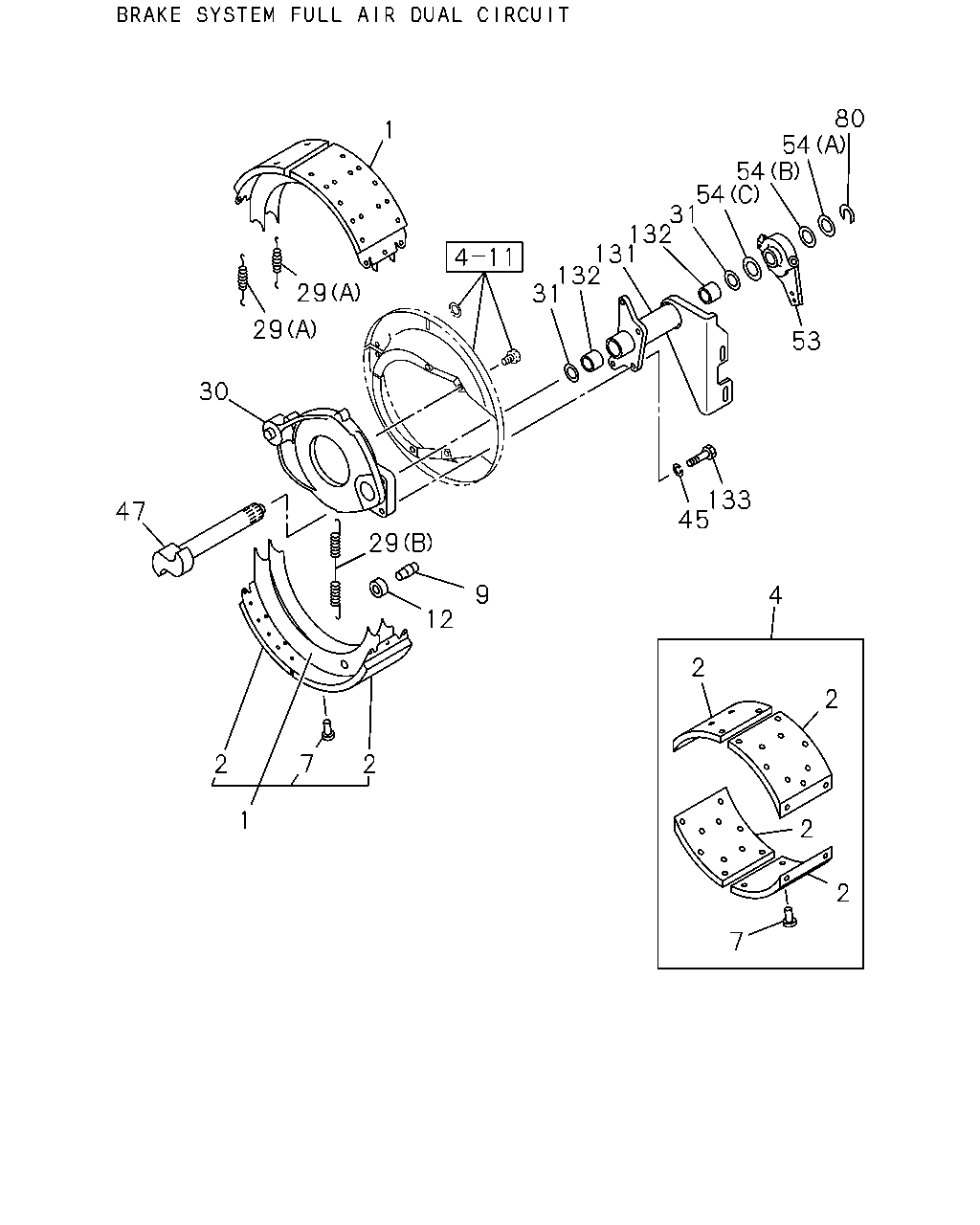

80 1 54 54 54 31 132 131 132 31 29 29 53 30 133 45 47 29 9 4 12 2 2 2 7 2 2 1 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT	1-87061-766-0	04	1	9202-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-766-0	04	1	9202-		●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9202-		●
2	LINING; FRT BRK SHOE,STANDARD	1-87061-767-0	08	1	9202-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-767-0	08	1	9202-		●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	9202-		●
4	LINING SET; FRT BRK,STANDARD	1-87061-768-0	01	1	9202-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-768-0	01	1	9202-		●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-956-0	02	1	9202-		●
7	RIVET; LINING,FRT BRK	1-87061-377-0	80	1	9202-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-377-0	80	1	9202-		●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	80	1	9202-		●
9	PIN; SHOE HOLDER	1-87061-380-0	04	1	9202-	●
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-380-0	04	1	9202-		●
12	ROLLER; CAM,BRK SHOE	1-87061-379-0	04	1	9202-	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-379-0	04	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-87061-313-0	02	1	9202-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87061-313-0	02	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-87061-384-0	04	1	9202-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87061-384-0	04	1	9202-		●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9202-		●
30	BRACKET; ANCHOR,FRT	1-87061-770-0	01	1	9202-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-770-0	01	1	9202-		●
30	BRACKET; ANCHOR,FRT	1-87061-769-0	01	1	9202-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-769-0	01	1	9202-		●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9202-		●
31	SEAL; OIL,CM/SHF	1-87061-386-0	04	1	9202-	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-386-0	04	1	9202-		●
45	WASHER; LK	1-87061-403-0	08	1	9202-	●
45	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-403-0	08	1	9202-		●
45	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-011-0	02	1	9202-		●
47	CAMSHAFT; FRT BRK	1-87061-778-0	01	1	9202-	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-778-0	01	1	9202-		●
47	CAMSHAFT; FRT BRK	1-87061-777-0	01	1	9202-	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-777-0	01	1	9202-		●
53	ADJUSTER ASM; SLACK	1-87061-776-0	01	1	9202-	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-776-0	01	1	9202-		●
53	ADJUSTER ASM; SLACK	1-87061-775-0	01	1	9202-	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-775-0	01	1	9202-		●
54	SPACER; CM/SHF (A)	1-87061-368-0	04	1	9202-	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87061-368-0	04	1	9202-		●
54	SPACER; CM/SHF (B)	1-87061-374-0	02	1	9202-	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87061-374-0	02	1	9202-		●
54	SPACER; CM/SHF (C)	1-87061-381-0	02	1	9202-	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-87061-381-0	02	1	9202-		●
80	RING; SNAP,CM/SHF	1-87061-388-0	02	1	9202-	●
80	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-388-0	02	1	9202-		●
131	BRACKET; POWER CHAMBER	1-87061-772-0	01	1	9202-	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-772-0	01	1	9202-		●
131	BRACKET; POWER CHAMBER	1-87061-771-0	01	1	9202-	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-771-0	01	1	9202-		●
132	BUSHING; BRKT	1-87061-312-0	04	1	9202-	●
132	BUSHING; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-312-0	04	1	9202-		●
133	BOLT; BRKT	1-87061-378-0	08	1	9202-	●
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-378-0	08	1	9202-		●
