9-01 — TOOLS (#124393) — 104 parça

167 165 163 163 163 163 160 156 154 153 143 145 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1306-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1306-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	1306-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1306-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1306-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1306-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1306-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1306-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1306-
163	TOOL; SETTING MJT7S M/T(Y3E) (D) L=150	1-85221-163-0	01	1	1306-
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1306-
163	TOOL; SETTING (B)	9-85221-231-0	01	1	1306-
163	TOOL; SETTING MJT7S M/T(Y3E) (A) OD=150	1-85221-167-0	01	1	1306-
165	SETTING TOOL; PTO MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	1306-
167	ALIGNER; CLU PILOT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5	1-85253-025-0	01	1	1306-

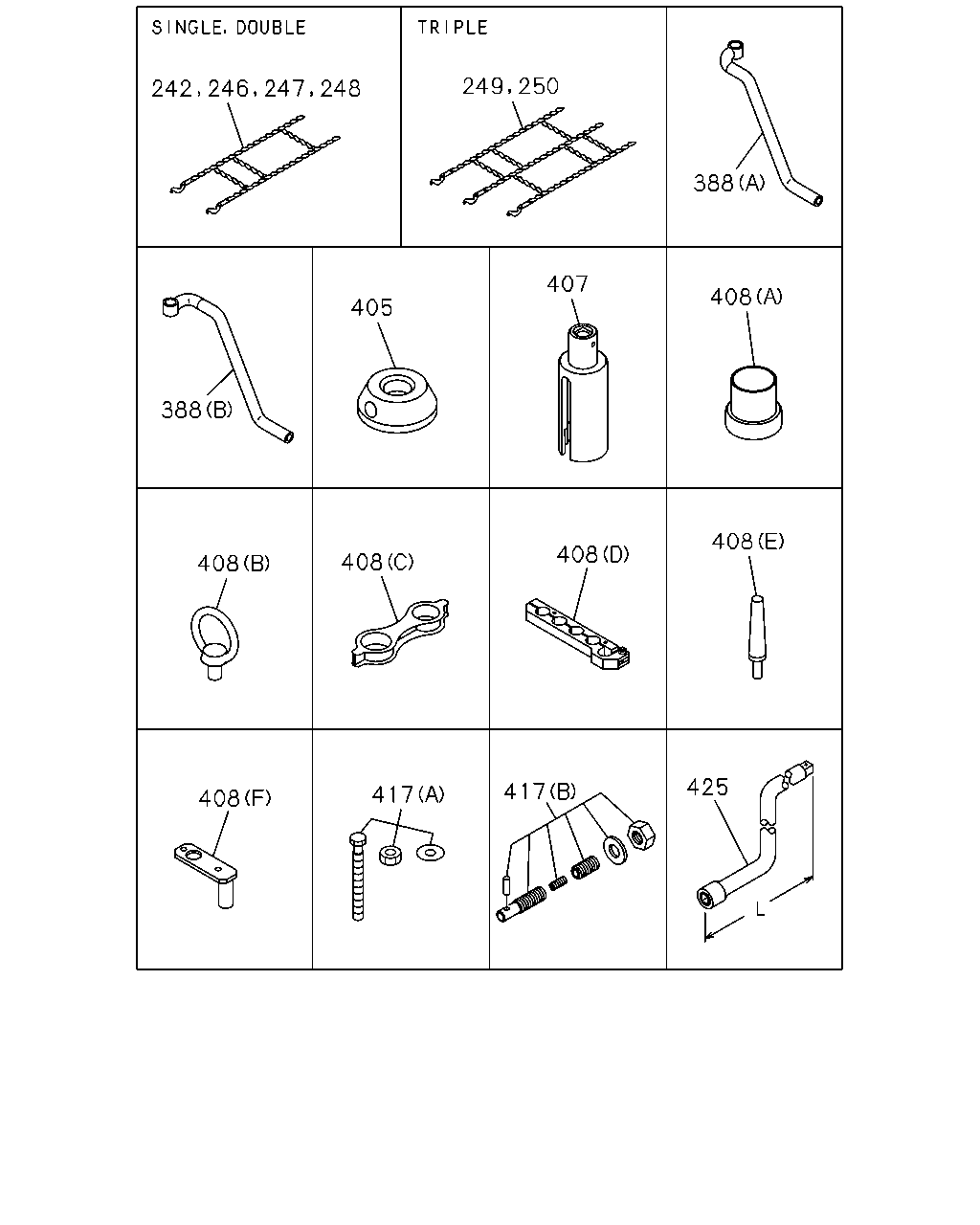

242 246 247 248 249 250 388 388 405 407 408 408 408 408 408 408 417 417 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1306-
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1306-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1306-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1306-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1306-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1306-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1306-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1306-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1306-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1306-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1306-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1306-
405	GUIDE; COUNTER	1-85221-264-0	01	1	1306-
407	SOCKET; SW	1-85221-267-1	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-262-0	02	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (F)	1-85221-257-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (C)	1-85221-259-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (D)	1-85221-260-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-85221-268-0	01	1	1306-
408	TOOL; SETTING,SHIFT ASSISTER TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-85221-269-0	01	1	1306-
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 2-SETS	1-85576-329-1	01	1	1306-
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 3-SETS	1-85576-330-1	01	1	1306-
417	BOLT; CHAMBER RELEASE (B)	1-85576-378-1	01	1	1306-
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=500	8-98300-004-0	01	1	1602-
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550	1-85221-321-0	01	1	1306-1601
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550	8-98300-006-0	01	1	1602-

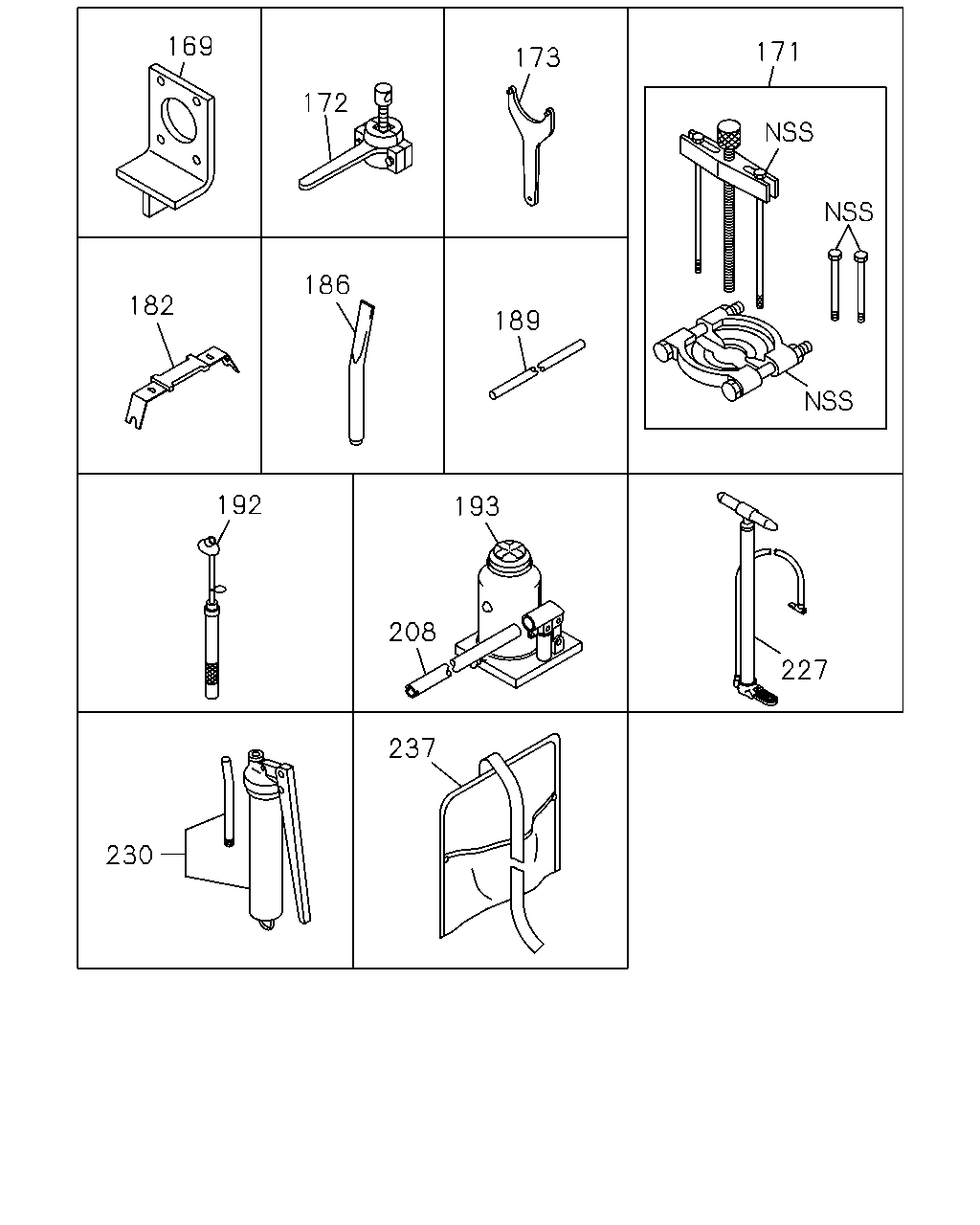

171 227 237 208 193 230 192 182 186 189 172 169 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1306-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1306-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1306-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1306-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	1306-
182	REMOVER ASM	1-85239-008-0	01	1	1306-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1306-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1306-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1306-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1306-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1306-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1306-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	1306-
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	1306-

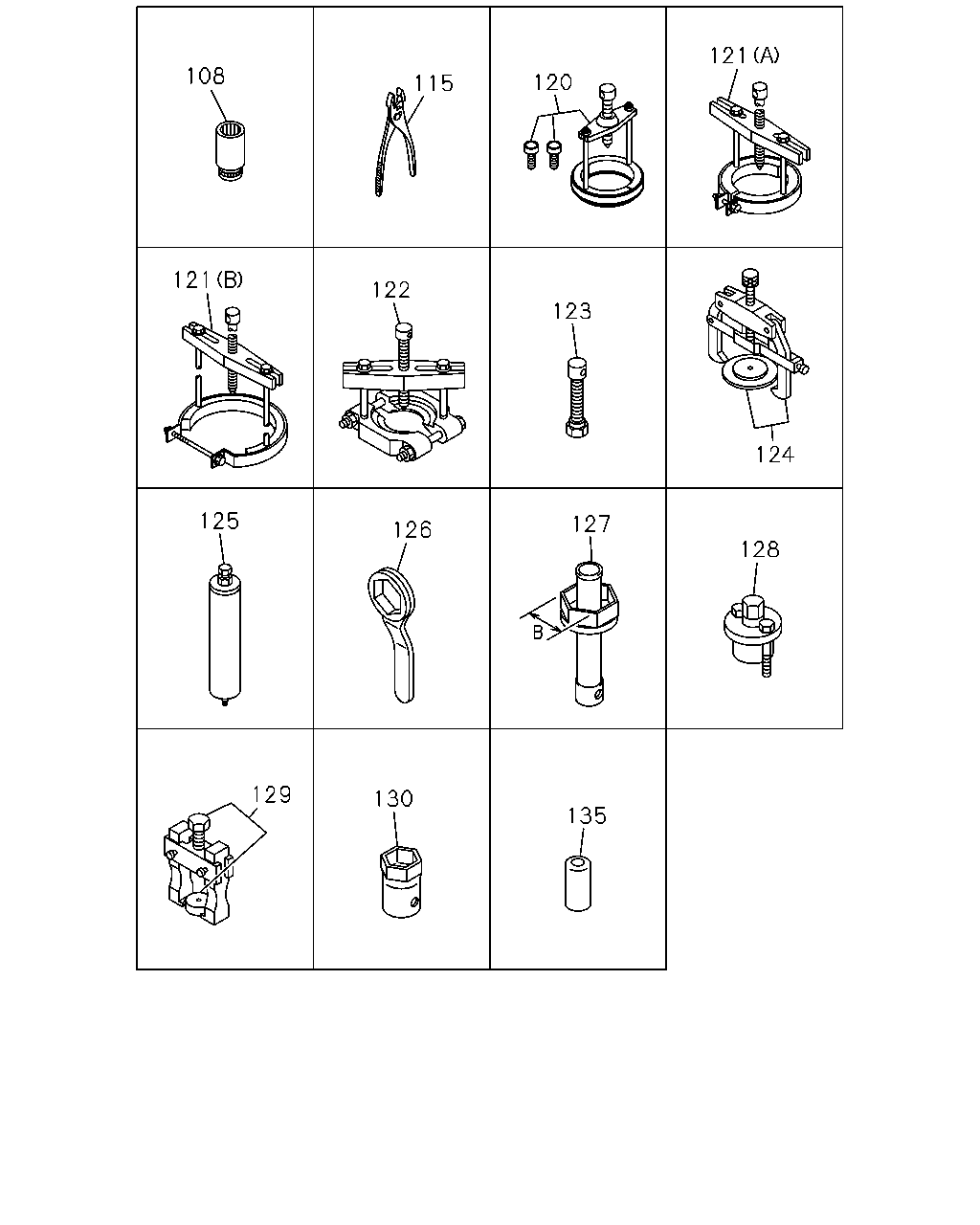

108 115 120 121 124 128 127 123 122 126 130 129 125 121 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1306-
108	WRENCH; SOCKET	9-85113-132-0	01	1	1306-
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	1306-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1306-
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	1306-
121	PULLER ASM; COUNTER REAR MJT7S M/T(Y3E) (A) OD=146	1-85210-074-0	01	1	1306-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1306-
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E)	9-85210-091-0	01	1	1306-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1306-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1306-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1306-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1306-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	1306-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1306-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1306-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1306-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1306-

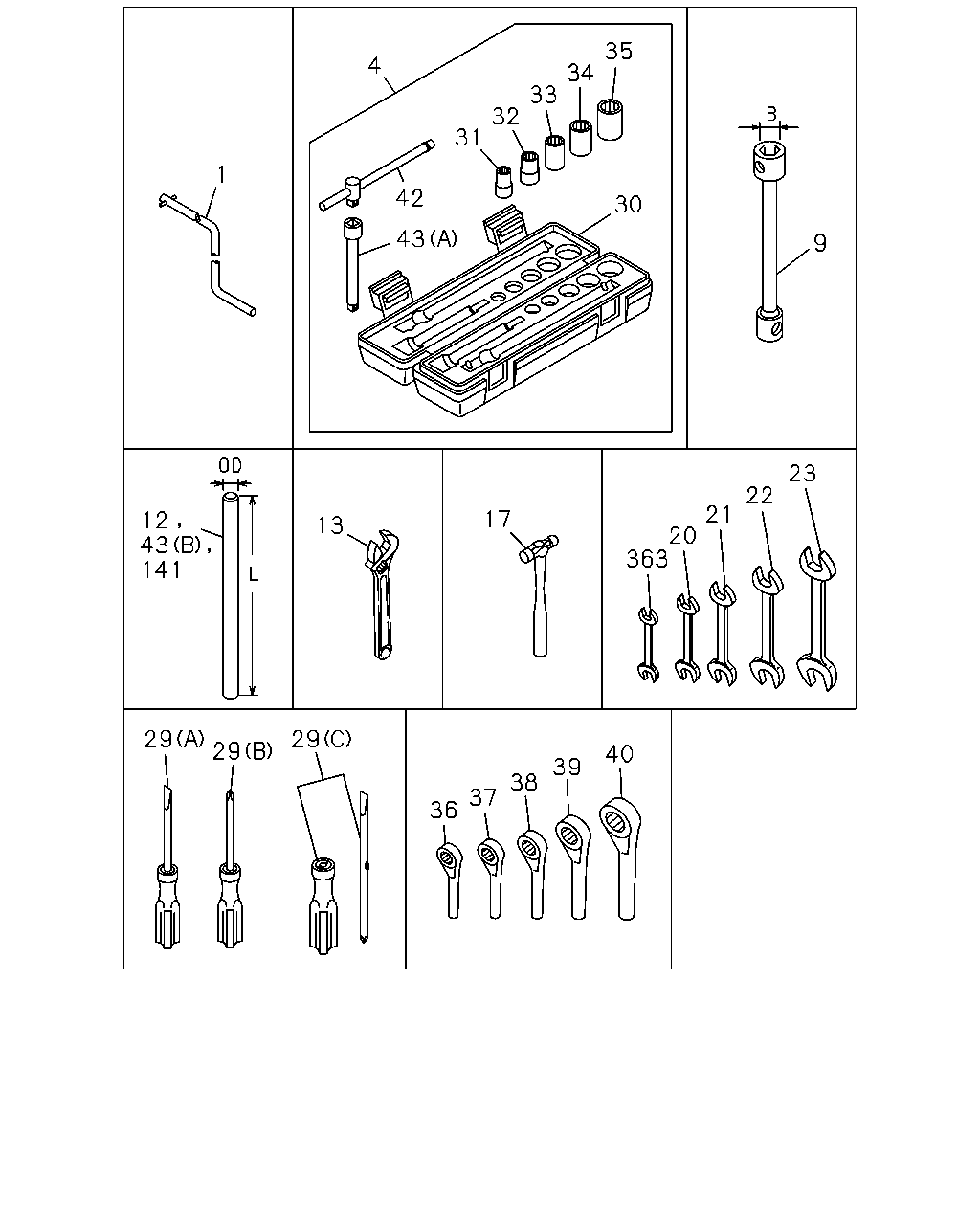

1 4 9 43 42 31 32 33 4 35 30 12 141 43 13 17 23 22 21 20 363 40 39 38 37 36 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	1306-
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1306-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1306-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1306-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1306-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	1306-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1306-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1306-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1306-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1306-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1306-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1306-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1306-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1306-
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1306-
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1306-
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1306-
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1306-
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1306-
36	WRENCH; 24	9-85111-377-0	01	1	1306-
37	WRENCH; 27	9-85111-375-0	01	1	1306-
38	WRENCH; 32	9-85111-358-0	01	1	1306-
39	WRENCH; 36	9-85111-374-0	01	1	1306-
40	WRENCH; 41	9-85111-356-0	01	1	1306-
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1306-
43	BAR; EXTENSION,SOCKET WRENCH (B) OD=25 L=480	8-98257-407-0	01	1	1502-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1306-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1306-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1306-
