Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

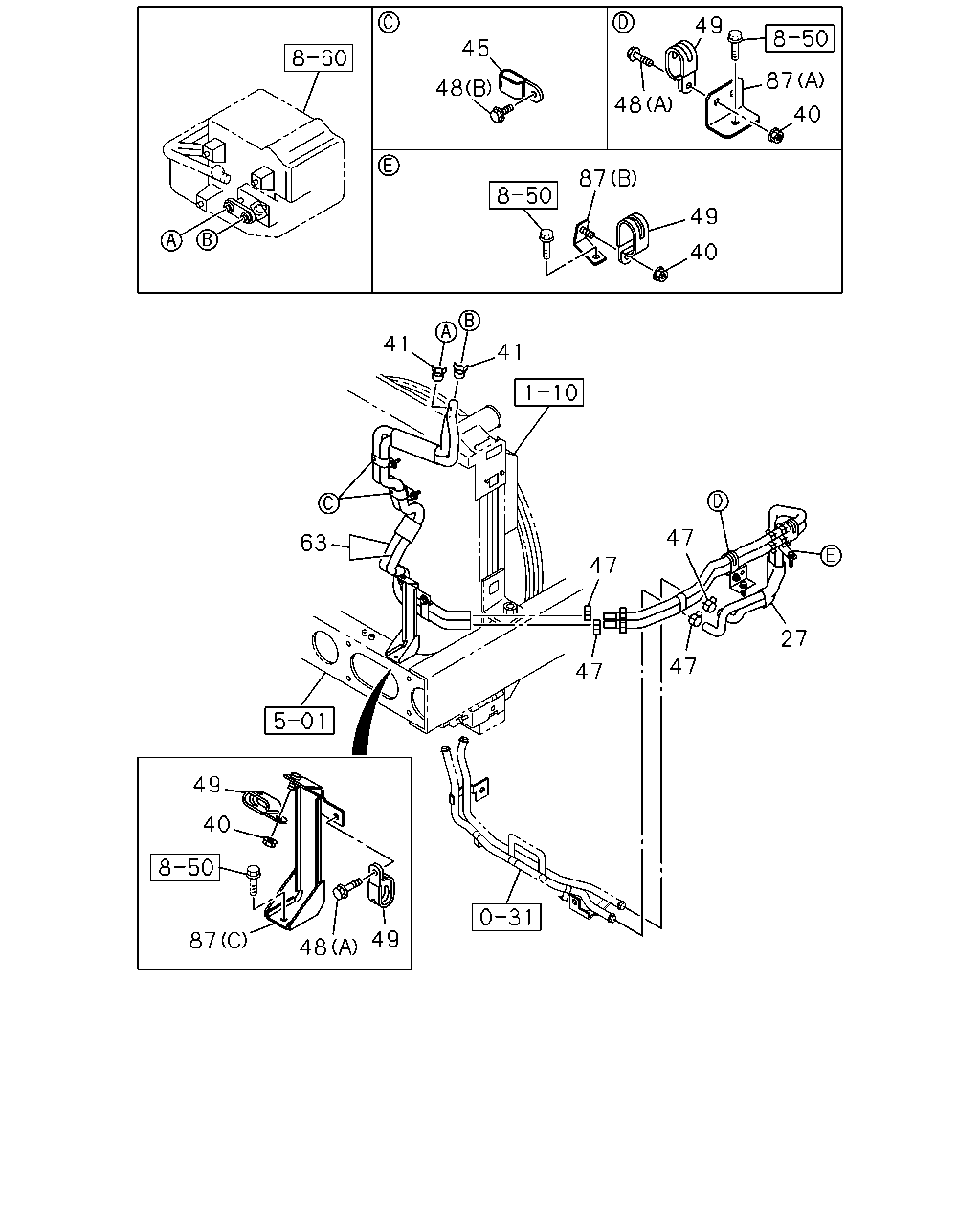

8-45 — HEATER PIPING
(#124383) — 12 parça
48
45
48
49
87
40
49
40
87
41
41
63
49
40
87
48
49
47
47
47
47
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98223-223-1
01
1
1306-
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
03
1
1306-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1306-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
1306-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1306-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1306-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
04
1
1306-
63
HOSE; WATER
8-98226-525-1
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-251-1
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98225-548-0
01
1
1306-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98239-443-0
01
1
1306-
