8-40 — HEATER SYSTEM (#124382) — 40 parça

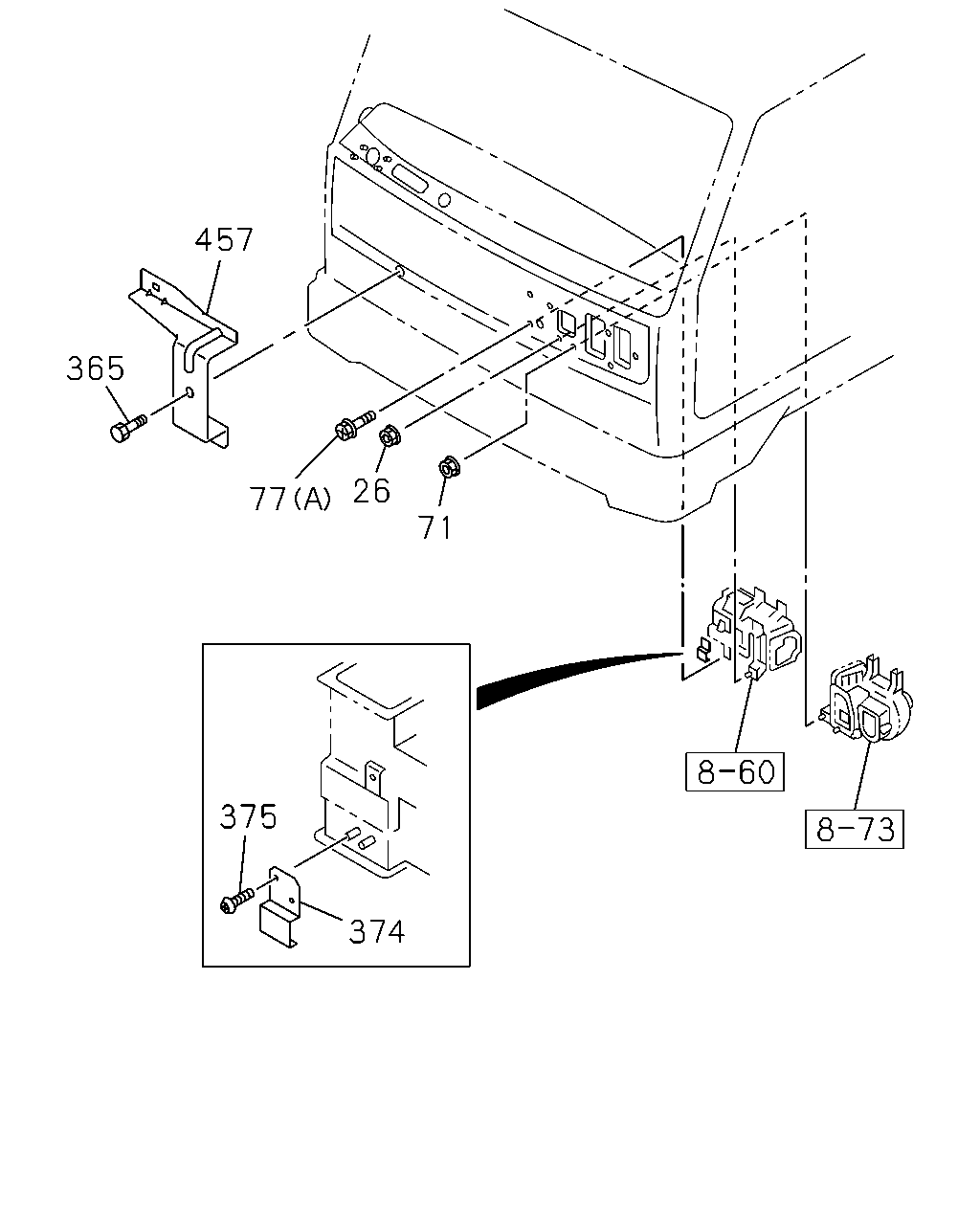

457 365 77 26 71 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1306-
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1306-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-09980-598-1	02	1	1306-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-
374	HOLDER; DUCT	1-76398-012-1	01	1	1306-
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	1306-
457	BRACKET; SENSOR	1-71907-603-1	01	1	1306-

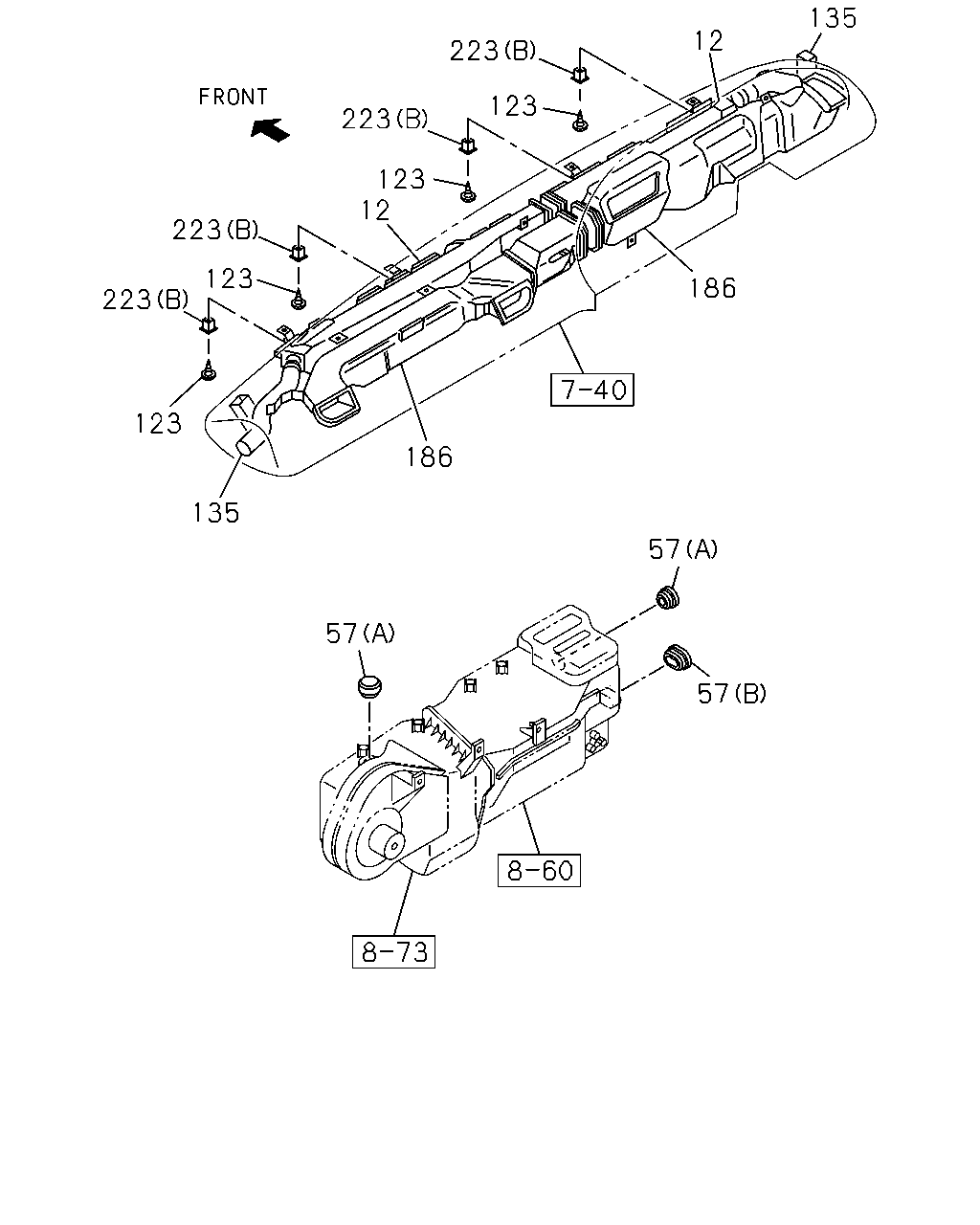

57 57 57 186 186 135 123 223 123 223 12 12 135 123 223 223 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	1306-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	1306-
57	COVER; INL DUCT CENTER SEAT(SA1) (A)	1-83579-617-0	02	1	1306-
57	COVER; INL DUCT CENTER SEAT(SA1) (B)	1-83579-618-0	01	1	1306-
123	SCREW; DUCT M5X14	8-94279-325-0	04	1	1306-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	1306-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	1306-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	1306-
186	DUCT; VENTILATOR	1-76377-243-1	01	1	1306-
186	DUCT; VENTILATOR	1-76377-246-0	01	1	1306-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	1306-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1306-

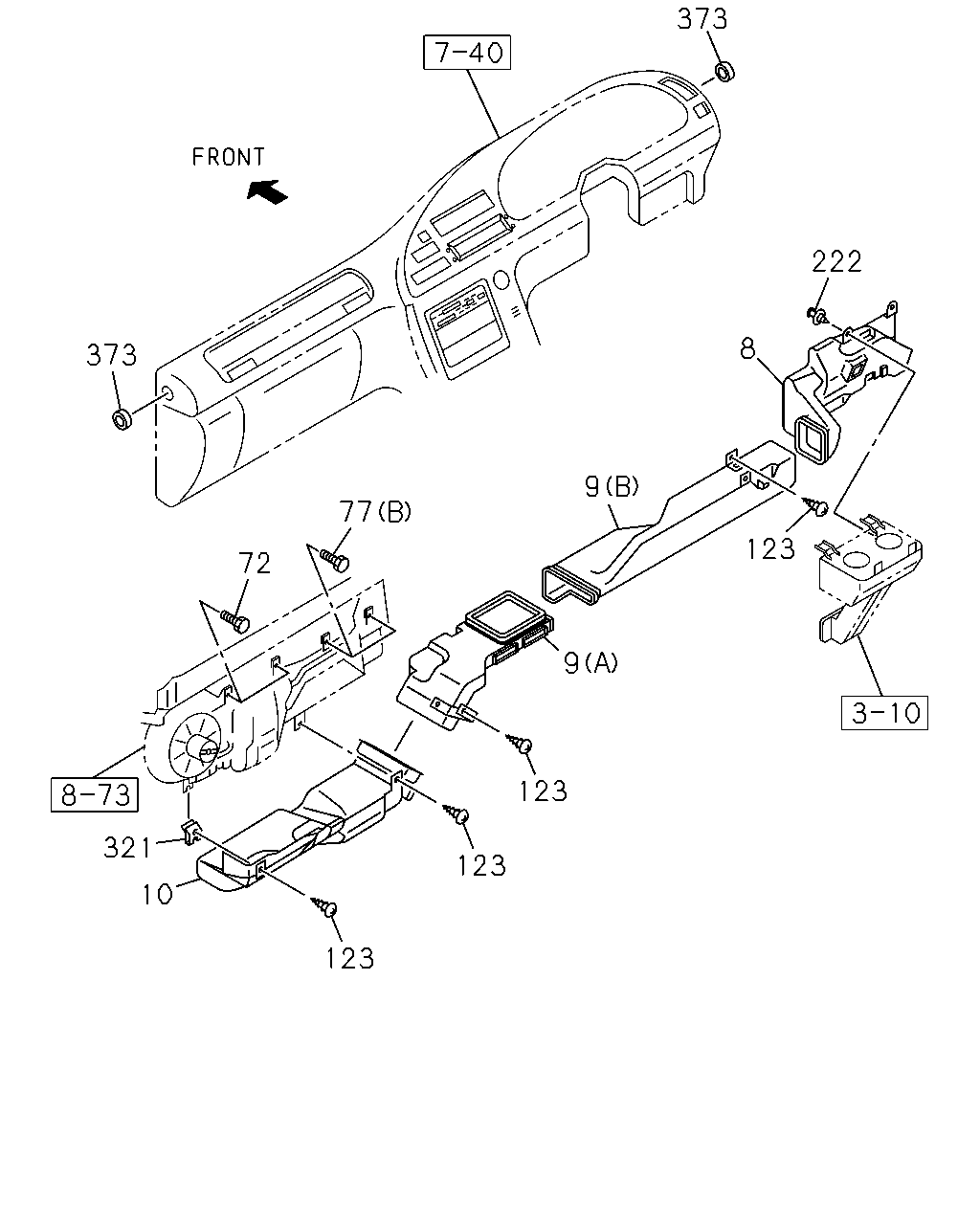

123 123 123 9 9 123 8 222 10 321 72 77 373 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	1306-
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	1306-
9	DUCT; HTR AIR,FOOT CENTER (A)	1-76377-226-2	01	1	1306-
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	1306-
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-09980-598-1	02	1	1306-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-
123	SCREW; DUCT M5X14	8-94279-325-0	04	1	1306-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	1306-
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	1306-
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	1306-
373	RUBBER; JOINT	1-76378-291-0	02	1	1306-

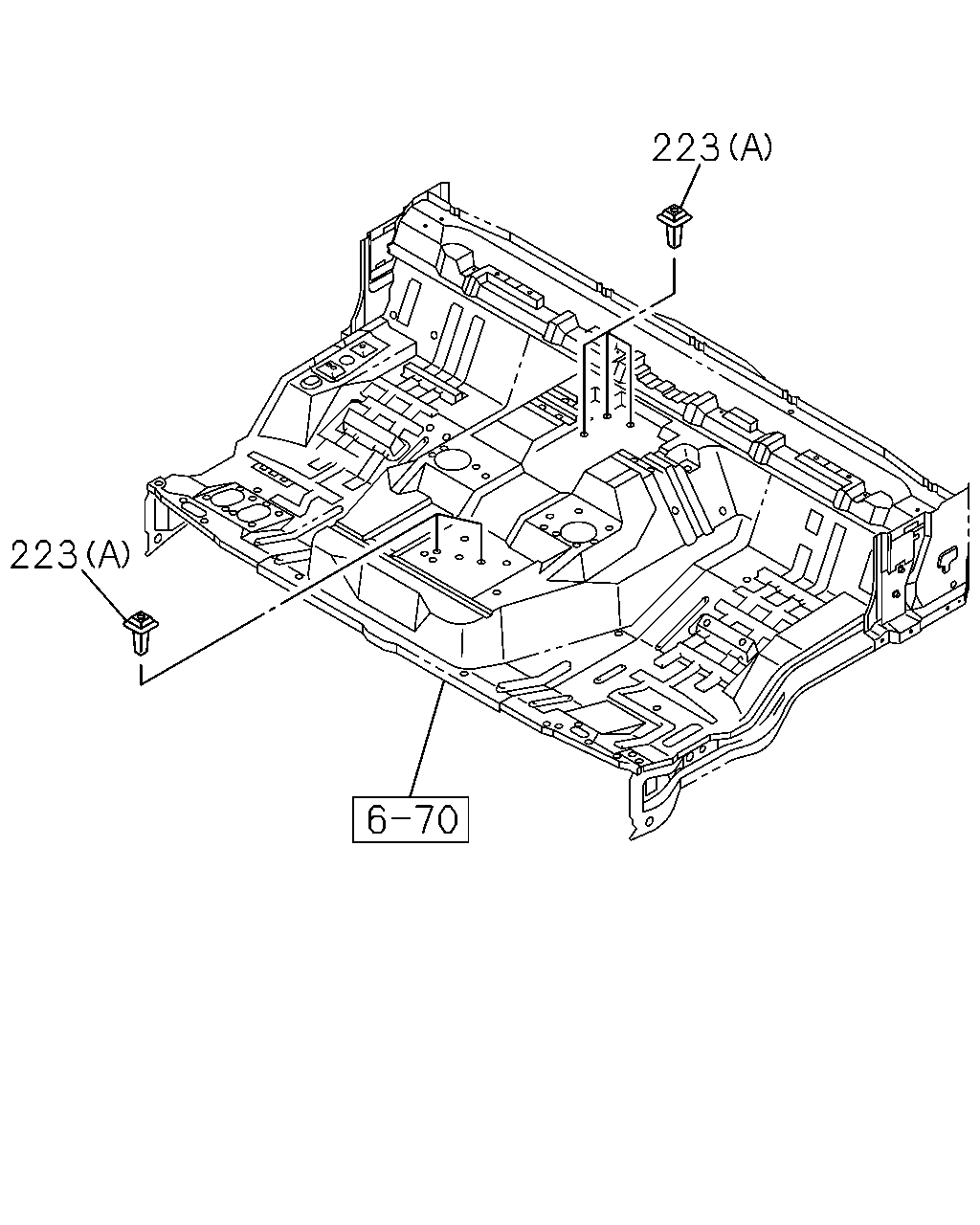

223 223

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	1306-
	223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1306-

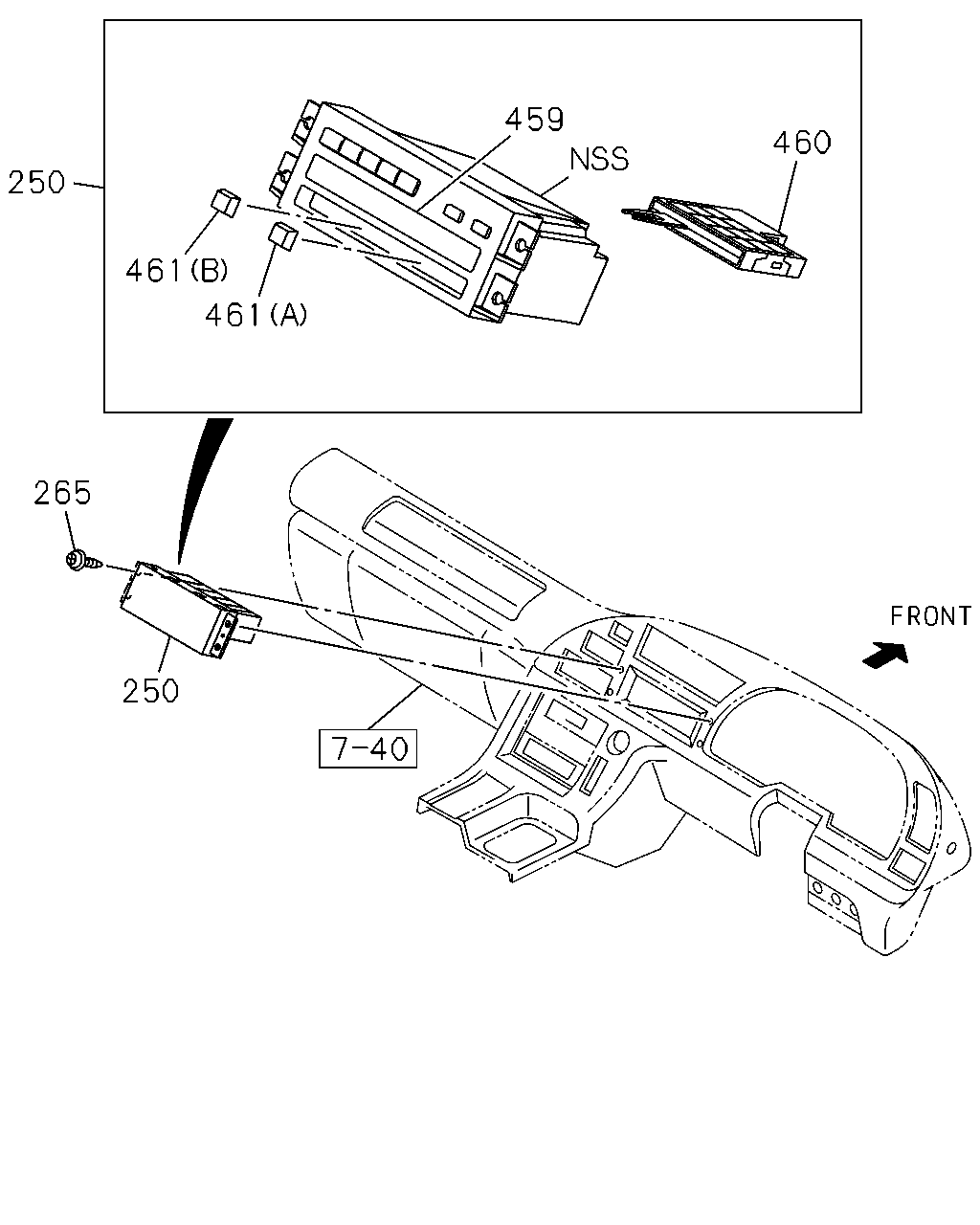

250 461 461 459 460 265 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98034-326-0	01	1	1306-
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	1306-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	1306-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	1306-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	1306-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	1306-
