◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#124381) — 124 parça

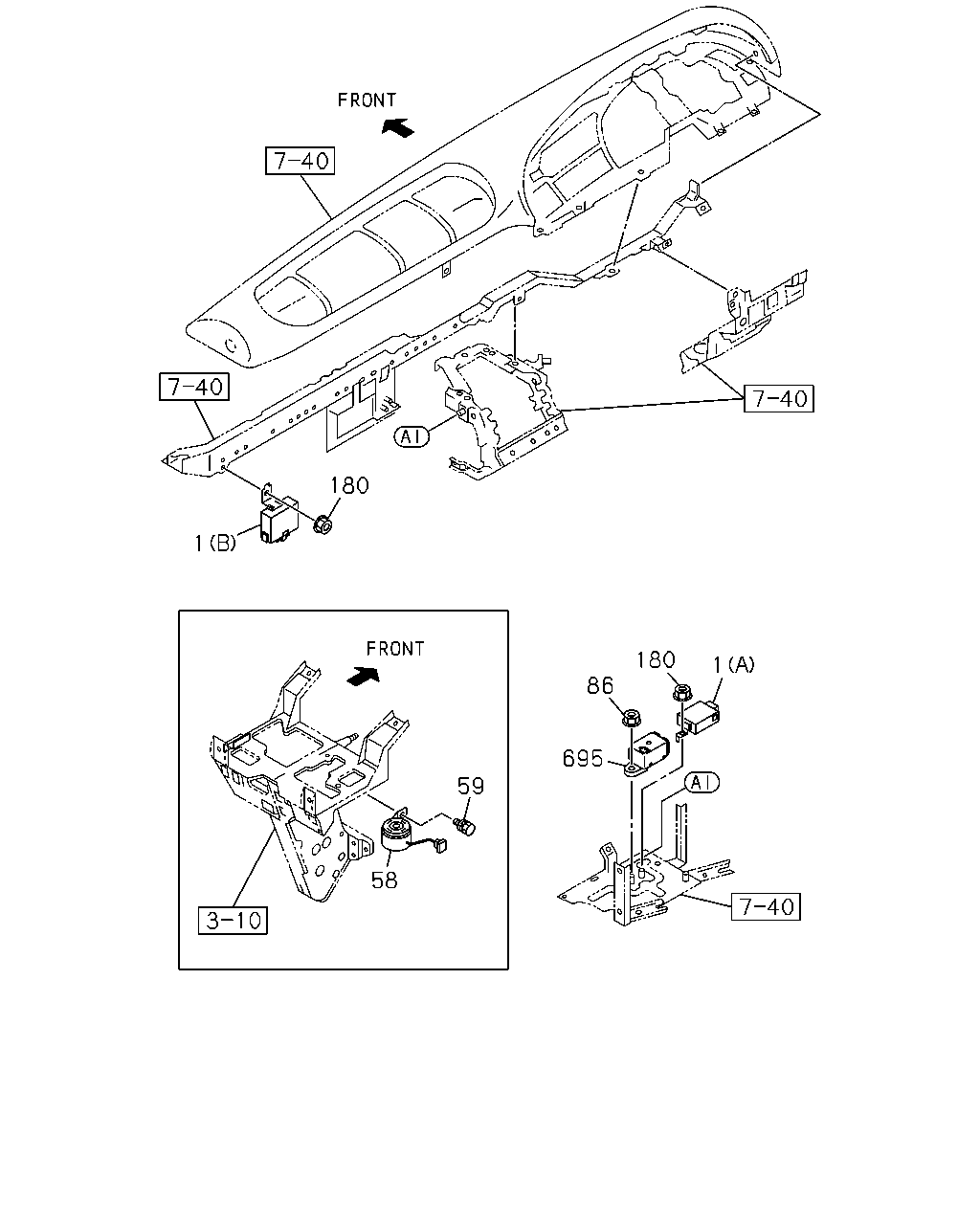

çizim 363737
1 180 59 58 695 86 180 1
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
FULL TRACTOR TRUCK<RD6> (B) 		8-97613-970-1 01 1 1306-
1 UNIT; FLASHER
EXC. FULL TRACTOR TRUCK<RD6> (A) 		8-98025-533-1 01 1 1306-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 1306-
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 1306-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1306-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 1306-
695 ALARM; OVER HEAT 1-83460-051-1 01 1 1306-

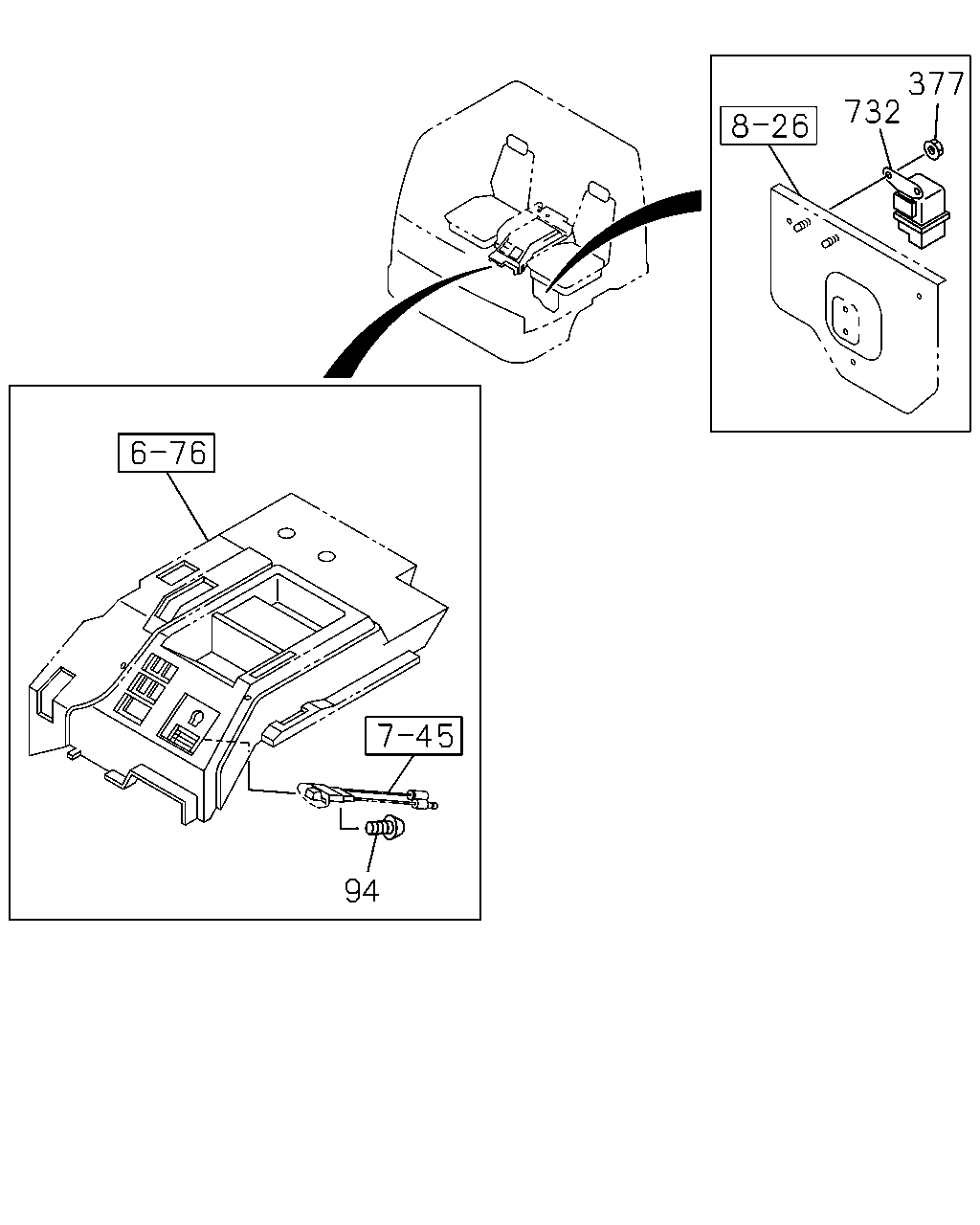

çizim 363833
94 732 377
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 1306-
377 NUT; RELAY
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 1306-
732 RELAY; EDS
SMOOTHER-G(C1W) 		1-82550-337-1 01 1 1306-

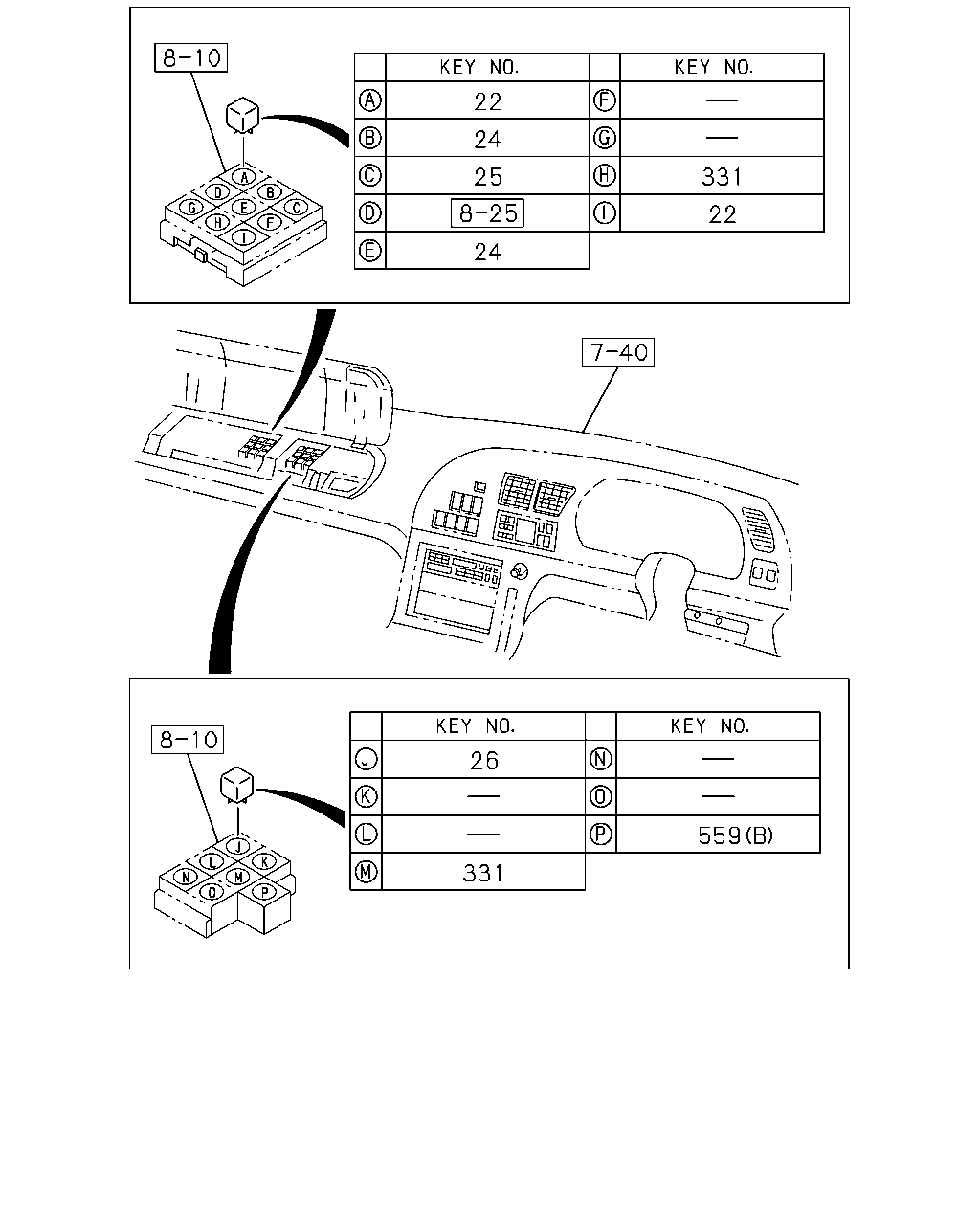

çizim 363898
22 24 25 24 331 22 26 331 559
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1306-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1306-
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-

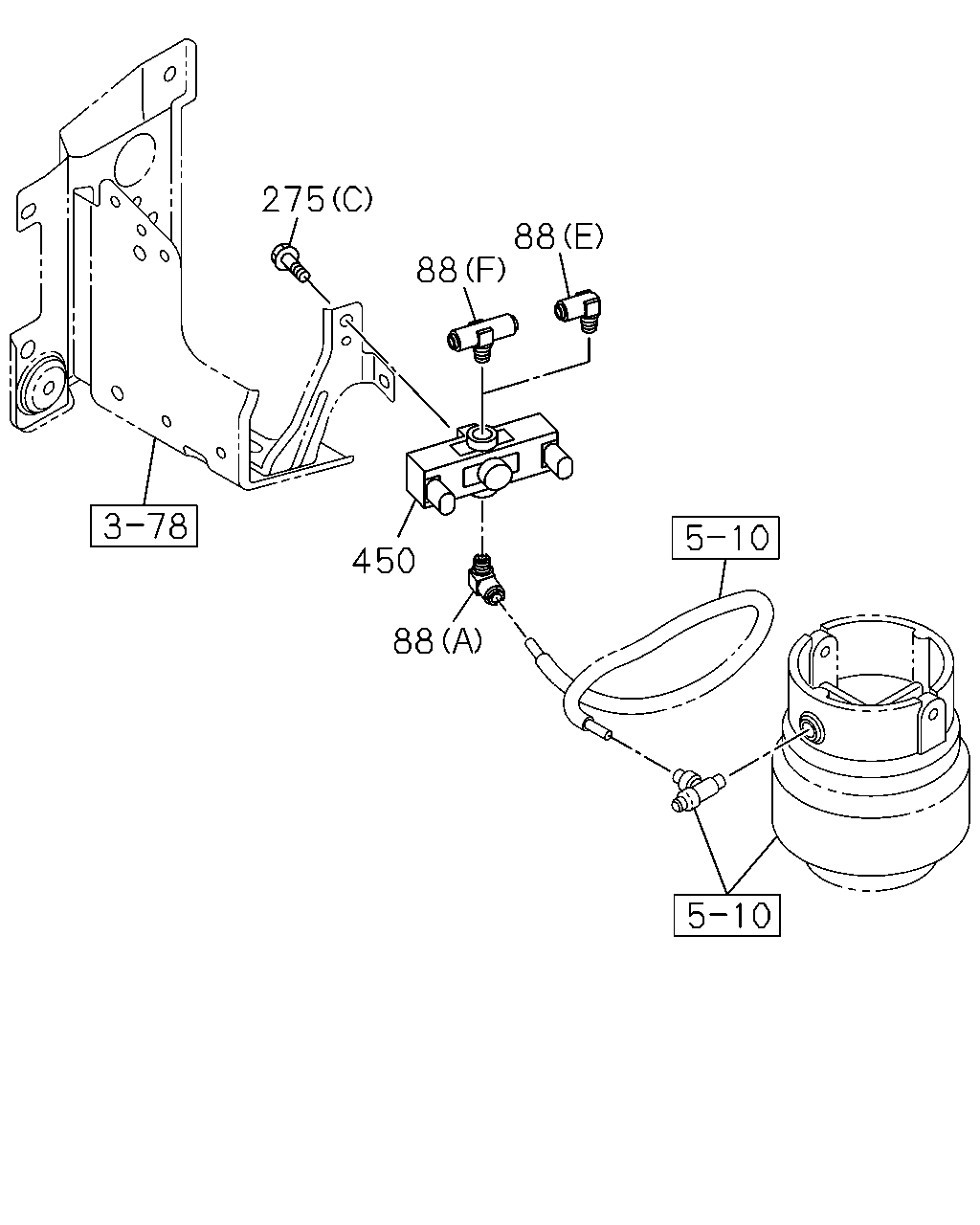

çizim 363925
275 88 88 450 88
BalonParca AdiParca NoAdetTipApplied Date
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 02 1 1306-1411
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJT7S M/T(Y3E) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) 		1-09661-073-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (F) 		1-09661-073-0 01 1 1306-1411
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
275 BOLT; BRKT
FULL FLOATING CAB(W16) (C) M8X12 FLANGE 		0-28050-812-0 01 1 1306-1411
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 1306-1411
450 VALVE; MAG
FULL FLOATING CAB(W16) 		1-53458-378-2 02 1 1306-1411

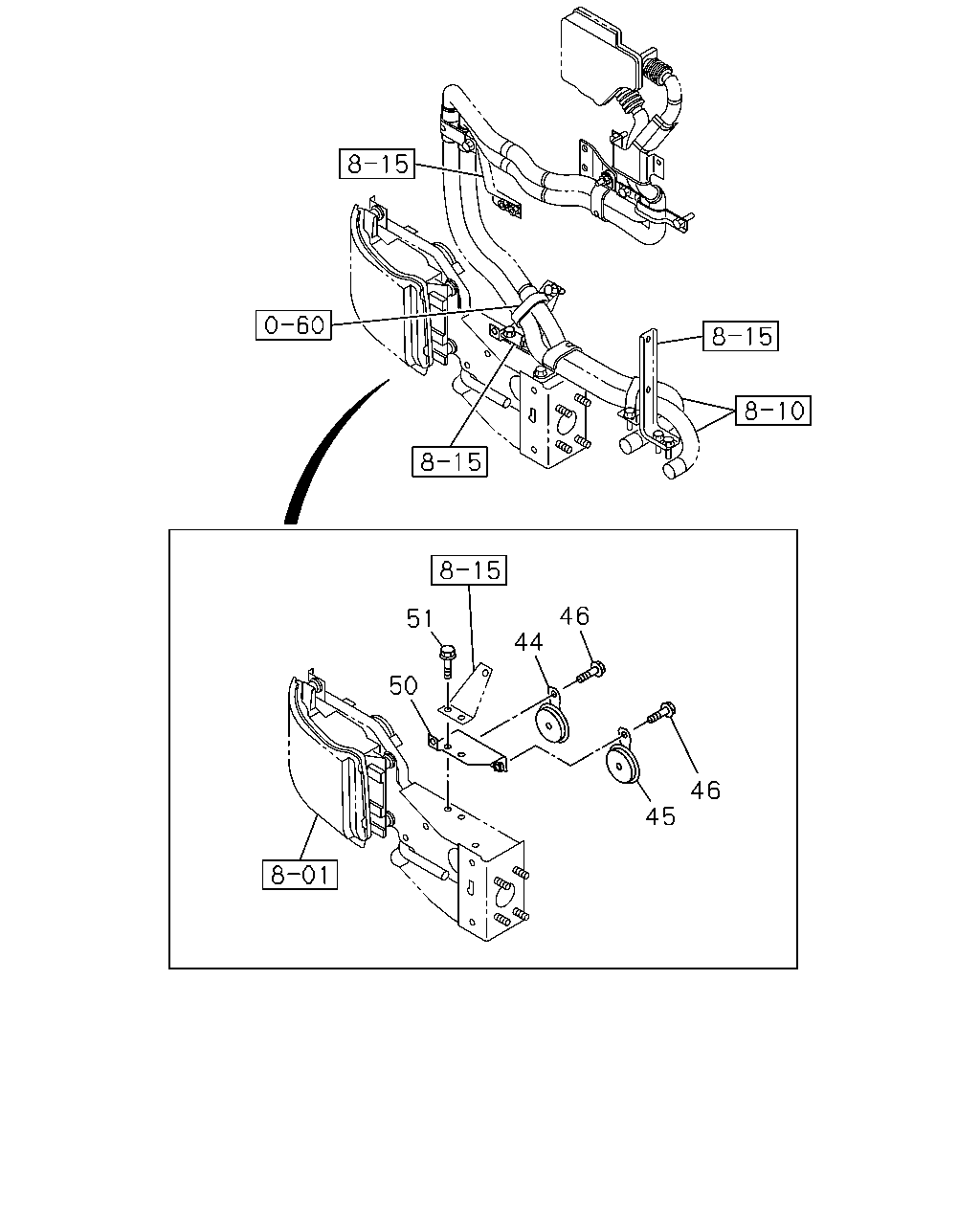

çizim 363958
45 50 51 44 46 46
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 1-83410-061-1 01 1 1306-
45 HORN; LOW NOTE 1-83410-062-1 01 1 1306-
46 BOLT; HORN TO BODY
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306-
50 BRACKET; HORN 8-98210-372-0 01 1 1306-
51 BOLT; HORN TO BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-

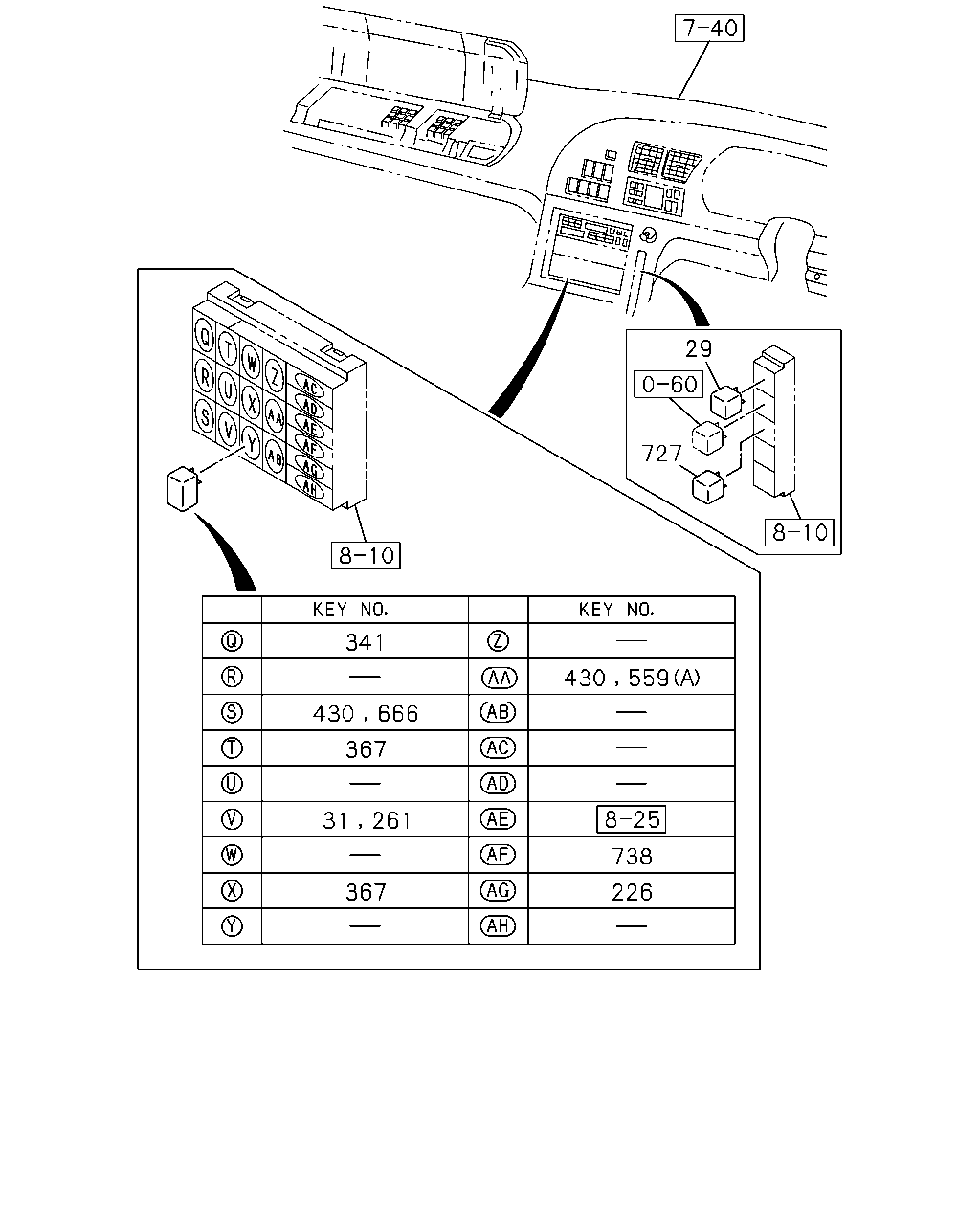

çizim 365431
29 727 341 430 666 367 31 261 367 430 559 738 226
BalonParca AdiParca NoAdetTipApplied Date
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
31 RELAY; PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
226 RELAY; EXH BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1306-
341 RELAY
FULL FLOATING CAB(W16) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-1411
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
367 RELAY; NEUTRAL
SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
430 RELAY; RANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 24V 10A PANASONIC 		8-97173-035-1 03 1 1306-
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
666 RELAY; STARTER
SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-

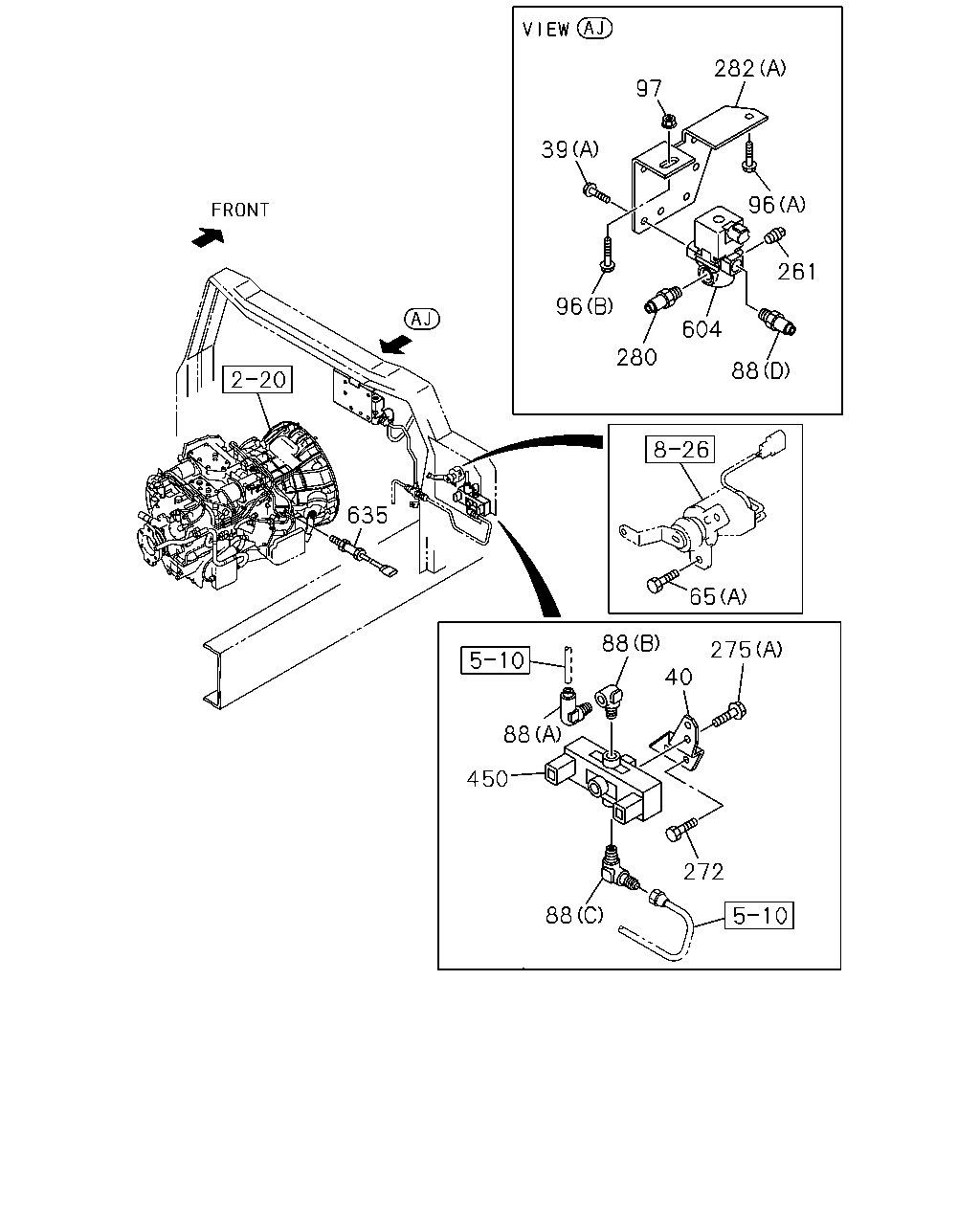

çizim 365437
635 282 97 39 96 280 88 604 261 96 65 88 40 275 88 450 272 88
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) 		1-53458-380-0 01 1 1306-1411
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X25 FLANGE 		0-28050-625-0 02 1 1306-1411
65 BOLT; SOCKET FIX
FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 02 1 1306-1411
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJT7S M/T(Y3E) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) 		1-09661-073-0 01 1 1306-1411
88 CONNECTOR; MAG VLV
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (F) 		1-09661-073-0 01 1 1306-1411
96 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
96 BOLT; BRKT FIX
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
96 BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
97 NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 04 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1306-
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X25 FLANGE 		0-28651-025-0 02 1 1306-1411
272 BOLT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE 		0-28651-030-0 02 1 1306-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
275 BOLT; BRKT
FULL FLOATING CAB(W16) (C) M8X12 FLANGE 		0-28050-812-0 01 1 1306-1411
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 1306-1411
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
282 BRACKET; MAG VLV
(A) 		1-82569-277-2 01 1 1306-
282 BRACKET; MAG VLV
(B) 		1-82569-421-0 01 1 1306-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1306-
450 VALVE; MAG
FULL FLOATING CAB(W16) 		1-53458-378-2 02 1 1306-1411
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 1306-
635 SENSOR; PICK UP,INPUT SHAFT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-81510-736-1 01 1 1306-

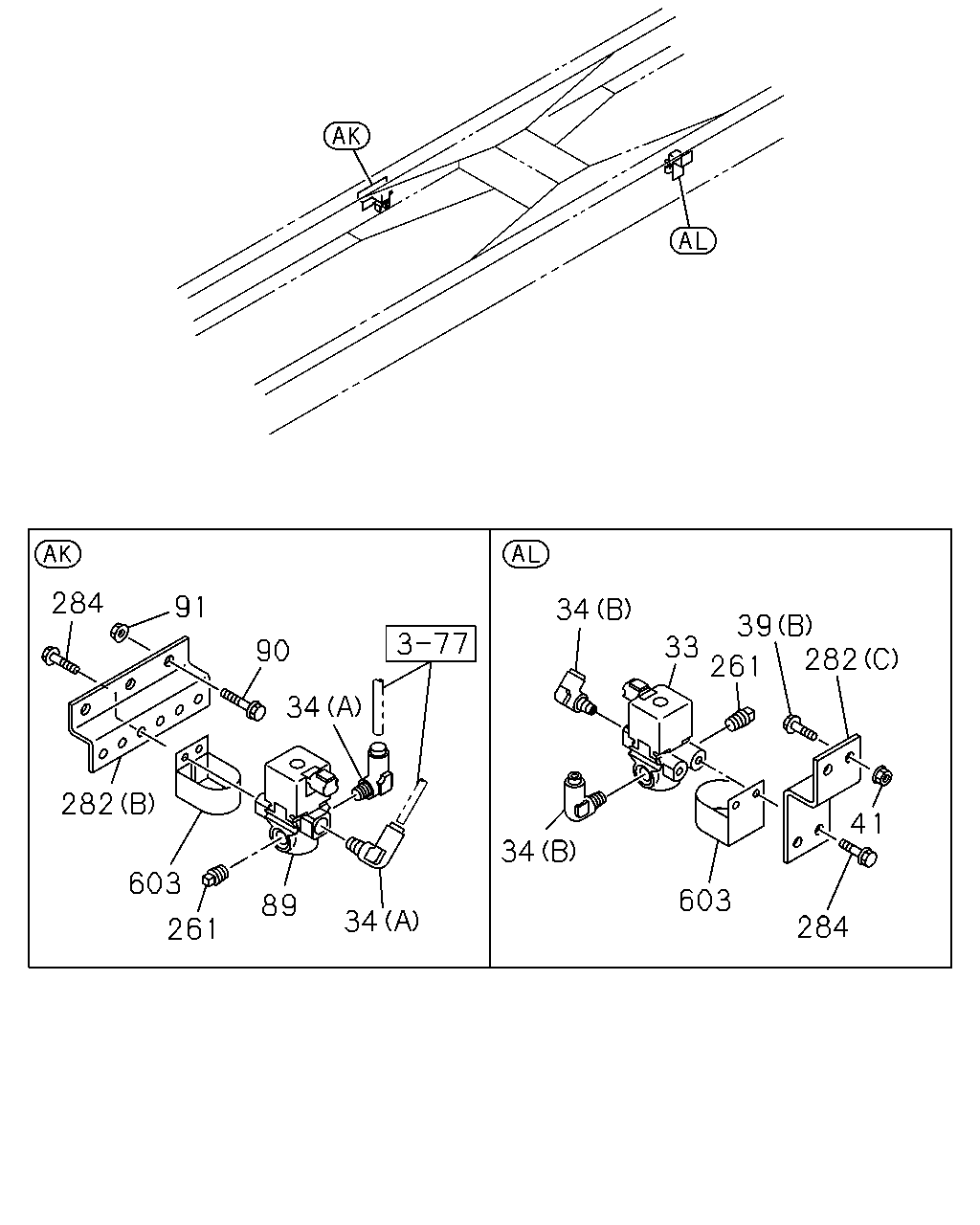

çizim 365461
284 91 90 34 34 89 282 603 261 34 33 261 282 284 603 34 39 41
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1306-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1306-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1306-
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1306-
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28650-840-0 02 1 1306-
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1306-
282 BRACKET; MAG VLV
(A) 		1-82569-277-2 01 1 1306-
282 BRACKET; MAG VLV
(B) 		1-82569-421-0 01 1 1306-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1306-
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
603 PROTECTOR; MAG VLV 1-47471-046-0 01 1 1306-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-046-0 01 1 1306-

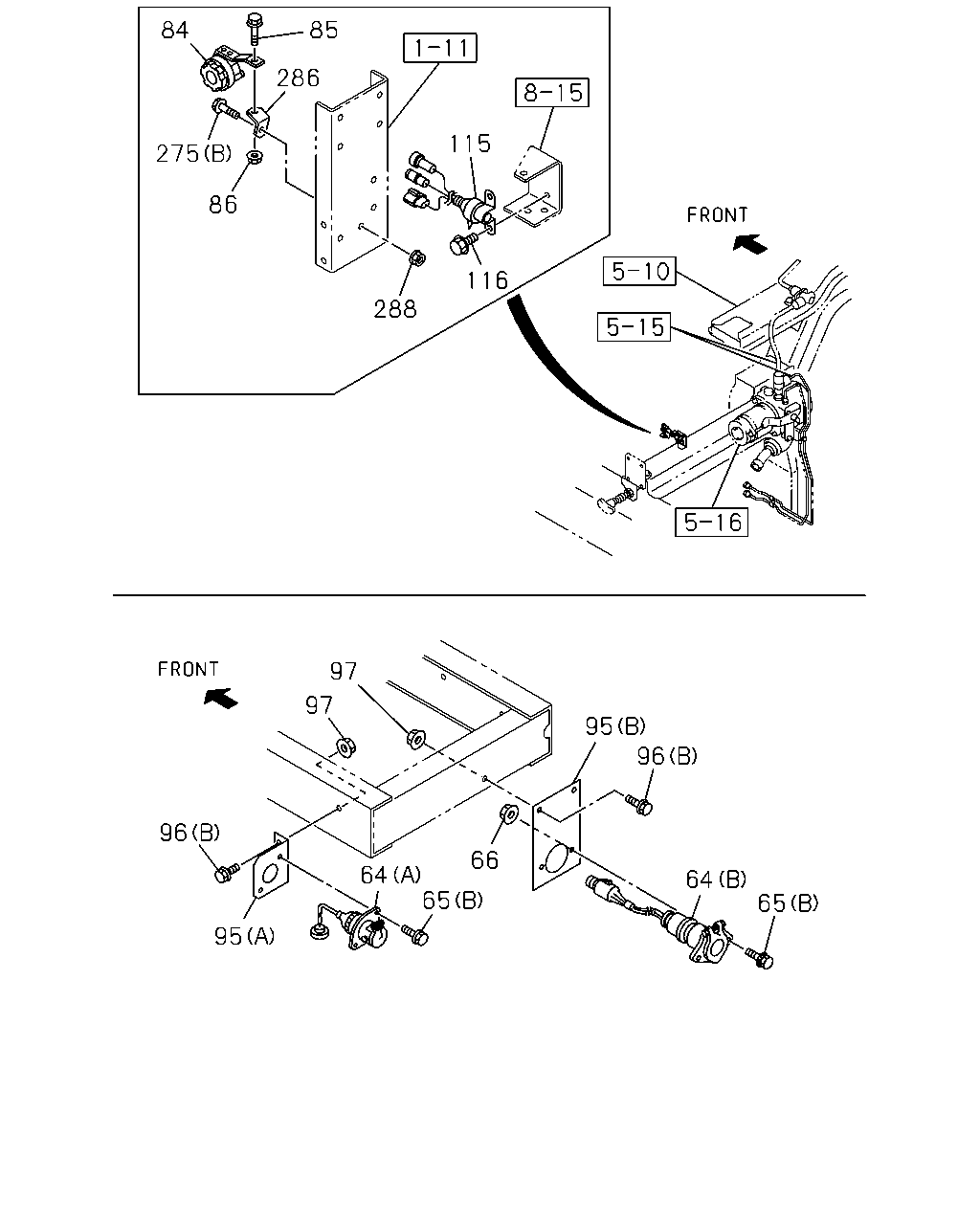

çizim 365514
84 85 286 275 86 115 116 288 97 97 96 95 64 65 66 95 96 64 65
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
FULL TRACTOR TRUCK<RD6> (B) 7P 		1-82523-014-0 01 1 1306-
64 SOCKET; TRAILER
FULL TRACTOR TRUCK<RD6> (A) L=860 		8-98172-008-0 01 1 1306-
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X25 FLANGE 		0-28050-625-0 02 1 1306-1411
65 BOLT; SOCKET FIX
FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
66 NUT; SOCKET FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1306-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1306-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1306-
95 BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (B) 		1-82699-387-0 01 1 1306-
95 BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (A) 		8-97985-137-0 01 1 1306-
96 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
96 BOLT; BRKT FIX
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
96 BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
97 NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 04 1 1306-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 1306-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 1306-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
275 BOLT; BRKT
FULL FLOATING CAB(W16) (C) M8X12 FLANGE 		0-28050-812-0 01 1 1306-1411
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 1306-1411
286 BRACKET 1-82699-199-0 01 1 1306-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
