Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#124379) — 49 parça
◀
[825A] CAB SIDE NO.2 (13 parça)
[825A] CAB SIDE NO.3 (7 parça)
[825A] CAB SIDE NO.4 (8 parça)
[825A] CAB SIDE NO.1 (16 parça)
[825A] FRAME SIDE (5 parça)
▶

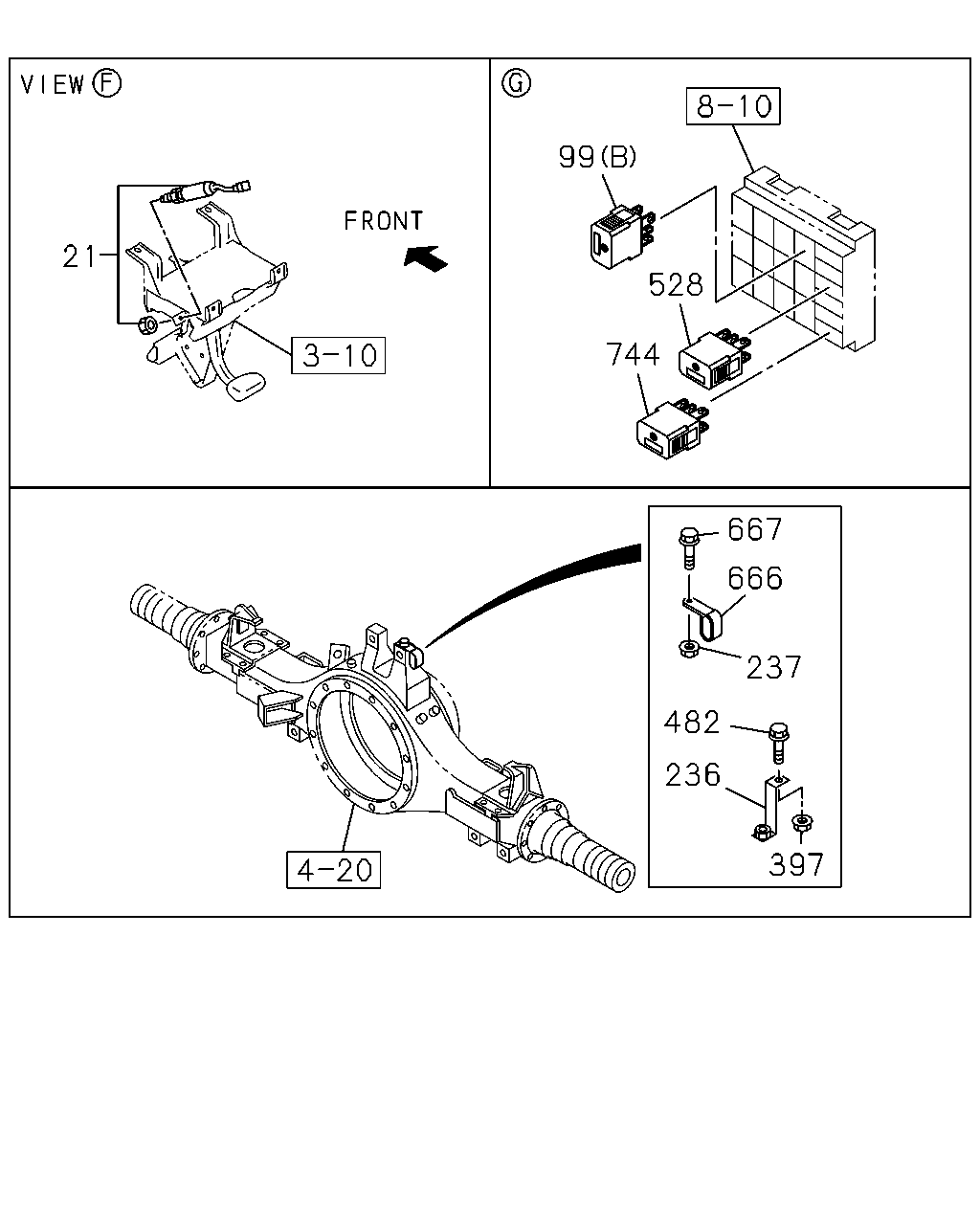

99
528
744
667
666
237
482
236
397
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
SWITCH; CLU
EXC. SMOOTHER-G(C1W)
1-82380-114-3
01
1
1306-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1306-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
236
BRACKET; AXLE HARNESS,RR
1-47476-200-0
01
1
1306-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1306-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1306-
482
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1306-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1306-
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
02
1
1306-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1306-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1306-
744
RELAY; TILT,LID OPEN
24V 10A PANASONIC
8-97173-035-1
01
1
1306-

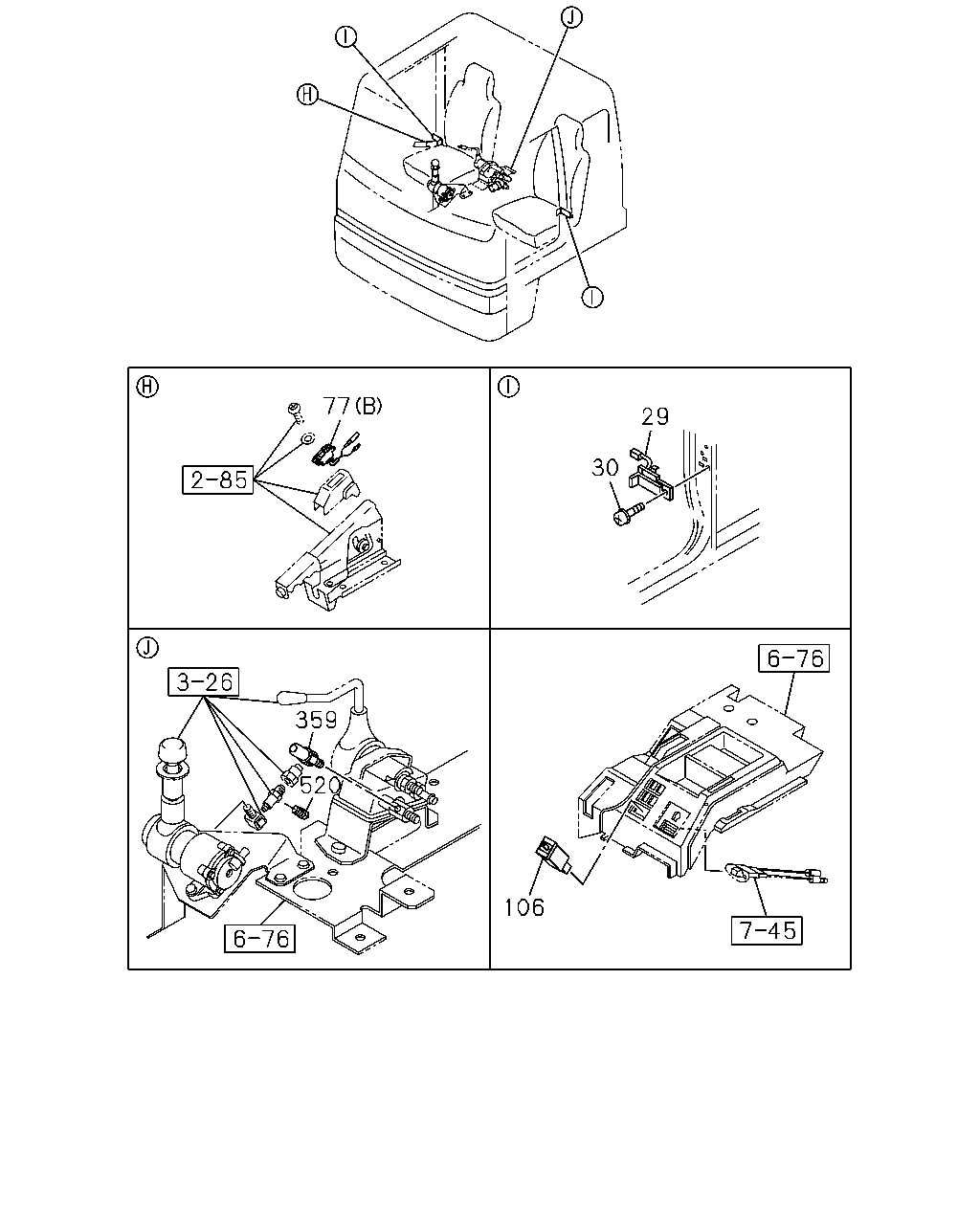

77
30
29
106
359
520
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
1306-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
1306-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
1306-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
8-97386-993-4
01
1
1306-
106
SWITCH; REMOTE CONT MIRROR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>
1-82350-223-0
01
1
1306-
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> STAMP 0.3
8-98010-857-0
01
1
1306-
520
PLUG; CONNECTOR
PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) FULL TRAILER PIPING<Z25> PT1/4
9-99204-513-0
01
1
1504-

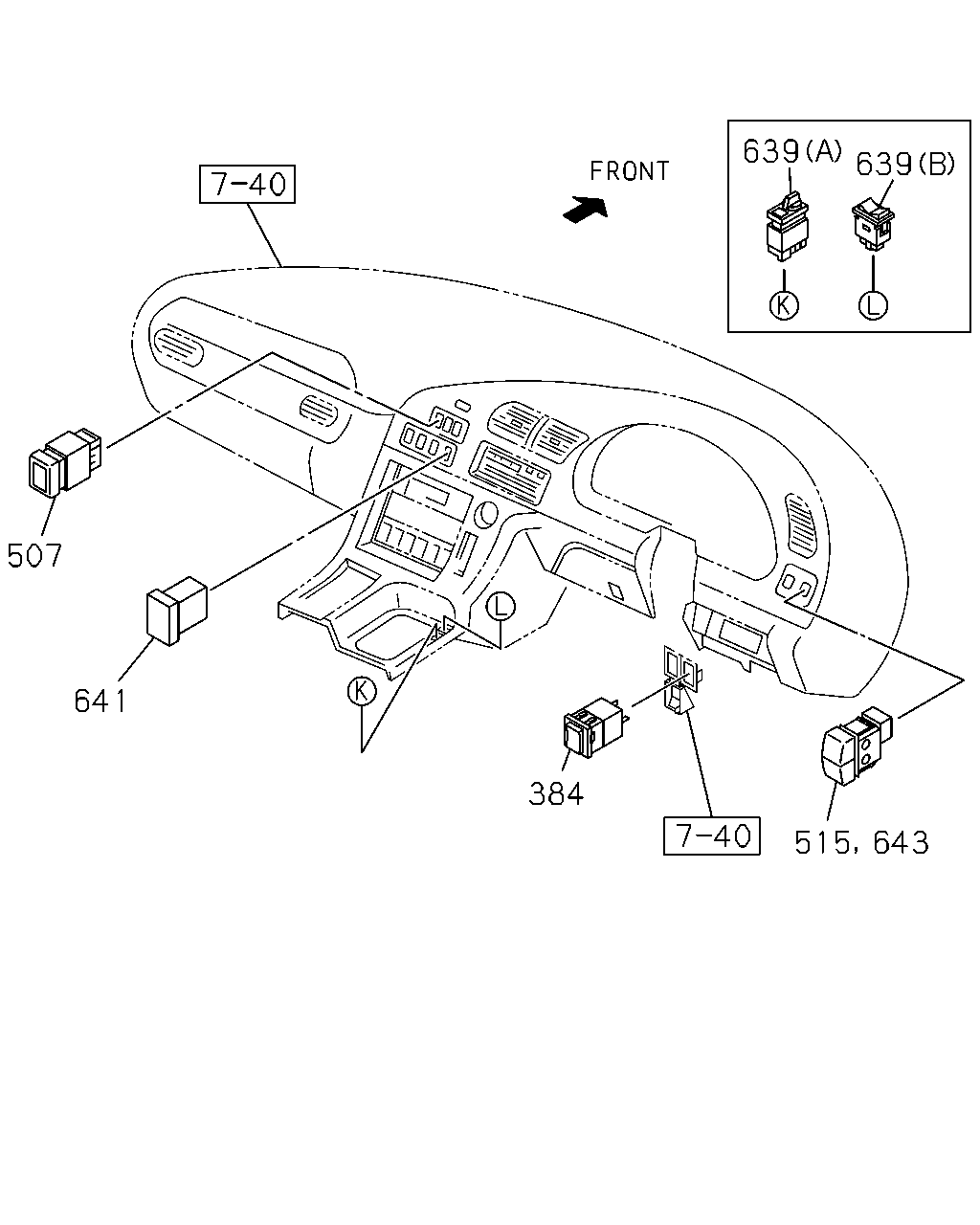

639
639
507
641
384
515
643
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
1306-
507
SWITCH; MIRROR HEATER
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>
8-97386-924-3
01
1
1306-
515
SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. SMOOTHER-G(C1W)
8-97386-917-2
01
1
1306-
639
SWITCH; EMERGENCY
SMOOTHER-G(C1W) (A)
1-82330-068-0
01
1
1306-
639
SWITCH; EMERGENCY
SMOOTHER-G(C1W) (B)
1-82350-363-0
01
1
1306-
641
SWITCH; MAP
SMOOTHER-G(C1W)
8-98222-524-1
01
1
1306-
643
SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) LAMP-ROOM OPERATION W/CONSOLE<C93>
8-98144-539-2
01
1
1306-
643
SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>
8-98129-204-2
01
1
1306-

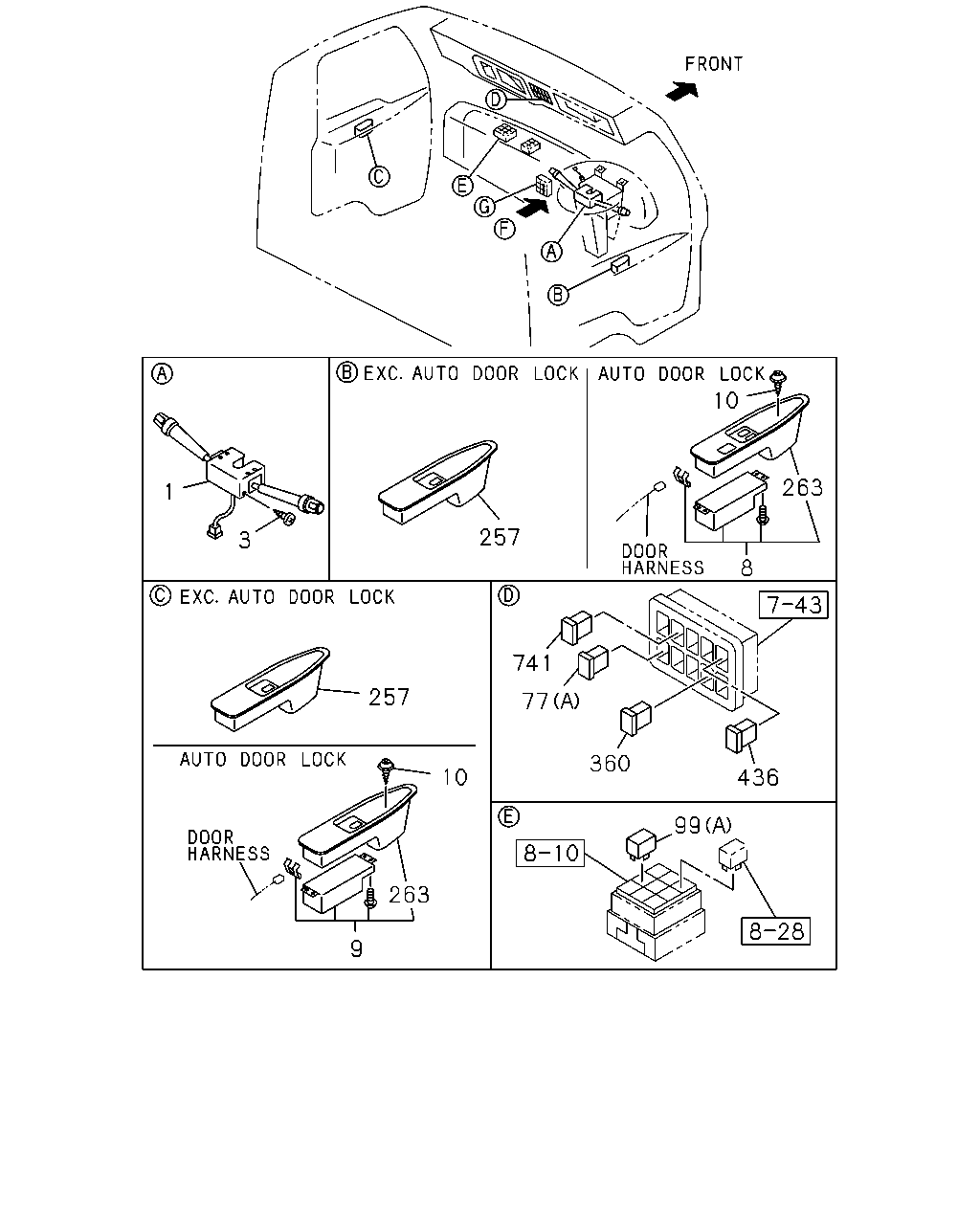

3
1
257
263
10
8
360
436
77
741
99
263
9
10
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
EXC. SMOOTHER-G(C1W)
8-98152-592-0
01
1
1306-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1306-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE
1-82380-166-2
01
1
1306-
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE
1-82380-167-1
01
1
1306-
10
SCREW; POWER WINDOW SW
POWER WINDOW<A30> M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
1306-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
1306-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
8-97386-993-4
01
1
1306-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1306-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-012-2
01
1
1306-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-011-2
01
1
1306-
263
COVER; SW
POWER WINDOW<A30> DRIVER SIDE
1-82385-005-2
01
1
1306-
263
COVER; SW
POWER WINDOW<A30> PASSENGER SIDE
1-82385-006-3
01
1
1306-
360
SWITCH ASM; DIFF LK
8-98222-520-1
01
1
1306-
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS>
8-97386-981-2
01
1
1306-
741
SWITCH; TRAILER
SMOOTHER-G(C1W) FULL TRACTOR TRUCK<RD6>
8-98222-522-1
01
1
1306-

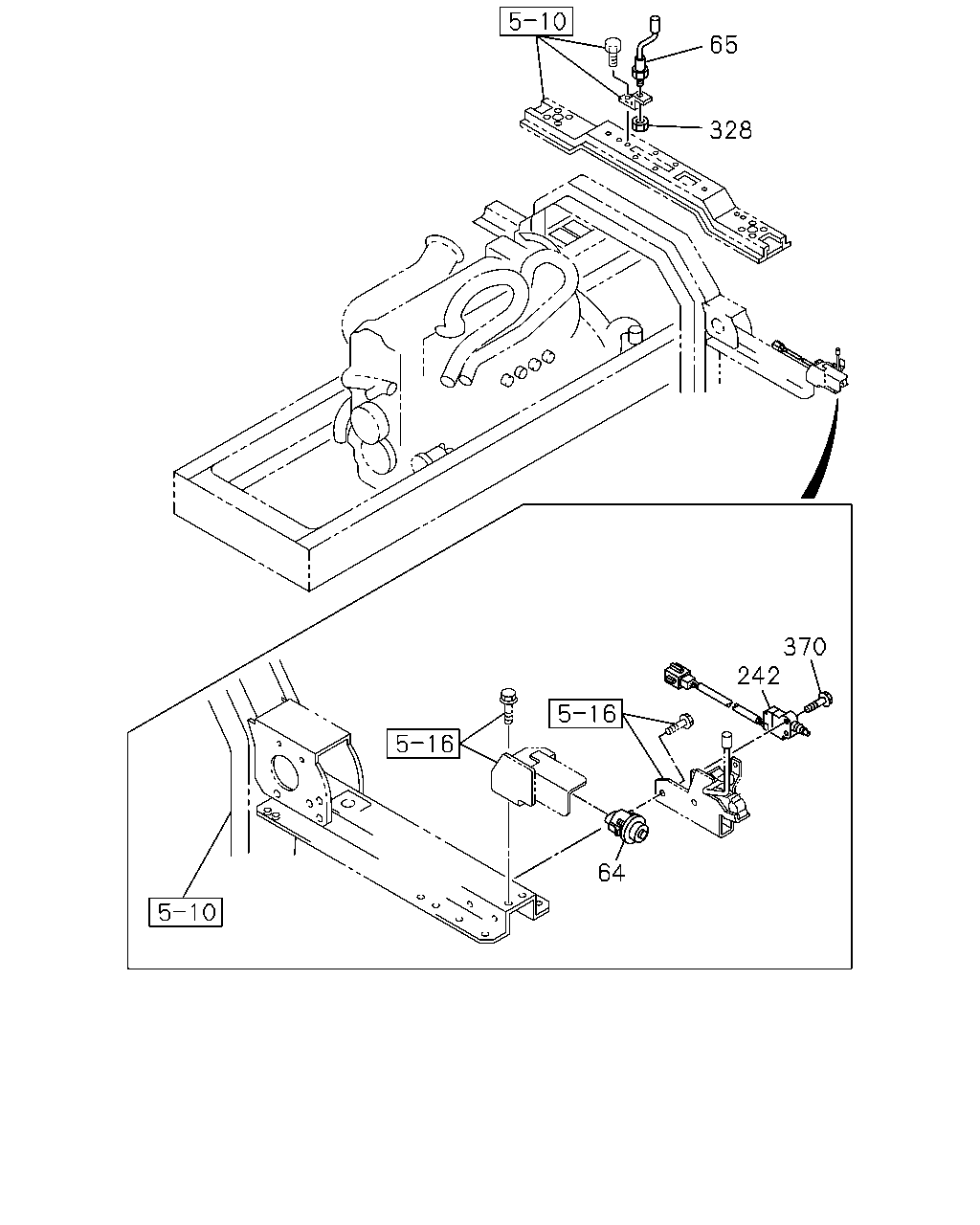

370
242
64
328
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1306-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
1306-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
1306-
328
NUT; SW
M16
0-91110-516-0
01
1
1306-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1306-
