Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#124378) — 42 parça
◀

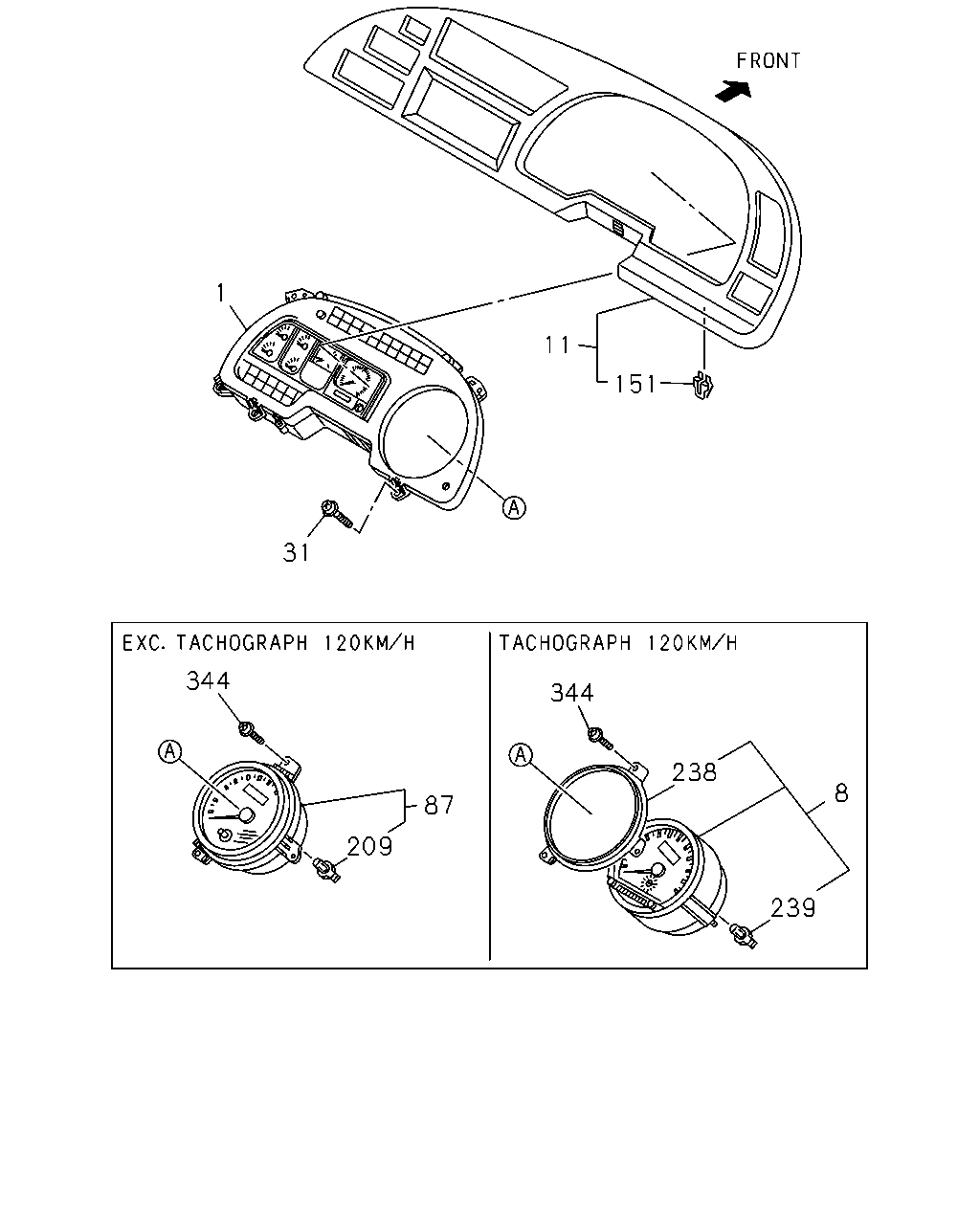

[821A] FIXING;CLUSTER AND CLUSTER METER (10 parça)

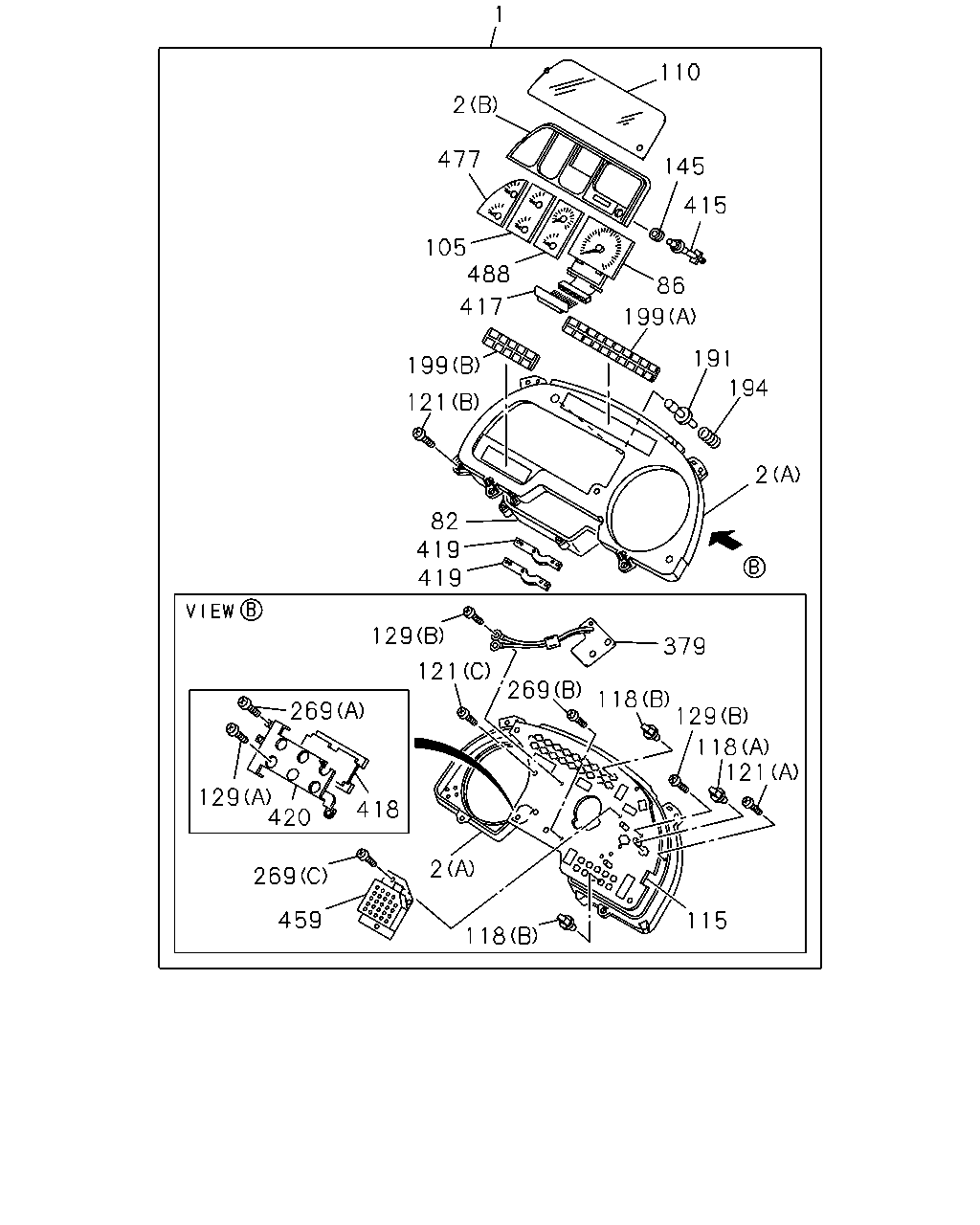

[821A] COMPONENT;METER (32 parça)
▶
11
1
31
151
344
87
209
238
8
239
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98214-934-0
01
1
1306-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8>
1-83120-856-0
01
1
1306-
11
CLUSTER ASM; METER
1-72418-012-9
01
1
1306-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
1306-
87
SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>
8-98039-481-0
01
1
1306-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
1306-
209
BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET
1-82194-061-0
01
1
1306-
238
PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>
1-83129-311-0
01
1
1306-
239
BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.4W
5-82194-034-0
03
1
1306-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
1306-
110
1
2
477
105
417
488
145
415
86
191
194
199
199
82
121
419
419
2
129
121
379
118
129
118
121
115
118
2
269
459
129
420
269
418
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98214-934-0
01
1
1306-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
1306-
2
PANEL; CLUSTER
(B)
1-83119-682-0
01
1
1306-
82
CASE ASM; CLUSTER METER
1-83119-653-0
01
1
1306-
86
TACHOMETER; CLUSTER METER
1-83120-921-0
01
1
1306-
105
GAUGE; THERMO & FUEL,CLUSTER METER
8-98185-065-0
01
1
1306-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
1306-
115
CIRCUIT; PRINTED,CLUSTER METER
8-98194-994-0
01
1
1306-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
1306-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
28
1
1306-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-084-0
01
1
1306-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-442-0
05
1
1306-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING
1-83119-676-0
02
1
1306-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-657-0
09
1
1306-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-675-0
06
1
1306-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
1306-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
1306-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
1306-
199
LENS; WARNING LAMP
(A)
8-98170-738-0
01
1
1306-
199
LENS; WARNING LAMP
(B)
8-98216-761-0
01
1
1306-
269
SCREW; METER CLUSTER
(A) M3
1-83119-273-0
02
1
1306-
269
SCREW; METER CLUSTER
(C) M3 TAPPING
1-83119-657-0
03
1
1306-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-677-0
08
1
1306-
379
CIRCUIT; DROP
1-83189-369-0
01
1
1306-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
1306-
417
DISPLAY; ODO & TRIP,METER
8-98195-041-0
01
1
1306-
418
CIRCUIT; CONTROL,METER
1-83189-442-0
01
1
1306-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
1306-
420
HEAT SINK; METER
1-83119-679-0
01
1
1306-
459
POWER SUPPLY ASM
1-83119-925-0
01
1
1306-
477
GAUGE; AIR PRESS & VOLTAGE
8-98216-762-0
01
1
1306-
488
GAUGE; AIR PRESS & OIL PRESS
8-98216-750-0
01
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
