◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#124377) — 19 parça

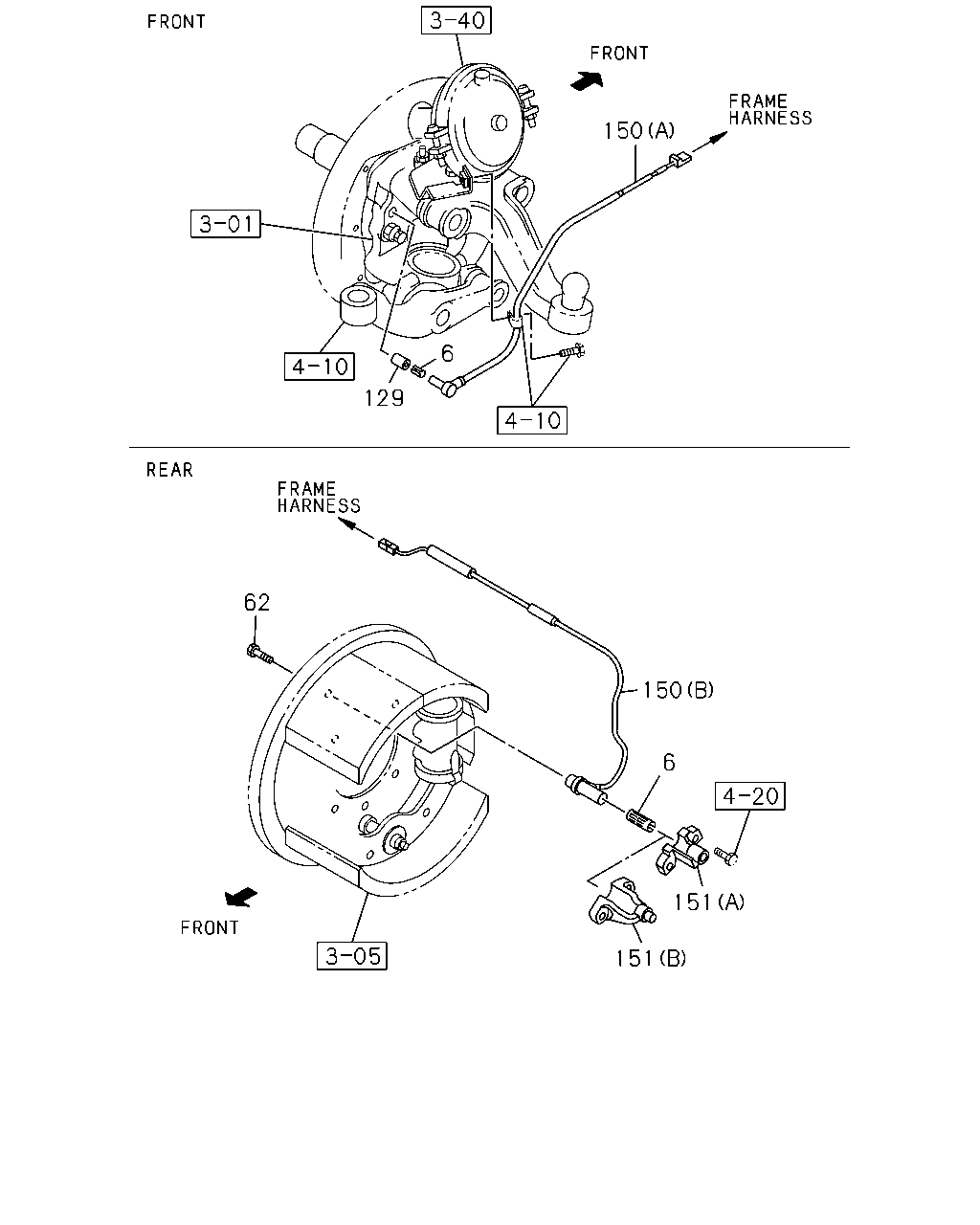

çizim 363688
150 6 129 62 150 6 151 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1306-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1306-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 1306-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 02 1 1306-
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		8-98224-162-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) MULTI LEAF SUSP RR<SAS> (B) 		8-98224-162-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) FINAL DRIVE GEAR HARD FINISH<BDU> TAPER LEAF SUSP RR<SAT> (B) 		8-98224-162-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		8-98224-161-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) MULTI LEAF SUSP RR<SAS> (B) 		8-98224-161-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) FINAL DRIVE GEAR HARD FINISH<BDU> TAPER LEAF SUSP RR<SAT> (B) 		8-98224-161-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) TAPER LEAF SUSP RR<SAT> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> (B) 		8-98148-101-0 01 1 1306-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 17.5"(W4C) TAPER LEAF SUSP RR<SAT> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> (B) 		8-98148-100-0 01 1 1306-
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 1306-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505-
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 1306-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505-

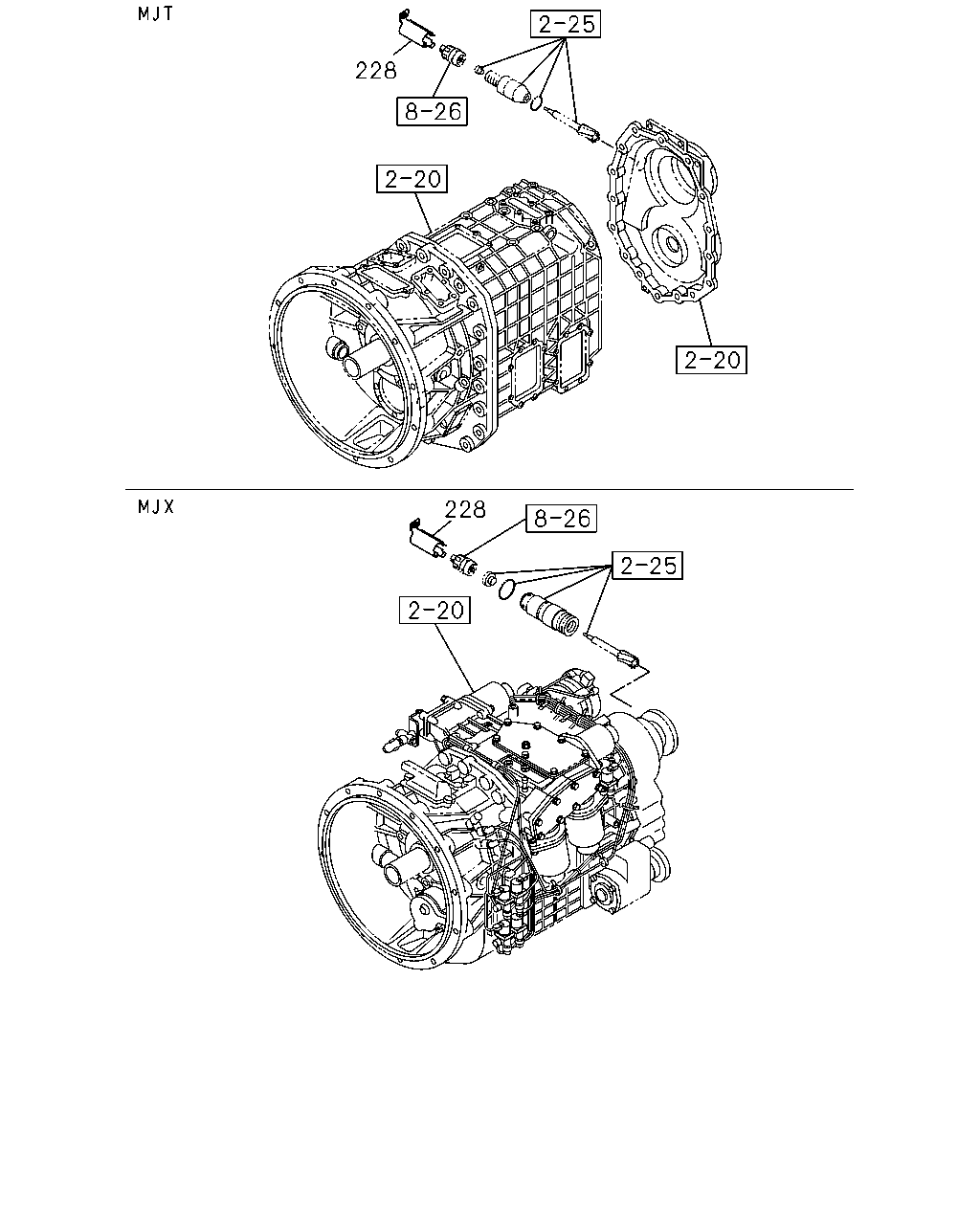

çizim 363781
228 228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
