Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#124376) — 356 parça

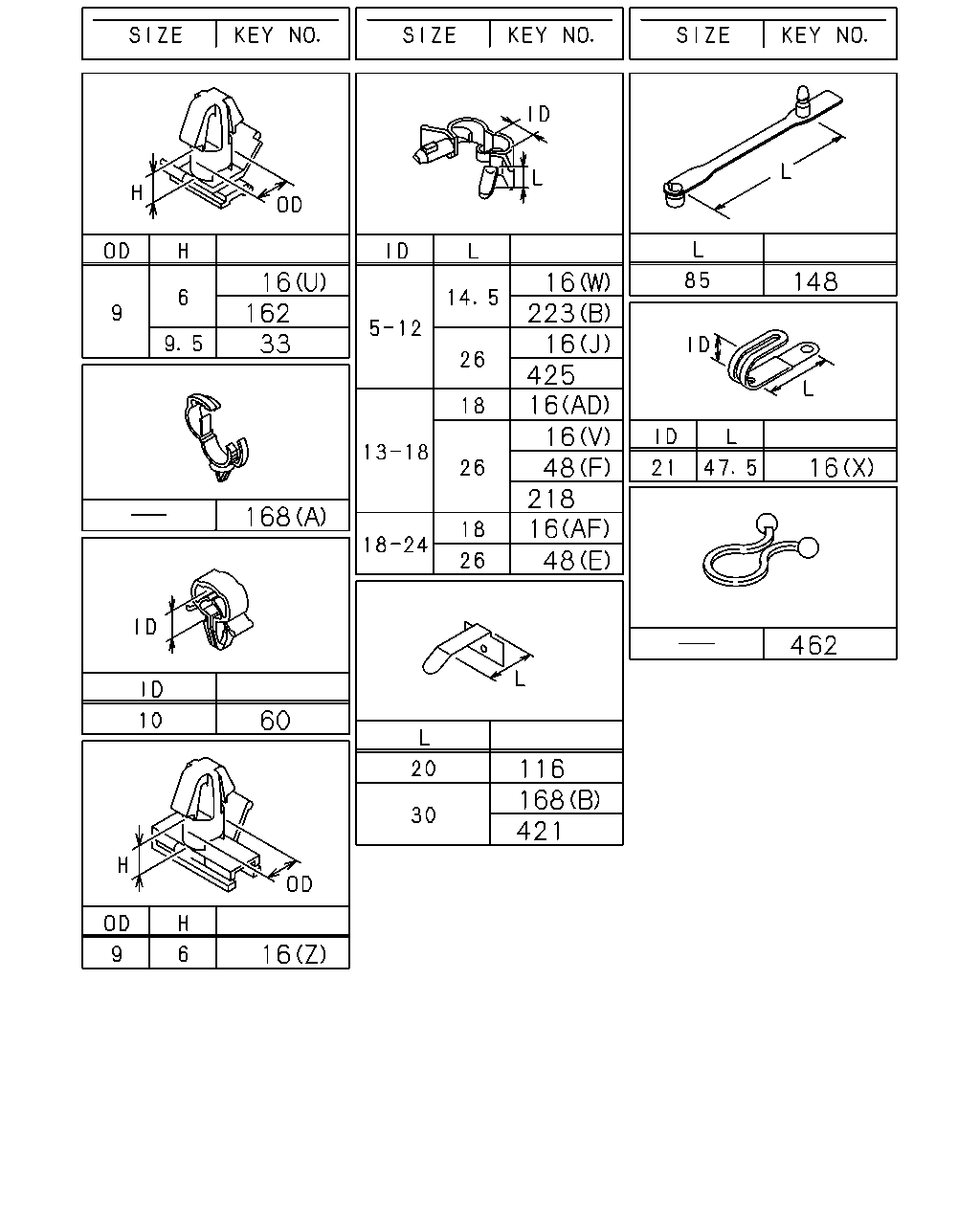

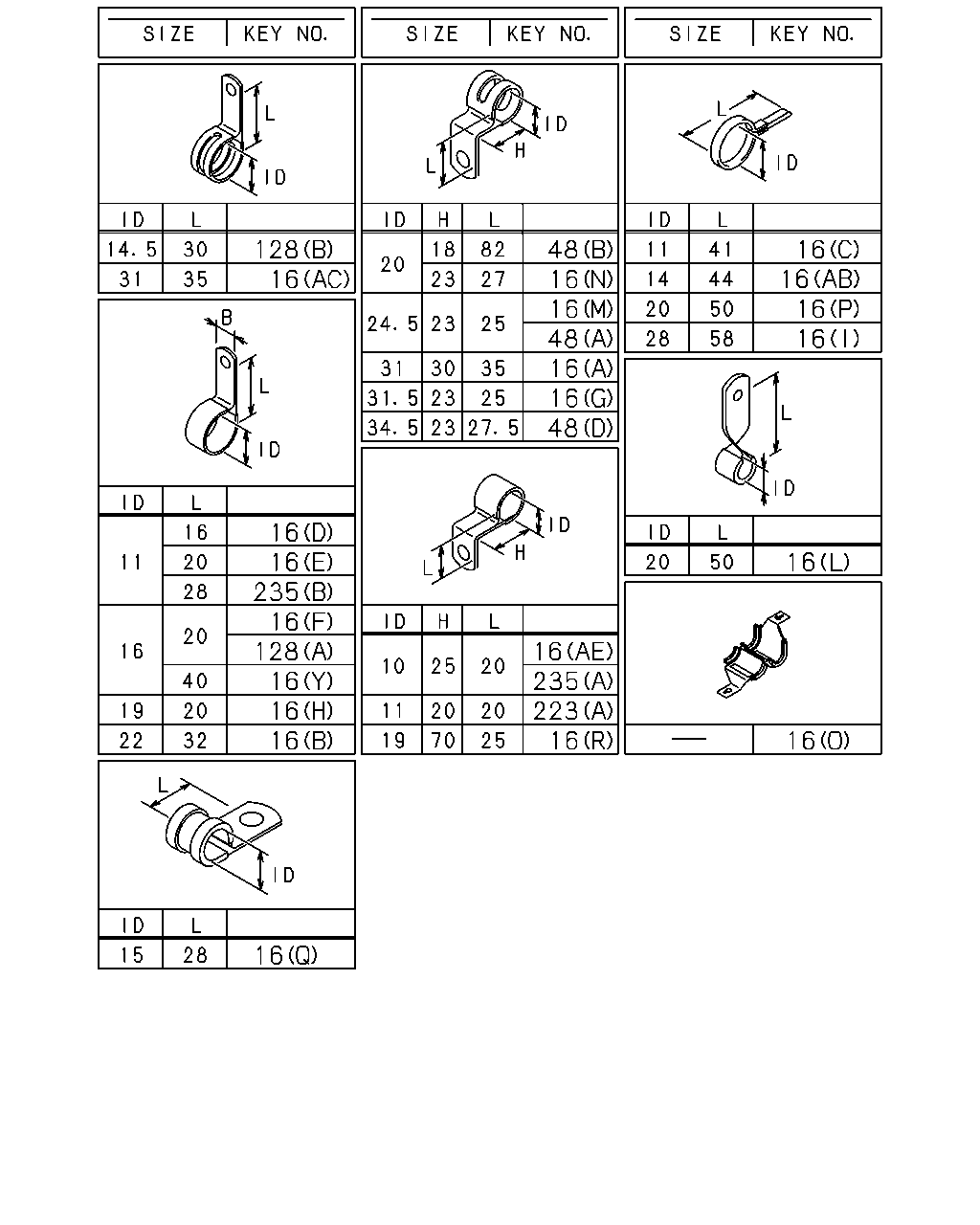

16 16 16 16 16 16 16 16 162 33 168 60 223 425 48 218 48 116 168 421 148 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1306-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	01	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (R) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (V) ID=13-18 L=26	1-09709-293-0	04	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (O) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AD) ID=13-18 L=18	1-09709-291-0	03	1	1306-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AE) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AA) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=18-24 L=18	1-09709-294-0	01	1	1306-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
33	CLIP; HARNESS,VLV SMOOTHER-G(C1W) OD=9 H=9.5	1-09709-179-0	01	1	1306-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (F) ID=13-18 L=26	1-09709-293-0	03	1	1306-
48	CLIP; FRAME HARNESS (E) ID=18-24 L=26	1-09709-296-0	02	1	1306-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1306-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1306-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1306-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1306-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	1306-
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1306-
218	CLIP; BAND,RR COMB ID=13-18 L=26	1-09709-293-0	06	1	1306-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) L=30 SET=10 PIECE	1-09987-265-0	05	1	1306-
425	CLIP; MODULATOR ID=5-12 L=26	1-09709-289-0	02	1	1306-
462	CLIP; HARNESS,HTR HEATER & DEFROSTER(C41) ID=20	1-09709-068-0	02	1	1306-

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 48 48 48 235 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1306-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	01	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (R) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (V) ID=13-18 L=26	1-09709-293-0	04	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (O) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AD) ID=13-18 L=18	1-09709-291-0	03	1	1306-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AE) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AA) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=18-24 L=18	1-09709-294-0	01	1	1306-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (F) ID=13-18 L=26	1-09709-293-0	03	1	1306-
48	CLIP; FRAME HARNESS (E) ID=18-24 L=26	1-09709-296-0	02	1	1306-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1306-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1306-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=11 L=28	9-09917-544-0	01	1	1306-

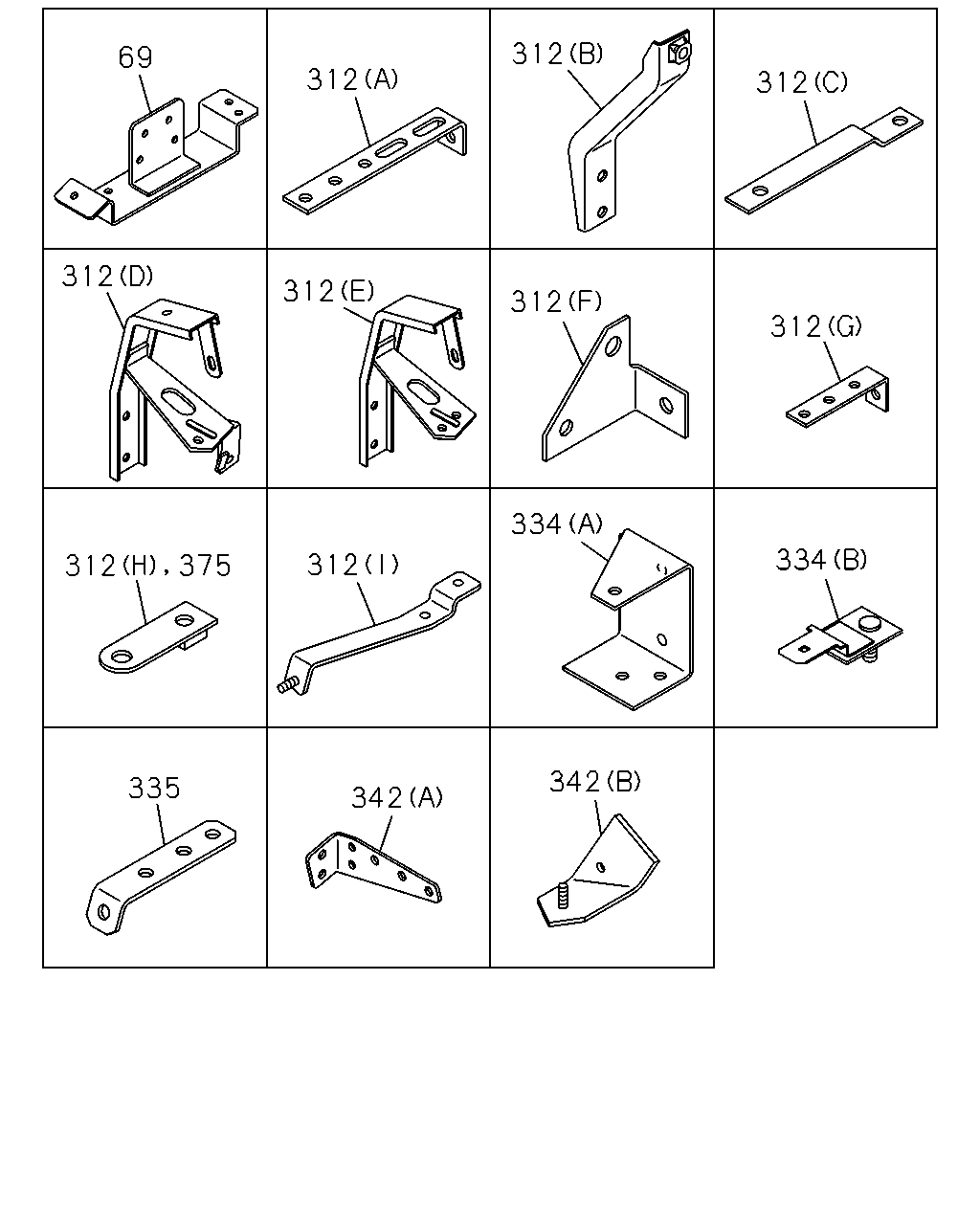

69 312 312 312 312 312 312 312 312 375 312 334 334 342 342 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; CLIP	8-98171-829-0	01	1	1306-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I)	8-98254-842-0	01	1	1311-
312	BRACKET; CLIP HARNESS (A) L=160 H=30	1-47479-759-0	01	1	1306-
312	BRACKET; CLIP HARNESS (B)	8-97636-868-1	01	1	1306-
312	BRACKET; CLIP HARNESS (C)	8-98035-927-1	01	1	1306-
312	BRACKET; CLIP HARNESS FULL TRAILER PIPING<Z25> (D)	8-97638-177-0	01	1	1306-
312	BRACKET; CLIP HARNESS EXC. FULL TRAILER PIPING<Z25> (E)	8-97635-477-2	01	1	1306-
312	BRACKET; CLIP HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	1-82698-570-0	01	1	1306-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (H)	1-82699-182-0	01	1	1306-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (A) L=160 H=40	8-97629-006-0	01	1	1306-
312	BRACKET; CLIP HARNESS EXC. SMOOTHER-G(C1W) (G) L=120 H=35	1-82698-088-0	01	1	1306-
334	BRACKET (A)	1-53457-153-2	01	1	1306-
334	BRACKET SMOOTHER-G(C1W) (B)	1-82698-543-0	01	1	1306-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1306-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1306-
342	BRACKET; HARNESS CAB MTG (B)	8-98240-938-0	01	1	1306-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1306-

38 150 242 528 150 242 38 313 133 38 150 242 313 38 242 313 38 139 313 86 139 313 38 64 86 516 139 239 38 88 386 358 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1306-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1306-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1306-
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (E) M8X25 FLANGE	0-28650-825-0	01	1	1306-
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28650-830-0	03	1	1306-
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28650-830-0	01	1	1306-
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28650-830-0	01	1	1306-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (G) M10X20 FLANGE	0-28751-020-0	01	1	1306-
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M10X20 FLANGE	0-28751-020-0	01	1	1306-
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (C) M8X14 W/PL WASHER	8-98164-837-0	02	1	1306-
64	SCREW; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X20 FLANGE	0-28751-020-0	01	1	1306-
86	BOLT; CLIP BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28751-020-0	01	1	1306-
86	BOLT; CLIP BRKT EXC. SMOOTHER-G(C1W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1306-
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1306-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1306-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-
139	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	1306-
139	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	04	1	1306-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	1306-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	1306-
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1306-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1306-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1306-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1306-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	1306-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	1306-
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) M8X25 FLANGE	0-28650-825-0	01	1	1311-
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1306-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1306-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1306-
313	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1306-
313	BOLT; BRKT (A) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1306-
313	BOLT; BRKT SMOOTHER-G(C1W) (E) M12X30 FLANGE	0-28051-230-0	01	1	1306-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1306-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-
528	BOLT; CONNECTOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	01	1	1306-

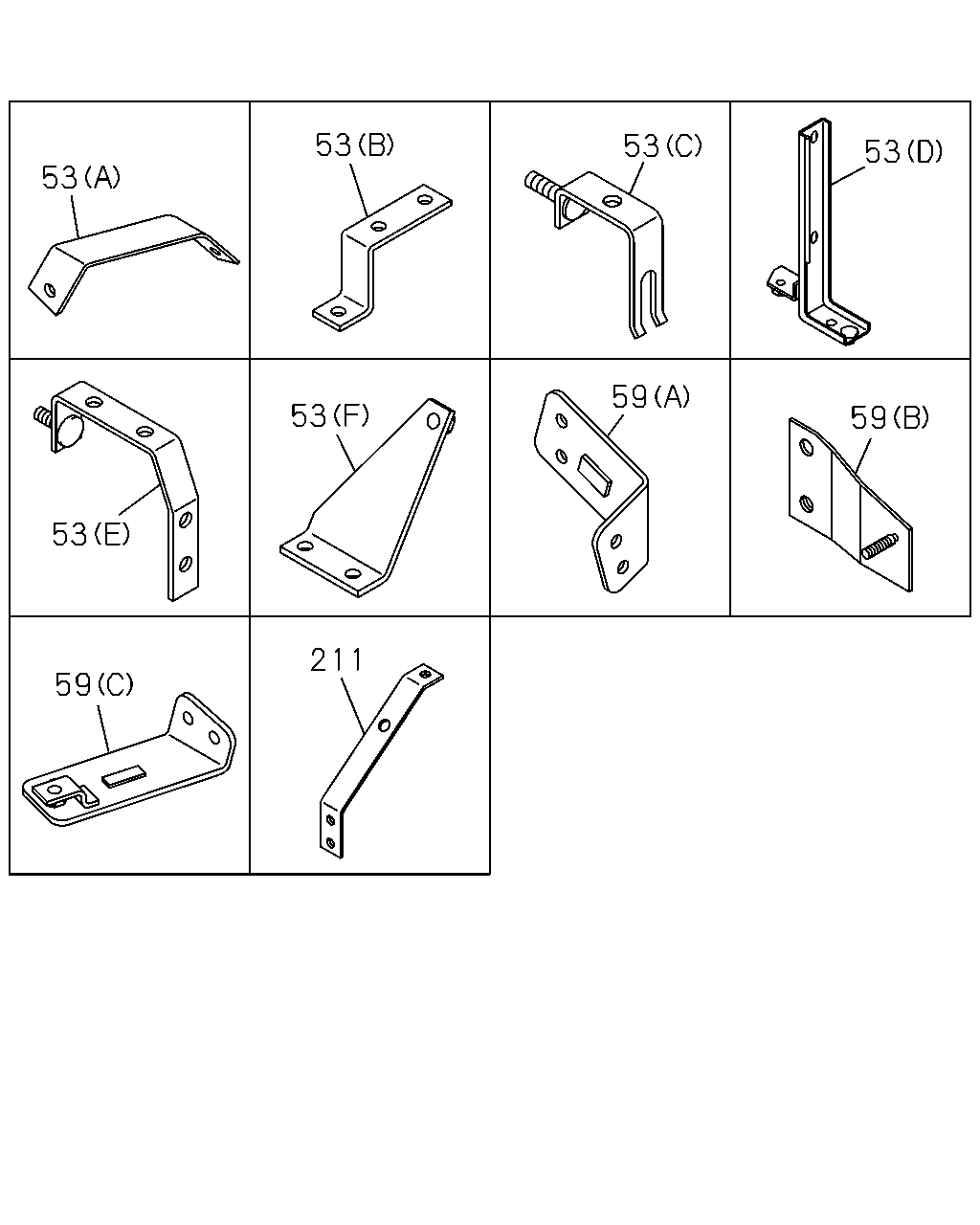

211 59 53 53 59 59 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (C)	1-47479-381-2	01	1	1306-
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-
53	BRACKET; HARNESS (E)	1-47479-800-0	01	1	1306-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1306-
53	BRACKET; HARNESS (D)	8-98227-138-0	01	1	1306-
53	BRACKET; HARNESS (F)	8-98227-141-0	01	1	1306-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1306-
59	BRACKET; FRAME HARNESS FULL TRAILER PIPING<Z25> (C)	8-97639-069-0	01	1	1306-
59	BRACKET; FRAME HARNESS EXC. FULL TRAILER PIPING<Z25> (A)	8-97633-543-1	01	1	1306-
211	BRACKET; AXLE HARNESS	1-47479-430-0	02	1	1306-

340 515 219 294 524 119 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT EXC. SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	06	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1306-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1306-
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	04	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	05	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
294	NUT M8 FLANGE	0-91180-108-0	03	1	1306-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1306-
423	WASHER; HARNESS,EARTH EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	02	1	1306-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1306-

178 530 178 178 178 178 14 194 14 16 48 194 380 1 1 1 208 142 51 16 470 380 369 305 208 194 171 102 16 369 305 206 104 67 51 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1306-
1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1306-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	1306-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1306-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1306-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-
16	CLIP; HARNESS (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1306-
16	CLIP; HARNESS (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=31 L=35	1-09700-329-1	01	1	1306-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1306-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1306-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1306-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1306-
16	CLIP; HARNESS (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (T) L=350	1-09707-183-0	01	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1306-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	01	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (J) ID=5-12 L=26	1-09709-289-0	02	1	1306-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1306-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-
16	CLIP; HARNESS (R) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	1306-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1306-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1306-1411
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (V) ID=13-18 L=26	1-09709-293-0	04	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (O) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AD) ID=13-18 L=18	1-09709-291-0	03	1	1306-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AE) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) ID=16 L=40	0-95235-576-0	02	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	06	1	1306-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AA) L=140	5-09707-031-1	03	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1306-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=18-24 L=18	1-09709-294-0	01	1	1306-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-
48	CLIP; FRAME HARNESS (F) ID=13-18 L=26	1-09709-293-0	03	1	1306-
48	CLIP; FRAME HARNESS (E) ID=18-24 L=26	1-09709-296-0	02	1	1306-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1306-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1306-
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> TRANSMISSION CONTROL CABLE TYPE(C1A) L=140	5-09707-031-1	01	1	1306-
102	CLIP; BAND MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=250	5-09707-030-1	01	1	1306-
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> L=140	5-09707-031-1	02	1	1306-
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	02	1	1306-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	03	1	1306-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	1306-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-
178	GROMMET; HARNESS (A) ID=39 OD=45 T=19	1-09332-077-0	01	1	1306-
178	GROMMET; HARNESS SMOOTHER-G(C1W) (A) ID=39 OD=45 T=19	1-09332-077-0	01	1	1306-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=26	1-09332-132-0	01	1	1306-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1306-
178	GROMMET; HARNESS EXC. SMOOTHER-G(C1W) (E)	1-82698-551-0	01	1	1306-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1306-
194	CLIP; BAND (C) L=350	1-09707-183-0	05	1	1306-
194	CLIP; BAND MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=250	5-09707-030-1	07	1	1306-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1306-
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	01	1	1306-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1306-
305	CLIP; ENG HARNESS (A) L=250	5-09707-030-1	03	1	1306-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1306-
369	CLIP; BAND EDS HARNESS (A) L=140	5-09707-031-1	01	1	1306-
369	CLIP; BAND EDS HARNESS FULL TRAILER PIPING<Z25> (B) L=250	5-09707-030-1	02	1	1306-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1306-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	02	1	1306-
470	CLIP; HARNESS,LICENSE LAMP L=250	5-09707-030-1	04	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	13	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1306-
530	SEAL; HARNESS SMOOTHER-G(C1W) 180X40	1-72498-019-1	03	1	1306-
530	SEAL; HARNESS EXC. SMOOTHER-G(C1W) 180X40	1-72498-019-1	01	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
