◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#124375) — 67 parça
çizim 364050
268 209 274 271 285 283 282 281 311 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1307-1312 ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1401- ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1307-1312 ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1401- ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1307-1312 ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1401- ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1307-1312 ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1401- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1307-1312 ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1401- ● ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1401- ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1307-1312 ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1401- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1307-1312 ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1401- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1401- ● ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1307-1312 ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1401- ● ●

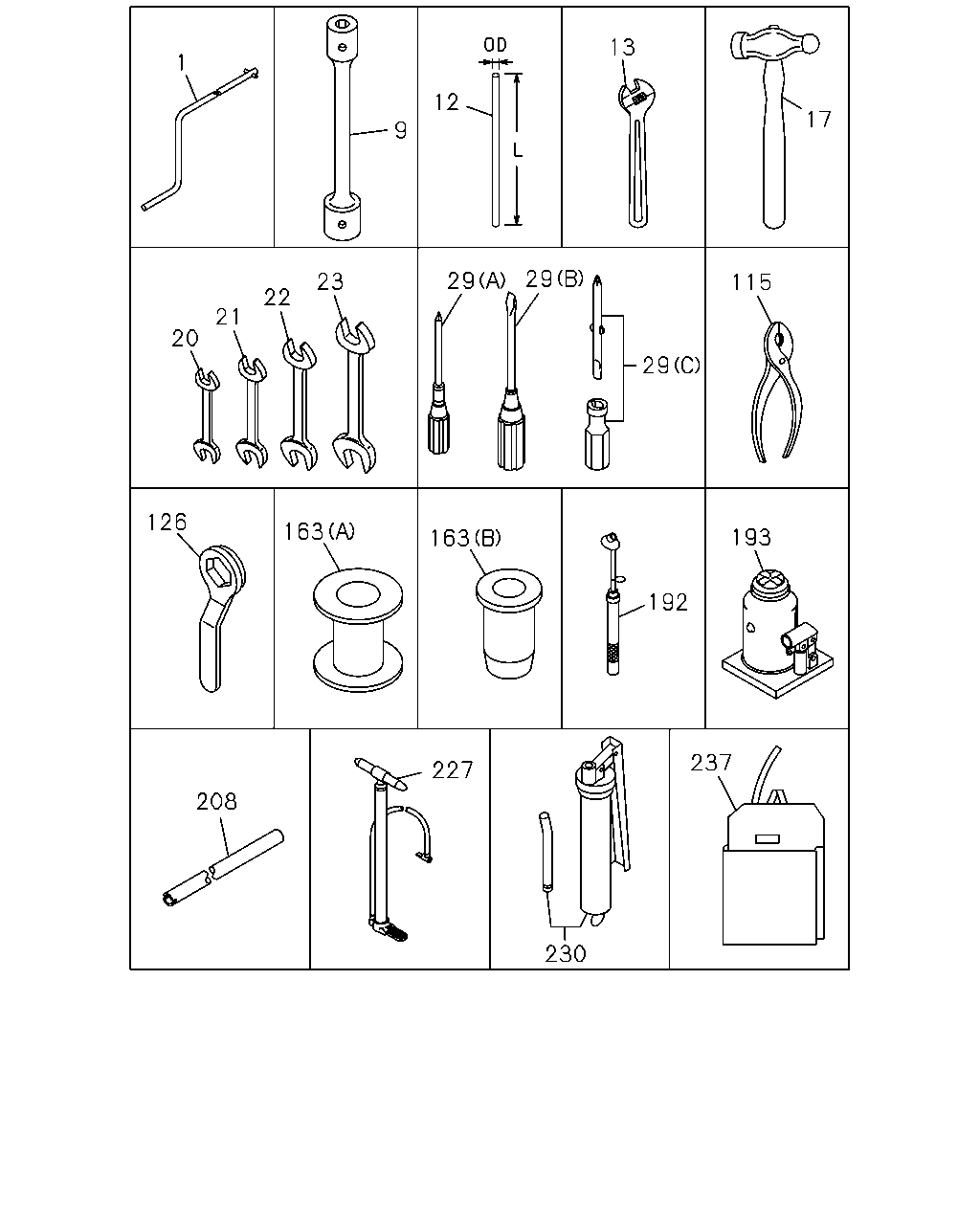

çizim 364140
1 9 12 13 17 29 29 29 115 23 22 21 20 126 163 163 192 193 237 230 227 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1307-1312 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1401- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1307-1312 ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1401- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1307-1312 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1401-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1307-1312 ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1401-1407 ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER 9-85121-406-0 01 1 1307-1312 ●
17 HAMMER 9-85121-406-0 01 1 1401- ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1307-1312 ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1401- ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1307-1312 ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1401- ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1307-1312 ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1401- ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1307-1312 ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1401- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1307-1312 ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1401- ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1307-1312 ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1401- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1307-1312 ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1401- ● ●
115 PLIER 5-85171-002-0 01 1 1307-1312 ●
115 PLIER 5-85171-002-0 01 1 1401-1410 ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1307-1312 ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1401- ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1307-1312 ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1401- ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (A) L=150 		1-85221-163-0 01 1 1307-1312 ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (A) L=150 		1-85221-163-0 01 1 1401- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1307-1312 ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1401- ● ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 1307-1312 ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 1401- ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1307-1312 ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1401- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1307-1312 ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1401- ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 1307-1312 ●
230 PUMP; GREASE 1-85556-007-5 01 1 1401- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 1307-1312 ●
237 BAG; TOOL 8-97130-902-1 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
