Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

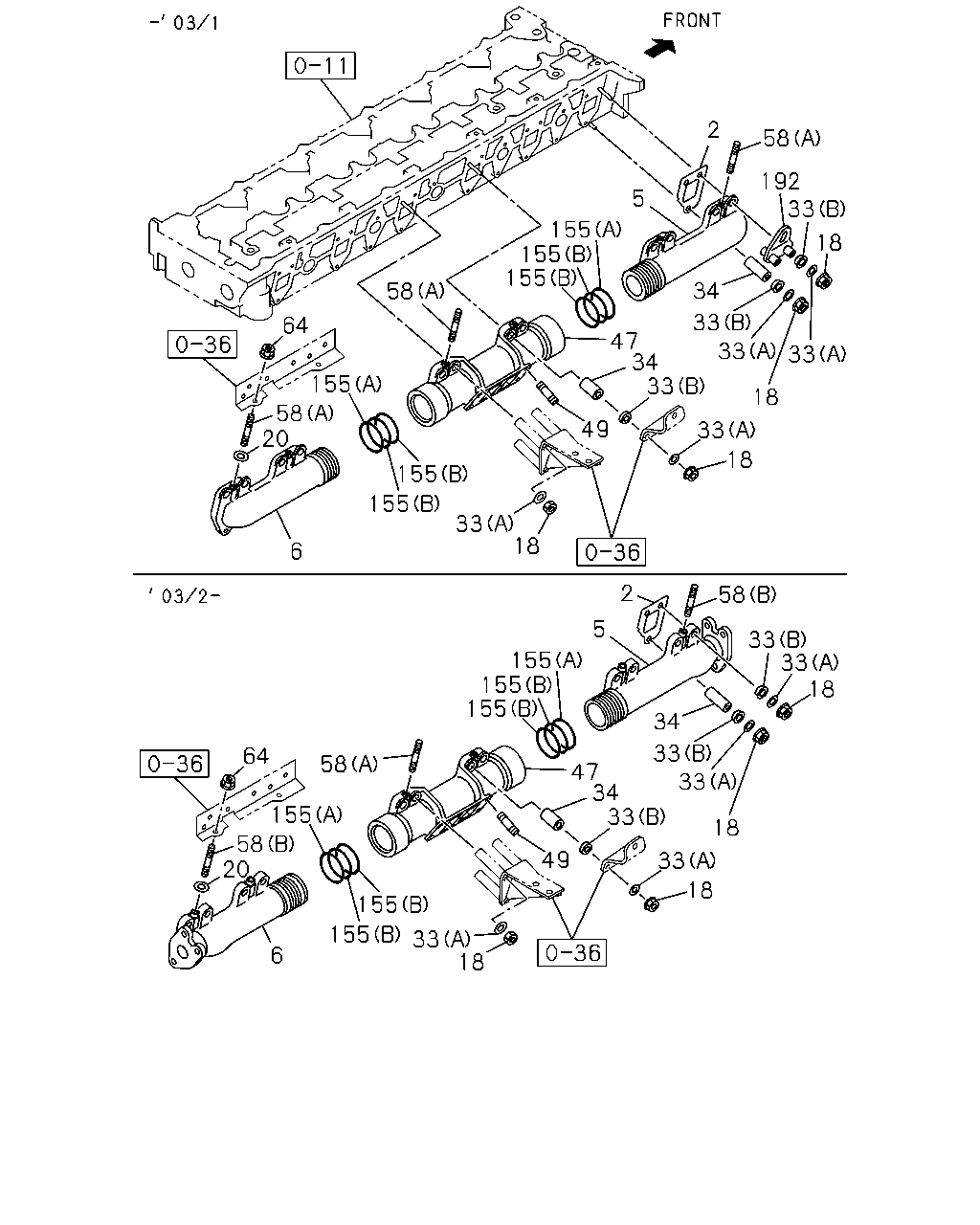

0-27 — EXHAUST MANIFOLD
(#12437) — 25 parça
2
58
192
33
5
155
155
155
18
34
58
33
64
155
47
34
33
33
33
18
58
20
49
33
18
155
155
33
18
6
2
58
5
33
33
18
155
155
155
34
33
64
155
58
47
34
33
33
18
58
20
49
33
18
155
155
33
18
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-1
06
1
0105-
5
MANIFOLD; EXH,FRT
1-14141-999-0
01
1
0105-0301
5
MANIFOLD; EXH,FRT
1-14141-934-1
01
1
0302-
6
MANIFOLD; EXH,RR
1-14142-001-0
01
1
0105-0301
6
MANIFOLD; EXH,RR
1-14141-935-1
01
1
0302-
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
0105-0602
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
18
1
0603-
20
WASHER; PL,HEAT PROTECTOR
1-09503-067-1
01
1
0105-
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
0105-
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
15
1
0105-0301
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
0105-0201
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
15
1
0202-0301
34
COLLAR; DIST,EXH MANIF
L=47
1-14149-263-0
15
1
0302-
47
MANIFOLD; EXH,CENTER
1-14141-938-0
01
1
0105-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
1-09302-167-1
04
1
0105-0408
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
04
1
0409-
58
STUD; HEAT PROTECTOR
(A) M8X20 L=32
9-04110-820-0
06
1
0105-0301
58
STUD; HEAT PROTECTOR
(A) M8X20 L=32
9-04110-820-0
02
1
0302-
58
STUD; HEAT PROTECTOR
(B) M8X25 L=37
9-04110-825-0
04
1
0302-
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
06
1
0105-0110
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
04
1
0111-0602
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91180-108-0
04
1
0603-
155
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
0105-
155
RING; SEAL,EXH MANIF
(B)
9-14149-026-1
04
1
0105-
192
HANGER; ENG
1-11777-238-0
01
1
0105-0201
