◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#124363) — 81 parça

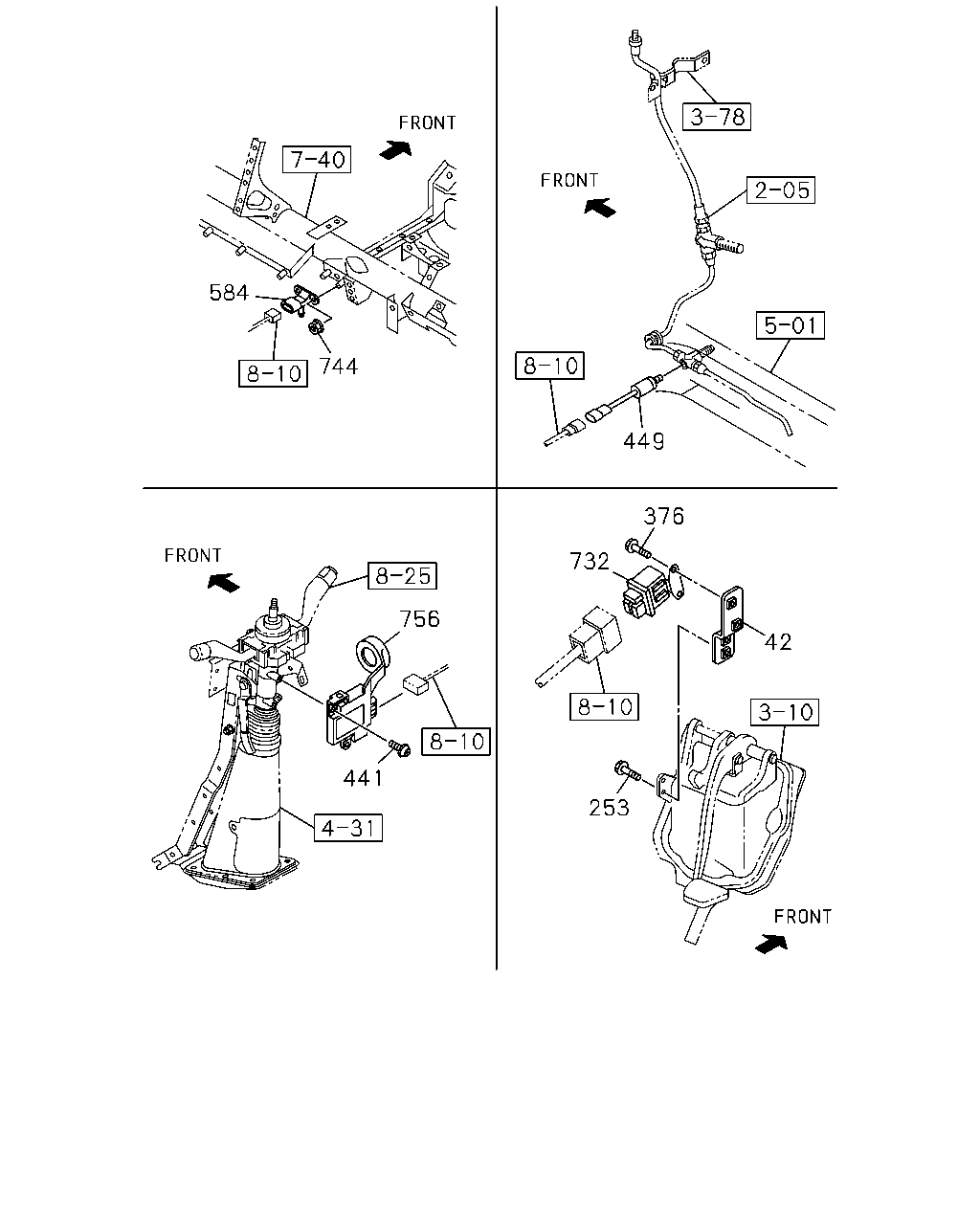

çizim 363697
584 744 449 756 441 732 376 42 253
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1307-1312 ●
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1401- ● ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1307-1312 ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1401- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1307-1312 ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1401- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82410-143-1 01 1 1307-1312 ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82410-143-1 01 1 1401- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1307-1312 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1401- ● ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1307-1312 ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1401- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1307-1312 ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1401- ● ●

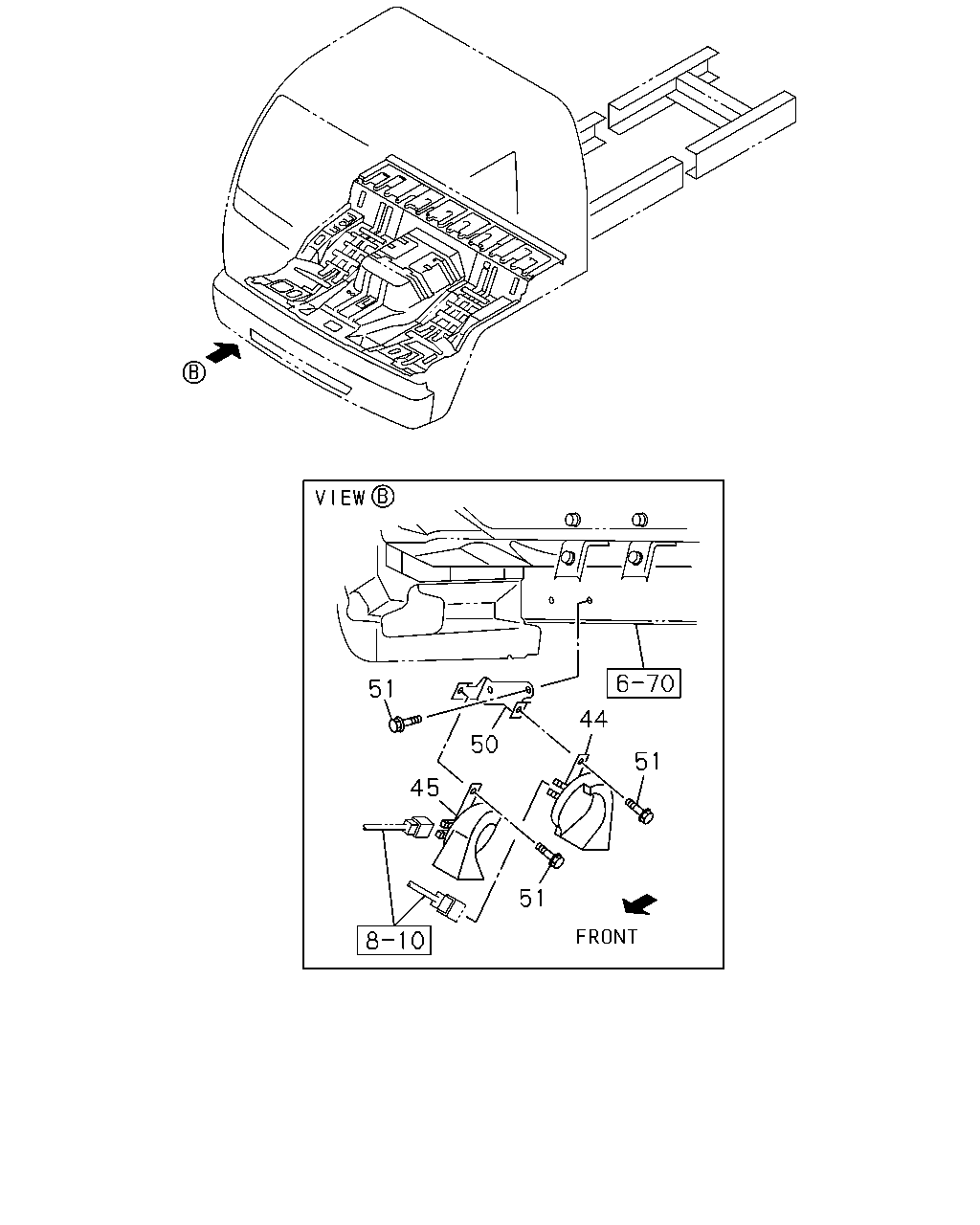

çizim 363798
51 45 50 51 44 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1307-1312 ●
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1401- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1307-1312 ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1401- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1307-1312 ●
50 BRACKET; HORN 8-97613-300-2 01 1 1401- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1307-1312 ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1401- ● ●
çizim 363900
531
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1307-1312 ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1401-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

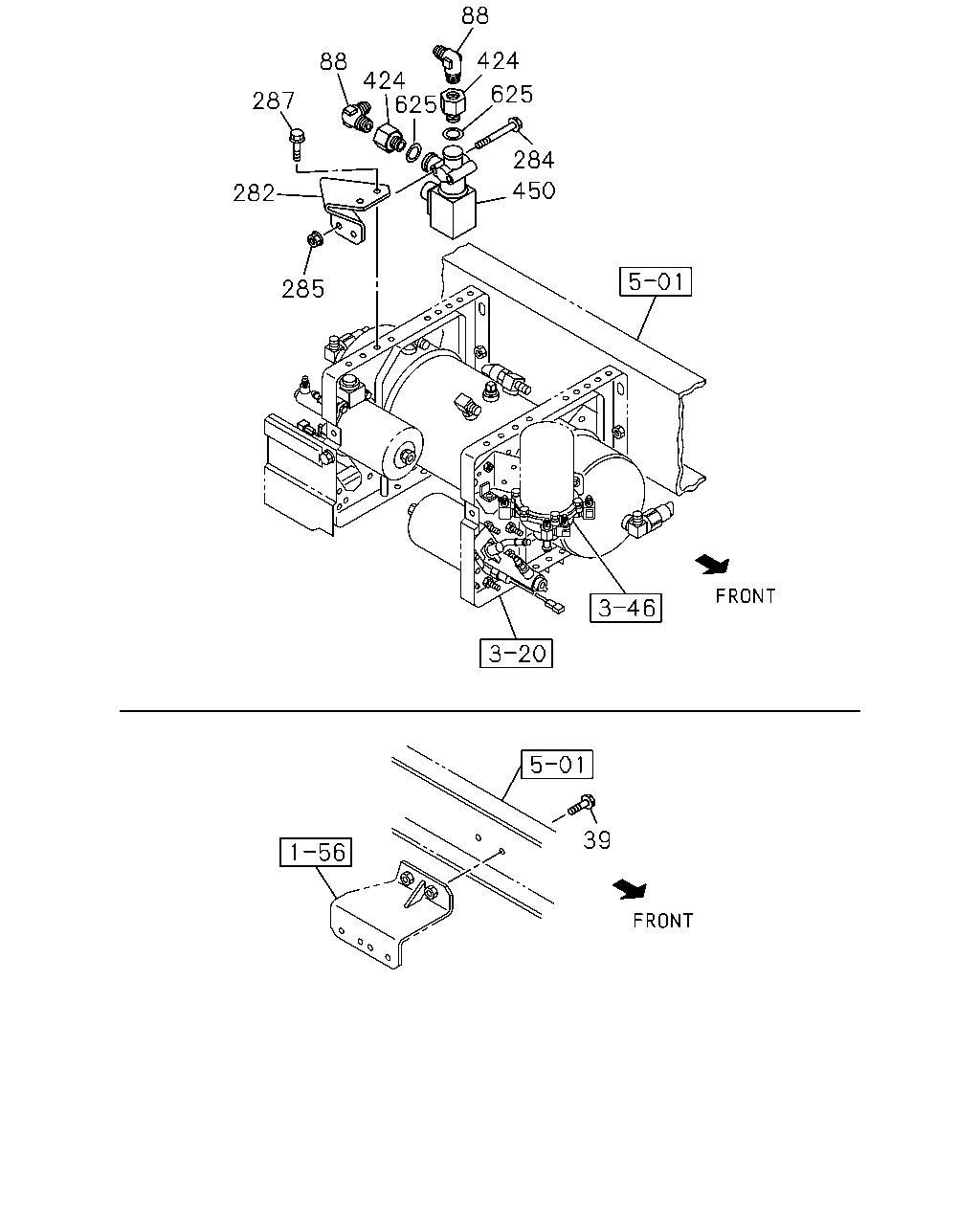

çizim 365487
285 282 287 88 424 625 88 424 625 284 450 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1307- ● ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1307-1312 ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1401- ● ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) 		8-98049-845-1 01 1 1307-1312 ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) 		8-98049-845-1 01 1 1401- ● ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8X60 FLANGE 		0-28050-860-0 02 1 1307-1312 ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8X60 FLANGE 		0-28050-860-0 02 1 1401- ● ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
287 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
287 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
424 ADAPTER
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT 		1-09661-044-0 02 1 1307-1312 ●
424 ADAPTER
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT 		1-09661-044-0 02 1 1401- ● ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) 		1-82564-278-0 01 1 1307-1312 ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) 		1-82564-278-0 01 1 1401- ● ●
625 GASKET; CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24 		9-09571-416-0 02 1 1307-1312 ●
625 GASKET; CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24 		9-09571-416-0 02 1 1401- ● ●

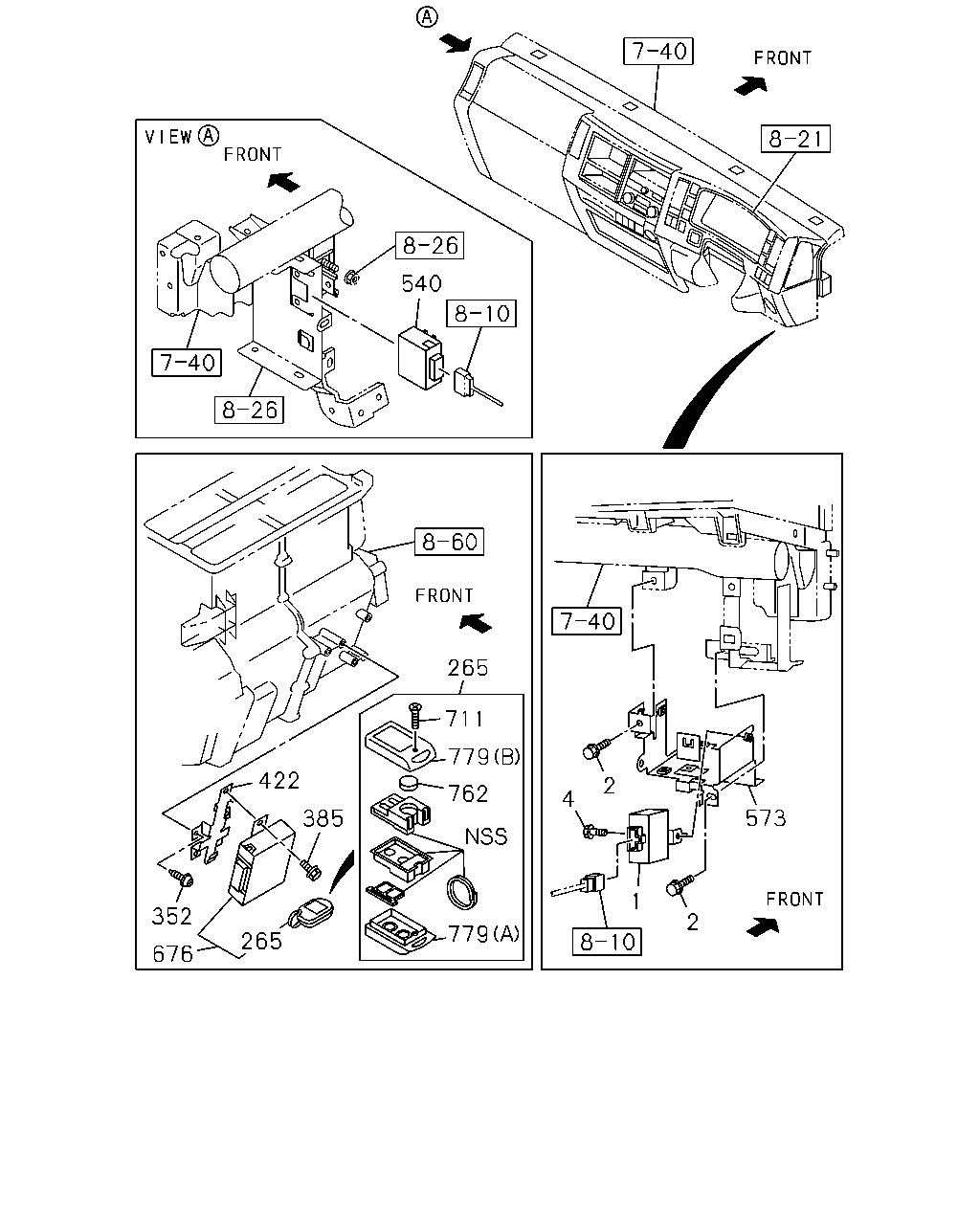

çizim 365513
540 422 352 676 265 385 265 711 779 762 779 4 1 2 2 573
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1307-1312 ●
1 UNIT; FLASHER 8-98025-533-1 01 1 1401- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ●
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1307-1312 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1401- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1307-1312 ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1401- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1307-1312 ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1401- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1307-1312 ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1401- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1307-1308 ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309-1312 ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1401- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1307-1312 ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1401- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1307-1312 ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1401- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1307-1312 ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1401- ● ●
762 BATTERY 8-98078-061-0 02 1 1307-1312 ●
762 BATTERY 8-98078-061-0 02 1 1401- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1307-1312 ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1401- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1307-1312 ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1401- ● ●

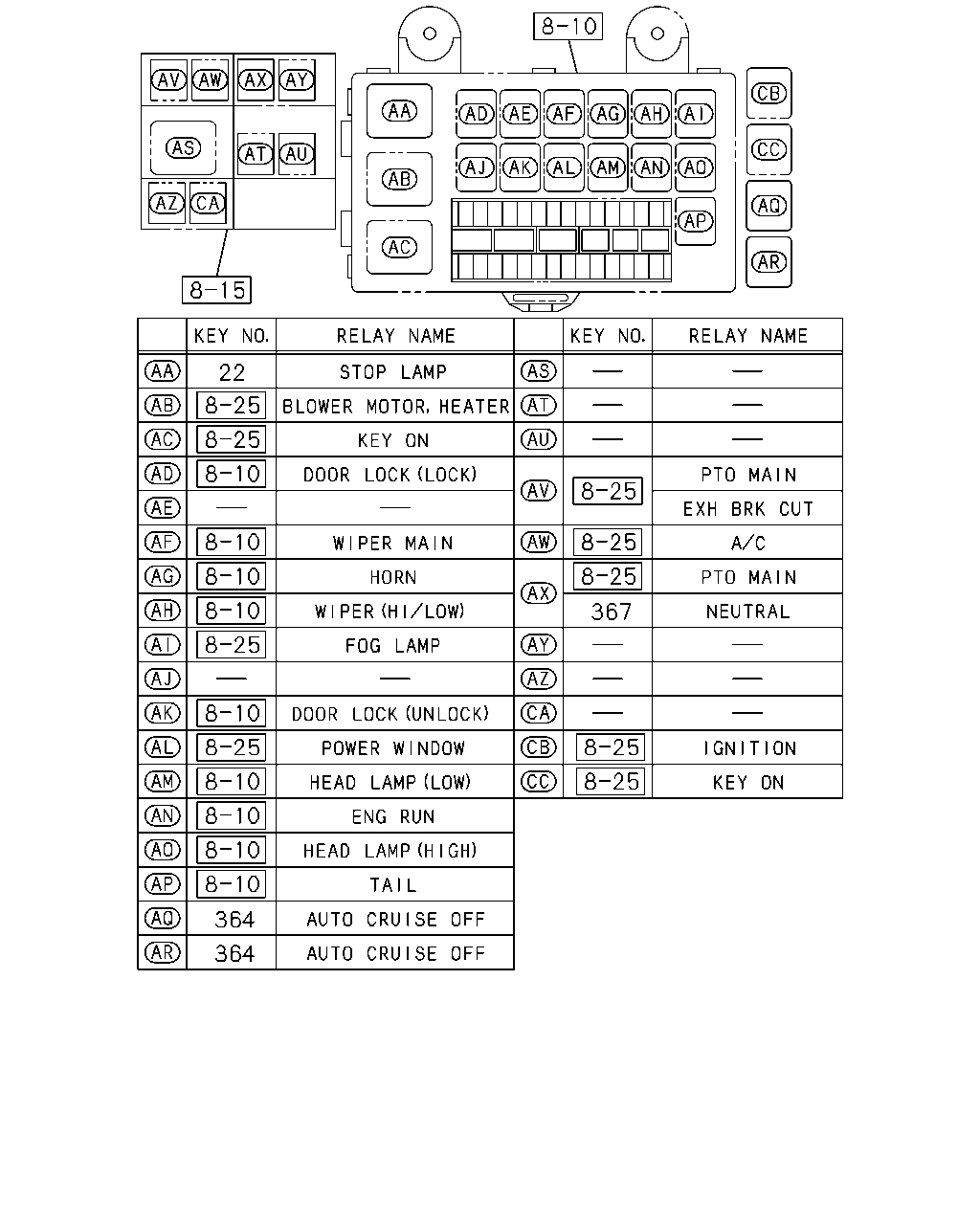

çizim 366502
22 367 364 364
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1307-1312 ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1401- ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ●
