Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#124357) — 319 parça

38 38 139 139 139 38 386 47 184 377 516 304 304 304 304 139 139 38 38 139 524 219 294 525 38 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE	0-28050-816-0	01	1	1307-1503	●	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE	0-28050-816-0	01	1	1504-	●	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	8-98105-048-0	01	1	1307-1503	●	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	8-98105-048-0	01	1	1504-	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	03	1	1307-1312		●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	03	1	1401-		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1401-	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (F) M8X20 FLANGE	0-28050-820-0	01	1	1307-		●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312		●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X25 FLANGE	0-28050-825-0	02	1	1401-		●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●	●
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1307-1312		●
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1401-	●	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-		●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312		●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1307-1312		●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1401-		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (D) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (D) M8X25 FLANGE	0-28050-825-0	02	1	1401-		●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X30 FLANGE	0-28050-830-0	04	1	1307-1312		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X30 FLANGE	0-28050-830-0	04	1	1401-		●
139	BOLT; BRKT (C) M8X30 FLANGE	0-28050-830-0	04	1	1401-	●
139	BOLT; BRKT (F) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312		●
139	BOLT; BRKT (F) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312		●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1307-1312		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1401-	●	●
219	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312		●
219	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312		●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1307-1312		●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1401-		●
294	NUT M8 FLANGE	0-91180-108-0	05	1	1401-	●
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1401-	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1401-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1401-	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1307-1312		●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1401-	●	●
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1307-1312		●
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1401-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1307-1312		●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1401-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1307-1312		●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1307-1312		●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1401-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1307-1312		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1401-	●	●

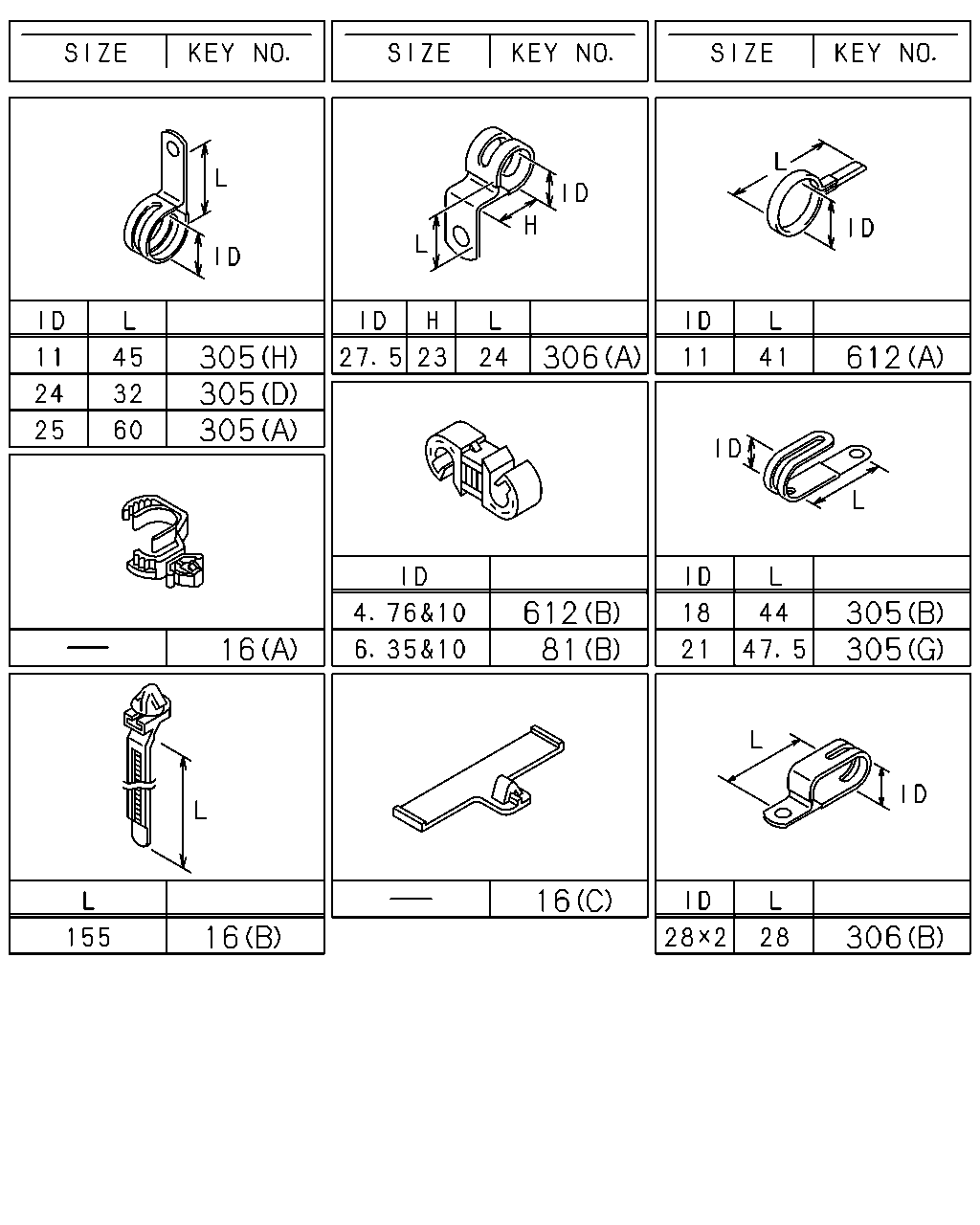

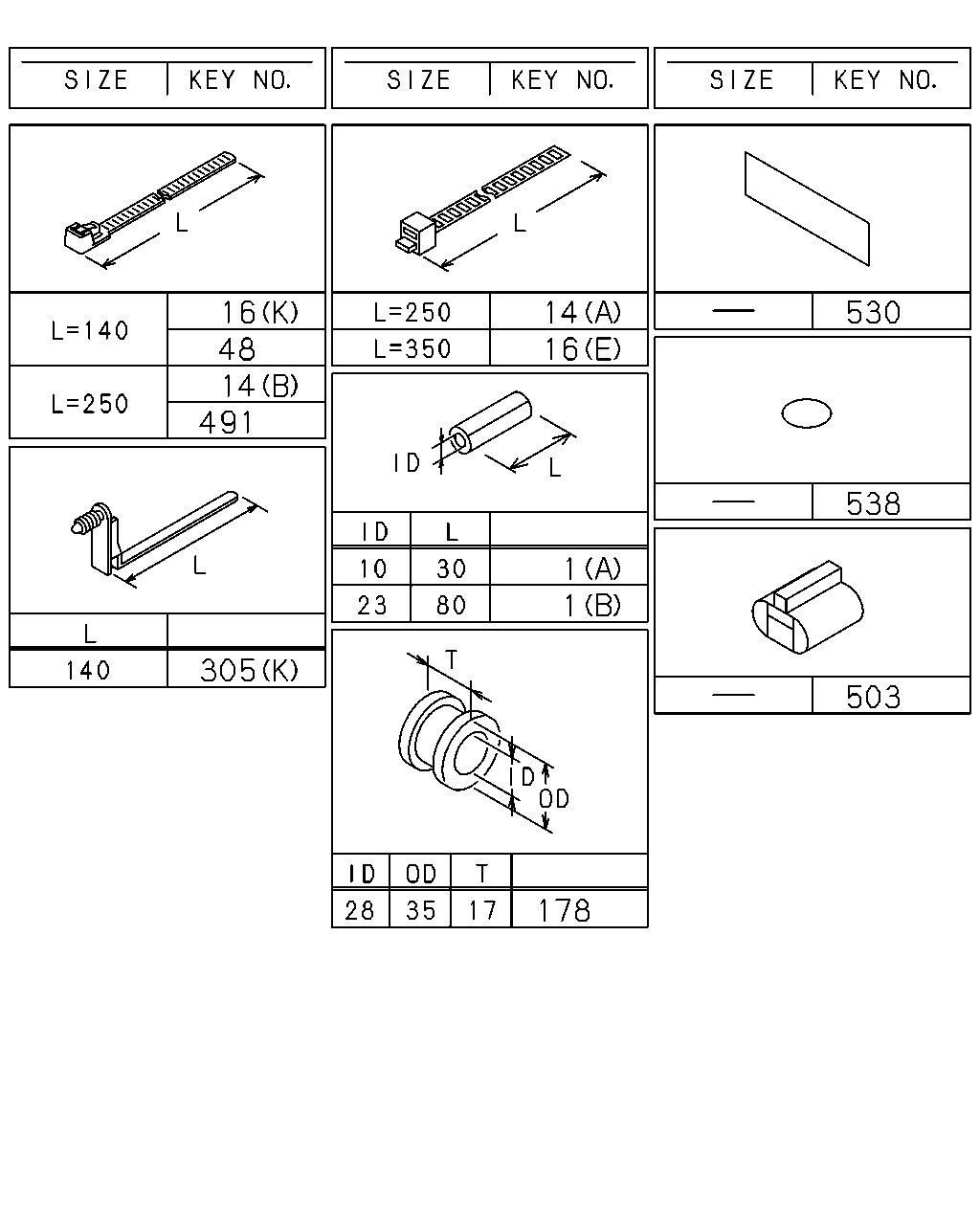

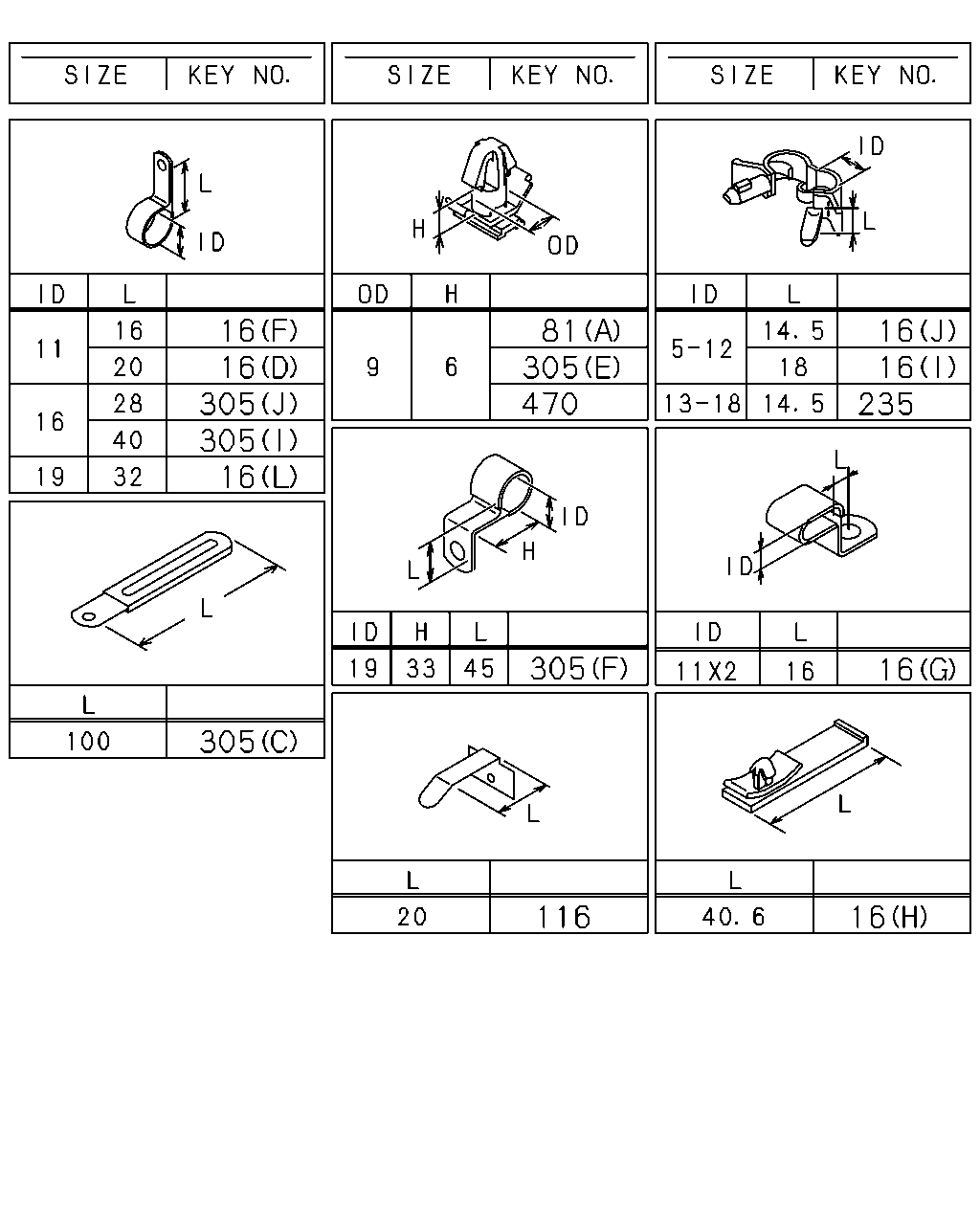

16 48 14 491 305 14 16 1 1 178 530 538 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1307-1312		●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1401-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1307-1312		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1401-	●	●
14	CLIP; BAND,HARNESS MZW6P M/T(RSZ) (B) L=250	8-98216-430-0	13	1	1307-1312		●
14	CLIP; BAND,HARNESS MZW6P M/T(RSZ) (B) L=250	8-98216-430-0	13	1	1401-	●	●
14	CLIP; BAND,HARNESS LCT2500 A/T ALLISON(Y5W) (B) L=250	8-98216-430-0	14	1	1307-1312		●
14	CLIP; BAND,HARNESS LCT2500 A/T ALLISON(Y5W) (B) L=250	8-98216-430-0	14	1	1401-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1307-1312		●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1401-	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1307-1312		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1307-1312		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1307-1503	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1504-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1401-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-		●
16	CLIP; HARNESS (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1307-1312		●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1401-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-		●
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1401-		●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1401-	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
48	CLIP; FRAME HARNESS L=250	5-09707-030-1	01	1	1307-1312		●
48	CLIP; FRAME HARNESS L=250	5-09707-030-1	01	1	1401-	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312		●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312		●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	03	1	1307-1312		●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	03	1	1401-	●	●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1307-1312		●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1401-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1307-1312		●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1307-1312		●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40	1-72498-019-1	01	1	1307-1312		●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1401-	●	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1401-	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40	1-72498-019-1	01	1	1401-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1307-1312		●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1401-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1307-1312		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1401-	●	●

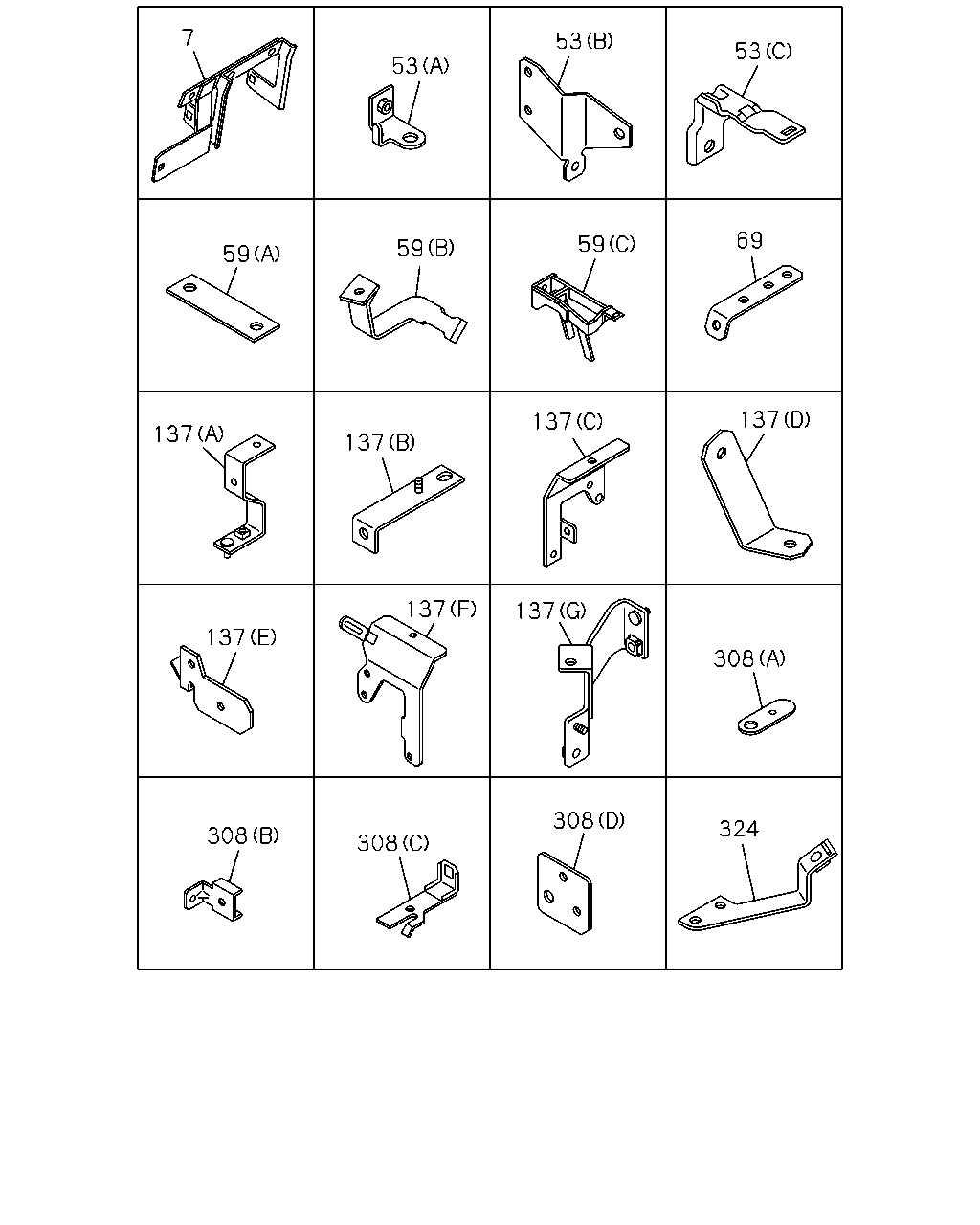

53 69 137 308 324 308 137 137 59 53 53 59 137 137 308 308 137 137 59 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1307-1312		●
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1401-	●	●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) (A)	1-82698-296-0	02	1	1307-1503	●	●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) (A)	1-82698-296-0	02	1	1504-	●	●
53	BRACKET; HARNESS (B)	8-98047-890-0	01	1	1307-1312		●
53	BRACKET; HARNESS (B)	8-98047-890-0	01	1	1401-	●	●
53	BRACKET; HARNESS (B)	8-98047-891-0	01	1	1307-1312		●
53	BRACKET; HARNESS (B)	8-98047-891-0	01	1	1401-	●	●
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1307-1312		●
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1401-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	1307-1312		●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	1401-	●	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1307-1312		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1401-		●
59	BRACKET; FRAME HARNESS MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1401-	●
59	BRACKET; FRAME HARNESS (B)	8-97616-357-3	01	1	1307-1312		●
59	BRACKET; FRAME HARNESS (B)	8-97616-357-3	01	1	1401-	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82698-167-0	01	1	1307-1312		●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82698-167-0	01	1	1401-	●	●
137	BRACKET; HARNESS CLAMP (G)	8-98249-803-1	01	1	1401-	●
137	BRACKET; HARNESS CLAMP LCT2500 A/T ALLISON(Y5W) (F)	8-98246-061-0	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP LCT2500 A/T ALLISON(Y5W) (F)	8-98246-061-0	01	1	1401-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1401-	●	●
137	BRACKET; HARNESS CLAMP MZW6P M/T(RSZ) (C)	8-97618-098-2	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP MZW6P M/T(RSZ) (C)	8-97618-098-2	01	1	1401-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1401-	●	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-98059-231-1	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-98059-231-1	01	1	1401-		●
137	BRACKET; HARNESS CLAMP (A)	8-98059-231-1	01	1	1401-	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-98065-904-0	01	1	1307-		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1401-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1401-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1401-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1401-	●	●
324	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-98051-648-1	01	1	1307-1312		●
324	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-98051-648-1	01	1	1401-		●
324	BRACKET; CLIP	8-98051-648-1	01	1	1401-	●
324	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-98051-649-1	01	1	1307-1312		●
324	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-98051-649-1	01	1	1401-		●
324	BRACKET; CLIP	8-98051-649-1	01	1	1401-	●

16 16 305 305 16 305 81 305 470 305 116 16 16 235 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1307-1312		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1307-1312		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1307-1503	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1504-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1401-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-		●
16	CLIP; HARNESS (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1307-1312		●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1401-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-		●
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1401-		●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1401-	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-1312		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1401-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1307-1312		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1401-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=13-18 L=14.5	1-09709-290-0	01	1	1307-1312		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●

305 305 305 16 16 306 612 81 16 612 305 305 06

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (L) ID=19 L=32	0-95235-866-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1307-1312		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1307-1312		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1307-1503	●	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (D) ID=11 L=20	0-95235-035-0	02	1	1504-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1401-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-		●
16	CLIP; HARNESS (G) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1307-1312		●
16	CLIP; HARNESS (E) L=350	1-09707-183-0	01	1	1401-	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-		●
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	01	1	1401-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1307-1312		●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (K) L=140	5-09707-031-1	01	1	1401-		●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1401-	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312		●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-1312		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1401-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1307-1312		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1401-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1307-1312		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1401-	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1307-1312		●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312		●
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
