Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#124356) — 602 parça

1 486 6 339 595 6 1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

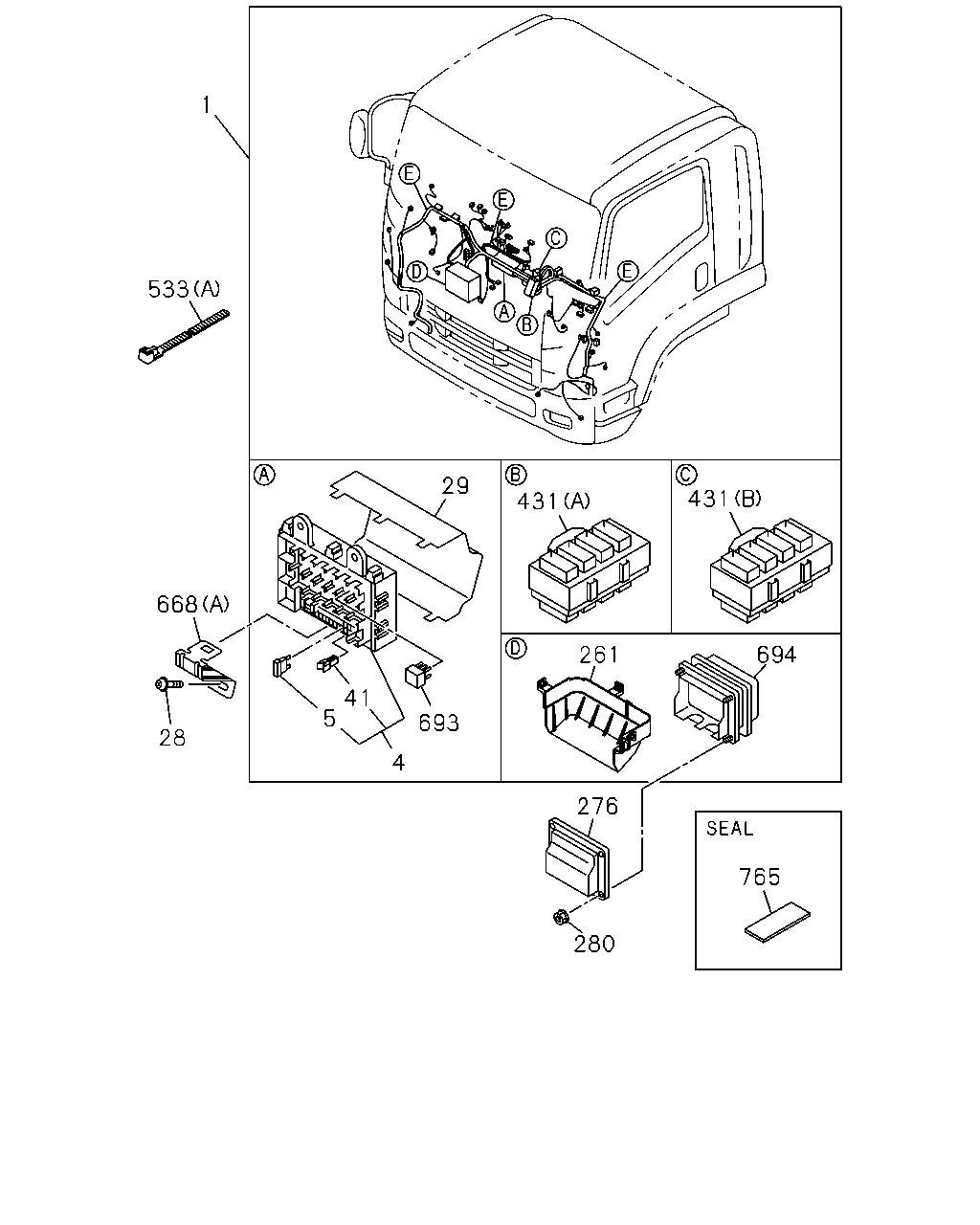

1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98124-758-0	01	1	1307-1312	●
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98124-758-0	01	1	1401-	●
339	HARNESS; EXT,FUEL WHEEL BASE 5500MM(55W)	8-98124-758-0	01	1	1401-		●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1307-	●	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ)	8-98058-327-1	01	1	1307-1312	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ)	8-98058-327-1	01	1	1401-1404	●	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU)	8-98058-327-1	01	1	1405-1405	●	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT)	8-98058-327-1	01	1	1406-	●	●
570	HARNESS; SPEED SENSOR LCT2500 A/T ALLISON(Y5W)	8-98091-562-0	01	1	1307-1312	●	●
570	HARNESS; SPEED SENSOR LCT2500 A/T ALLISON(Y5W)	8-98091-562-0	01	1	1401-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1307-1312	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1401-	●	●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1307-1312	●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1401-	●	●

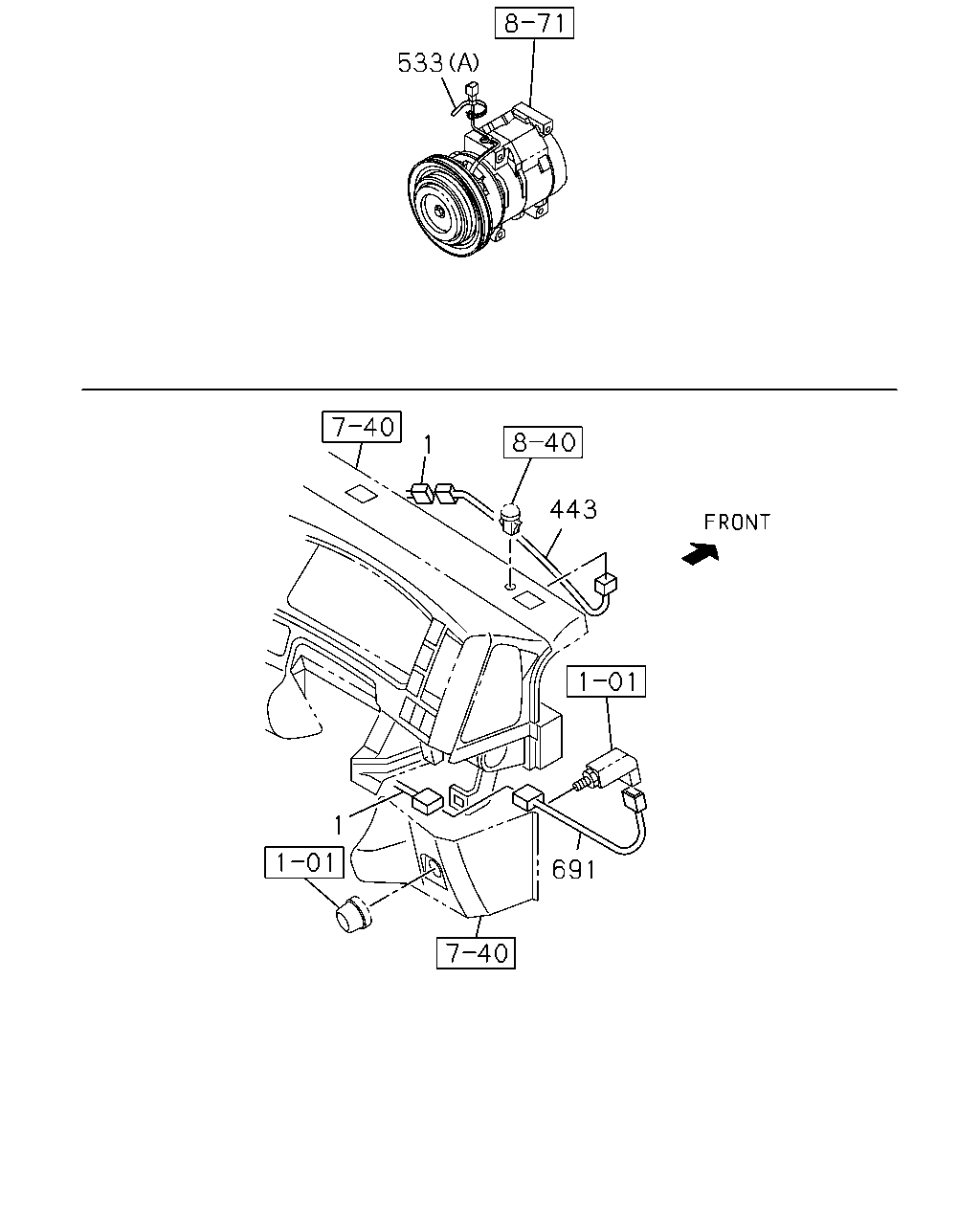

443 691 1 1 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1401-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1307-1312	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1401-	●	●

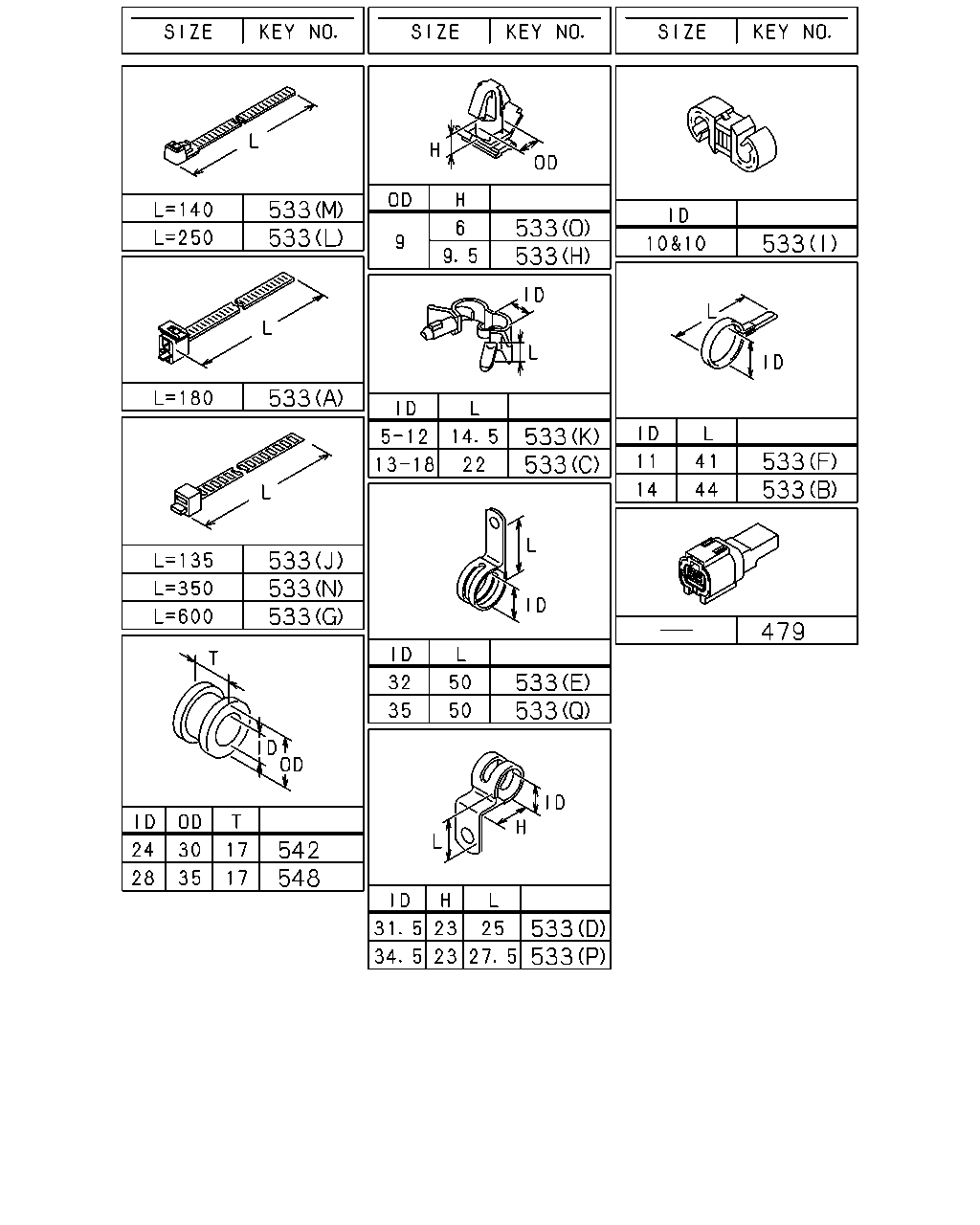

533	CLIP (B) ID=14 L=44	9-09917-427-0	21	1	1401-		●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	09	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W) (B) ID=14 L=44	9-09917-427-0	19	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1307-1312	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-	●
533	CLIP (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 5500MM(55W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 6500MM(65W) (B) ID=14 L=44	9-09917-427-0	24	1	1307-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1401-	●	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1307-1312	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1401-	●	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1307-1312	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1307-1312	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1401-	●	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1312	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1401-	●	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1307-1312	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1401-	●	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1307-1312	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1401-	●	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1401-	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-		●
533	CLIP (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-		●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-		●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1401-	●	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1401-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1307-1312	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1401-	●	●

638 441 535 638 638 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

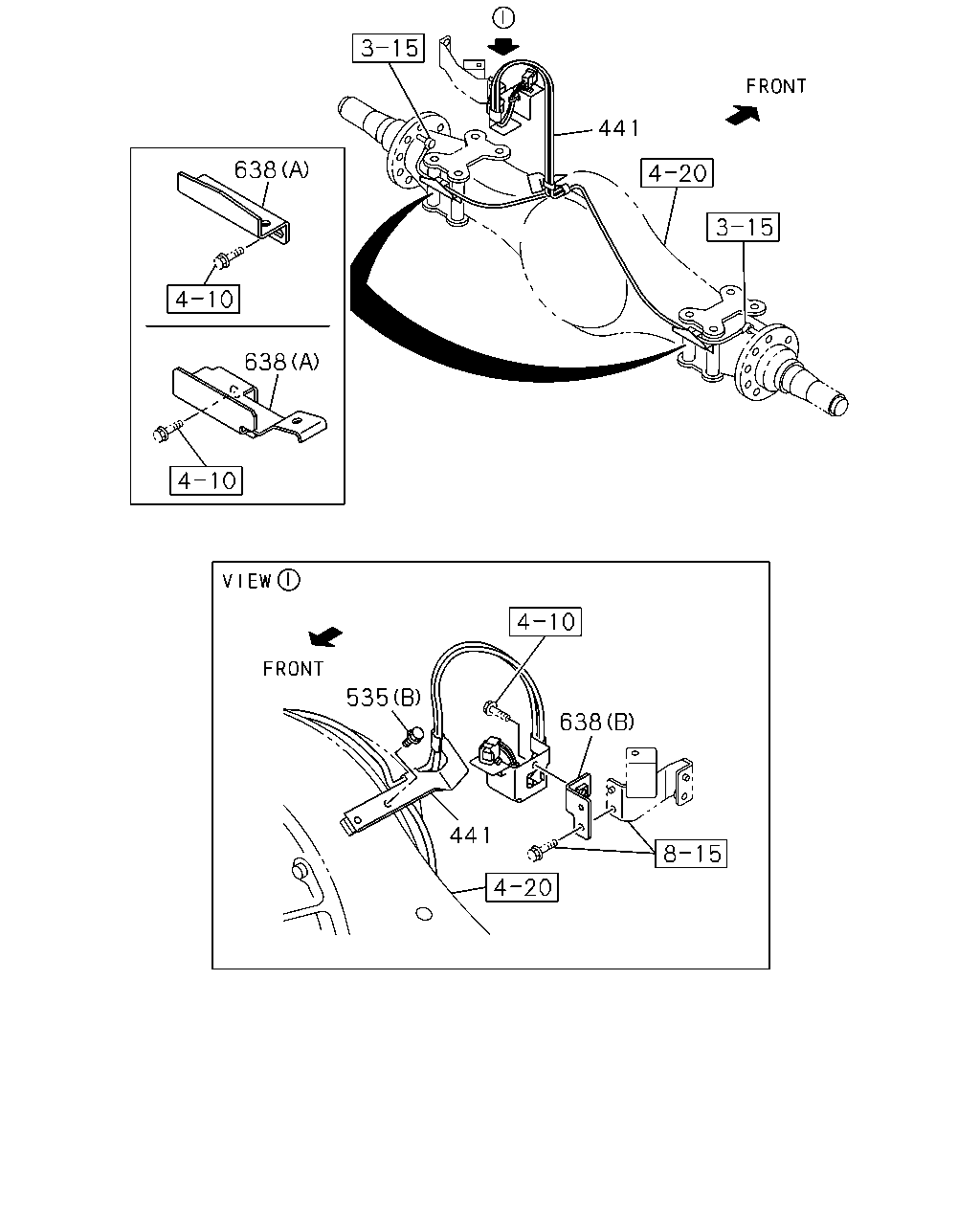

441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1307-1312	●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1307-1312	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1401-	●	●
638	BRACKET; SPD SENSOR (A)	8-98236-731-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (A)	8-98236-732-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (B)	8-98249-802-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1307-	●

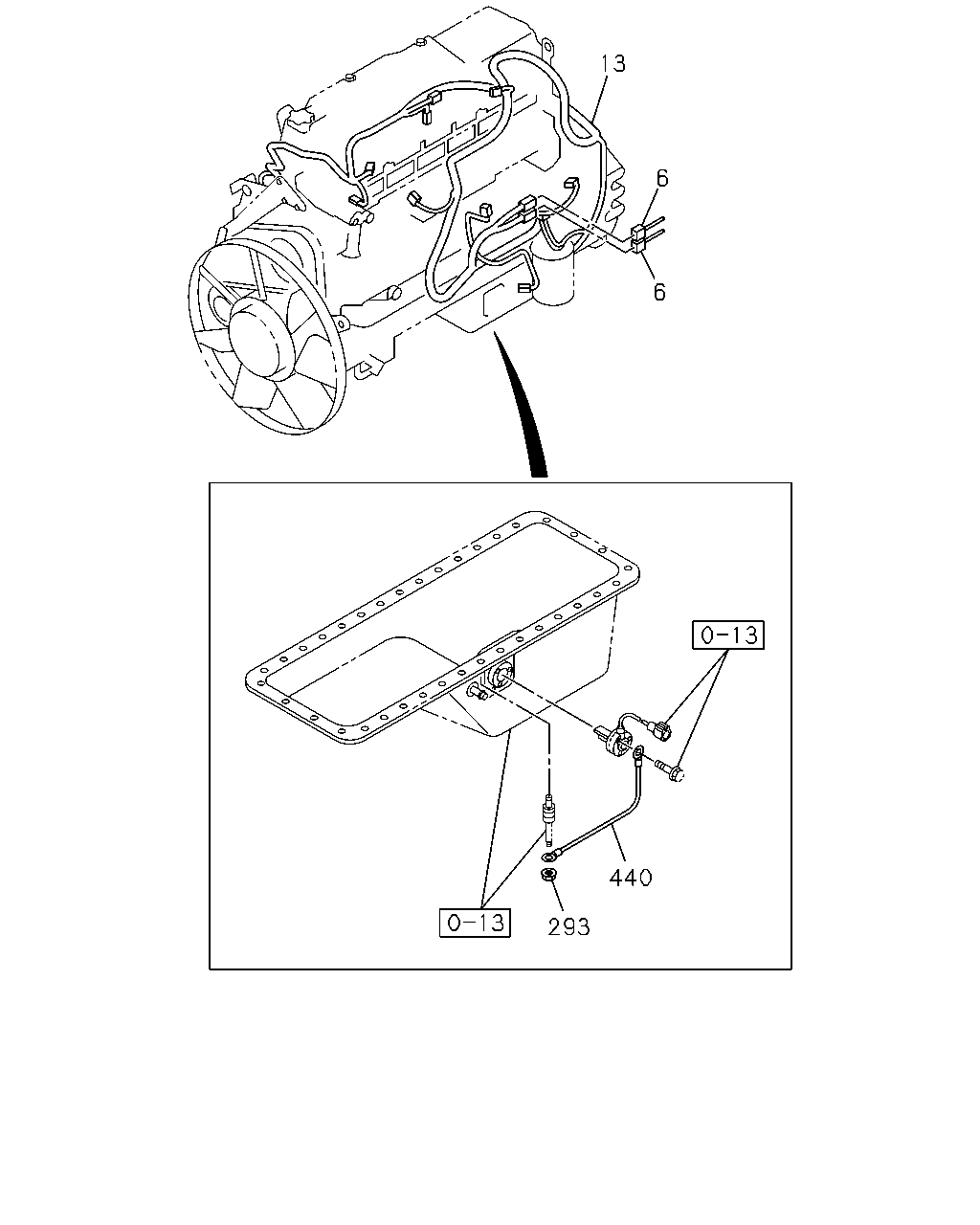

13 6 6 440 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-207-0	01	1	1307-1312	●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-207-0	01	1	1401-	●	●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98177-206-0	01	1	1307-1312	●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98177-206-0	01	1	1401-	●	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-214-0	01	1	1307-1312	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-214-0	01	1	1401-	●	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89)	8-98177-213-0	01	1	1307-1312	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89)	8-98177-213-0	01	1	1401-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
440	CABLE; EARTH	8-97606-639-0	01	1	1307-1312	●
440	CABLE; EARTH	8-97606-639-0	01	1	1401-	●	●

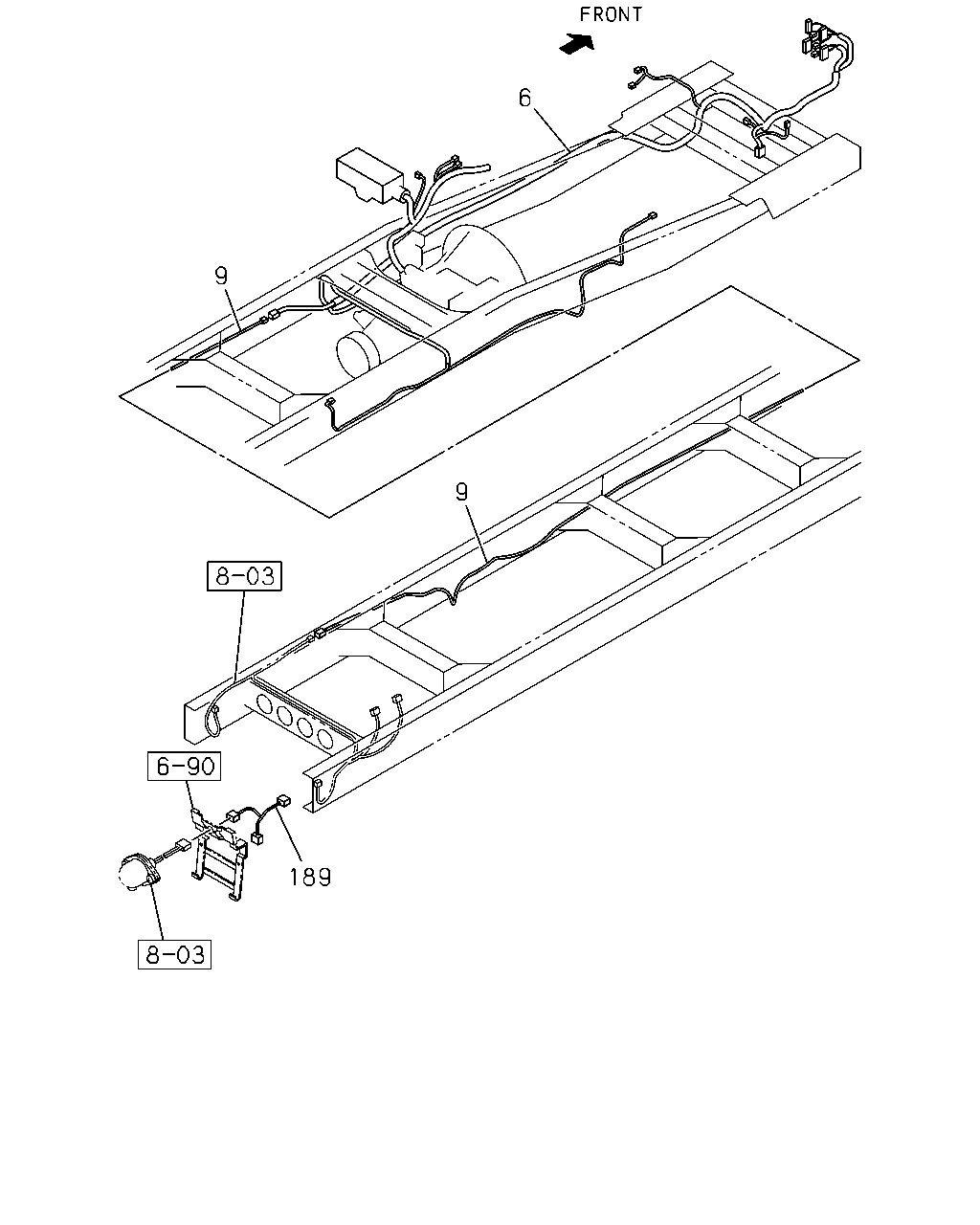

189 9 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
9	HARNESS; FRAME,RR	8-98232-917-1	01	1	1401-		●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98168-596-0	01	1	1307-	●
9	HARNESS; FRAME,RR WHEEL BASE 6500MM(65W)	8-98170-240-0	01	1	1307-	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1307-1312	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1401-	●	●

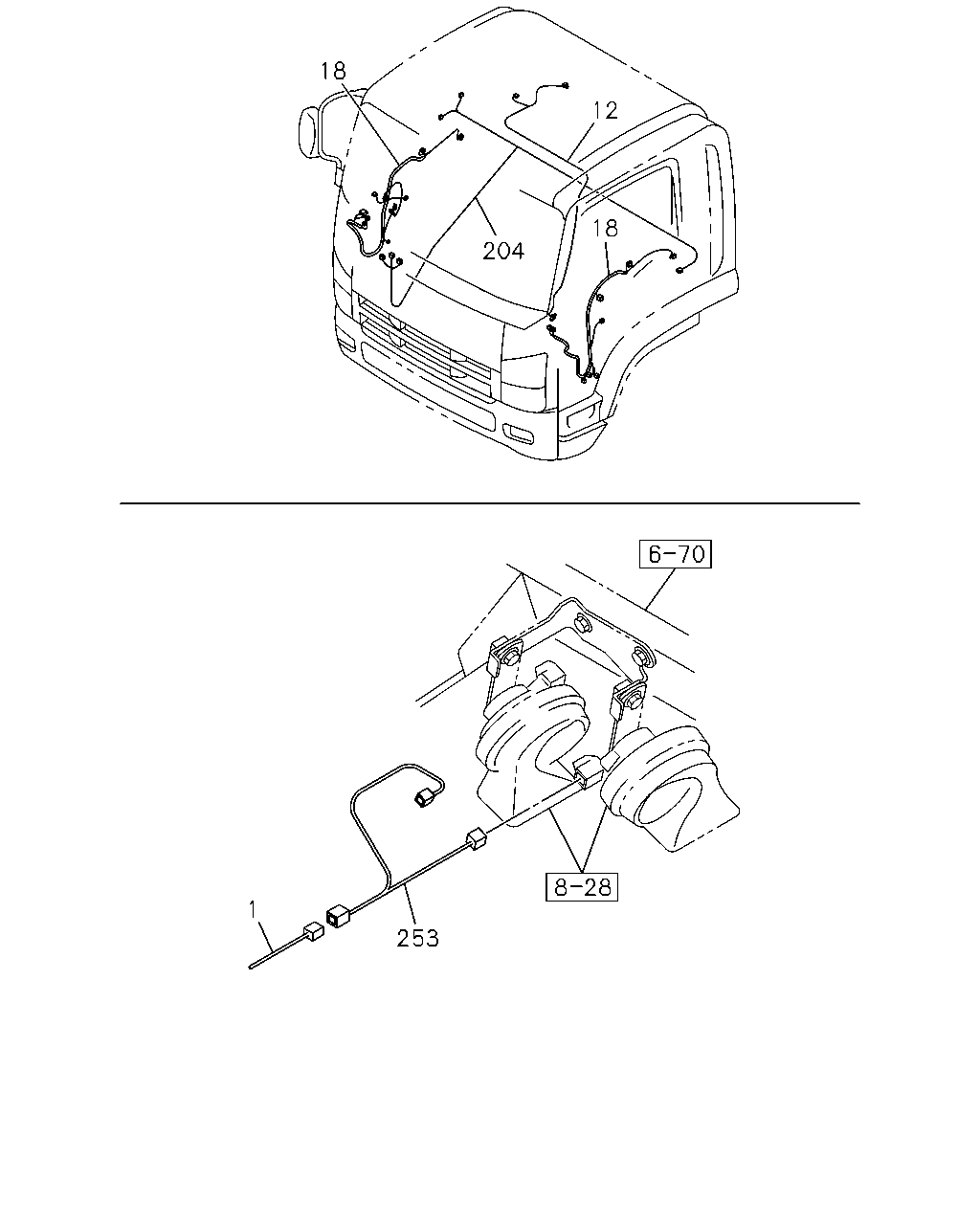

1 253 204 18 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1401-	●	●
12	HARNESS; ROOF	8-98079-071-1	01	1	1307-1312	●
12	HARNESS; ROOF	8-98079-071-1	01	1	1401-	●	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-378-0	01	1	1307-1312	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-378-0	01	1	1401-	●	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-379-0	01	1	1307-1312	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-379-0	01	1	1401-	●	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-076-5	01	1	1307-1312	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-076-5	01	1	1401-	●	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-079-5	01	1	1307-1312	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-079-5	01	1	1401-	●	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1401-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1401-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-196-2	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-196-2	01	1	1401-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-196-2	01	1	1401-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1401-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1401-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-201-1	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-201-1	01	1	1401-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-201-1	01	1	1401-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98085-250-2	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98085-250-2	01	1	1401-	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3)	8-98085-250-2	01	1	1401-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98085-251-1	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98085-251-1	01	1	1401-	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-251-1	01	1	1401-		●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1307-1312	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1401-	●	●

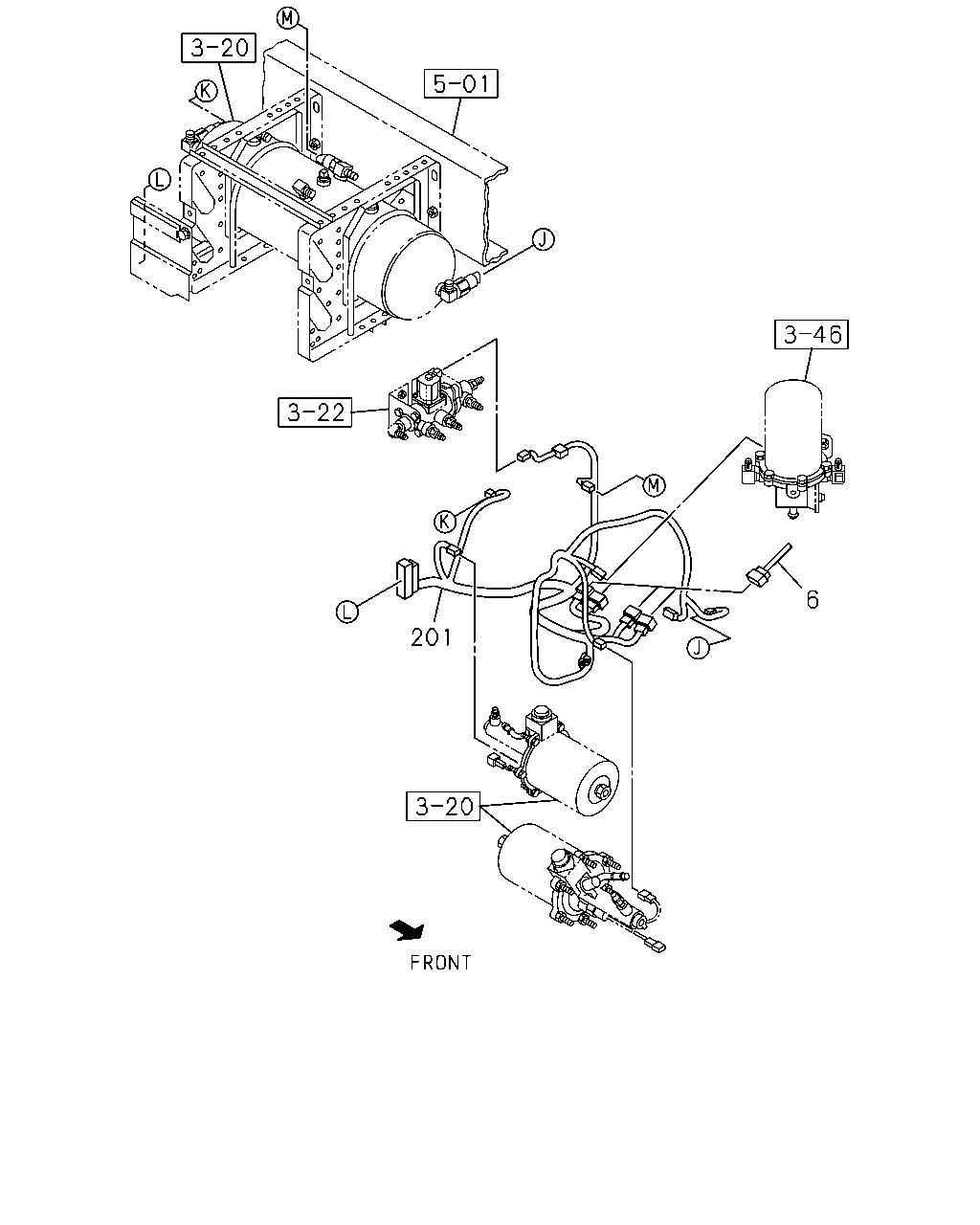

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) THROTTLE CONTROL SYSTEM(6XH)	8-98156-702-2	01	1	1307-1312	●
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) THROTTLE CONTROL SYSTEM(6XH)	8-98156-702-2	01	1	1401-	●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-702-2	01	1	1401-		●
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-703-2	01	1	1307-1312	●
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-703-2	01	1	1401-	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-703-2	01	1	1401-		●

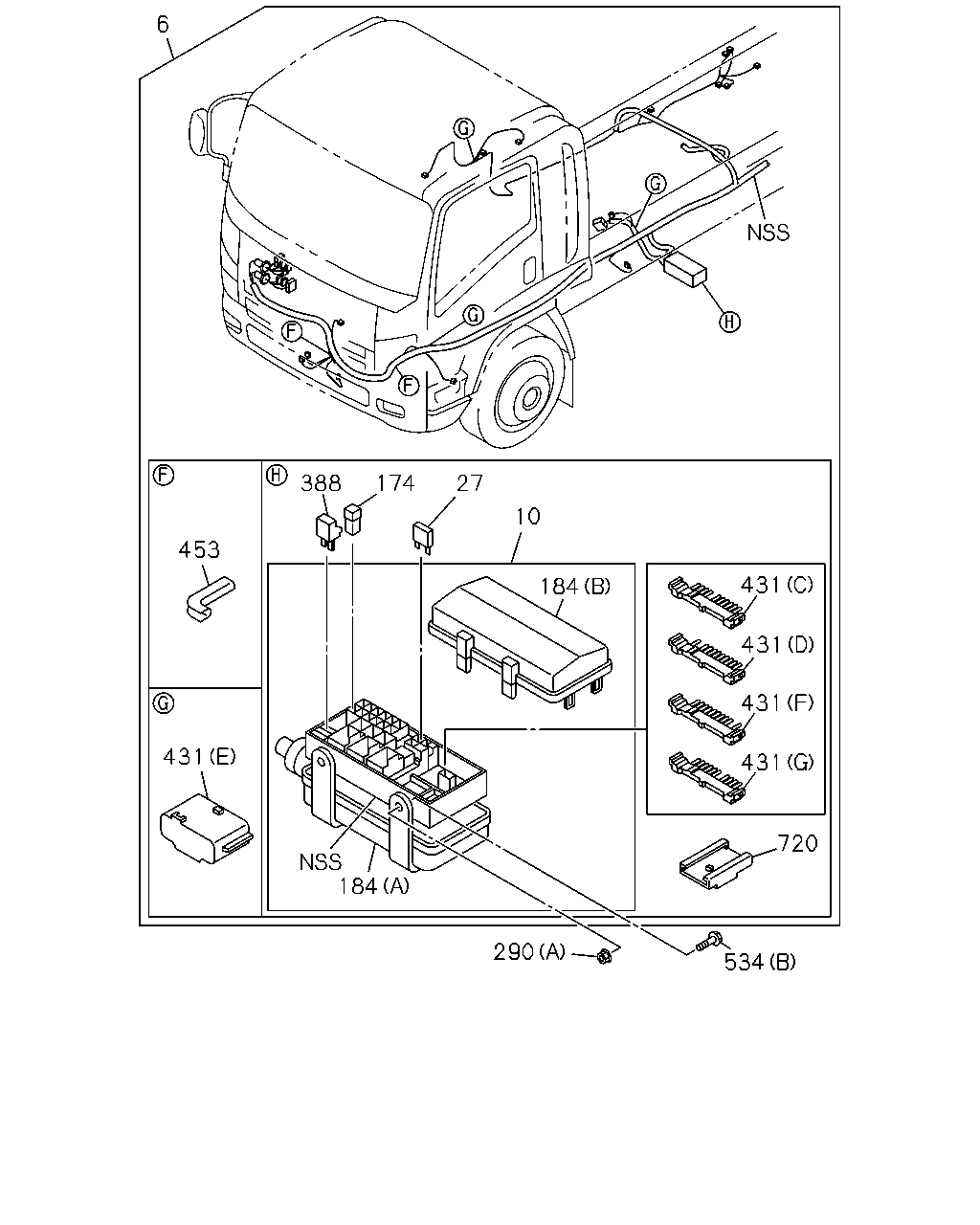

6 453 431 174 388 27 10 184 431 431 431 431 720 534 290 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1307-1312	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1401-	●	●
27	FUSE UNIT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 15A BLUE	8-98054-258-0	03	1	1307-	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1307-1312	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1401-	●	●
27	FUSE UNIT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 15A BLUE	8-98054-258-0	02	1	1307-	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 30A PINK	8-98079-191-0	01	1	1307-	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1307-1312	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1401-	●	●
174	FUSE; SLOW BLOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 30A PINK	8-98079-191-0	02	1	1307-	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1307-1312	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1401-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1307-1312	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1401-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1307-1312	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1401-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1307-1312	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1401-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1307-1312	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1401-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1307-1312	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1401-	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	05	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN	1-82699-601-0	01	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 6P BLACK	8-97616-194-0	02	1	1307-	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1401-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1401-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1307-1312	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1401-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-1312	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1401-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1307-1312	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1401-	●	●

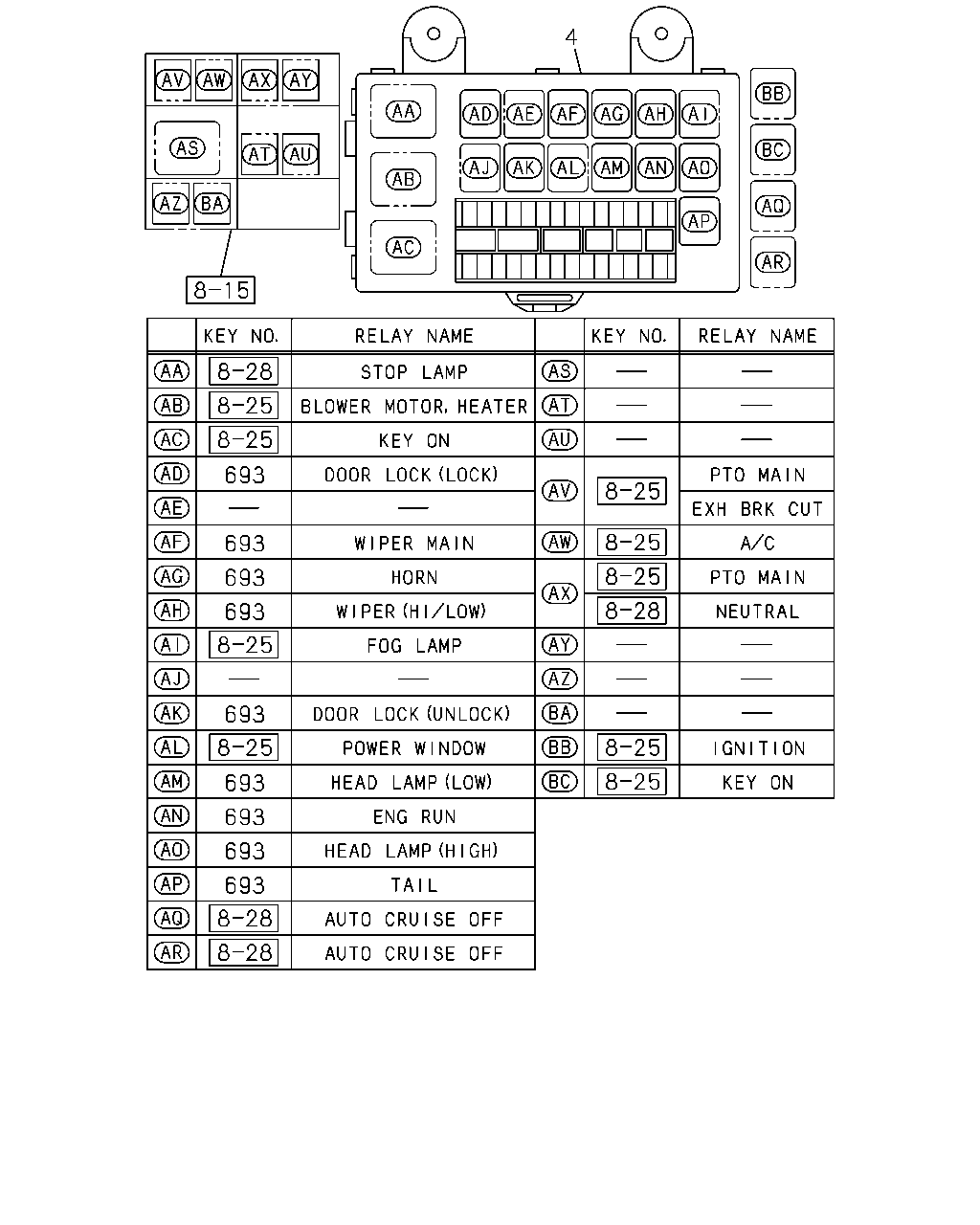

693 693 693 693 693 693 693 4 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1307-1312	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1401-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1307-1312	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1401-	●	●

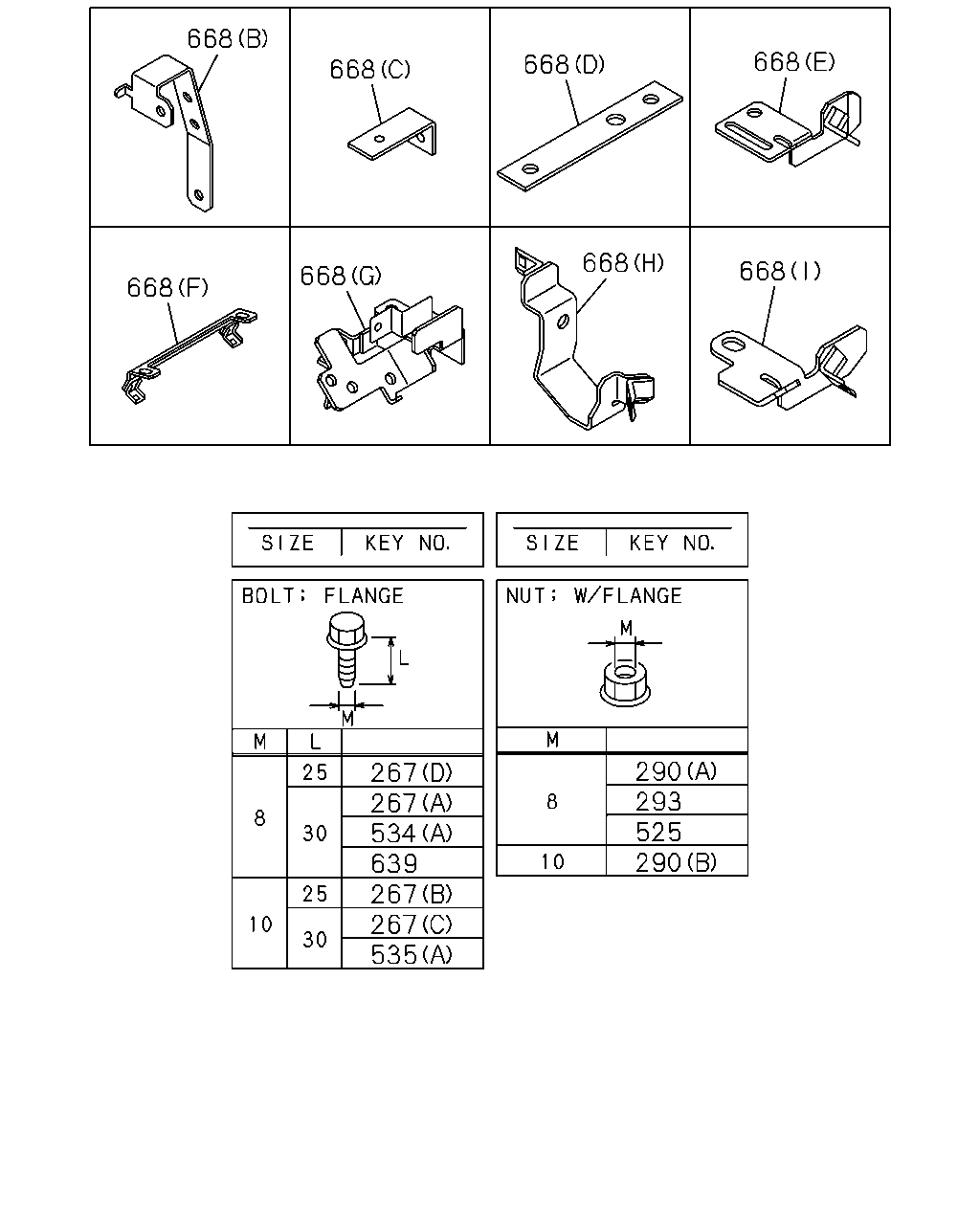

668 668 668 668 668 668 668 668 267 267 534 639 267 267 535 290 293 525 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312	●
267	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
267	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1307-1312	●
267	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1401-	●	●
267	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
267	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
267	BOLT; BRKT EXC. A/T<X9D> (D) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
267	BOLT; BRKT EXC. A/T<X9D> (D) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1401-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-1312	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1307-1312	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1401-	●	●
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98095-653-2	01	1	1401-	●	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-97619-097-1	01	1	1307-1312	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-97619-097-1	01	1	1401-	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W) (B)	8-97619-097-1	01	1	1401-		●
668	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (D) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (D) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (F)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-97619-534-0	01	1	1307-1312	●
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (G)	8-97619-534-0	01	1	1401-	●
668	BRACKET; HARNESS (G)	8-97619-534-0	01	1	1401-		●
668	BRACKET; HARNESS (H)	8-98090-952-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98090-952-0	01	1	1401-	●	●

765 280 276 694 261 693 4 41 5 28 668 431 431 29 533 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1401-	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1307-1312	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1401-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1401-	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1307-1312	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1401-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1307-1312	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1401-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1307-1312	●
41	PULLER; FUSE	8-98054-260-0	01	1	1401-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1307-1312	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1401-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1307-1312	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1401-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1307-1312	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	05	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN	1-82699-601-0	01	1	1307-	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 6P BLACK	8-97616-194-0	02	1	1307-	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1401-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1401-	●	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	21	1	1401-		●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	09	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W) (B) ID=14 L=44	9-09917-427-0	19	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1307-1312	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-	●
533	CLIP (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 5500MM(55W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 6500MM(65W) (B) ID=14 L=44	9-09917-427-0	24	1	1307-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1401-	●	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1307-1312	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1401-	●	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1307-1312	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1307-1312	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1401-	●	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1312	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1401-	●	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1307-1312	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1401-	●	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1307-1312	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1401-	●	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1401-	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-		●
533	CLIP (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-		●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-		●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1401-	●	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98095-653-2	01	1	1401-	●	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-97619-097-1	01	1	1307-1312	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-97619-097-1	01	1	1401-	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W) (B)	8-97619-097-1	01	1	1401-		●
668	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (D) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (D) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (F)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-97619-534-0	01	1	1307-1312	●
668	BRACKET; HARNESS 6HK1-TCN ENG(82L) (G)	8-97619-534-0	01	1	1401-	●
668	BRACKET; HARNESS (G)	8-97619-534-0	01	1	1401-		●
668	BRACKET; HARNESS (H)	8-98090-952-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98090-952-0	01	1	1401-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1307-1312	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1401-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1307-1312	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1401-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

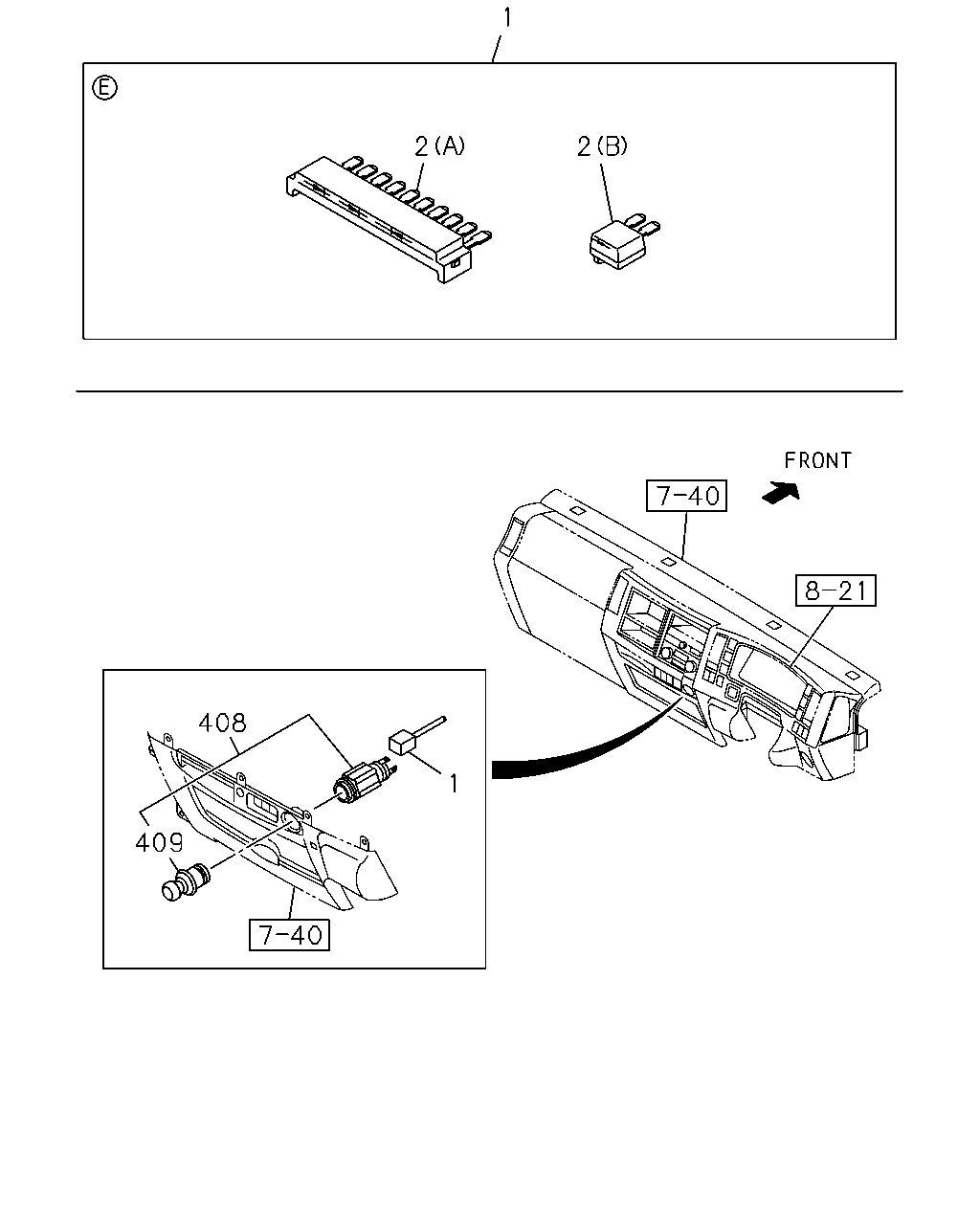

1 2 2 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-940-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-534-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-535-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-536-1	01	1	1401-	●	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1307-1312	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-537-1	01	1	1401-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1307-1312	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1401-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1307-1312	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1401-	●	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1307-1312	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1401-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1307-1312	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1401-	●	●

231 6 6 637 579 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-884-2	01	1	1401-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1307-1312	●
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-885-2	01	1	1401-	●	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-887-1	01	1	1307-	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1307-1312	●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W)	8-98232-886-2	01	1	1401-	●	●
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-722-0	01	1	1307-1312	●
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-722-0	01	1	1401-	●	●
231	HARNESS; TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1307-	●
579	HARNESS; A/T LCT2500 A/T ALLISON(Y5W)	8-98276-300-0	01	1	1307-1501	●	●
579	HARNESS; A/T LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98276-300-0	01	1	1502-1503	●	●
579	HARNESS; A/T LCT2500 A/T ALLISON(Y5W)	8-98276-300-0	01	1	1504-	●	●
637	HARNESS; EXT,S/SENSOR LCT2500 A/T ALLISON(Y5W)	1-82671-045-1	01	1	1307-1503	●	●
637	HARNESS; EXT,S/SENSOR LCT2500 A/T ALLISON(Y5W)	1-82671-045-1	01	1	1504-	●	●

533 533 533 533 533 533 542 548 533 533 533 533 533 533 533 533 533 533 533 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1307-1312	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1401-	●	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	21	1	1401-		●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1307-	●
533	CLIP WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	09	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W) (B) ID=14 L=44	9-09917-427-0	19	1	1307-	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1307-1312	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-	●
533	CLIP (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 5500MM(55W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
533	CLIP WHEEL BASE 6500MM(65W) (B) ID=14 L=44	9-09917-427-0	24	1	1307-	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=32 L=50	1-09701-055-1	01	1	1401-	●	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●
533	CLIP (F) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1307-1312	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1401-	●	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1307-1312	●
533	CLIP (H) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
533	CLIP (I) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1307-1312	●
533	CLIP (J) L=135	1-09987-143-1	01	1	1401-	●	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1312	●
533	CLIP (K) ID=5-12 L=14.5	1-09987-221-0	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	02	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	03	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	04	1	1401-	●	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1307-1312	●
533	CLIP (M) L=140	5-09707-031-1	02	1	1401-	●	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1307-1312	●
533	CLIP (B) ID=14 L=44	9-09917-427-0	02	1	1401-	●	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (N) L=350	1-09707-183-0	01	1	1401-	●
533	CLIP (N) L=350	1-09707-183-0	01	1	1401-		●
533	CLIP (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (L) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP (L) L=250	5-09707-030-1	01	1	1401-		●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP 6HK1-TCN ENG(82L) (O) OD=9 H=6	1-09709-178-0	01	1	1401-	●
533	CLIP (O) OD=9 H=6	1-09709-178-0	01	1	1401-		●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1401-	●	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1307-1312	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (Q) ID=35 L=50	1-09701-214-0	01	1	1401-	●	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1307-1312	●
542	GROMMET; HARNESS 6HK1-TCN ENG(82L) ID=24 OD=30 T=17	9-09956-092-1	01	1	1307-1312	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1401-	●	●
542	GROMMET; HARNESS 6HK1-TCN ENG(82L) ID=24 OD=30 T=17	9-09956-092-1	01	1	1401-	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1401-		●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
