◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#124352) — 36 parça

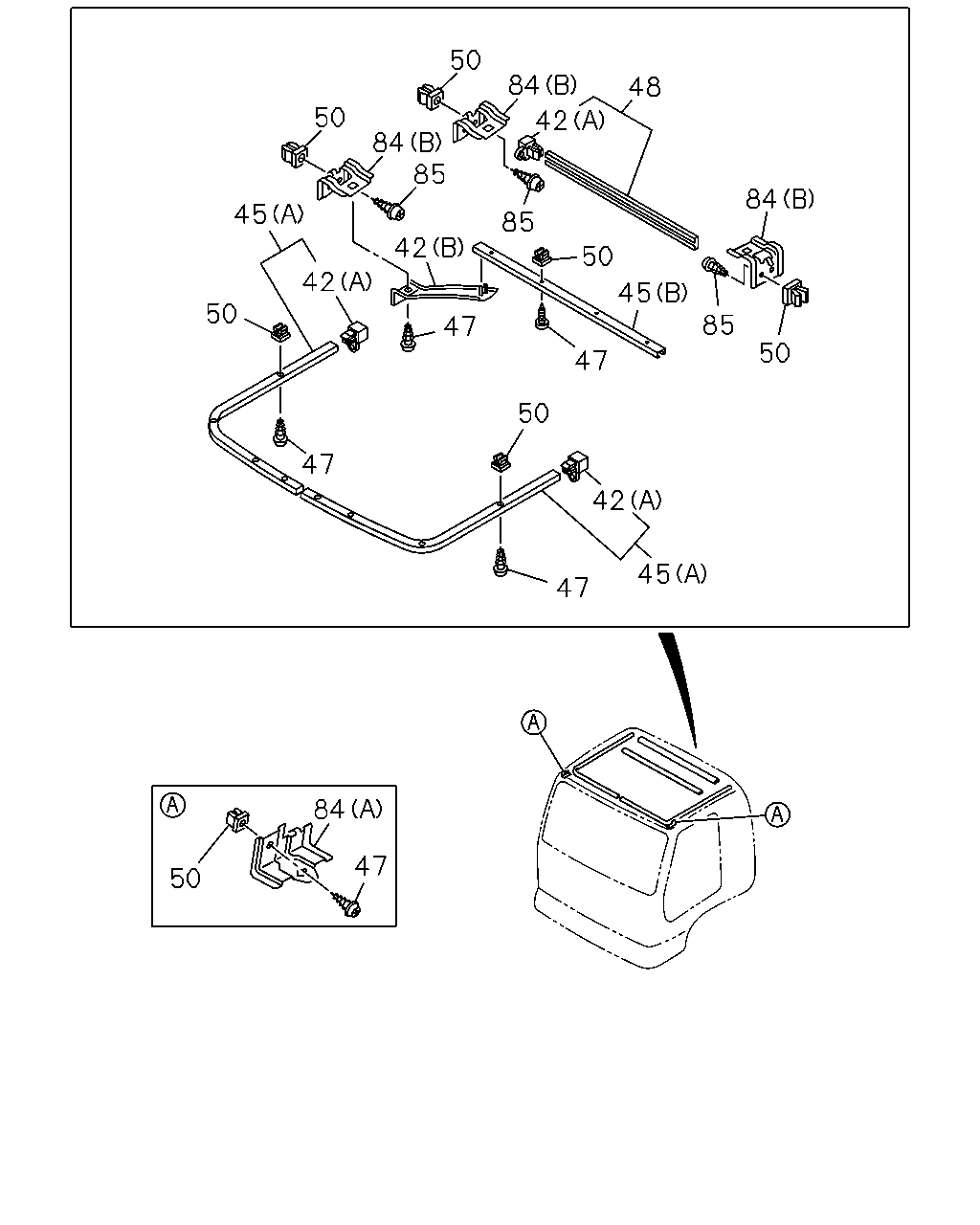

çizim 365195
50 84 47 47 42 45 50 47 45 84 85 50 50 47 42 42 50 47 45 50 85 50 48 42 84 85 84
BalonParca AdiParca NoAdetTipApplied Date A B
42 STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97408-038-0 03 1 1307-1312 ●
42 STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97408-038-0 03 1 1401- ● ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-499-2 01 1 1307-1312 ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-499-2 01 1 1401- ● ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-972-2 01 1 1307-1312 ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-972-2 01 1 1401- ● ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-671-0 01 1 1307-1312 ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-671-0 01 1 1401- ● ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-672-0 01 1 1307-1312 ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-672-0 01 1 1401- ● ●
45 RAIL; CURTAIN,FRT
(B) DARK GRAY 		8-97407-485-0 01 1 1307-1312 ●
45 RAIL; CURTAIN,FRT
(B) DARK GRAY 		8-97407-485-0 01 1 1401- ● ●
47 SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 14 1 1307-1312 ●
47 SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 14 1 1401- ● ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 1307-1312 ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 1401- ● ●
48 RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-866-2 01 1 1307-1312 ●
48 RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-866-2 01 1 1401- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1406- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 14 1 1307-1312 ●
50 GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 14 1 1401-1405 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 20 1 1406- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1307-1312 ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1307-1312 ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401-1405 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401-1405 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1406- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		8-98028-326-1 02 1 1307-1312 ●
84 BRACKET; CURTAIN RAIL
(A) 		8-98028-326-1 02 1 1401-1405 ● ●
84 BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) 		8-98028-326-1 02 1 1406- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		8-98042-152-0 04 1 1307-1312 ●
84 BRACKET; CURTAIN RAIL
(B) 		8-98042-152-0 04 1 1401- ● ●
85 SCREW; BRKT
EXC. ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 04 1 1406- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 06 1 1307-1312 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 06 1 1401-1405 ● ●
85 SCREW; BRKT
ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 06 1 1406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
