◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#124350) — 546 parça

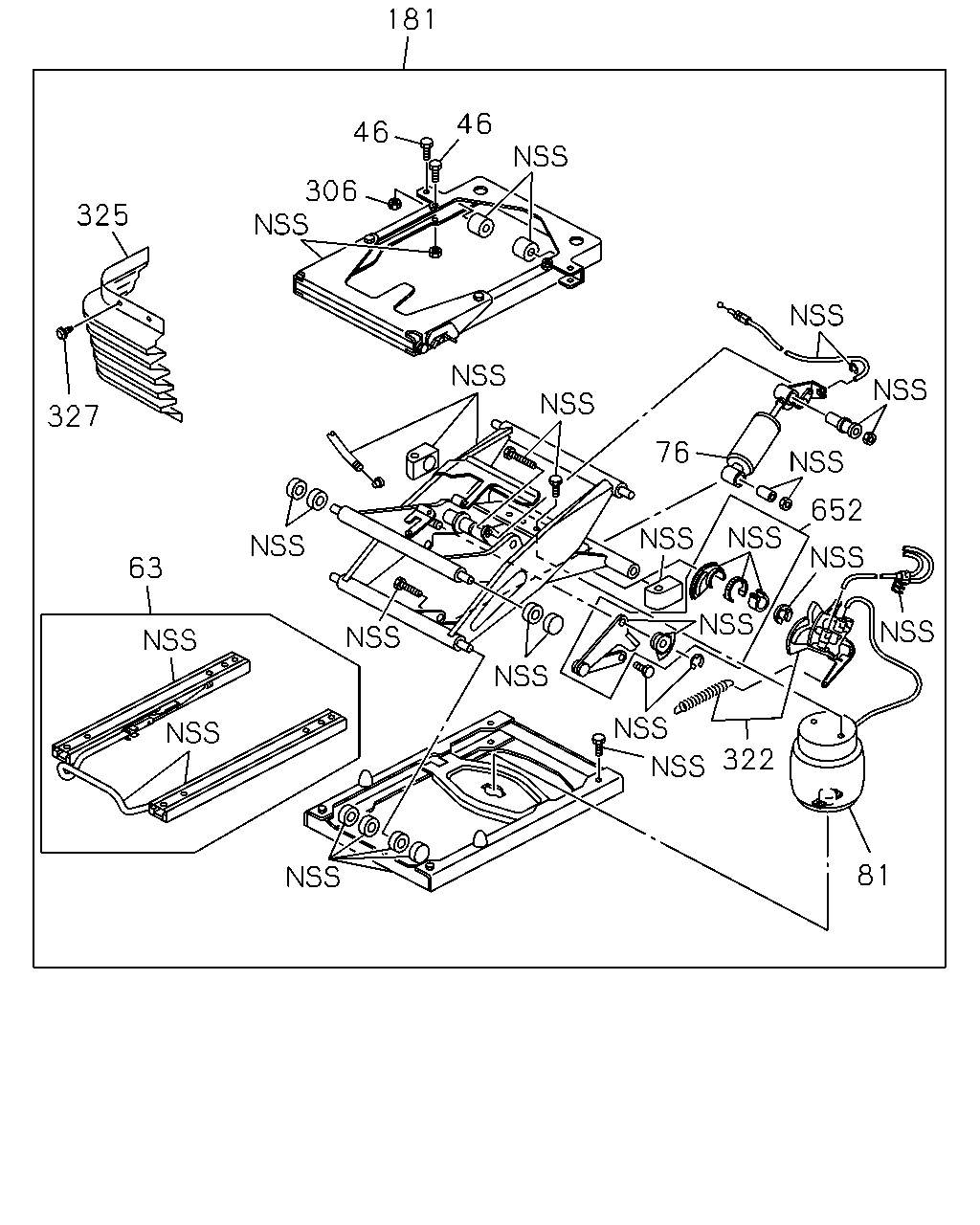

çizim 363713
181 46 46 306 76 652 322 81 63 325 327
BalonParca AdiParca NoAdetTipApplied Date A B
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1307-1312 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1307-1312 ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1307-1312 ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1401- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1401- ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1307-1312 ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1307-1312 ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1401- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1401- ●
81 SPRING; AIR 8-98098-000-0 01 1 1307-1312 ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1307-1312 ●
81 SPRING; AIR 8-98098-000-0 01 1 1401- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1401- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98195-064-1 01 1 1307- ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1307-1312 ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1307-1312 ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1401-1508 ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1401-1508 ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1509- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1307-1312 ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1307-1312 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1401- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1401- ●
327 CLIP; COVER 8-98098-004-0 01 1 1307-1312 ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1307-1312 ●
327 CLIP; COVER 8-98098-004-0 01 1 1401- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1401- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1307-1312 ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1307-1312 ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1401- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1401- ●

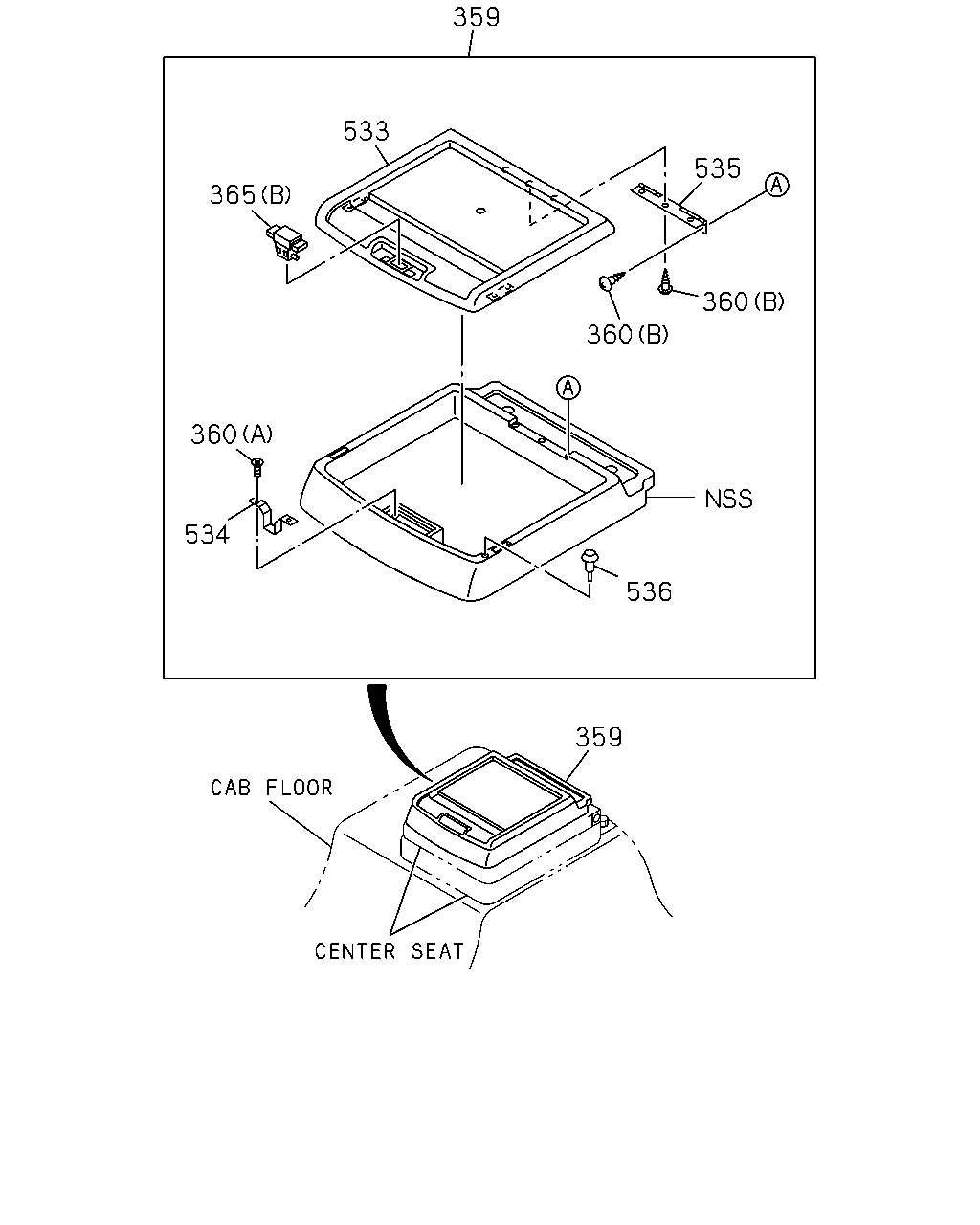

çizim 363764
359 533 365 360 534 536 360 360 535 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1307-1312 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1401- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1401- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1401- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1307-1312 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1401- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1307-1312 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1401- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1307-1312 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1401- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1307-1312 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1401- ● ●

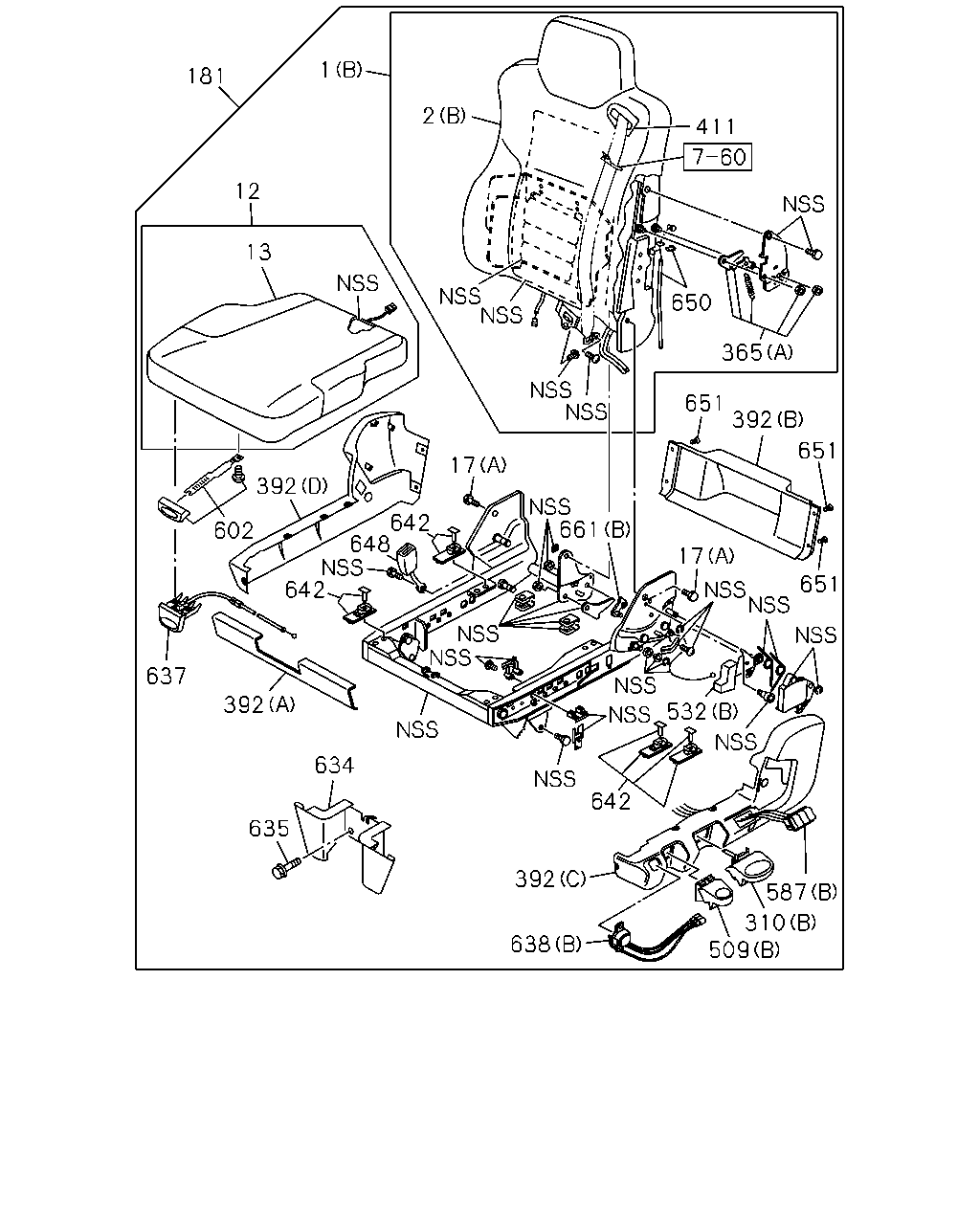

çizim 364608
1 181 12 13 2 411 650 365 392 651 651 651 661 17 17 642 392 602 648 642 392 637 634 635 642 392 638 581 310 509 532
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1401- ● ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-961-0 01 1 1307- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98232-352-0 01 1 1307- ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1307-1312 ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1307-1312 ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1401- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1401- ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1307-1312 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1307-1312 ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1401- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1401- ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1401- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1401- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1401- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1401- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98195-064-1 01 1 1307- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1307-1312 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1401- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-991-0 01 1 1307- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1401- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1401- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98097-977-0 01 1 1307-1508 ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98333-916-0 01 1 1509- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98097-983-0 01 1 1307- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-995-0 01 1 1307- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-996-0 01 1 1307- ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1307-1312 ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1307-1312 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1401- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1401- ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1307-1312 ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1401- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-987-0 01 1 1307- ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1307-1312 ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1401- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-981-0 01 1 1307- ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98227-865-0 01 1 1307- ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-692-3 01 1 1307-1312 ●
581 PIPE; SEAT 8-97589-692-3 01 1 1401- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1307-1312 ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1307-1312 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1401- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1401- ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98088-279-0 02 1 1307- ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 1307-1312 ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 1401- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1401- ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1307- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1307-1312 ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1401- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1401- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1307-1312 ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1307-1312 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1401- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1401- ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1307-1312 ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1401- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-993-0 01 1 1307- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1307-1312 ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1307-1312 ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1401- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1401- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1307-1312 ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1307-1312 ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1401- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1401- ●
650 CABLE 8-98232-354-0 01 1 1307-1312 ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1307-1312 ●
650 CABLE 8-98232-354-0 01 1 1401- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1401- ●
651 RIVET 8-98194-075-0 04 1 1307-1312 ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1307-1312 ●
651 RIVET 8-98194-075-0 04 1 1401- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1401- ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1307-1312 ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1401- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-979-0 01 1 1307- ●

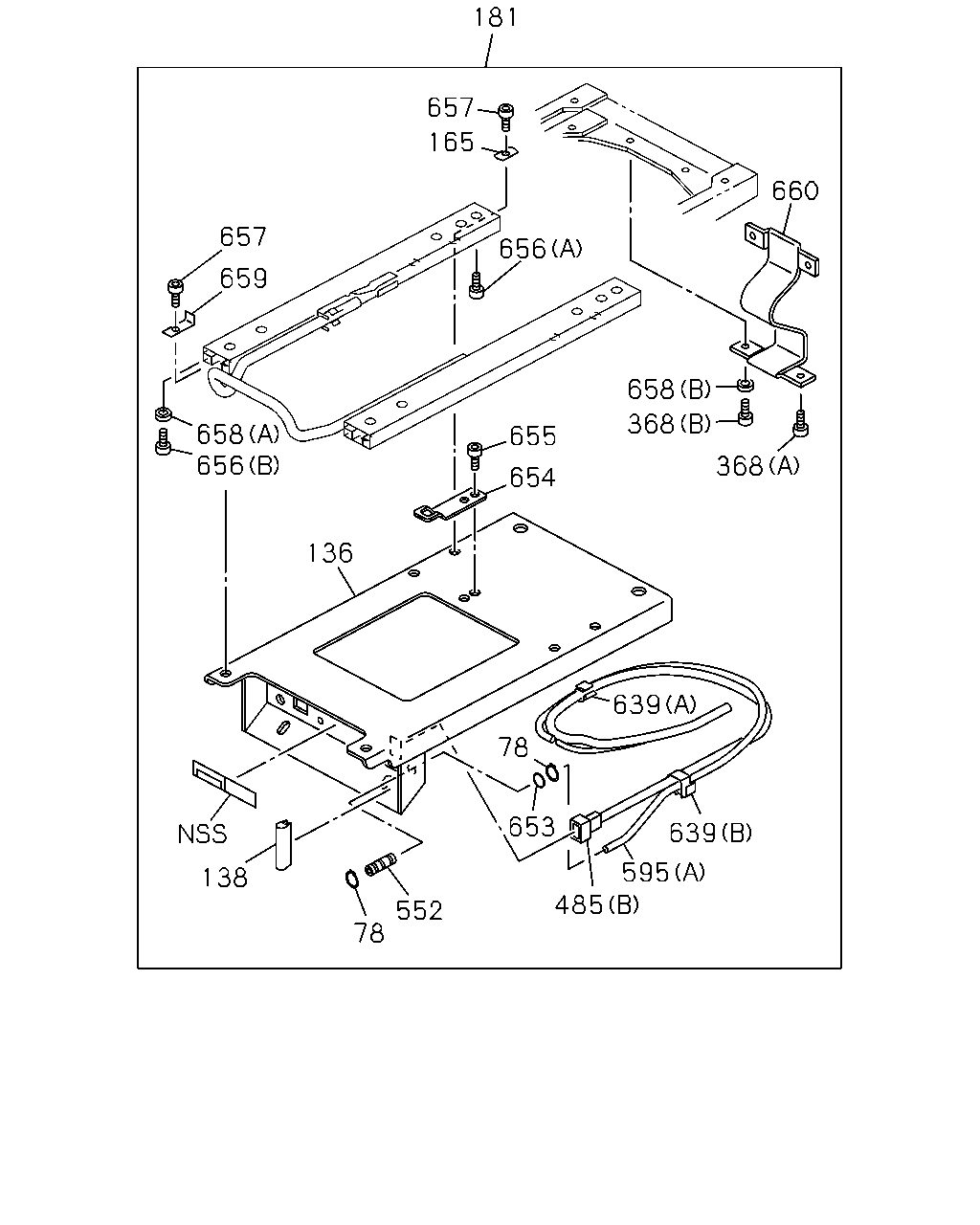

çizim 365148
658 655 658 656 136 654 368 368 660 656 165 657 181 659 657 138 78 653 78 639 595 485 552 639
BalonParca AdiParca NoAdetTipApplied Date A B
78 RING; SNAP 8-98101-900-0 02 1 1307-1312 ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1307-1312 ●
78 RING; SNAP 8-98101-900-0 02 1 1401- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1401- ●
136 STAND; PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-346-0 01 1 1307- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1307-1312 ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1307-1312 ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1401- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1401- ●
165 WASHER; PL 1-75590-086-0 04 1 1307-1312 ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1307-1312 ●
165 WASHER; PL 1-75590-086-0 04 1 1401- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1401- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98195-064-1 01 1 1307- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1307-1312 ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1307-1312 ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1401- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1401- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1307-1312 ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1307-1312 ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1401- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1401- ●
485 HARNESS; FRT SEAT
(A) 		8-98106-360-0 01 1 1307-1312 ●
485 HARNESS; FRT SEAT
(A) 		8-98106-360-0 01 1 1401- ● ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-361-0 01 1 1307- ●
552 CONNECTOR 8-98101-902-0 01 1 1307-1312 ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1307-1312 ●
552 CONNECTOR 8-98101-902-0 01 1 1401-1508 ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1401-1508 ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1509- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1401- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1401- ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98067-762-0 01 1 1307-1312 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1401- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1307-1312 ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1307-1312 ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1401-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1401-1508 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1307-1312 ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1307-1312 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1401-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1401-1508 ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98308-100-0 02 1 1509- ●
653 GASKET 8-98101-901-0 01 1 1307-1312 ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1307-1312 ●
653 GASKET 8-98101-901-0 01 1 1401- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1401- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1307-1312 ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1307-1312 ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1401- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1401- ●
655 BOLT; HOOK 8-98106-353-0 02 1 1307-1312 ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1307-1312 ●
655 BOLT; HOOK 8-98106-353-0 02 1 1401- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1401- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1401- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1401- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1307-1312 ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1307-1312 ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1401- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1401- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1307-1312 ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1307-1312 ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1401- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1401- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1307-1312 ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1307-1312 ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1401- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1401- ●
659 STOPPER 8-98106-356-0 02 1 1307-1312 ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1307-1312 ●
659 STOPPER 8-98106-356-0 02 1 1401- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1401- ●
660 BELT; TETHER 8-98106-357-0 01 1 1307-1312 ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1307-1312 ●
660 BELT; TETHER 8-98106-357-0 01 1 1401- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1401- ●

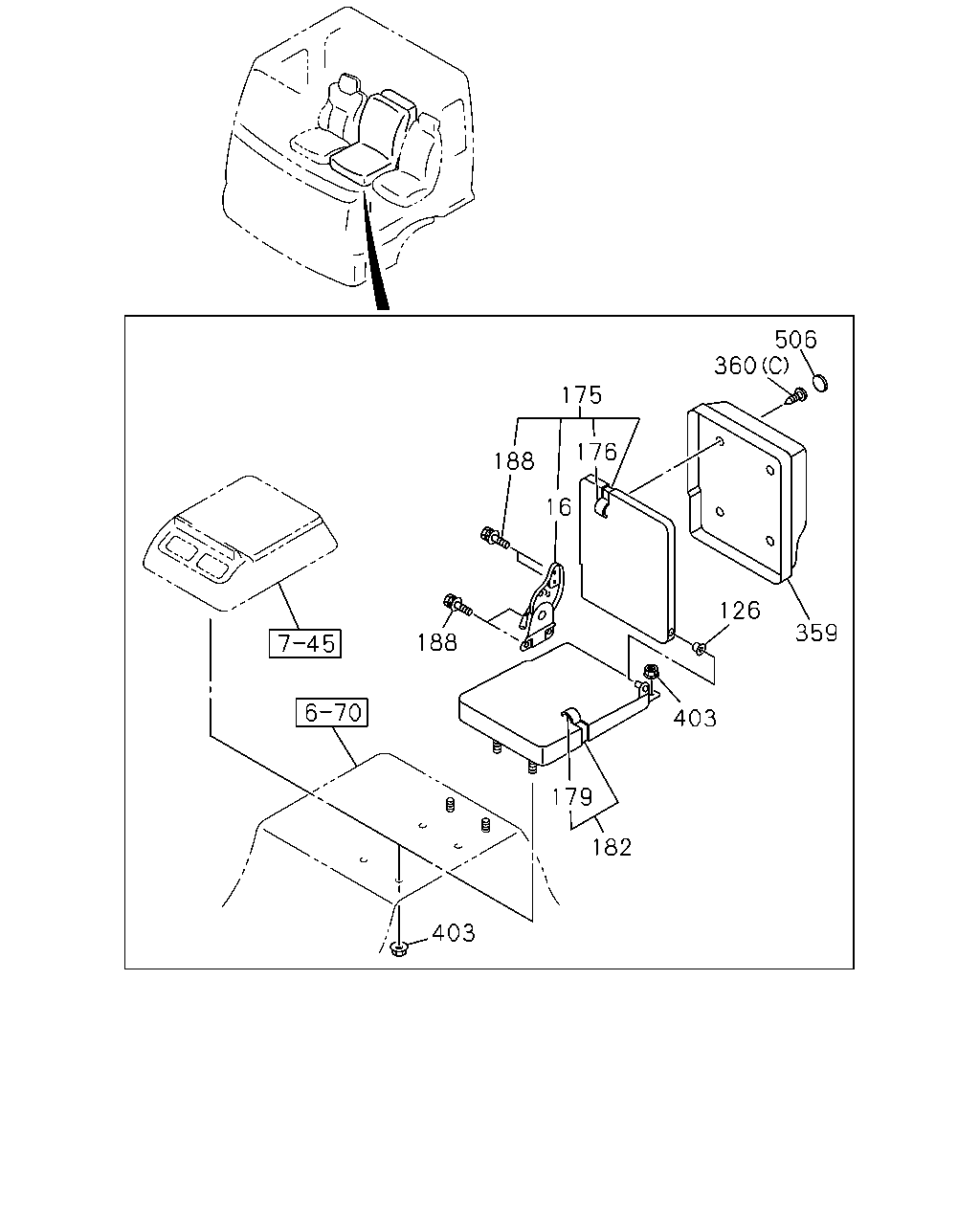

çizim 365170
175 188 176 360 506 359 126 403 182 179 403 188 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1307-1312 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1401- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1307-1312 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1401- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1307-1312 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1401- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1307-1312 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1401- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1307-1312 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1401- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1307-1312 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1401- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1307-1312 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1401- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1307-1312 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1401- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1307-1312 ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1401- ● ●

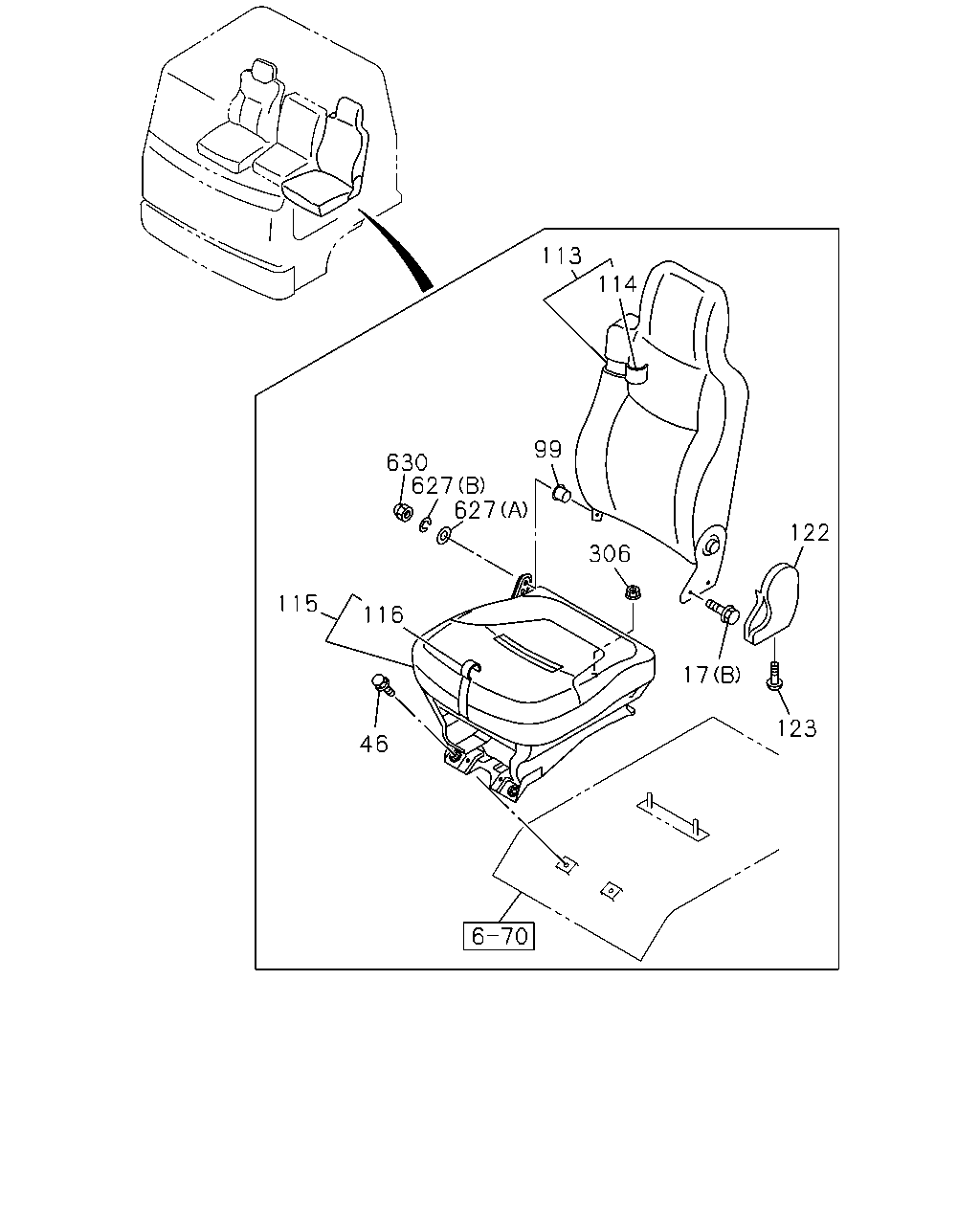

çizim 365192
113 114 630 627 627 116 115 46 306 17 123 122 99
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1401- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1401- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1401- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1401- ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1307-1312 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
99 BUSHING; SEAT BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98112-751-0 01 1 1307-1312 ●
99 BUSHING; SEAT BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98112-751-0 01 1 1401- ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1401- ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-422-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-422-0 01 1 1401- ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1401- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-424-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-424-0 01 1 1401- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1401- ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-418-1 01 1 1307-1312 ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-418-1 01 1 1401- ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1401- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-420-0 01 1 1307-1312 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-420-0 01 1 1401- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1401- ●
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97409-967-0 01 1 1307-1312 ●
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97409-967-0 01 1 1401- ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1401- ●
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M5 		8-98070-026-0 01 1 1307-1312 ●
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M5 		8-98070-026-0 01 1 1401- ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1401- ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98063-223-0 01 1 1307-1312 ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98063-223-0 01 1 1401- ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1401- ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98063-224-0 01 1 1307-1312 ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98063-224-0 01 1 1401- ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1401- ●
630 NUT; CAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 		8-98063-225-0 01 1 1307-1312 ●
630 NUT; CAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 		8-98063-225-0 01 1 1401- ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1401- ●

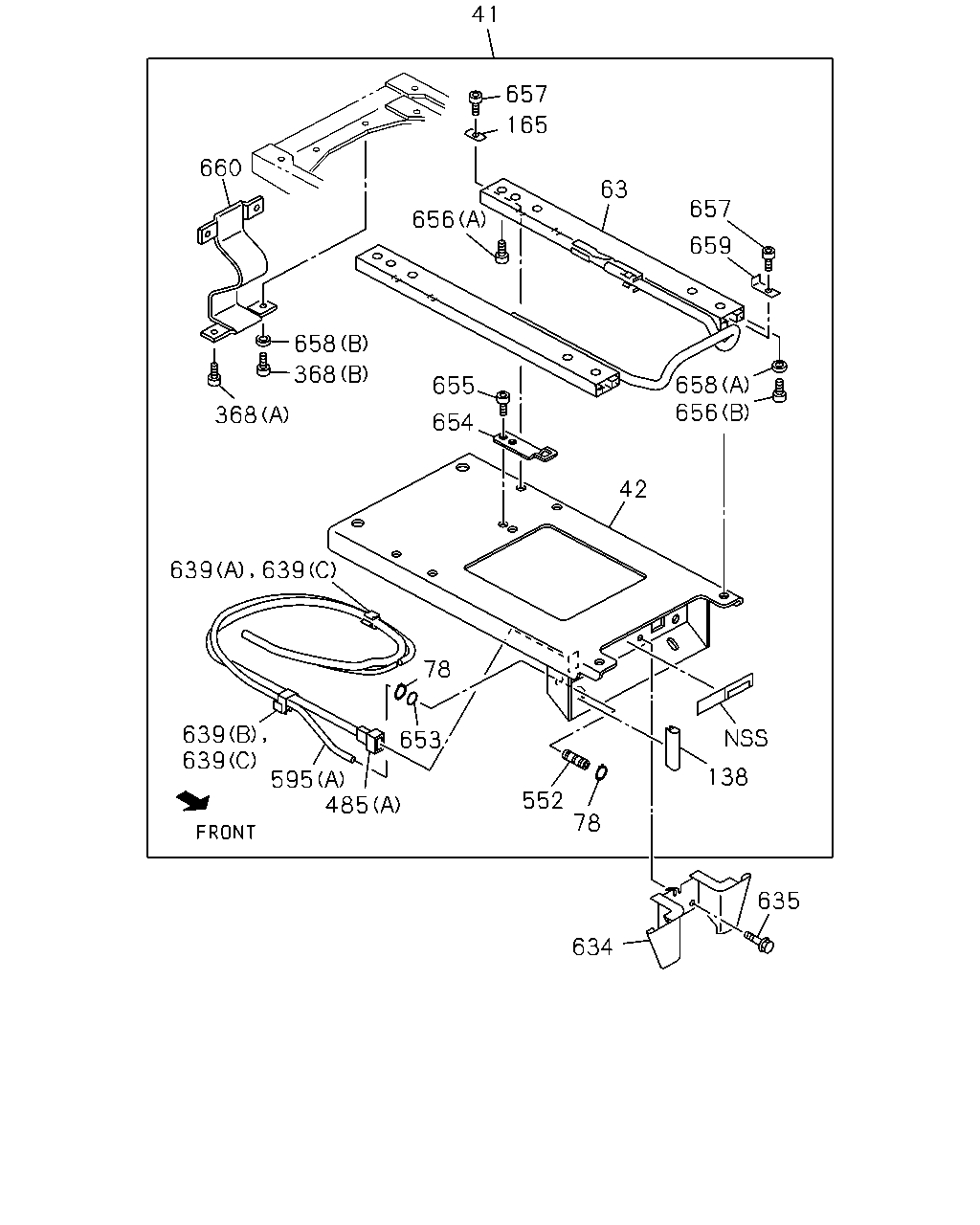

çizim 365347
41 657 63 165 656 660 658 368 368 655 654 658 659 657 656 42 639 639 639 639 595 485 653 78 552 78 138 634 635
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1307-1312 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1401- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1307-1312 ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1307-1312 ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1401- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1401- ●
78 RING; SNAP 8-98101-900-0 02 1 1307-1312 ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1307-1312 ●
78 RING; SNAP 8-98101-900-0 02 1 1401- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1401- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1307-1312 ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1307-1312 ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1401- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1401- ●
165 WASHER; PL 1-75590-086-0 04 1 1307-1312 ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1307-1312 ●
165 WASHER; PL 1-75590-086-0 04 1 1401- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1401- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1307-1312 ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1307-1312 ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1401- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1401- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1307-1312 ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1307-1312 ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1401- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1401- ●
485 HARNESS; FRT SEAT
(A) 		8-98106-360-0 01 1 1307-1312 ●
485 HARNESS; FRT SEAT
(A) 		8-98106-360-0 01 1 1401- ● ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-361-0 01 1 1307- ●
552 CONNECTOR 8-98101-902-0 01 1 1307-1312 ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1307-1312 ●
552 CONNECTOR 8-98101-902-0 01 1 1401-1508 ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1401-1508 ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1509- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1401- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1401- ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98067-762-0 01 1 1307-1312 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1401- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98088-279-0 02 1 1307- ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 1307-1312 ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 1401- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1401- ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1307- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1307-1312 ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1401- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1401- ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1307-1312 ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1307-1312 ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1401-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1401-1508 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1307-1312 ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1307-1312 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1401-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1401-1508 ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98308-100-0 02 1 1509- ●
653 GASKET 8-98101-901-0 01 1 1307-1312 ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1307-1312 ●
653 GASKET 8-98101-901-0 01 1 1401- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1401- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1307-1312 ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1307-1312 ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1401- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1401- ●
655 BOLT; HOOK 8-98106-353-0 02 1 1307-1312 ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1307-1312 ●
655 BOLT; HOOK 8-98106-353-0 02 1 1401- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1401- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1401- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1401- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1307-1312 ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1307-1312 ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1401- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1401- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1307-1312 ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1307-1312 ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1401- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1401- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1307-1312 ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1307-1312 ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1401- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1401- ●
659 STOPPER 8-98106-356-0 02 1 1307-1312 ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1307-1312 ●
659 STOPPER 8-98106-356-0 02 1 1401- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1401- ●
660 BELT; TETHER 8-98106-357-0 01 1 1307-1312 ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1307-1312 ●
660 BELT; TETHER 8-98106-357-0 01 1 1401- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1401- ●

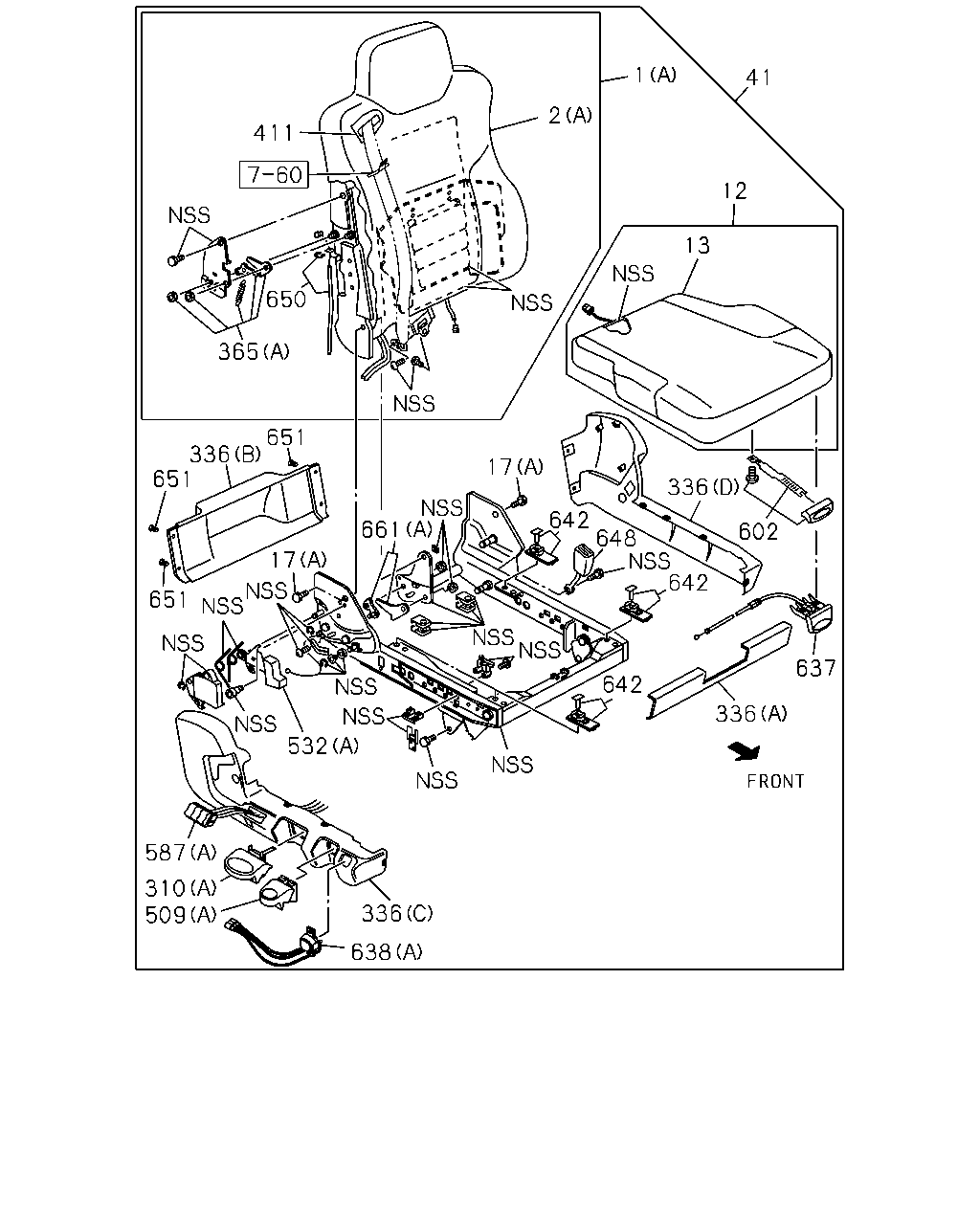

çizim 365417
41 12 13 2 1 411 650 365 651 336 651 17 651 661 17 642 336 602 642 648 642 336 637 336 638 509 587 310 532
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1401- ● ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-961-0 01 1 1307- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98232-352-0 01 1 1307- ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1307-1312 ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1307-1312 ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1401- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1401- ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1307-1312 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1307-1312 ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1401- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1401- ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1401- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1401- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307-1312 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1401- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1401- ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1307-1312 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1401- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-991-0 01 1 1307- ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1401-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1401- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1401- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1401- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1401- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1307-1312 ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1307-1312 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1401- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1401- ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1307-1312 ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1401- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-987-0 01 1 1307- ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1307-1312 ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1401- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-981-0 01 1 1307- ●
587 VALVE; LUMBAR SUPPORT
(A) 		8-98097-986-0 01 1 1307-1312 ●
587 VALVE; LUMBAR SUPPORT
(A) 		8-98097-986-0 01 1 1401- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-985-0 01 1 1307- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1307-1312 ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1307-1312 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1401- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1401- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1307-1312 ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1307-1312 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1401- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1401- ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1307-1312 ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1401- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-993-0 01 1 1307- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1307-1312 ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1307-1312 ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1401- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1401- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1307-1312 ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1307-1312 ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1401- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1401- ●
650 CABLE 8-98232-354-0 01 1 1307-1312 ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1307-1312 ●
650 CABLE 8-98232-354-0 01 1 1401- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1401- ●
651 RIVET 8-98194-075-0 04 1 1307-1312 ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1307-1312 ●
651 RIVET 8-98194-075-0 04 1 1401- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1401- ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1307-1312 ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1401- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-979-0 01 1 1307- ●

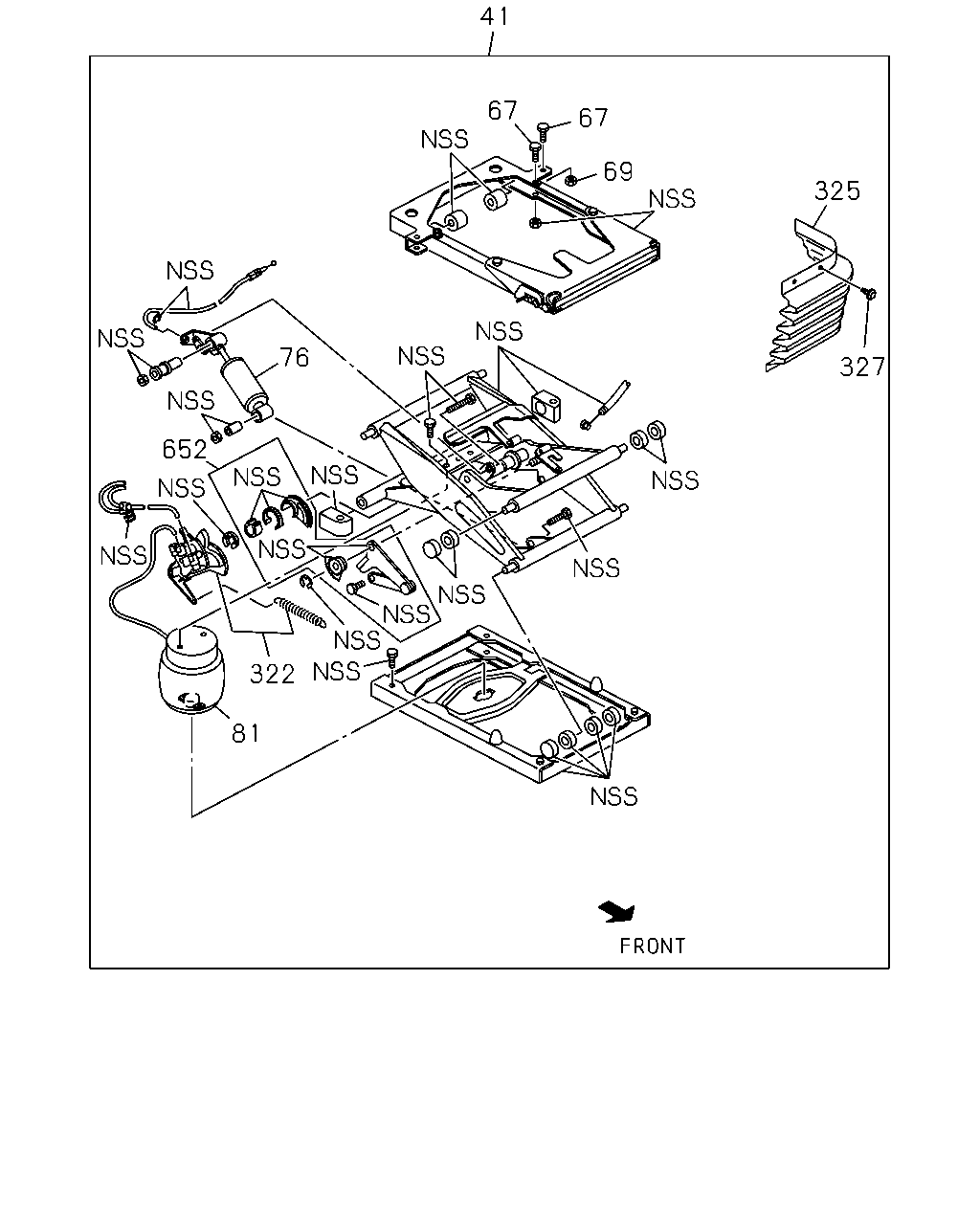

çizim 366203
41 67 67 69 325 76 652 81 322 327
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1307-1312 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1307-1312 ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1307-1312 ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1401- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1401- ●
81 SPRING; AIR 8-98098-000-0 01 1 1307-1312 ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1307-1312 ●
81 SPRING; AIR 8-98098-000-0 01 1 1401- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1401- ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1307-1312 ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1307-1312 ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1401-1508 ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1401-1508 ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1509- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1307-1312 ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1307-1312 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1401- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1401- ●
327 CLIP; COVER 8-98098-004-0 01 1 1307-1312 ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1307-1312 ●
327 CLIP; COVER 8-98098-004-0 01 1 1401- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1401- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1307-1312 ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1307-1312 ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1401- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1401- ●

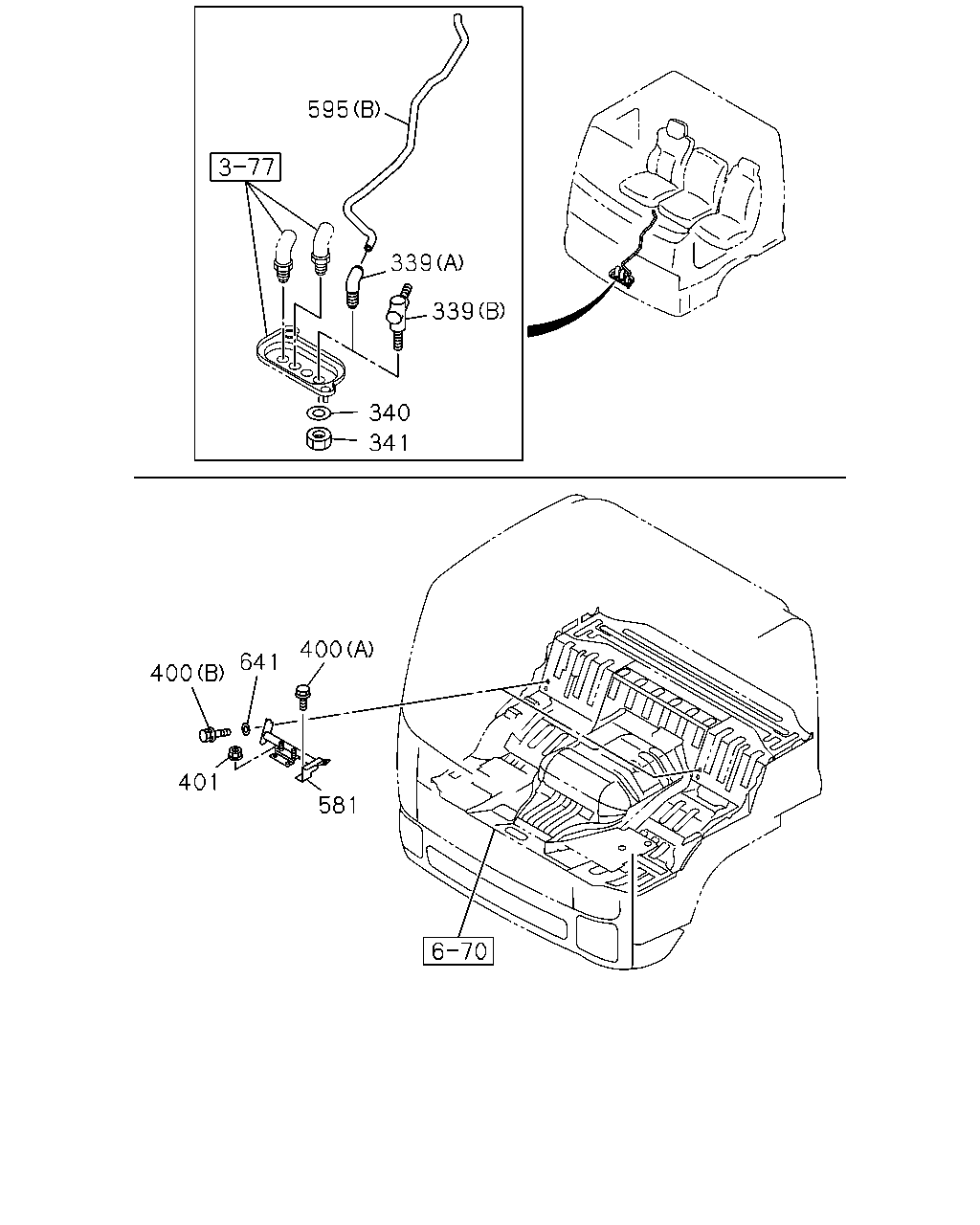

çizim 366944
400 400 641 581 401 339 340 595 341 339
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		1-09656-751-0 01 1 1307- ●
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98014-971-0 01 1 1307-1312 ●
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98014-971-0 01 1 1401- ●
339 UNION; DRIVER SEAT
(A) 		8-98014-971-0 01 1 1401- ●
340 WASHER; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> ID=12.5 		0-91610-712-0 02 1 1307- ●
341 NUT; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M12 		9-09840-280-0 01 1 1307- ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98098-996-0 04 1 1307- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 1307-1312 ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 1401- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1401- ●
401 NUT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M10 FLANGE 		0-91180-110-0 04 1 1307- ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 1401- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1401- ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98227-865-0 01 1 1307- ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-692-3 01 1 1307-1312 ●
581 PIPE; SEAT 8-97589-692-3 01 1 1401- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1401- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1401- ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98067-762-0 01 1 1307-1312 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1401- ● ●
641 WASHER; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98099-007-0 04 1 1307- ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 1307-1312 ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 1401- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
