◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#124344) — 181 parça

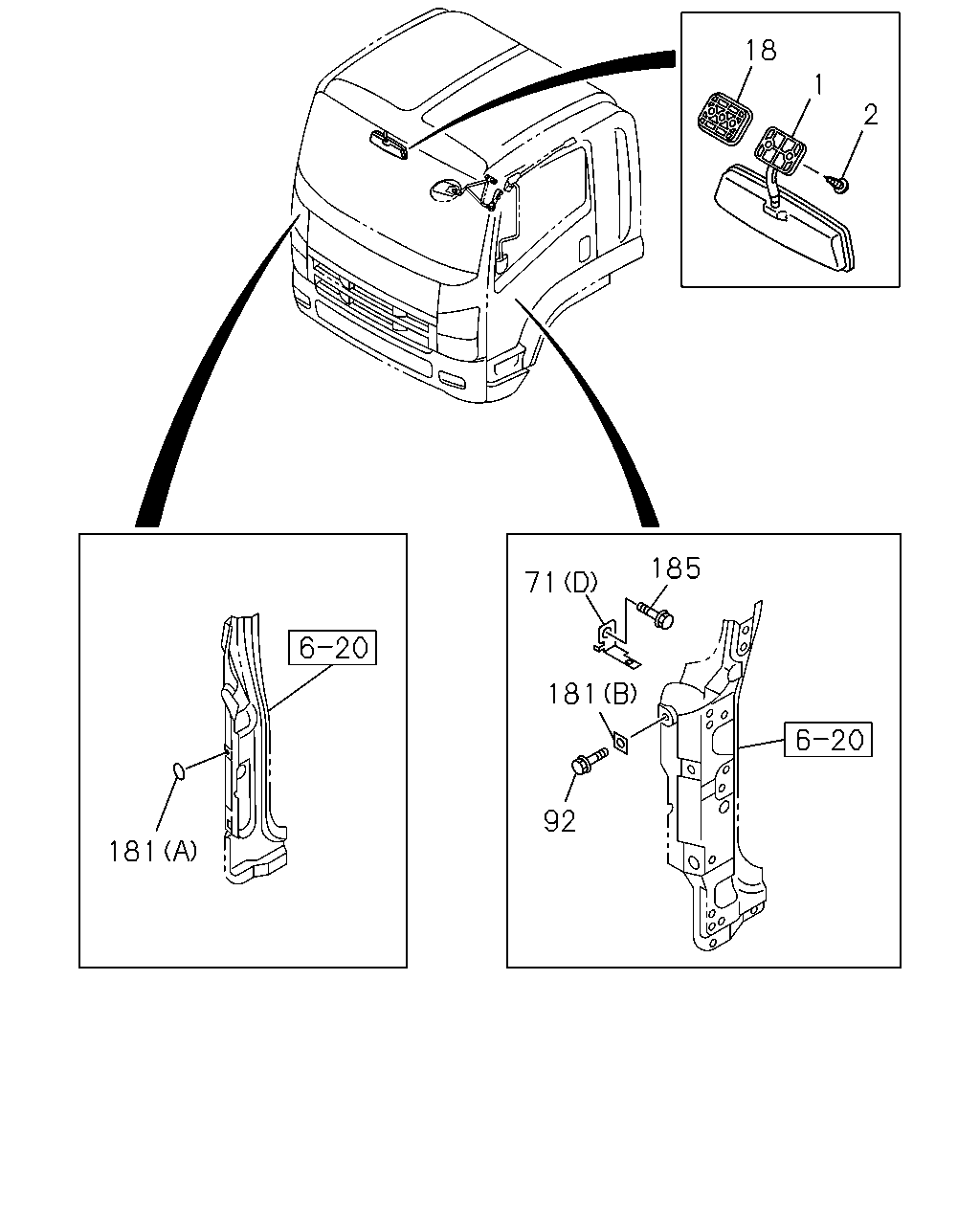

çizim 363332
181 71 181 92 185 18 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1307-1312 ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1401- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1307-1312 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1401- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1307-1312 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1307-1312 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1401- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1401- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1307-1312 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1401- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●

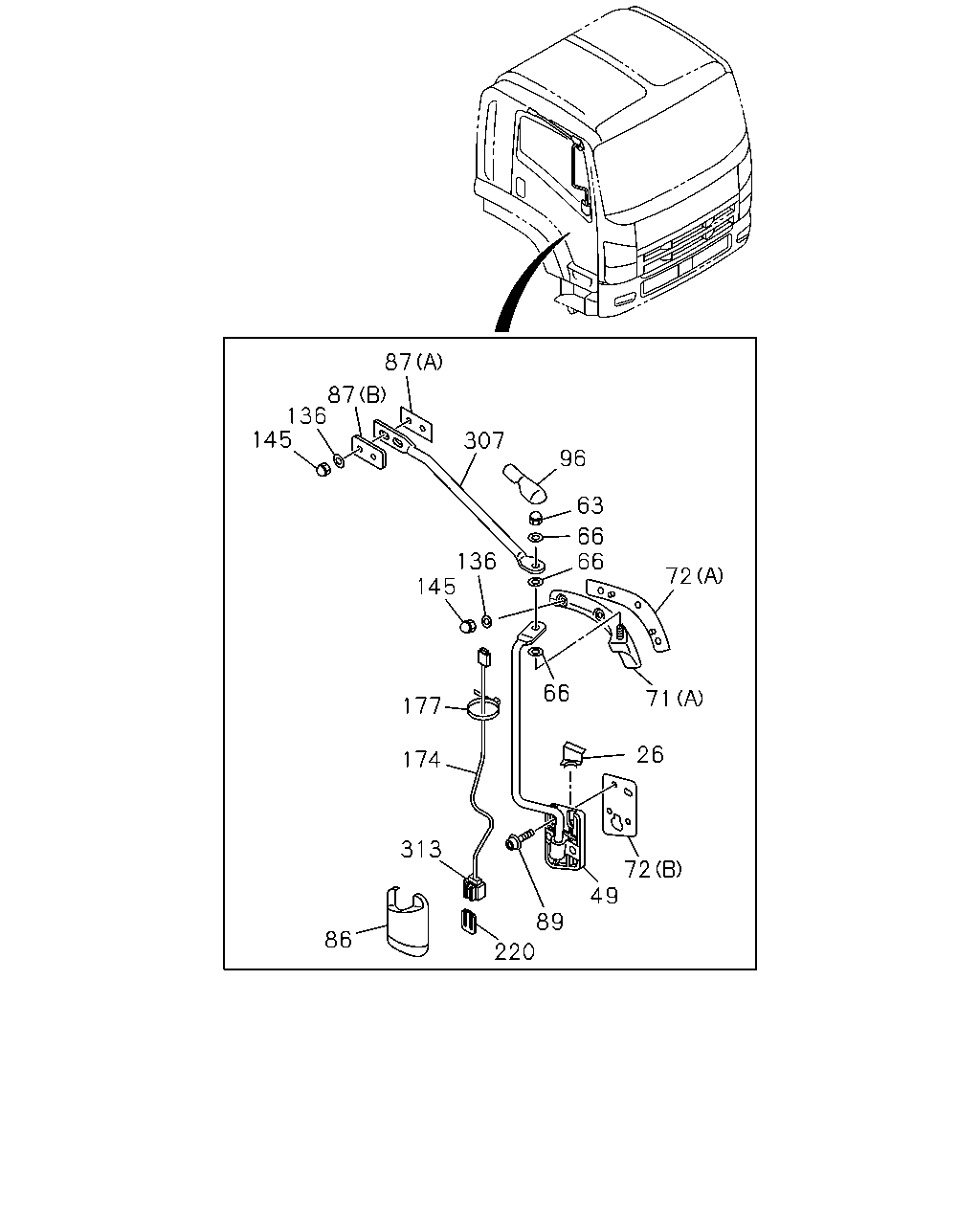

çizim 365105
86 313 174 177 145 136 145 136 87 87 307 96 63 66 66 72 66 71 26 72 49 89 220
BalonParca AdiParca NoAdetTipApplied Date A B
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1307-1312 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1307-1312 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1401- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1307-1312 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ●
72 SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98101-864-0 01 1 1307-1312 ●
72 SHEET
(B) 		8-98101-864-0 01 1 1401- ● ●
72 SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98101-865-0 01 1 1307-1312 ●
72 SHEET
(B) 		8-98101-865-0 01 1 1401- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1307-1312 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1401- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1307-1312 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1401- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1307-1312 ●
72 SHEET
(A) 		8-98031-796-0 01 1 1401- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1307-1312 ●
72 SHEET
(A) 		8-98031-797-0 01 1 1401- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1307-1312 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1307-1312 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1307-1312 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1401- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1307-1312 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1401- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1307-1312 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1307-1312 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1307-1312 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1307-1312 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1307-1312 ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1401- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1307-1312 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1401- ● ●
177 CLIP; HARNESS
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 1307-1312 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1401- ● ●
220 HOLDER; CONNECTOR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 1307-1312 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1401- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1307-1312 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1307-1312 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401- ● ●
313 CONNECTOR; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 1307-1312 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1401- ● ●

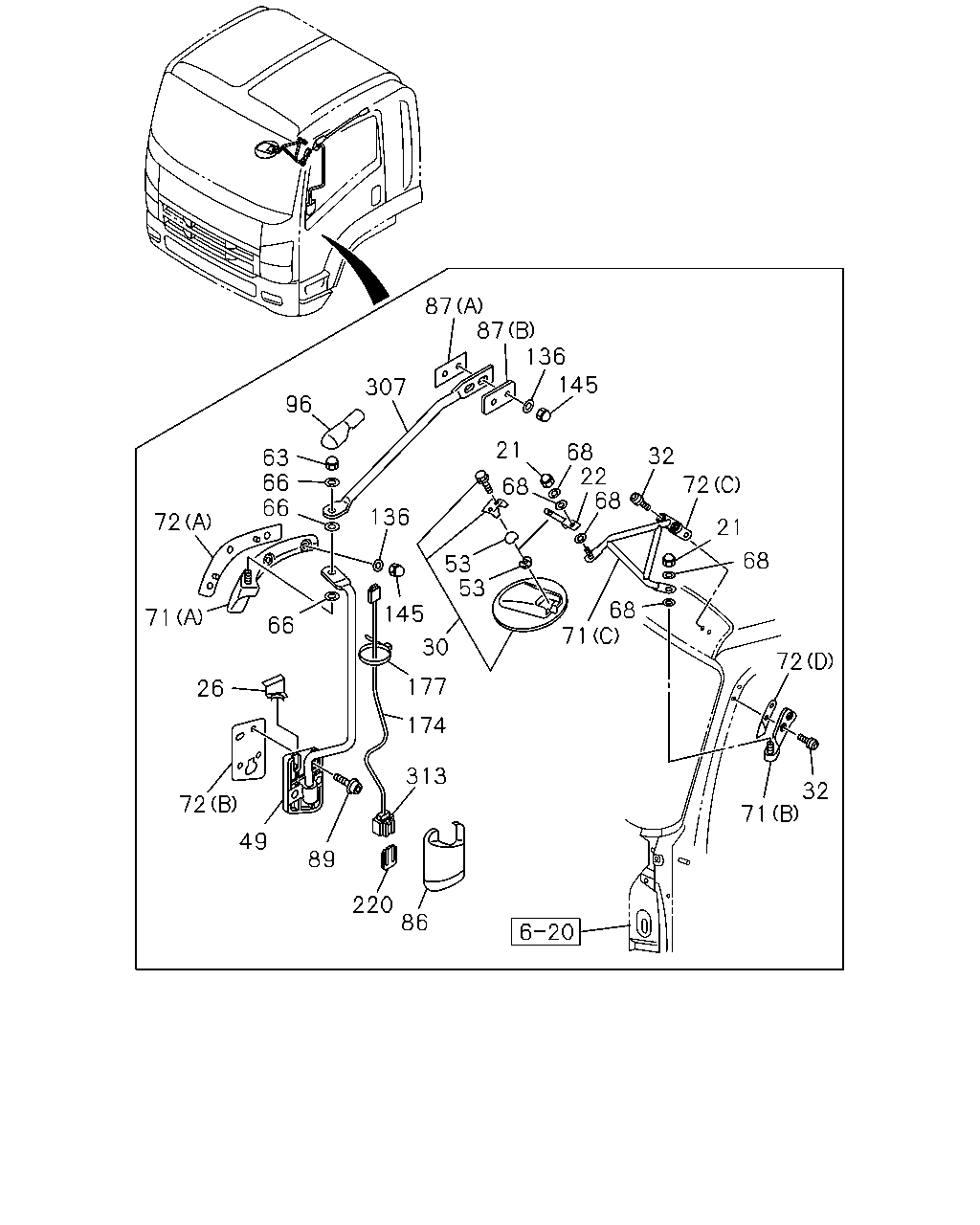

çizim 365870
72 66 66 63 96 307 87 87 136 145 21 68 68 22 68 32 72 21 68 72 32 71 68 71 53 53 136 145 30 177 174 313 86 220 89 49 72 26 66 71
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1307-1312 ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1401- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1307-1312 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1307-1312 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1307-1312 ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1401-1504 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1307-1312 ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1401- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1401- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1307-1312 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1401- ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1307-1312 ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1401- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1307-1312 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1401- ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1307-1312 ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ●
72 SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98101-864-0 01 1 1307-1312 ●
72 SHEET
(B) 		8-98101-864-0 01 1 1401- ● ●
72 SHEET
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98101-865-0 01 1 1307-1312 ●
72 SHEET
(B) 		8-98101-865-0 01 1 1401- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1307-1312 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1401- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1307-1312 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1401- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1307-1312 ●
72 SHEET
(A) 		8-98031-796-0 01 1 1401- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1307-1312 ●
72 SHEET
(A) 		8-98031-797-0 01 1 1401- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1307-1312 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1307-1312 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1307-1312 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1401- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1307-1312 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1401- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1307-1312 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1307-1312 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1307-1312 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1307-1312 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1307-1312 ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1401- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1307-1312 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1401- ● ●
177 CLIP; HARNESS
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 1307-1312 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1401- ● ●
220 HOLDER; CONNECTOR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 1307-1312 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1401- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1307-1312 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1307-1312 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401- ● ●
313 CONNECTOR; MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 1307-1312 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
