◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#124343) — 14 parça

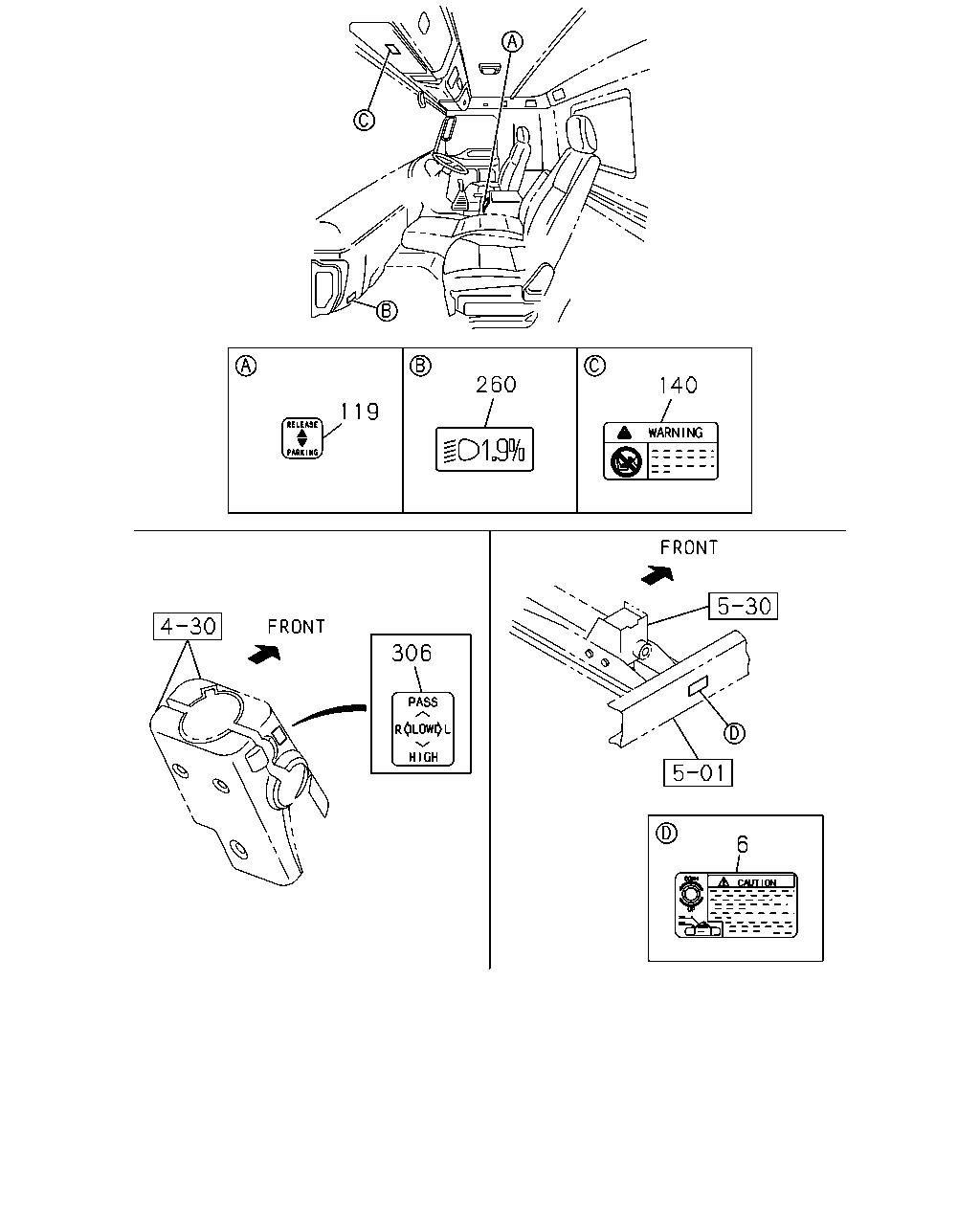

çizim 363414
260 140 6 306 119
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1307-1312 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1401- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1307-1312 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1401- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1307-1312 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1401- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1307-1312 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1401- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1307-1312 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1401- ● ●
çizim 365869
35 49
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1307-1312 ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1401- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1307-1312 ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
