◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#124335) — 22 parça

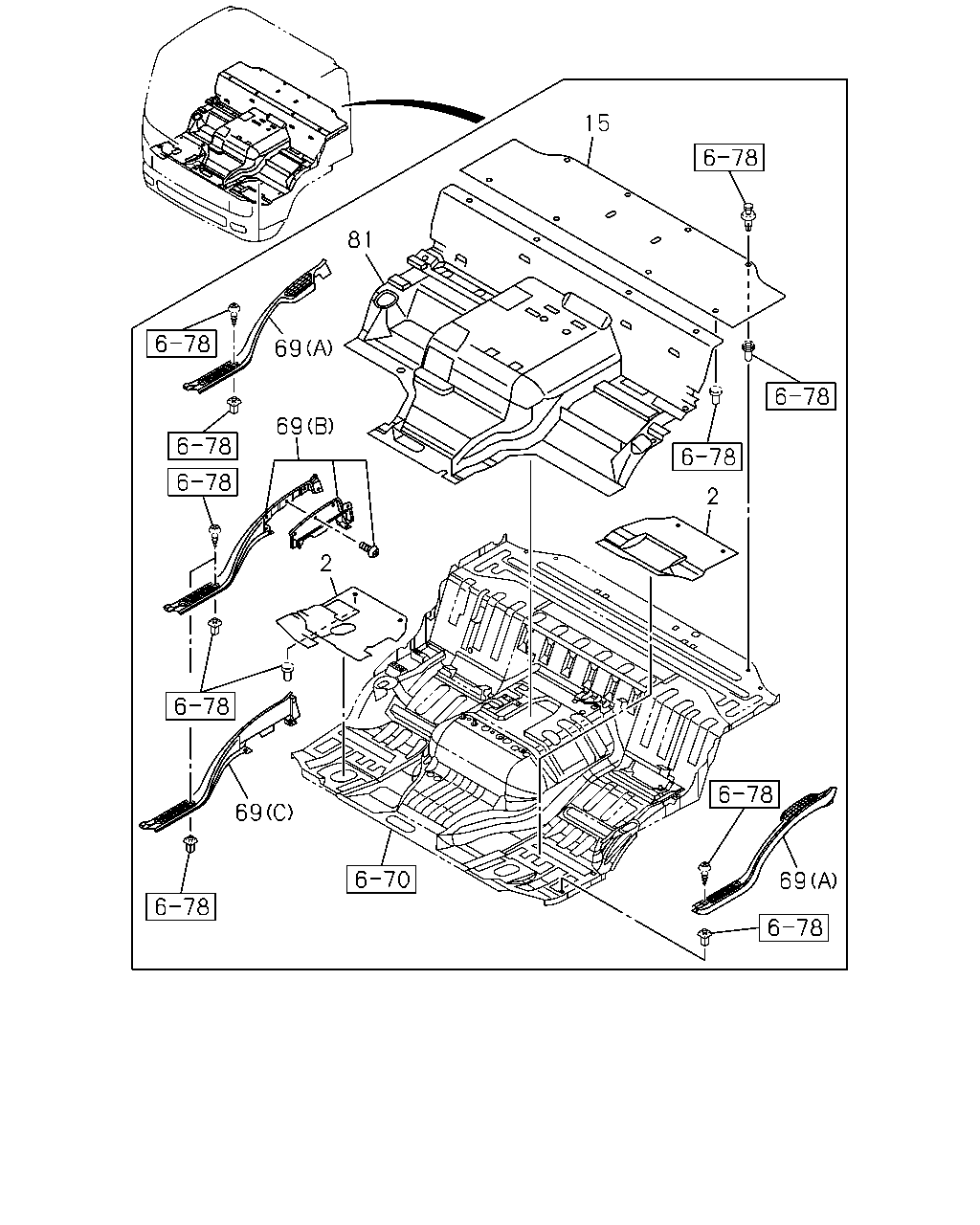

çizim 363475
2 69 15 81 69 69 2 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1307-1312 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1401- ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1307-1312 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1401- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> DARK GRAY 		8-97418-950-0 01 1 1307-1312 ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> DARK GRAY 		8-97418-950-0 01 1 1401- ● ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> GRAY 		8-97407-403-1 01 1 1307-1312 ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> GRAY 		8-97407-403-1 01 1 1401- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1307-1312 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1401-1503 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1307-1312 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1401- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 1307-1312 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 1401- ● ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-791-3 01 1 1307-1312 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-791-3 01 1 1401- ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-791-3 01 1 1401- ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> A/T<X9D> GRAY 		8-97425-353-0 01 1 1307- ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> A/T<X9D> GRAY 		8-97414-503-4 01 1 1307-1312 ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> A/T<X9D> GRAY 		8-97414-503-4 01 1 1401- ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> A/T<X9D> GRAY 		8-97414-503-4 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
