◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#124334) — 130 parça

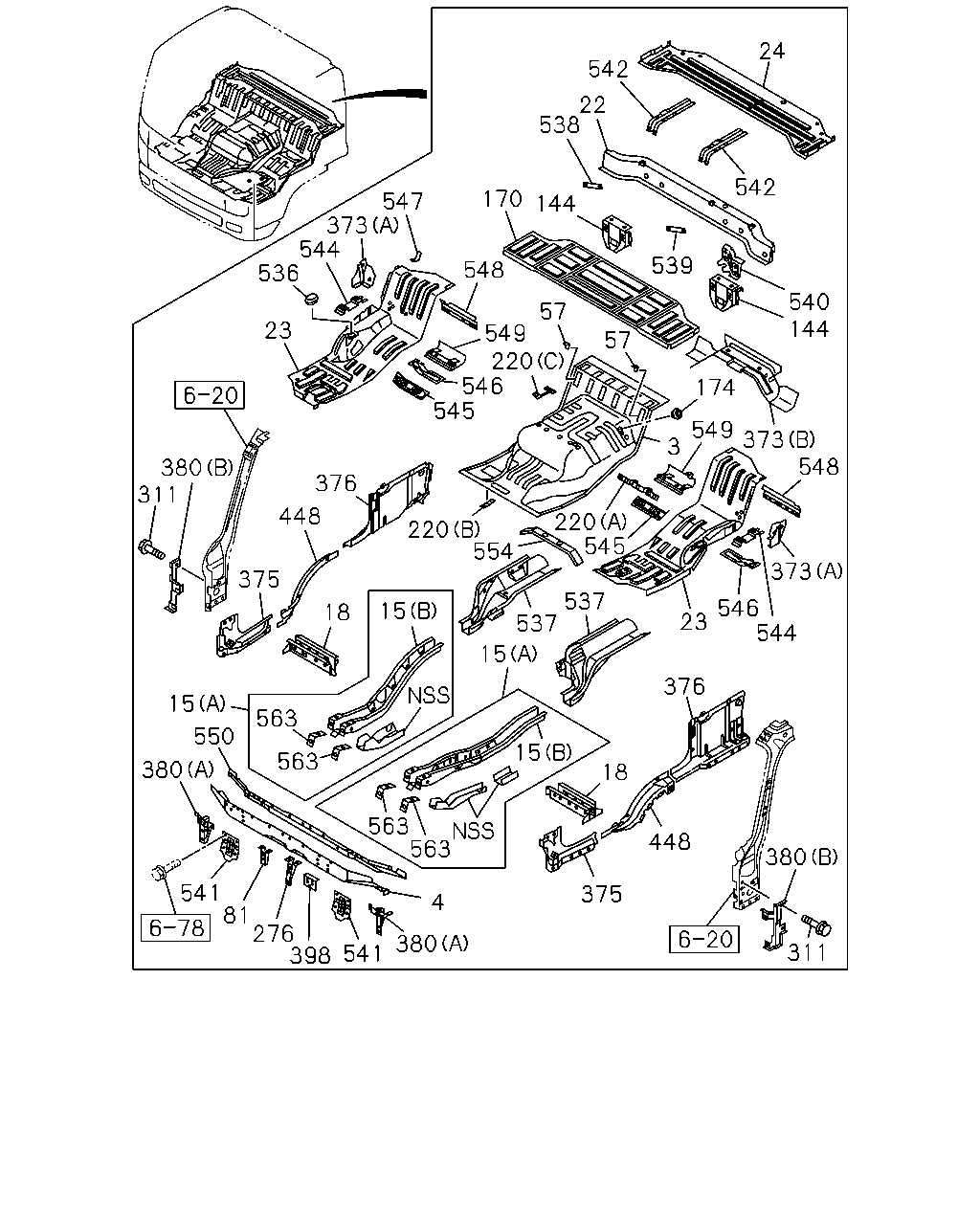

çizim 366455
380 541 398 276 81 541 4 380 550 15 563 563 563 563 375 311 380 448 18 376 15 15 15 18 375 311 380 448 376 220 537 537 23 544 546 373 545 220 545 23 536 544 373 547 548 549 220 546 57 57 170 144 538 22 542 24 542 539 540 144 174 549 373 548 3 554
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-874-0 01 1 1307- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1307-1312 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1401- ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1307-1312 ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1401- ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1307-1312 ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1401- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1401- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1307-1312 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1307-1312 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1307-1312 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1401- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1307-1312 ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1401- ● ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1307-1312 ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1401- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1307-1312 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1401- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1307-1312 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1401- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1307-1312 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1401- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1307-1312 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1401- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1307-1312 ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1401- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1307-1312 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1401- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1307-1312 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1401- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1307-1312 ●
220 PATCH
(B) 		8-97589-603-3 01 1 1401- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1307-1312 ●
220 PATCH
(C) 		8-97589-627-2 01 1 1401- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1307-1312 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1401- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1307-1312 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98228-266-0 01 1 1307-1507 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98081-349-3 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98081-349-3 01 1 1401-1507 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1401-1507 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1307-1312 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1401- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1307-1312 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1401- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1401-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1401- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1307-1312 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1401- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1307-1312 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1401- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1307-1312 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1401- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1307-1312 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1401- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1307-1312 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1401- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1307-1312 ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1401- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1307-1312 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1401- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1307-1312 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1401- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1307-1312 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1401- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1307-1312 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1401- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1307-1312 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1401- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1307-1312 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1401- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97584-373-1 01 1 1307-1312 ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97584-373-1 01 1 1401- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1401- ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1307- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1307-1312 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1401- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1307-1312 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1401- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1307-1312 ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1401- ● ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97588-958-4 01 1 1307-1312 ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97588-958-4 01 1 1401- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1401- ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-189-1 01 1 1307- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1307-1312 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1401- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1307-1312 ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1401- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1307-1312 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1401- ● ●
