◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#124332) — 20 parça

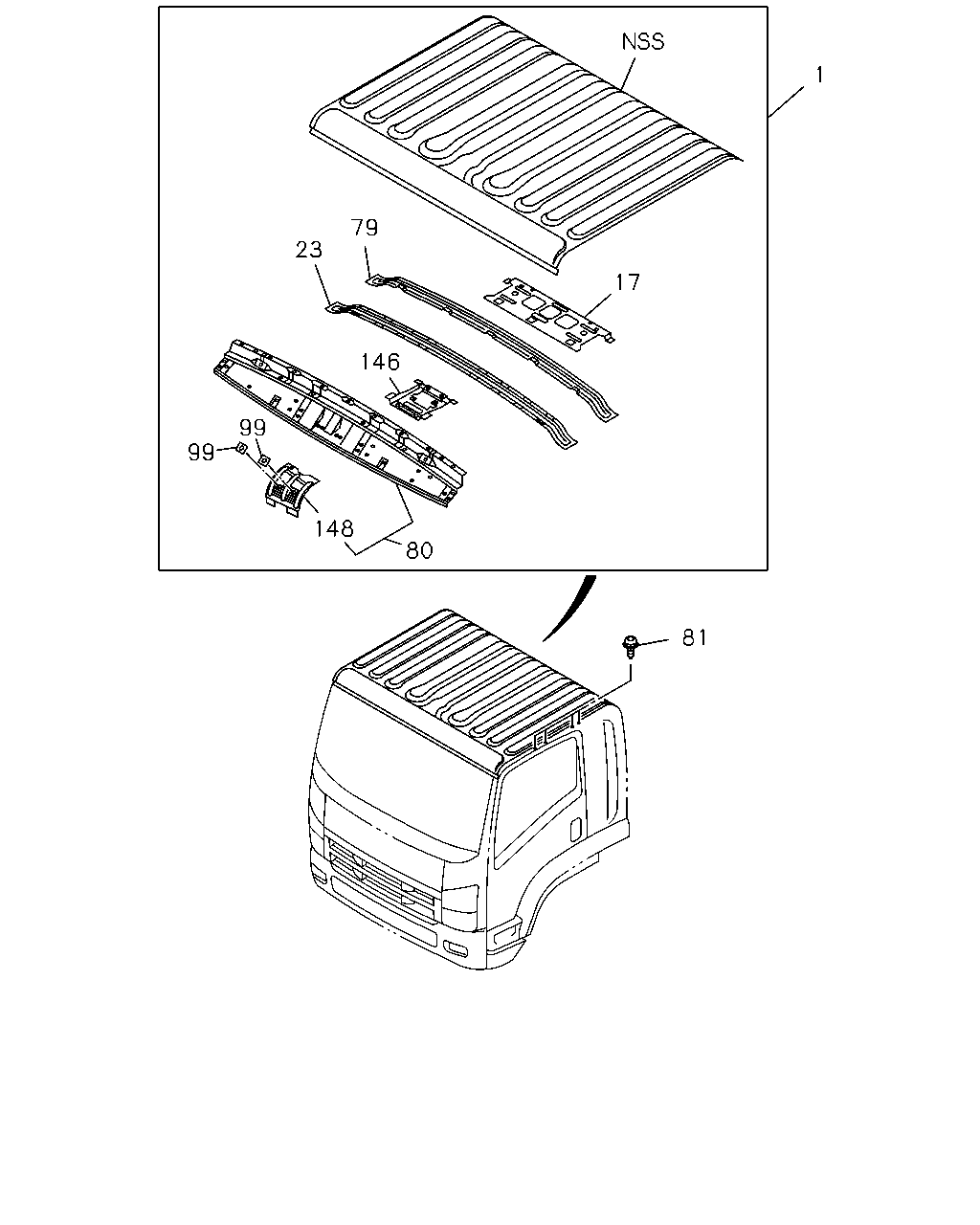

çizim 363408
1 81 80 148 99 99 23 79 146 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1307-1312 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1401- ● ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1307-1312 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1401- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1307-1312 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1401- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1307-1312 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1401- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-199-1 01 1 1307-1312 ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-199-1 01 1 1401- ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1307-1312 ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1401- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1307-1312 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1401- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1307-1312 ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1401- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1307-1312 ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1401- ● ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1307-1312 ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
