Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

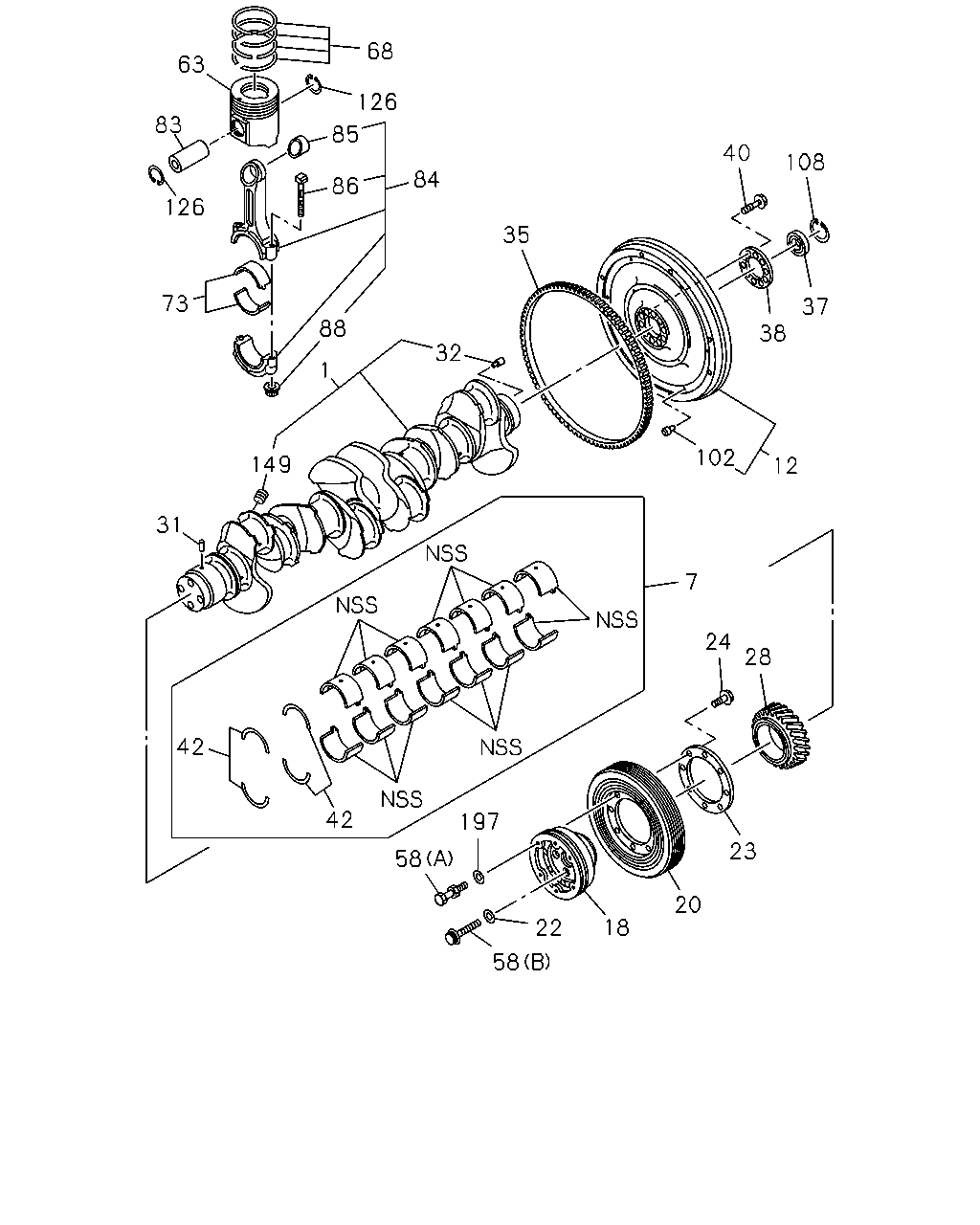

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#12433) — 38 parça
68
63
126
83
85
40
108
84
86
126
35
73
37
88
38
32
1
102
149
12
31
7
24
28
42
42
197
23
58
20
18
22
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
0105-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-093-3
01
1
0105-
12
FLYWHEEL
1-12330-480-0
01
1
0105-
18
PULLEY; CR/SHF
1-GROOVE
1-12371-420-2
01
1
0105-
20
DAMPER; CR/SHF
1-12375-153-0
01
1
0105-0404
20
DAMPER; CR/SHF
1-12375-214-1
01
1
0405-
22
PLATE; PULLEY
ID=18
9-09851-862-0
04
1
0105-
23
WASHER; DAMPER
1-12379-039-1
01
1
0105-
24
BOLT; DAMPER
M12X30 FLANGE
0-28791-230-0
08
1
0105-0512
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
0601-
28
GEAR; CR/SHF
Z=48
1-12521-061-1
01
1
0105-0202
28
GEAR; CR/SHF
Z=48
1-12521-068-0
01
1
0203-0401
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
0402-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
0105-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0105-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
0105-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
0105-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
0105-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
0105-
42
WASHER; THRUST,CR/SHF
1-11599-009-0
02
1
0105-
58
BOLT; CR/SHF PULLEY
(A)
1-09029-073-0
06
1
0105-
58
BOLT; CR/SHF PULLEY
(B)
1-09070-017-1
04
1
0105-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-943-0
06
1
0105-0303
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-999-1
06
1
0304-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-134-0
06
1
0105-0311
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-0
06
1
0312-
73
METAL SET; CONN ROD,STANDARD
1-12271-080-0
06
1
0105-0111
73
METAL SET; CONN ROD,STANDARD
1-12271-072-1
06
1
0112-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
0105-
84
ROD ASM; CONN
1-12230-185-1
06
1
0105-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-037-4
06
1
0105-
86
BOLT; CONNROD
1-12235-036-3
12
1
0105-
88
NUT; CONNROD
1-12239-005-1
12
1
0105-
102
PIN; TIMING SENSOR
1-12339-013-0
06
1
0105-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
0105-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
0105-
149
PLUG
PT1
1-09605-021-0
06
1
0105-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
0105-
