6-20 — SIDE PANEL AND STEP (#124325) — 92 parça

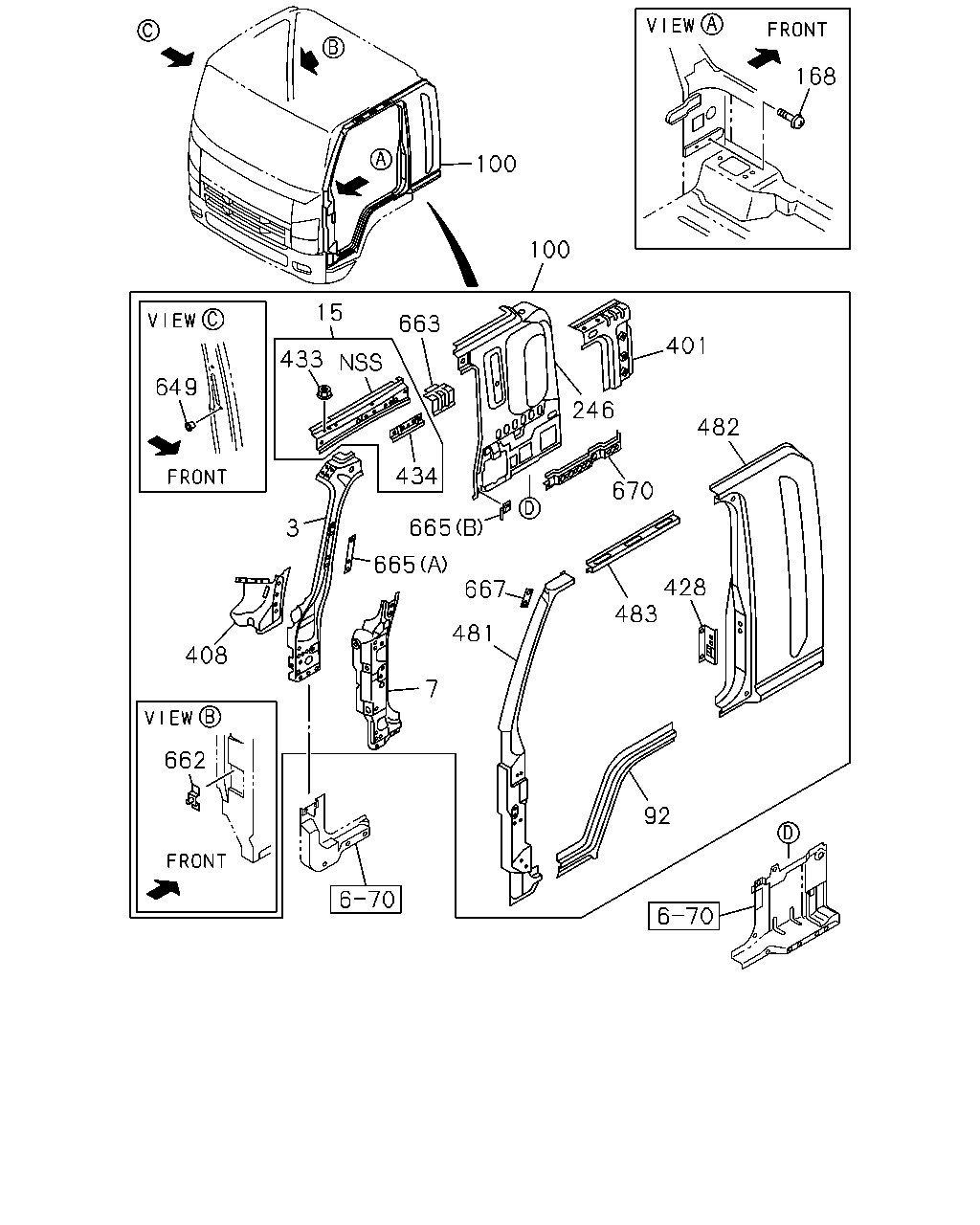

çizim 364889
483 428 482 670 401 100 100 663 15 433 649 3 665 665 434 481 7 667 408 662 92 168 246
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1307-1312 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1401- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1307-1312 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1307-1312 ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1401- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1307-1312 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1401- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1307-1312 ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1401- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1307-1312 ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1401- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1307-1312 ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1401- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1307-1312 ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1401- ● ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1307-1312 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1401- ● ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1307-1312 ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1401- ● ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1307-1312 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1401- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1307-1312 ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1401- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1307-1312 ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1401- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1307-1312 ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1401- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1307-1312 ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1401- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1307-1312 ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1401- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1307-1312 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1401- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1307-1312 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1307-1312 ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1401- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1307-1312 ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1307-1312 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1401- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1307-1312 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1401- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1307-1312 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1401- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1307-1312 ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1401- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1307-1312 ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1401- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1307-1312 ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1401- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1307-1312 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1401- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1307-1312 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1401- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1307-1312 ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1401- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1307-1312 ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1401- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1307-1312 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1401- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1307-1312 ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1401- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1307-1312 ●
663 BRACKET; AIR 8-97585-207-2 01 1 1401- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 1307-1312 ●
663 BRACKET; AIR 8-97585-208-2 01 1 1401- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1307-1312 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1401- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1307-1312 ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1401- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1307-1312 ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1401- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1307-1312 ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1401- ● ●

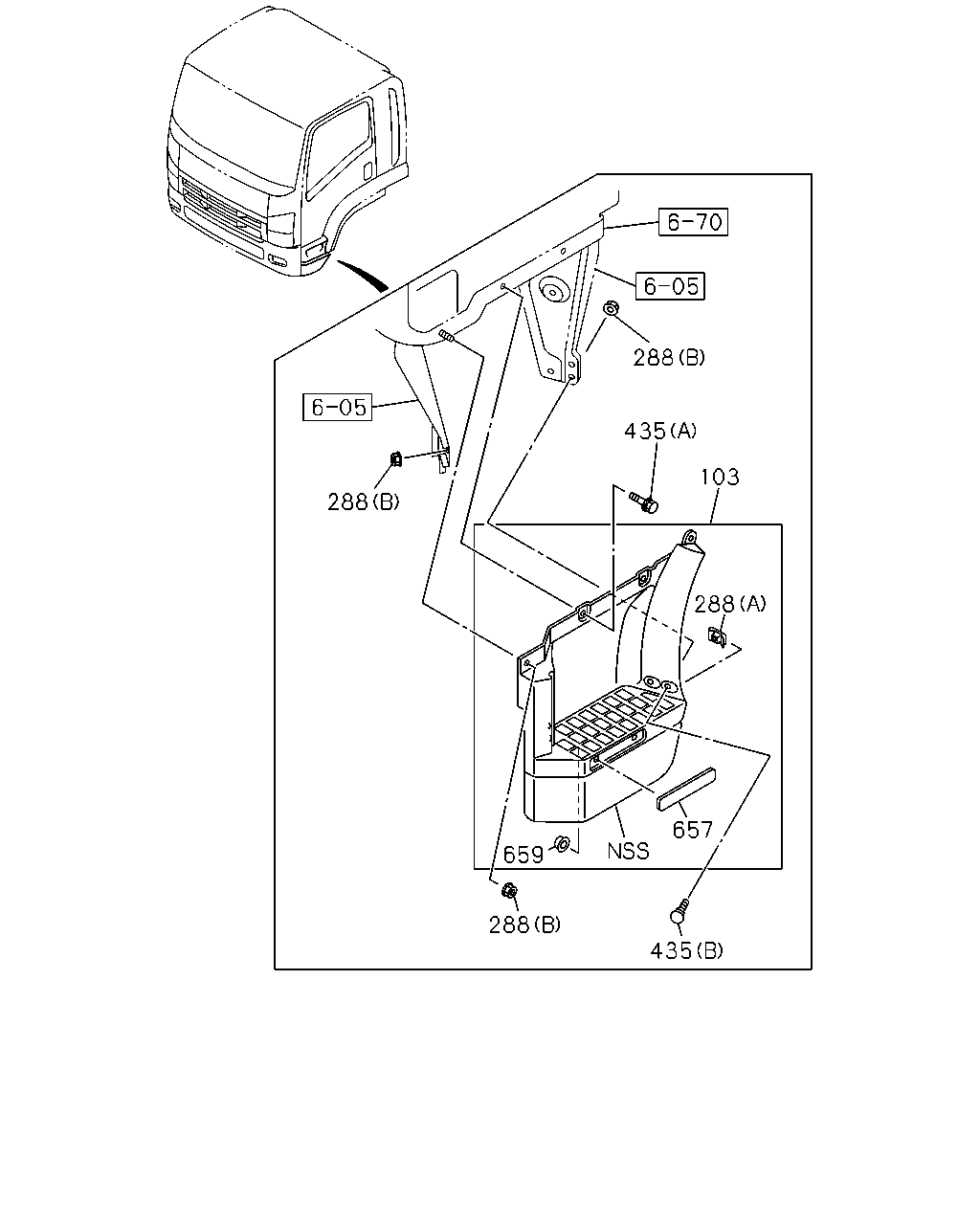

çizim 366372
288 435 288 103 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-325-3 01 1 1307-1312 ●
103 PLATE; STEP 8-98037-325-3 01 1 1401- ● ●
103 PLATE; STEP 8-98037-326-3 01 1 1307-1312 ●
103 PLATE; STEP 8-98037-326-3 01 1 1401- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1307-1312 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1401- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1307-1312 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1401- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1307-1312 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1401- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1307-1312 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1401- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1307-1312 ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1401- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1307-1312 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
