6-01 — FRONT BUMPER (#124320) — 120 parça

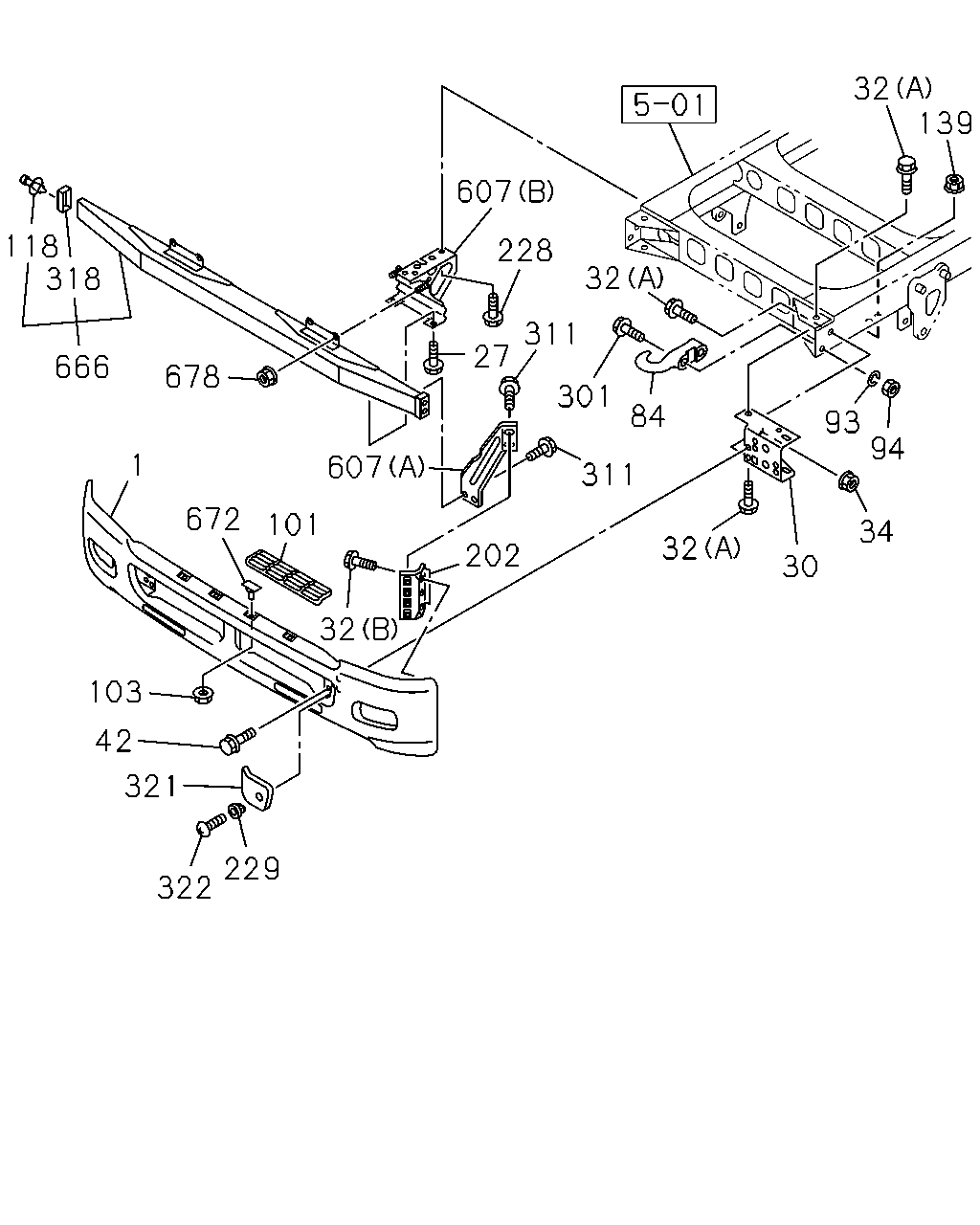

32 139 93 34 30 32 311 301 311 84 228 607 27 607 202 32 672 101 678 666 318 118 103 42 321 322 32 229 94 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97425-839-0	01	1	1307-1312	●
1	BUMPER ASM; FRT WHITE	8-97425-839-0	01	1	1401-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1307-1312	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1401-	●	●
30	BRACKET; FRT BUMPER	8-97611-517-5	01	1	1307-1312	●
30	BRACKET; FRT BUMPER	8-97611-517-5	01	1	1401-	●	●
30	BRACKET; FRT BUMPER	8-97611-518-4	01	1	1307-1312	●
30	BRACKET; FRT BUMPER	8-97611-518-4	01	1	1401-	●	●
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1307-1312	●
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1401-	●	●
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1307-1312	●
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1401-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-1312	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1401-	●	●
84	HOOK	1-57181-003-5	01	1	1307-1312	●
84	HOOK	1-57181-003-5	01	1	1401-	●	●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1307-1312	●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1401-	●	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1307-1312	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1401-	●	●
101	STEP; BUMPER	8-97611-540-0	01	1	1307-1312	●
101	STEP; BUMPER	8-97611-540-0	01	1	1401-	●	●
101	STEP; BUMPER	8-97611-541-0	01	1	1307-1312	●
101	STEP; BUMPER	8-97611-541-0	01	1	1401-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-1312	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
118	RETAINER; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-279-0	04	1	1307-1312	●
118	RETAINER; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-279-0	04	1	1401-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1307-1312	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1401-	●	●
202	BRACKET; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-97620-619-0	02	1	1307-1312	●
202	BRACKET; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-97620-619-0	02	1	1401-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1307-1312	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1401-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-1312	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1401-	●	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1307-1312	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1401-	●	●
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1307-1312	●
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1401-	●	●
311	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	04	1	1307-1312	●
311	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1401-	●	●
318	CAP; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-191-0	02	1	1307-1312	●
318	CAP; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-191-0	02	1	1401-	●	●
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1307-1312	●
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1401-	●	●
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1307-1312	●
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1401-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-1312	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1401-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-615-0	01	1	1307-1312	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-615-0	01	1	1401-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-616-0	01	1	1307-1312	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-616-0	01	1	1401-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-835-4	01	1	1307-1312	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-835-4	01	1	1401-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-836-3	01	1	1307-1312	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-836-3	01	1	1401-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-817-1	01	1	1307-1312	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-817-1	01	1	1401-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-1312	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1401-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1307-1312	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1401-	●	●

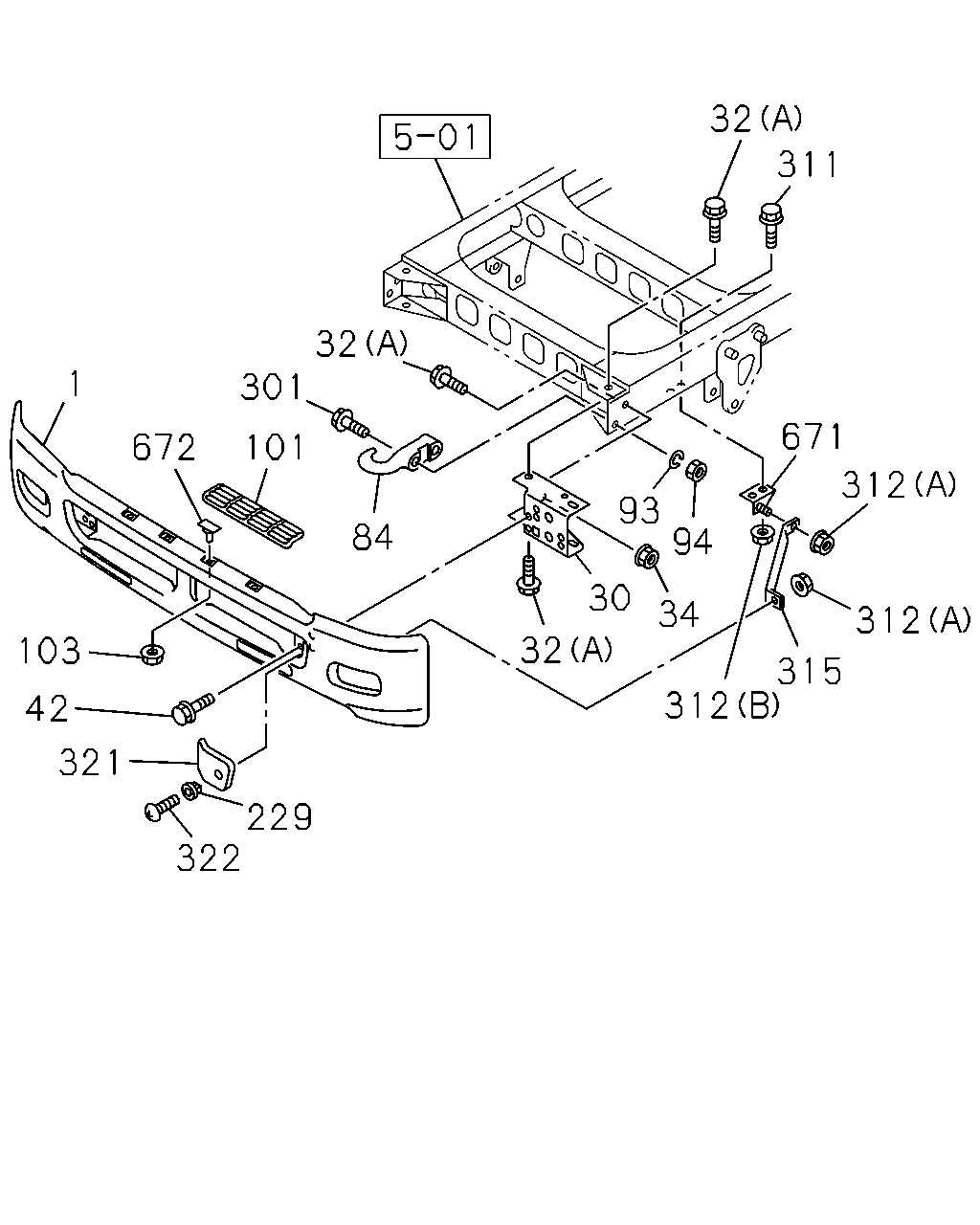

1 103 42 321 322 101 301 672 32 84 32 93 32 671 311 312 312 315 312 30 94 34 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97425-839-0	01	1	1307-1312	●
1	BUMPER ASM; FRT WHITE	8-97425-839-0	01	1	1401-	●	●
30	BRACKET; FRT BUMPER	8-97611-517-5	01	1	1307-1312	●
30	BRACKET; FRT BUMPER	8-97611-517-5	01	1	1401-	●	●
30	BRACKET; FRT BUMPER	8-97611-518-4	01	1	1307-1312	●
30	BRACKET; FRT BUMPER	8-97611-518-4	01	1	1401-	●	●
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1307-1312	●
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1401-	●	●
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1307-1312	●
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1401-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-1312	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1401-	●	●
84	HOOK	1-57181-003-5	01	1	1307-1312	●
84	HOOK	1-57181-003-5	01	1	1401-	●	●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1307-1312	●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1401-	●	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1307-1312	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1401-	●	●
101	STEP; BUMPER	8-97611-540-0	01	1	1307-1312	●
101	STEP; BUMPER	8-97611-540-0	01	1	1401-	●	●
101	STEP; BUMPER	8-97611-541-0	01	1	1307-1312	●
101	STEP; BUMPER	8-97611-541-0	01	1	1401-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-1312	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-1312	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1401-	●	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1307-1312	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1401-	●	●
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1307-1312	●
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1401-	●	●
311	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	04	1	1307-1312	●
311	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1401-	●	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1307-1312	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1401-	●	●
312	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	1307-1312	●
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1401-	●	●
315	STAY; BUMPER FRONT UNDER RUN PROTECTOR<EBE>	8-97611-499-2	01	1	1307-1312	●
315	STAY; BUMPER FRONT UNDER RUN PROTECTOR<EBE>	8-97611-499-2	01	1	1401-	●	●
315	STAY; BUMPER FRONT UNDER RUN PROTECTOR<EBE>	8-97611-500-2	01	1	1307-1312	●
315	STAY; BUMPER FRONT UNDER RUN PROTECTOR<EBE>	8-97611-500-2	01	1	1401-	●	●
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1307-1312	●
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1401-	●	●
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1307-1312	●
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1401-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-1312	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1401-	●	●
671	BRACKET; STAY	8-97614-062-0	01	1	1307-1312	●
671	BRACKET; STAY EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-062-0	01	1	1401-	●	●
671	BRACKET; STAY	8-97614-063-0	01	1	1307-1312	●
671	BRACKET; STAY EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-063-0	01	1	1401-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-1312	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1401-	●	●
