5-01 — FRAME AND OTHER PARTS (#124315) — 119 parça

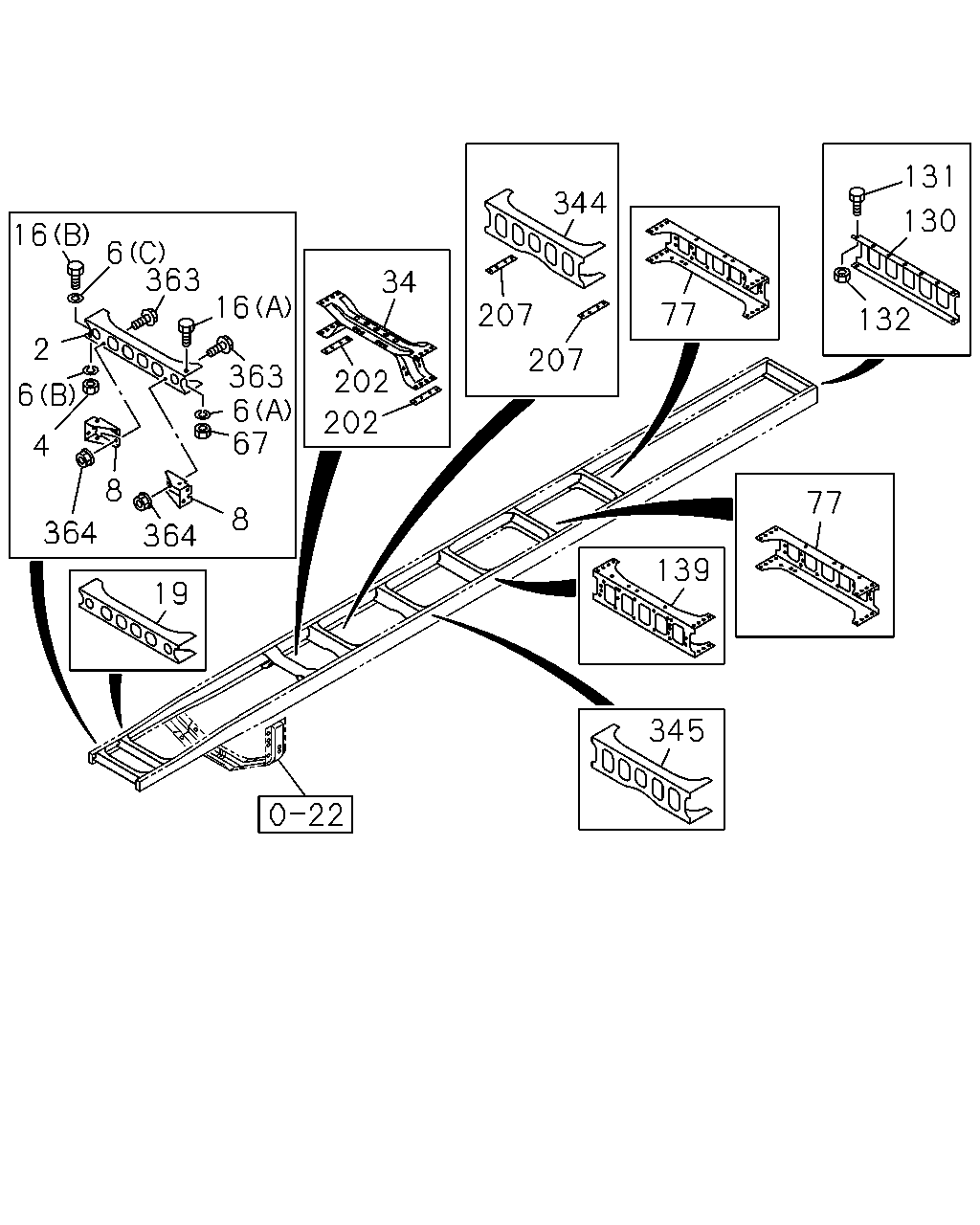

çizim 364645
4 6 2 16 6 363 16 363 6 67 8 364 364 8 19 139 77 77 207 207 202 202 34 344 132 130 131 345
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1307- ● ● ●
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1307- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1307- ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-670-4 01 1 1307- ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-463-9 01 1 1307- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1307- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1307- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ●
139 MEMBER; CROSS,6TH 8-97609-481-4 01 1 1307- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1307- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1307- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1307- ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1307- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1307- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ●

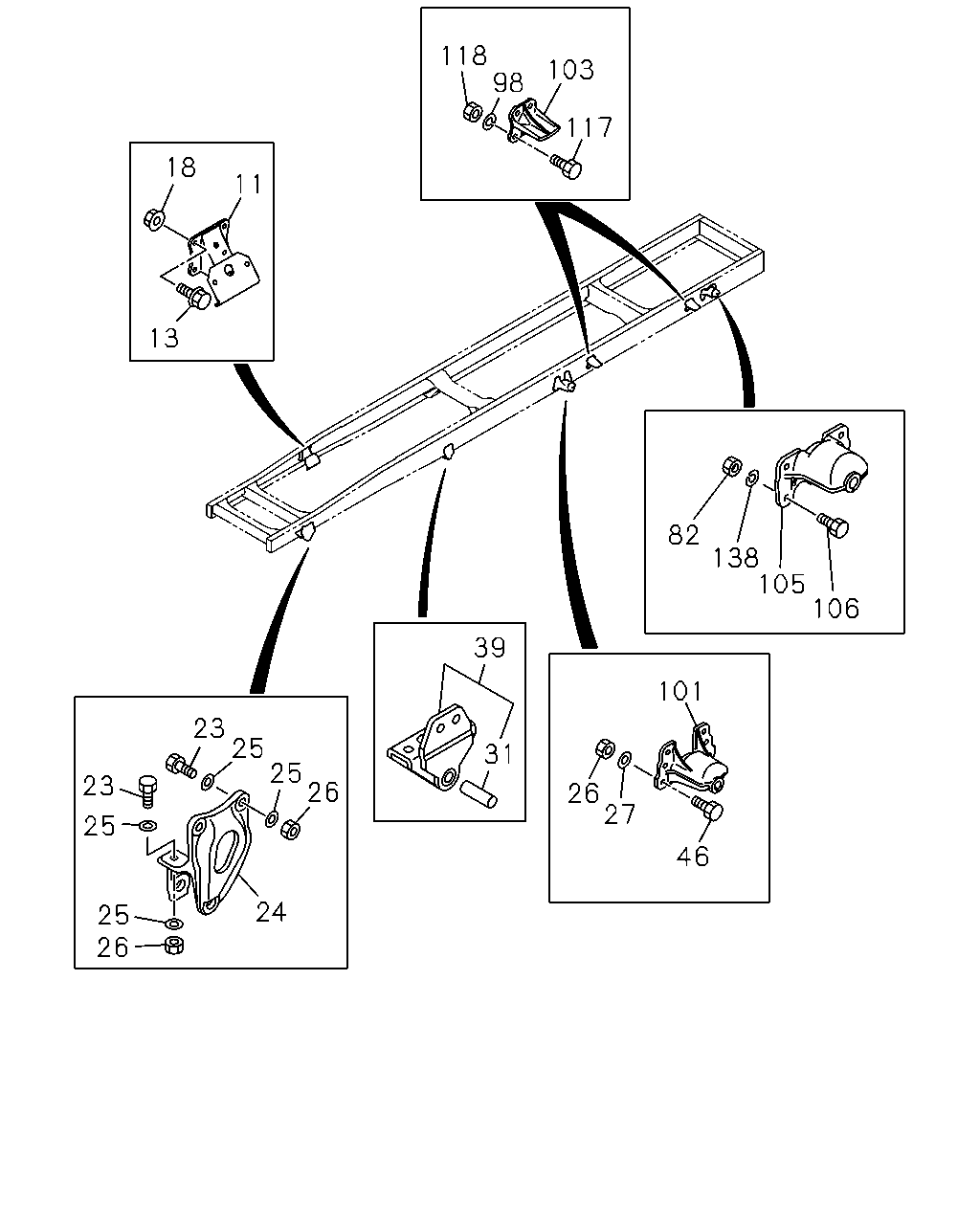

çizim 364704
18 11 13 118 98 103 117 82 138 105 106 101 46 27 26 31 39 25 25 26 23 23 25 26 25 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1307- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1307- ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1307-1312 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1401- ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1401- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1307- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1307-1312 ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1401- ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1401- ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1307-1312 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1401- ● ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1401- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1307-1312 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1401- ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1401- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1307-1312 ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1401- ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1401- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1307-1312 ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1401- ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1401- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1307-1312 ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1401- ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1401- ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1307-1312 ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1401- ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1401- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1307-1312 ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1401- ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1401- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1307-1312 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1401- ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1401- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1307-1312 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1401- ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1401- ●

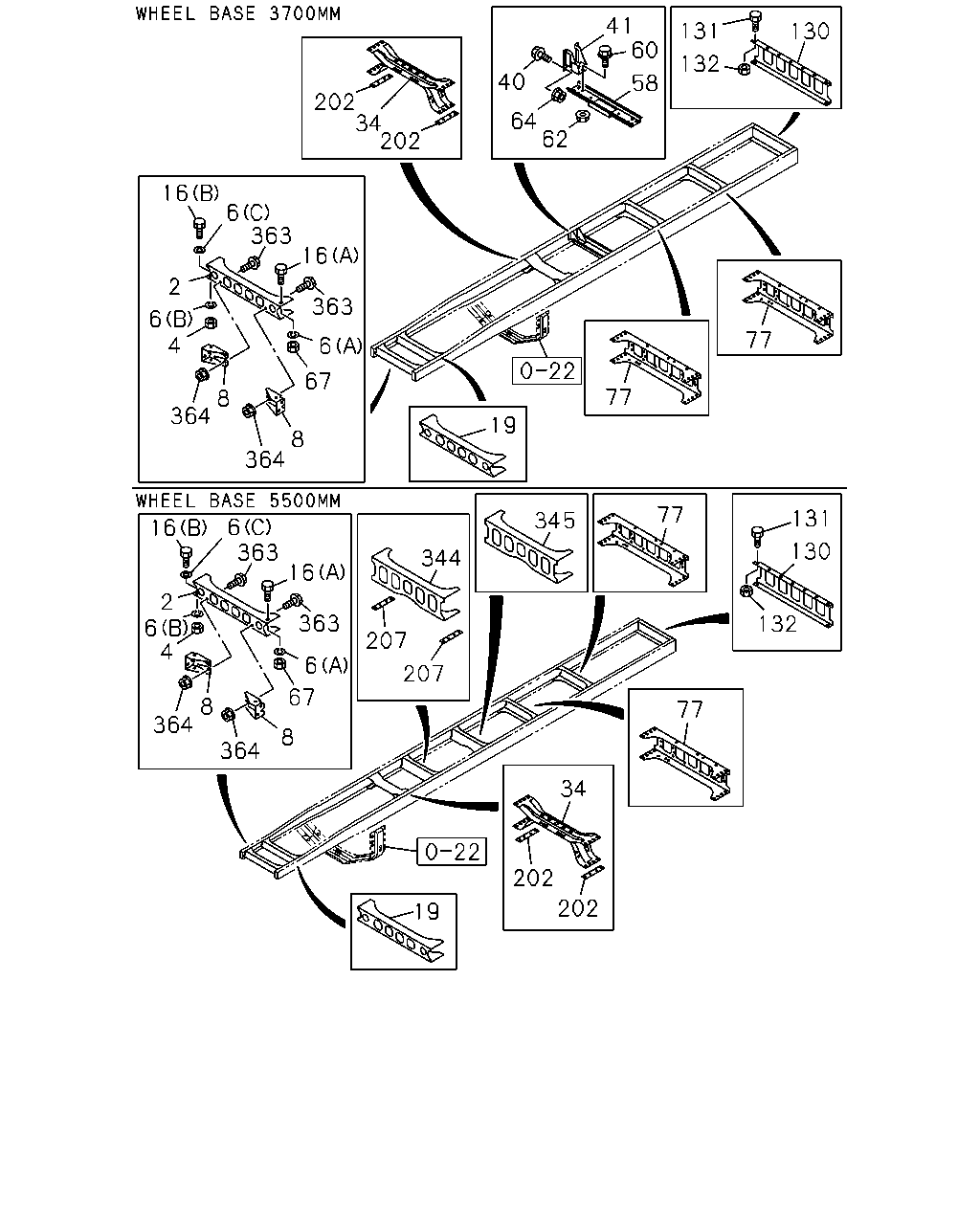

çizim 366282
202 34 202 40 64 62 58 60 41 131 132 130 77 77 19 8 364 364 8 4 6 2 6 16 363 363 16 6 67 6 363 16 363 6 67 8 364 8 364 4 6 2 16 344 207 207 345 77 131 130 132 77 34 202 202 19
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1307- ● ● ●
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1307- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1307- ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-670-4 01 1 1307- ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-463-9 01 1 1307- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1307- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1307- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1307- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1307- ●
58 MEMBER; CENTER BRG 8-97629-975-0 01 1 1307- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1307- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1307- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1307- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1307- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1307- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1307- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1307- ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1307- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1307- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ●

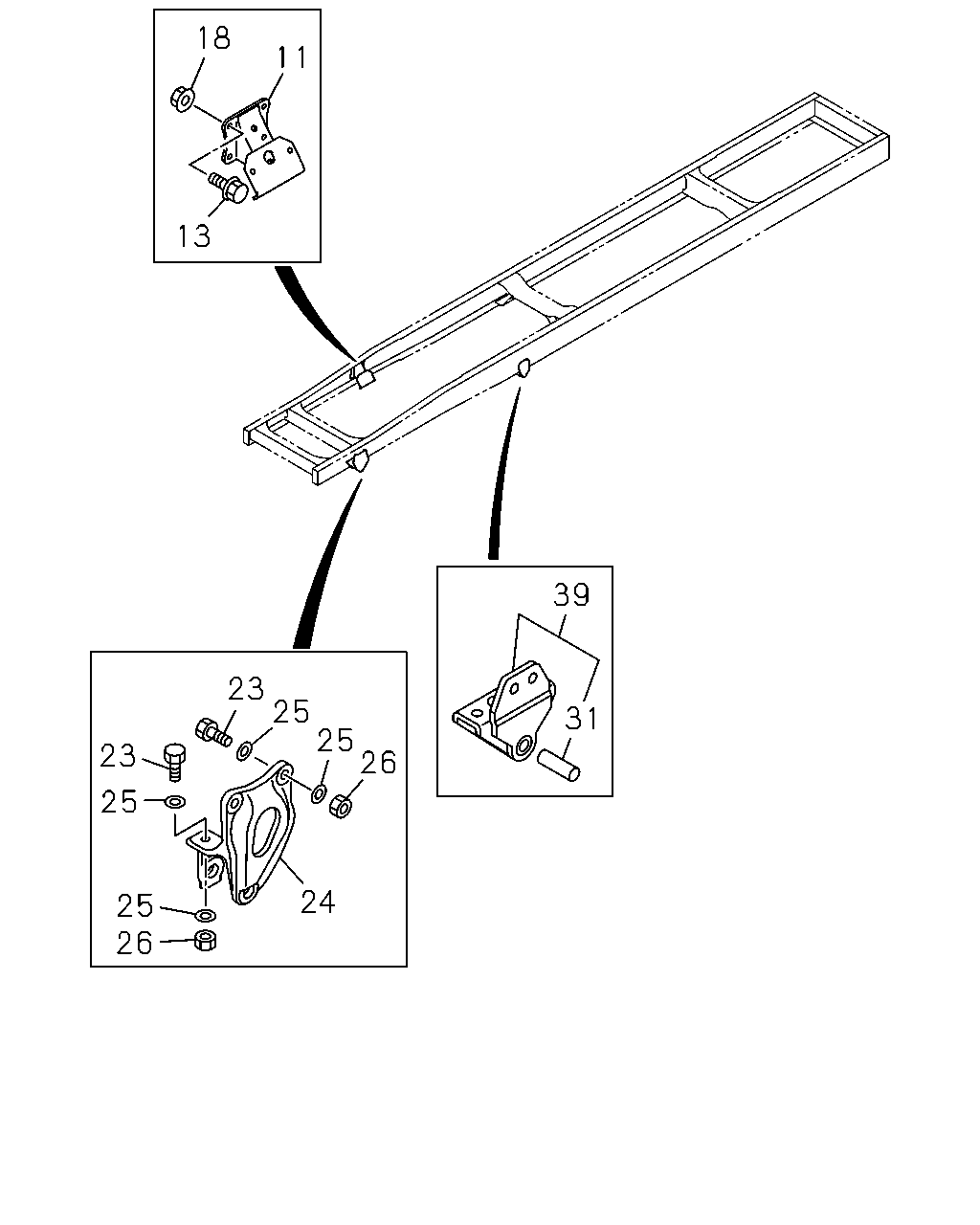

çizim 402186
11 18 13 23 25 25 26 23 25 24 25 26 39 31
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1307- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1307- ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1307- ● ● ●
