◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#124314) — 28 parça

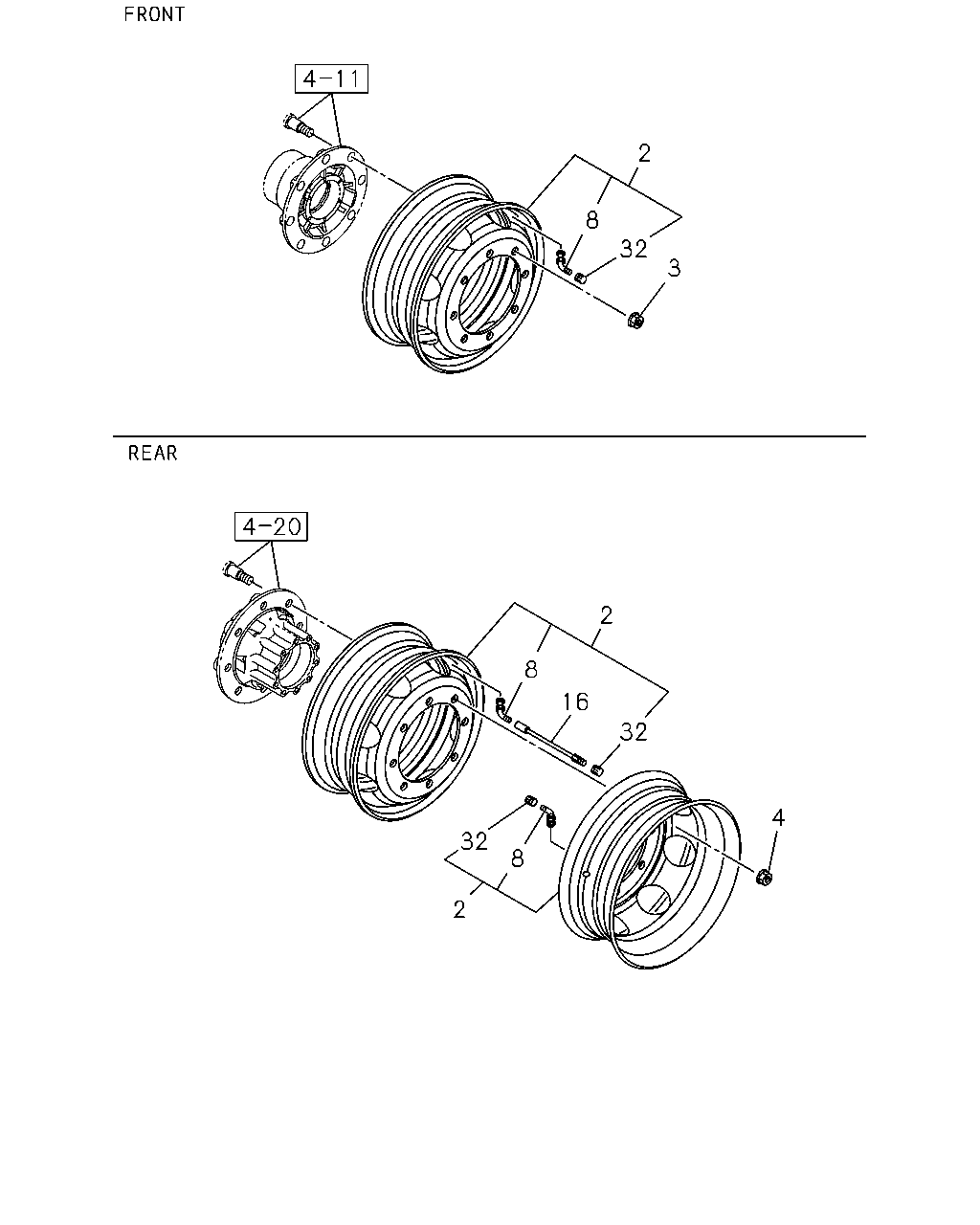

çizim 364643
2 8 3 32 2 32 4 16 8 8 32 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98222-134-0 01 1 1307-1312 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98222-134-0 01 1 1401- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98222-134-0 01 1 1401- ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		8-98222-134-0 06 1 1307-1312 ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		8-98222-134-0 06 1 1401- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		8-98222-134-0 06 1 1401- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98252-170-0 01 1 1401- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		8-98252-170-0 06 1 1401- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98222-135-0 01 1 1307-1312 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98222-135-0 01 1 1401- ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		8-98222-135-0 06 1 1307-1312 ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		8-98222-135-0 06 1 1401- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 16 1 1307-1312 ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 16 1 1401- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 16 1 1307-1312 ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 16 1 1401- ● ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-044-0 01 1 1401- ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-044-0 06 1 1401- ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-048-0 01 1 1307-1312 ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-048-0 01 1 1401- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-048-0 06 1 1307-1312 ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-048-0 06 1 1401- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1307-1312 ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1401- ● ●
32 CAP; VALVE
FRONT,REAR 		1-42374-001-0 01 1 1307-1312 ●
32 CAP; VALVE
FRONT,REAR 		1-42374-001-0 01 1 1401- ● ●
32 CAP; VALVE
FRONT,REAR 		1-42374-001-0 06 1 1307-1312 ●
32 CAP; VALVE
FRONT,REAR 		1-42374-001-0 06 1 1401- ● ●
