4-60 — REAR SUSPENSION (#124312) — 60 parça

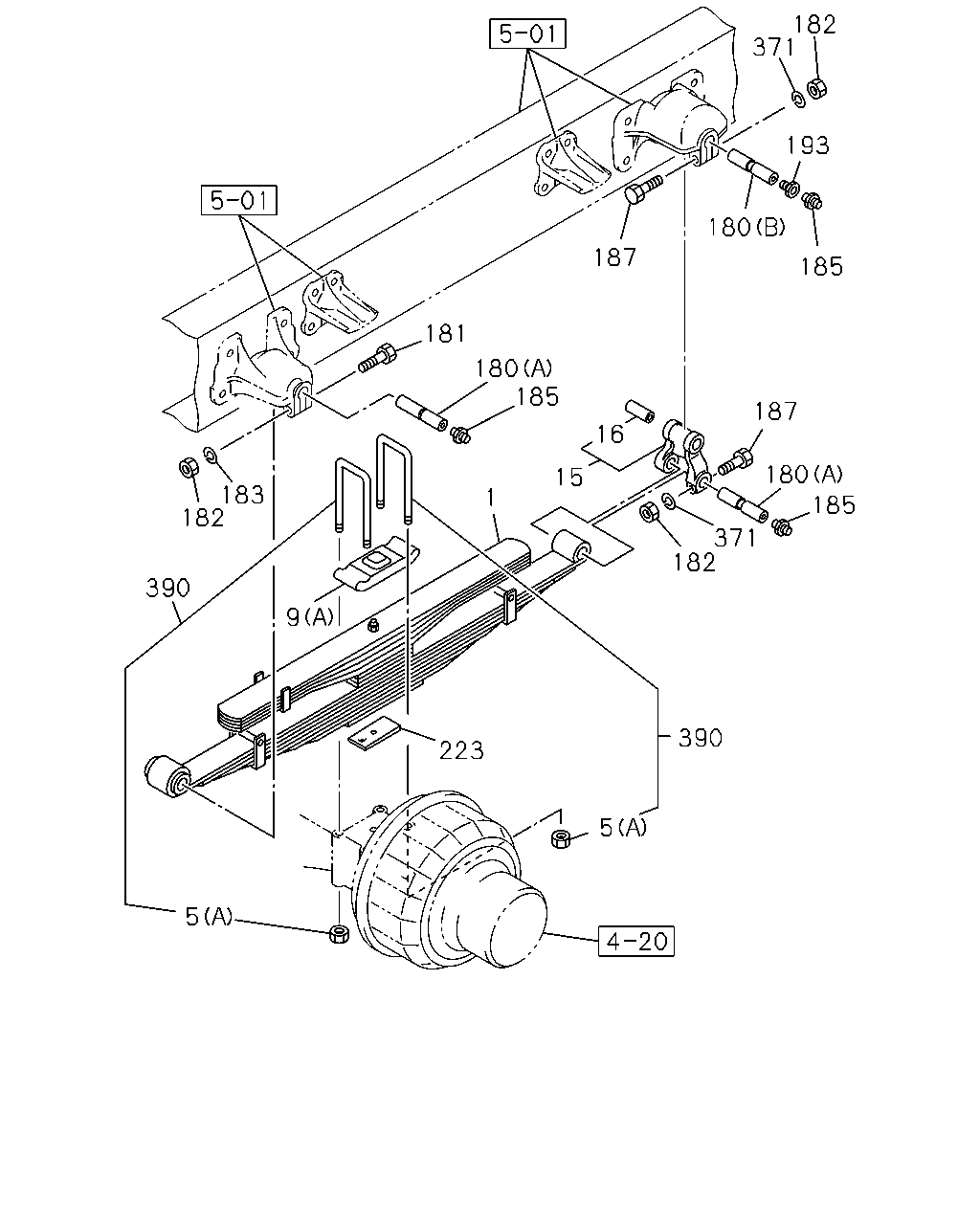

çizim 364774
183 182 390 5 5 223 9 181 180 185 15 16 182 390 371 180 185 187 187 180 193 185 371 182 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 17-LEAF 		8-98017-561-0 02 1 1307- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 12-LEAF 		8-98064-447-0 02 1 1307- ●
5 NUT; U-BOLT,RR SPR
(B) 		8-98254-982-0 08 1 1401- ●
5 NUT; U-BOLT,RR SPR
(A) M20 FLANGE 		8-98010-415-0 08 1 1307- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98241-664-0 02 1 1401- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-059-0 02 1 1307- ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1307- ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1307- ●
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1307- ●
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 1307- ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1307- ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 1307- ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1307- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 1307- ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1307- ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W) 		1-51377-333-1 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-51377-329-1 02 1 1307- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1307- ●
390 U-BOLT SET; RR SPRING
L=405 		1-87870-472-0 04 1 1307- ●

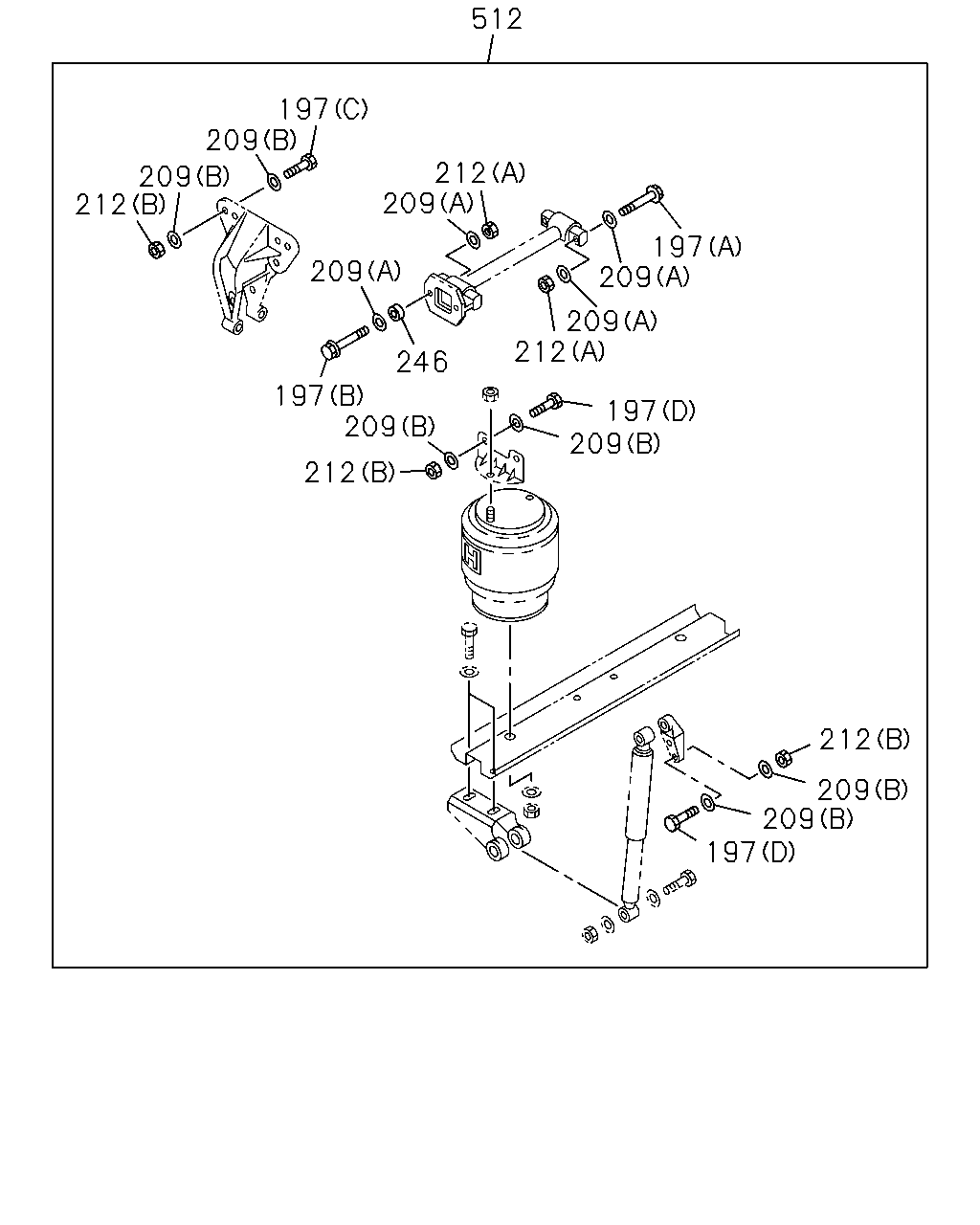

çizim 401583
512 197 209 209 212 212 209 209 246 197 209 212 197 209 209 212 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(A) 		1-09000-767-0 02 1 1401- ●
197 BOLT
(B) 		8-98241-686-0 02 1 1401- ●
197 BOLT
(D) 		8-98271-231-0 04 1 1401- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1401- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 1401- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1401- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1401- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1401- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1401- ●
512 FIXING KIT; BRKT TO FRAME 8-98271-262-0 01 1 1401- ●

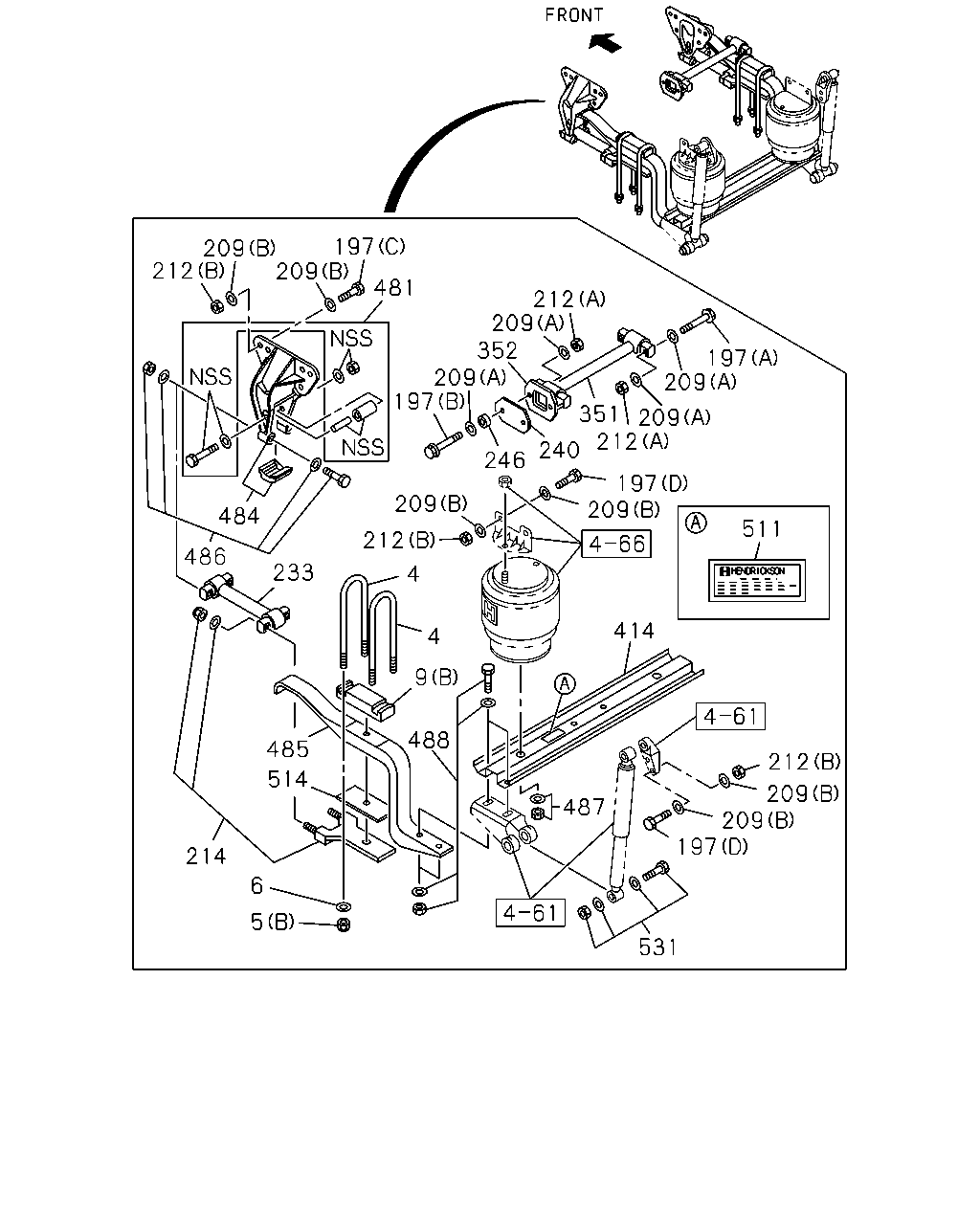

çizim 401672
212 209 197 209 481 484 233 486 209 212 485 514 214 6 5 197 209 352 209 212 246 240 351 209 209 197 212 209 197 511 414 212 209 209 197 531 487 488 4 4 9
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR 8-98241-681-0 04 1 1401- ●
5 NUT; U-BOLT,RR SPR
(B) 		8-98254-982-0 08 1 1401- ●
5 NUT; U-BOLT,RR SPR
(A) M20 FLANGE 		8-98010-415-0 08 1 1307- ●
6 WASHER; PL,U-BOLT 8-98254-983-0 08 1 1401- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98241-664-0 02 1 1401- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-059-0 02 1 1307- ●
197 BOLT
(A) 		1-09000-767-0 02 1 1401- ●
197 BOLT
(B) 		8-98241-686-0 02 1 1401- ●
197 BOLT
(D) 		8-98271-231-0 04 1 1401- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1401- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 1401- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1401- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1401- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1401- ●
214 SEAT; SPR 8-98241-663-0 02 1 1401- ●
233 ROD ASM; TORQUE,RR SUSP
L=360 		8-98241-676-0 02 1 1401- ●
240 PLATE; END,TORQUE ROD 8-98255-198-1 01 1 1401- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1401- ●
351 ROD ASM; RADIUS 8-98241-684-0 01 1 1401- ●
352 BRACKET; RADIUS ROD,FRAME 8-98261-308-0 01 1 1401- ●
414 BEAM; AIR SPR 8-98241-677-0 01 1 1401- ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 1401- ●
484 BRACKET; REAR SPRING
WHEEL BASE 5500MM(55W) 		1-53353-131-0 02 1 1401- ●
485 SPRING; LEAF 8-98241-662-0 02 1 1401- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 1401- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 1401- ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 1401- ●
511 LABEL 1-51399-034-0 01 1 1401- ●
514 SPACER; TORQUE ROD 8-98241-665-0 02 1 1401- ●
531 FIXING KIT; S/ABS 8-98241-680-0 02 1 1401- ●
