4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#124306) — 106 parça

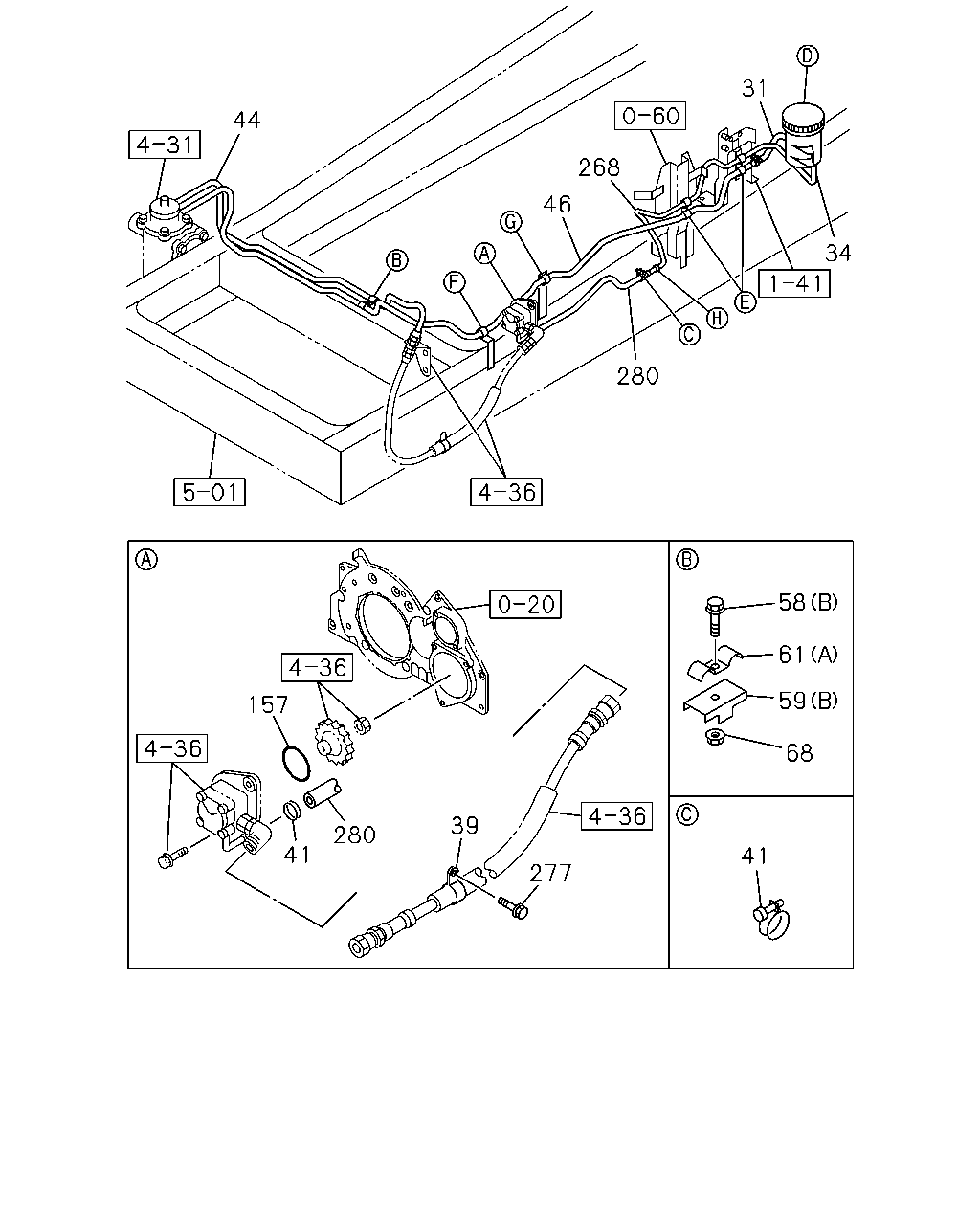

44 46 268 31 34 280 157 280 39 277 41 68 59 58 61 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L)	8-98093-500-0	01	1	1401-	●
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1401-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L)	8-98021-827-0	01	1	1401-	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1401-		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1307-1312	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1401-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-152-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-152-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1401-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1307-1312	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1401-	●	●

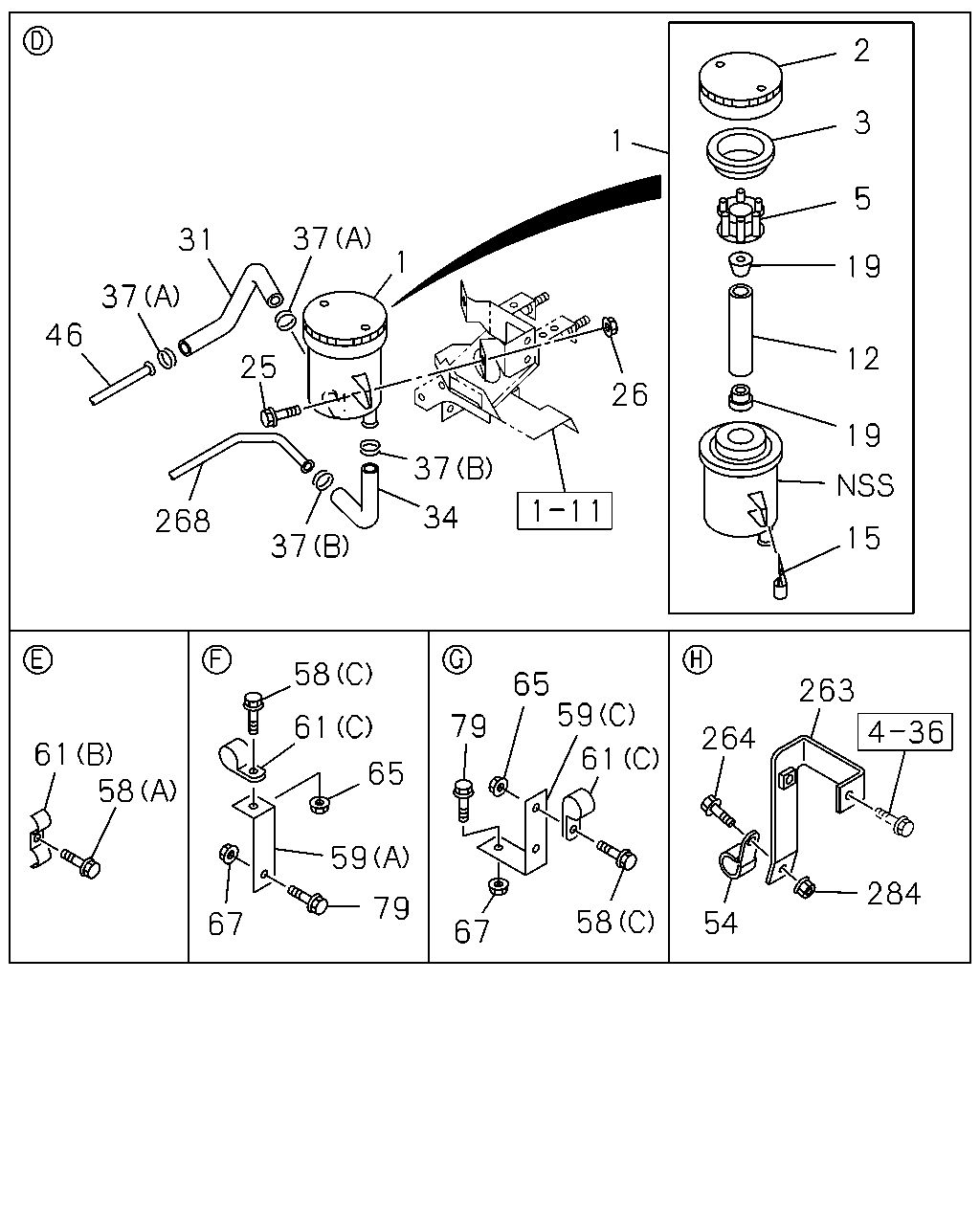

1 2 3 5 19 12 19 15 284 263 264 54 58 61 65 79 67 59 58 65 59 79 67 61 61 58 37 34 37 26 1 37 25 31 37 46 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1307-1312	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1401-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1307-1312	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1307-1312	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1307-1312	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1307-1312	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1401-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1307-1312	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1401-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1307-1312	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L)	8-98093-500-0	01	1	1401-	●
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1401-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L)	8-98021-827-0	01	1	1401-	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1401-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1401-	●	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1307-1312	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1401-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1307-1312	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1401-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
