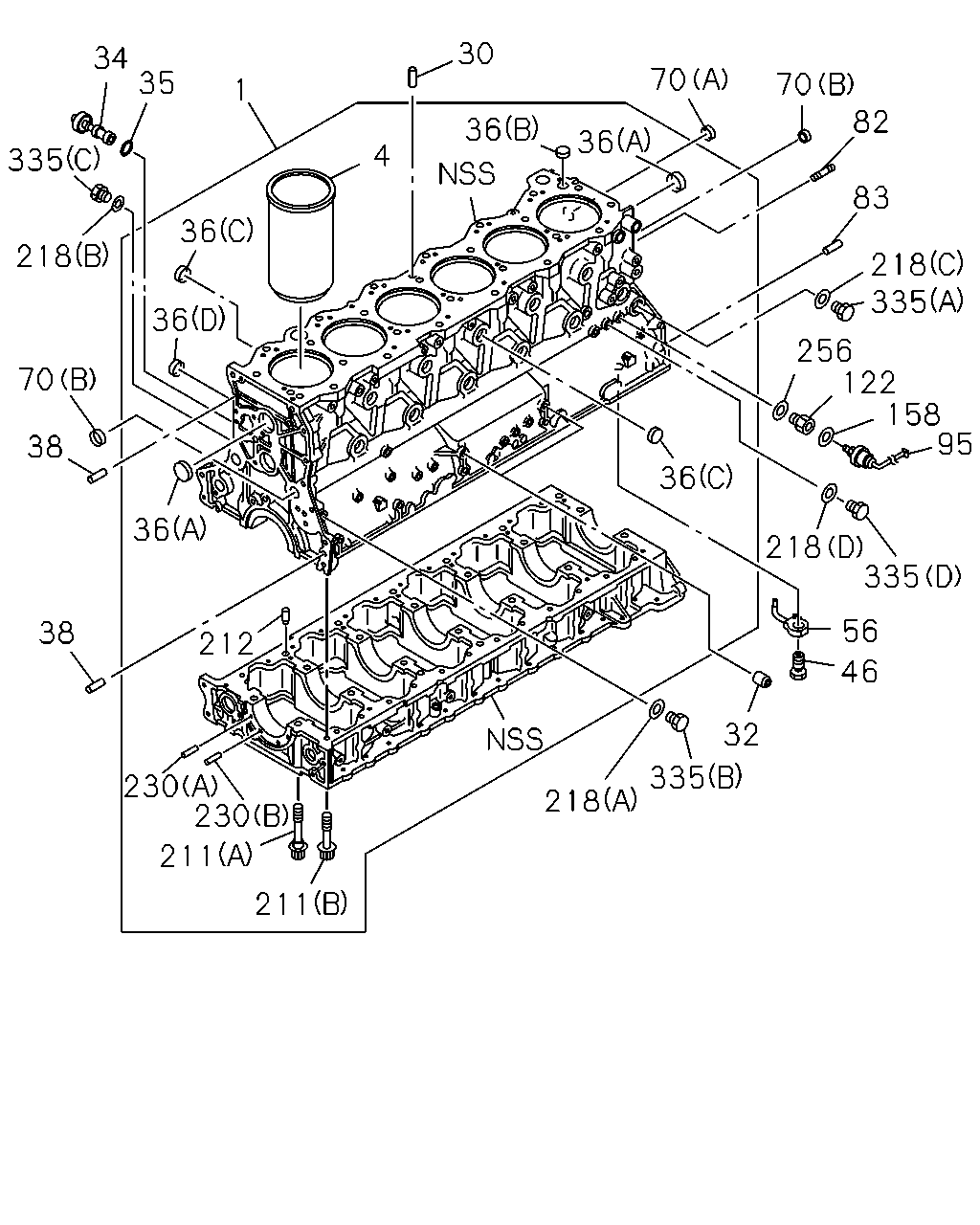

0-12 — CYLINDER BLOCK (#12430) — 43 parça

30 34 35 70 70 82 1 36 36 4 335 83 36 218 218 335 36 256 122 158 95 70 38 36 212 36 218 335 56 38 46 32 335 230 230 218 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-656-8	01	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0105-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0105-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0105-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	0105-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0105-0508
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0105-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0105-
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-065-1	02	1	0105-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94241-637-0	13	1	0105-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0105-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0105-
56	JET; OIL,PISTON COOLING	1-13342-125-4	06	1	0105-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0105-
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	0105-
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	0105-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	0105-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0105-0508
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0105-0508
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0508
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-2	28	1	0105-
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	0105-
212	PIN; CRANKCASE	1-09740-068-1	02	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22	1-09630-089-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25	1-09630-141-0	01	1	0105-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0105-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0105-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0105-0508
335	PLUG; C/BL,SIDE (A) M22X12	1-09604-035-0	01	1	0105-
335	PLUG; C/BL,SIDE (B) M10X7	1-09604-094-0	01	1	0105-
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	0105-
335	PLUG; C/BL,SIDE (D) M14X9	9-99202-314-0	01	1	0105-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87811-998-3	06	1	0105-0303
2	LINER SET; ENG CYL GRADE=1X	1-87812-451-0	06	1	0304-0311
2	LINER SET; ENG CYL GRADE=1X	1-87812-863-0	06	1	0312-
2	LINER SET; ENG CYL GRADE=3X	1-87811-999-3	06	1	0105-0303
2	LINER SET; ENG CYL GRADE=3X	1-87812-452-0	06	1	0304-0311
2	LINER SET; ENG CYL GRADE=3X	1-87812-864-0	06	1	0312-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0105-
