2-85 — POWER TAKE OFF CONTROL (#1243) — 29 parça

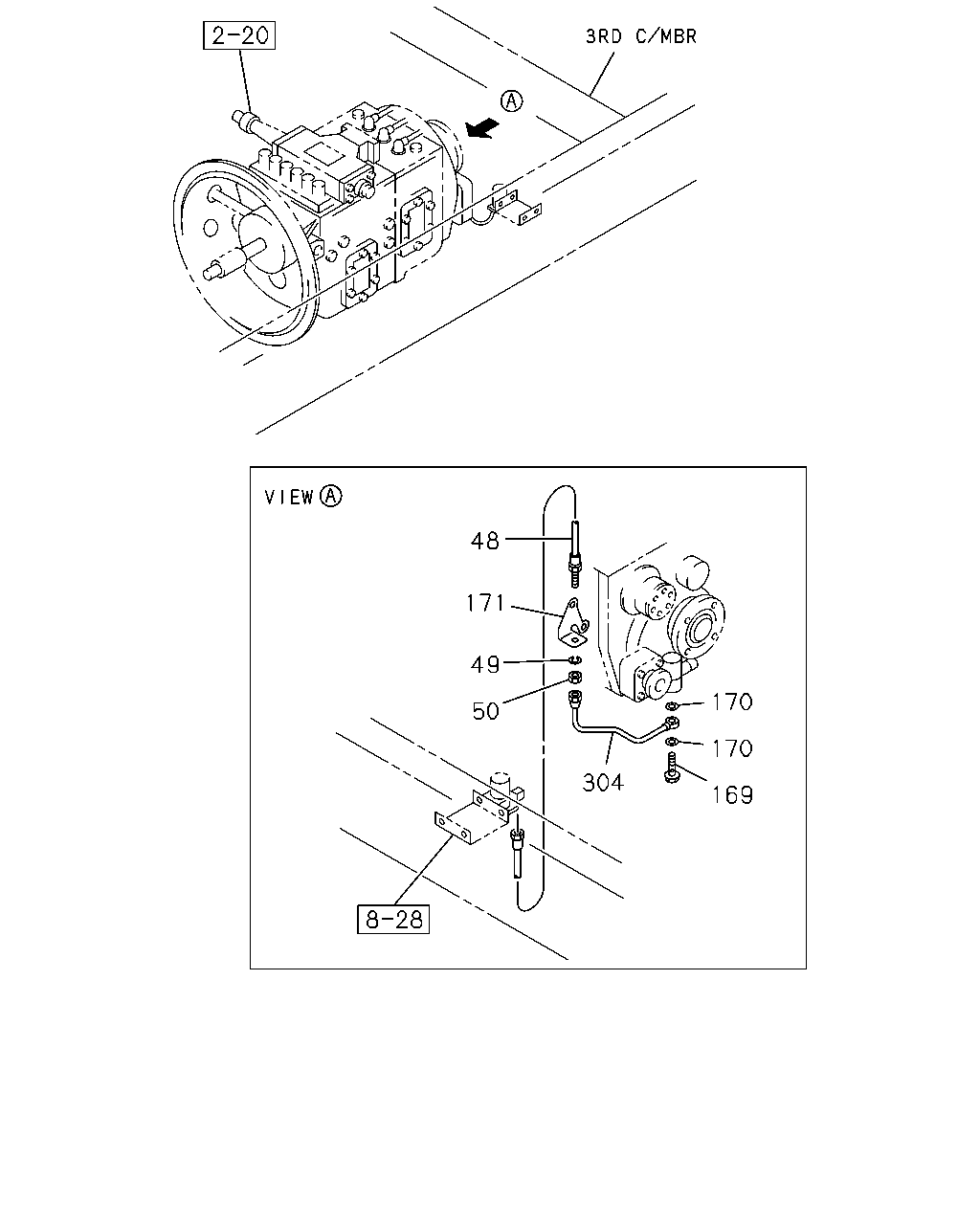

çizim 29473
48 171 49 170 50 170 304 169
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 HOSE; FLEX,PTO
6HE1 STD ENG(46L) PTO CONTROL<SV6> L=390 		0-07150-390-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> L=360 		0-07150-360-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> L=300 		0-07150-300-0 01 1 9202- ●
48 HOSE; FLEX,PTO
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> L=350 		0-07120-350-0 01 1 9505- ●
49 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> ID=12.2 		9-09150-512-0 01 1 9505- ●
50 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> M12 		9-09840-280-0 01 1 9505- ●
169 BOLT; EYE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> M12X24 EYE-BOLT 		1-09675-082-0 01 1 9505- ●
170 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 01 1 9505- ●
171 BRACKET; FLEX HOSE
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47477-417-0 01 1 9505- ●
304 PIPE ASM; AIR,PTO
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> 		1-49114-350-1 01 1 9505- ●

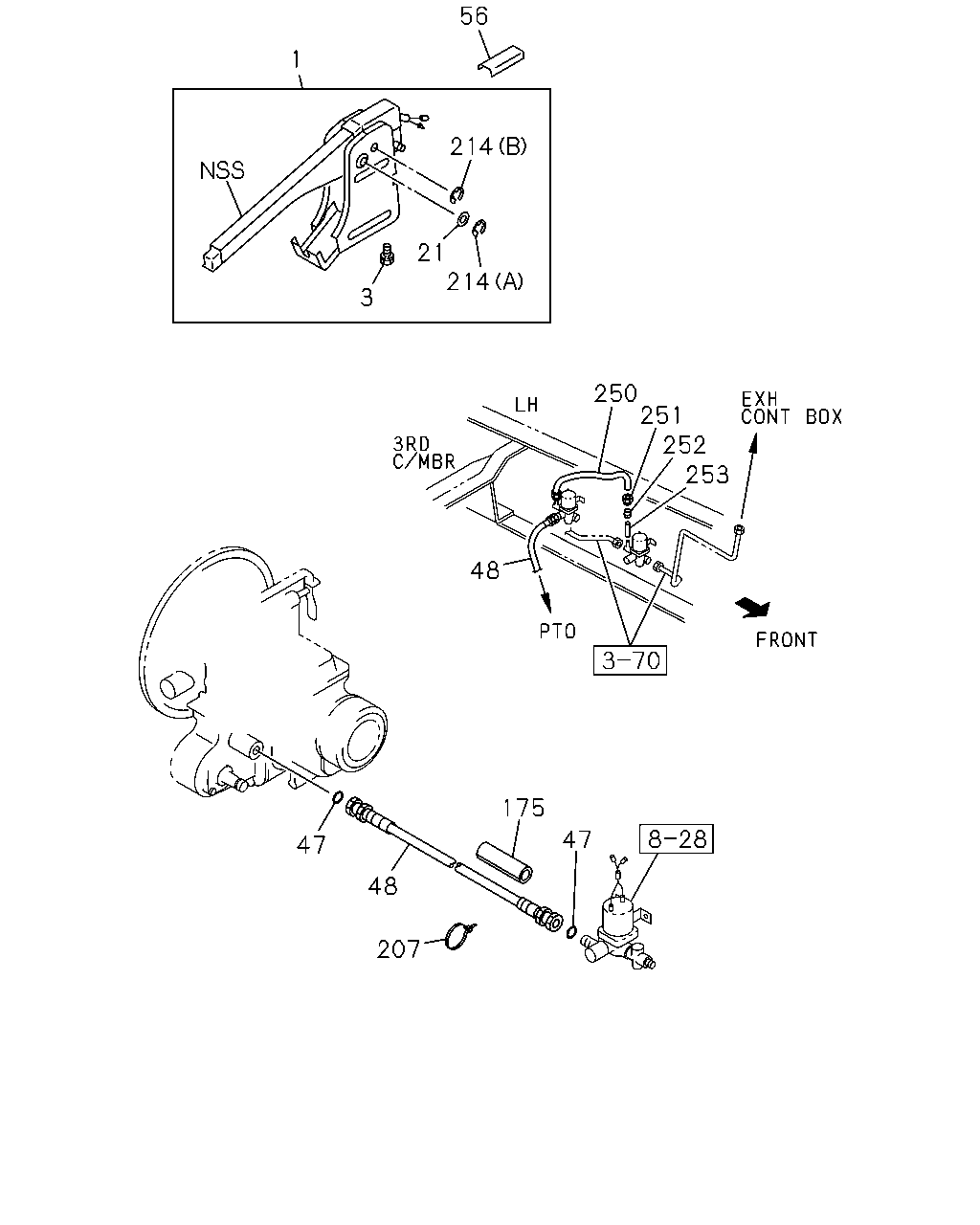

çizim 92731
56 1 214 21 214 3 250 251 252 253 48 175 47 47 48 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-38300-100-6 01 1 9202- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9202-9204 ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=8.4 		9-09160-508-0 01 1 9202- ● ●
47 GASKET; FLEX HOSE
PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ● ●
48 HOSE; FLEX,PTO
6HE1 STD ENG(46L) PTO CONTROL<SV6> L=390 		0-07150-390-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> L=360 		0-07150-360-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> L=300 		0-07150-300-0 01 1 9202- ●
48 HOSE; FLEX,PTO
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> L=350 		0-07120-350-0 01 1 9505- ●
56 PATCH; DUMP CONT BRKT
DUMP CONTROL LEVER<RC4> 		1-79998-219-0 01 1 9202- ● ●
175 SLEEVE; RUBBER,AIR PIPE
6HE1 STD ENG(46L) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> ID=29 OD=39 L=40 		1-09337-013-0 01 1 9202- ● ●
207 CLIP; BAND
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> L=250 		1-09707-126-0 01 1 9202- ● ●
207 CLIP; BAND
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> L=250 		1-09707-126-0 02 1 9202- ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (A) ID=6 		9-09185-406-0 01 1 9202- ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (B) ID=8 		9-09185-408-0 01 1 9202- ● ●
250 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> SERVICED BY L=30000 OD=3/8" 		1-09368-250-0 01 1 9202- ● ● ●
251 NUT; SLEEVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> OD=3/8" 		1-09660-557-0 02 1 9202- ● ● ●
252 SLEEVE; TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 02 1 9202- ● ● ●
253 RING; INSERT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> OD=3/8" 		1-09669-108-0 02 1 9202- ● ● ●
