Sayfa 4-01 - Isuzu EPC

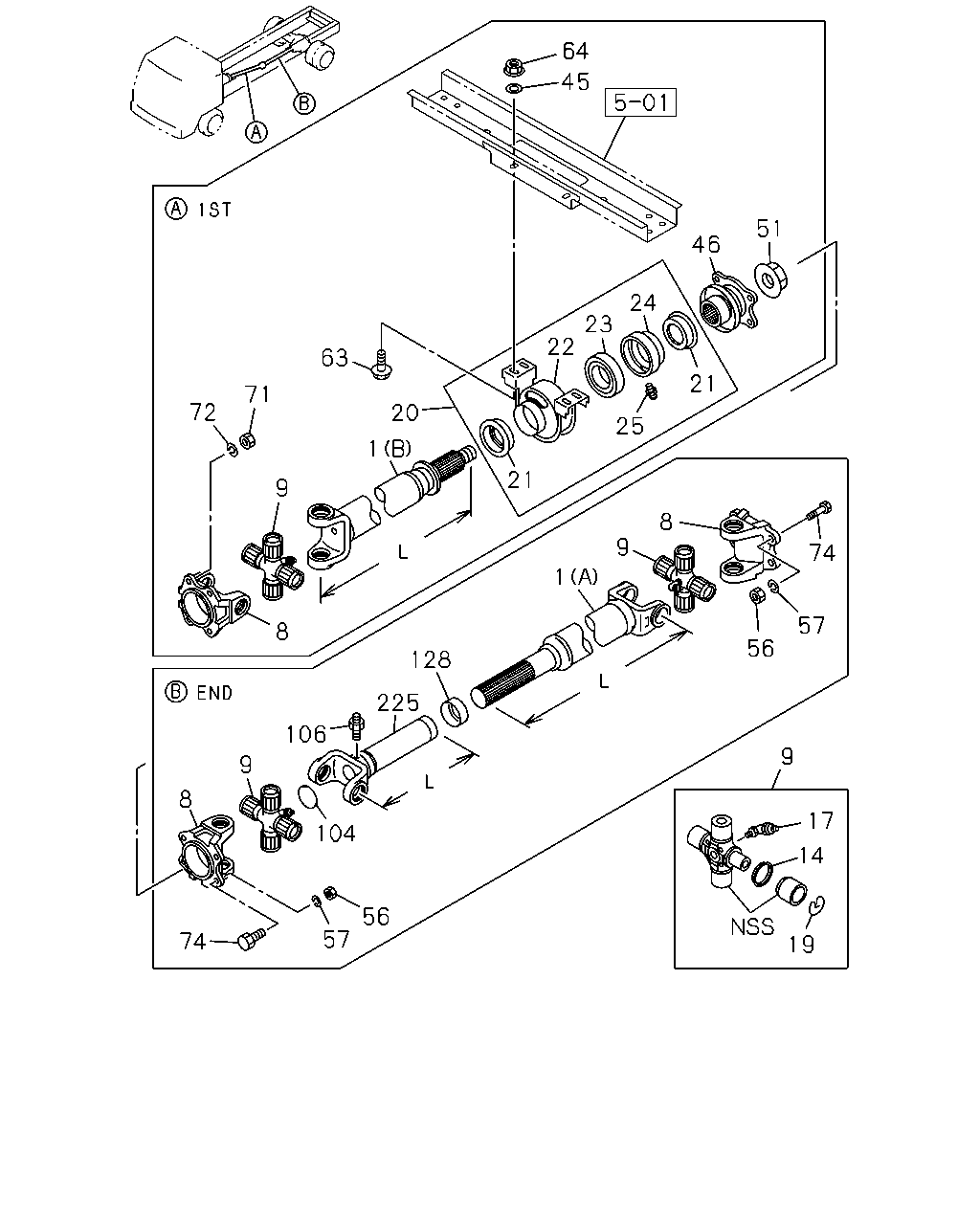

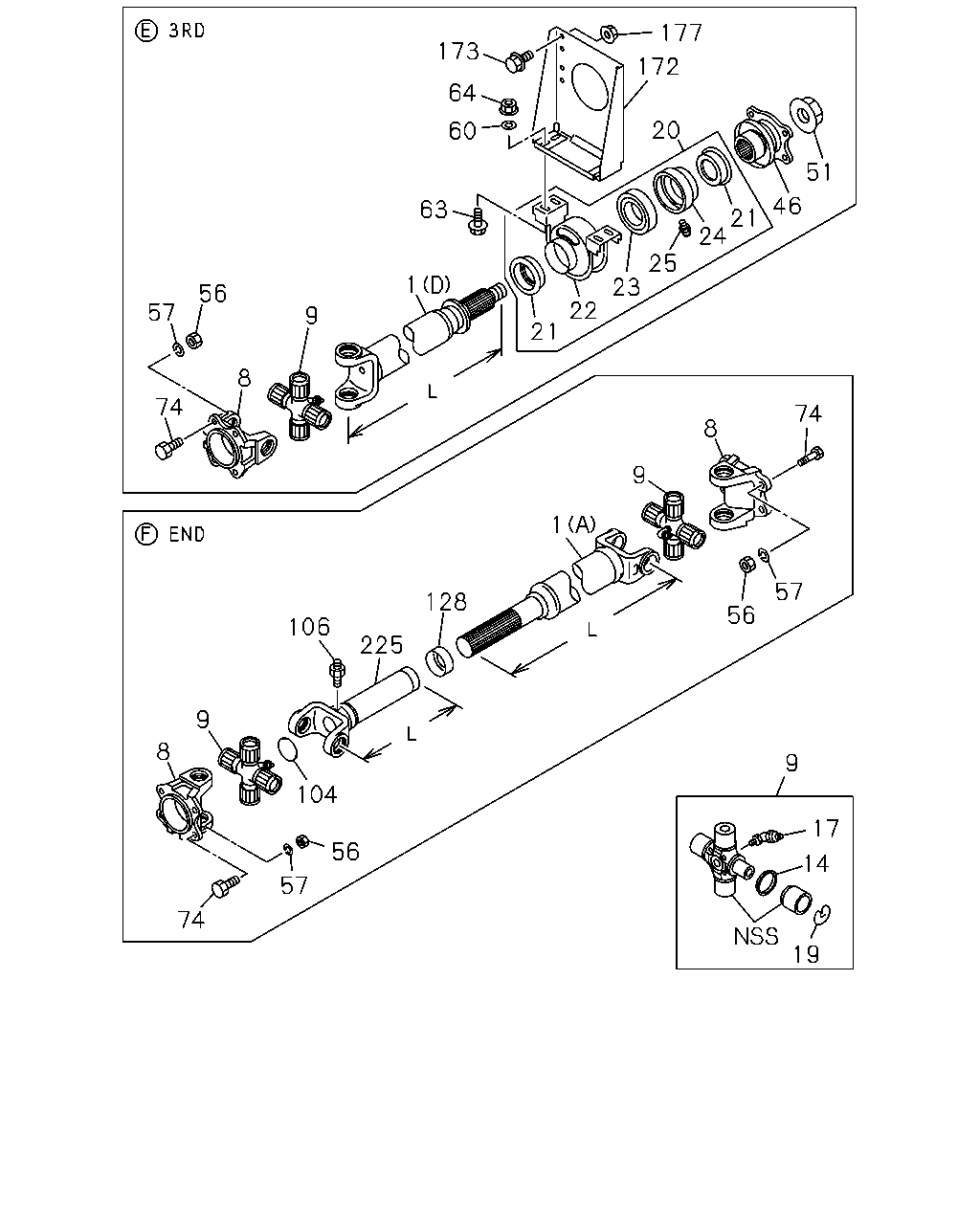

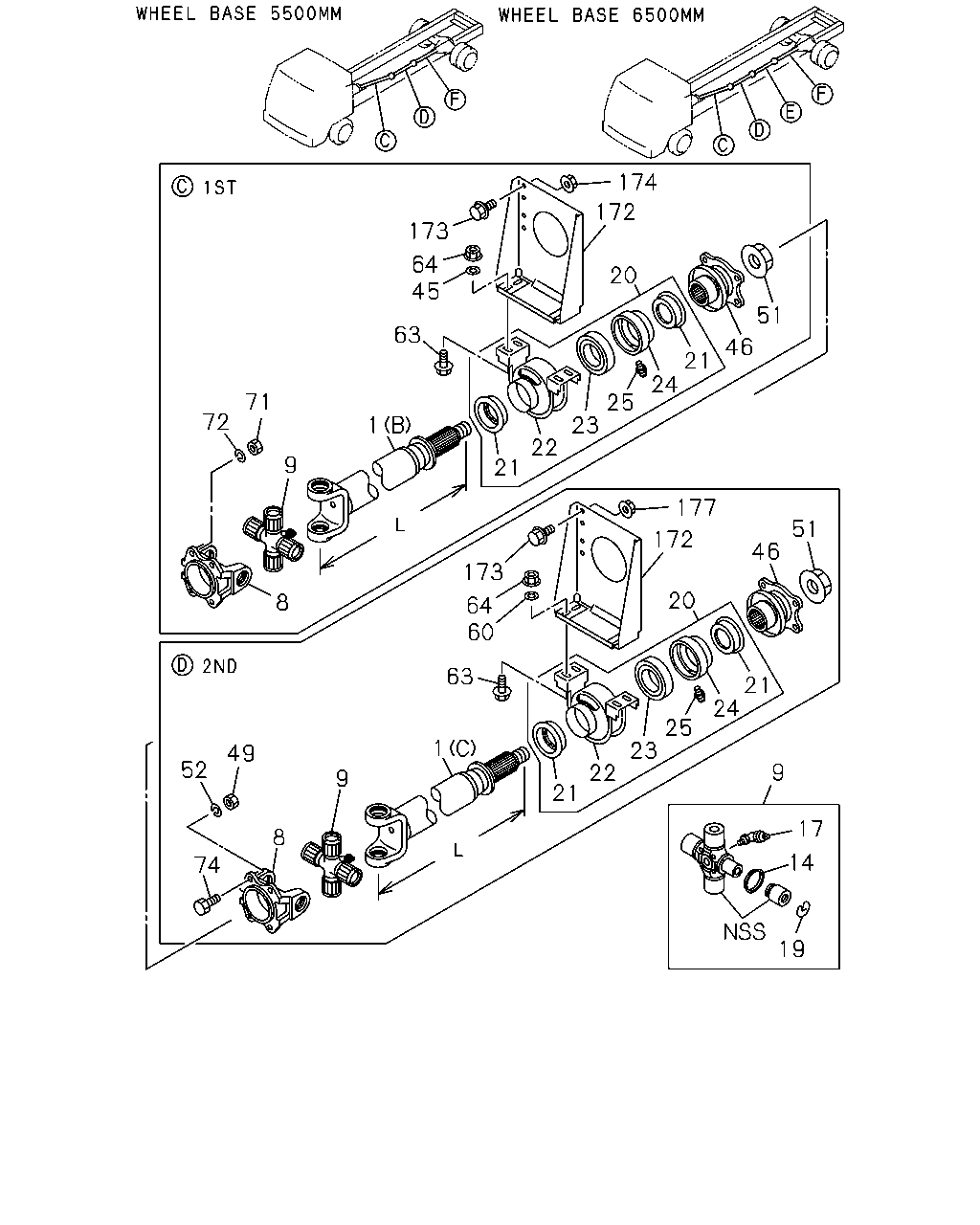

4-01 — PROPELLER SHAFT (#124298) — 287 parça

72 71 1 9 8 52 74 9 49 8 173 45 64 63 174 172 20 51 46 21 24 25 23 22 21 9 17 14 19 1 63 173 177 51 46 20 172 64 60 21 21 24 25 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-	●	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP (D) L=931	1-37153-239-0	01	1	1307-		●
1	SHAFT; PROP (B) L=684	8-98091-093-0	01	1	1307-			●
1	SHAFT; PROP (A) L=649	8-98091-129-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-		●
14	COVER; DUST,SPIDER 2ND,3RD	1-37319-012-0	08	1	1307-1505		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	1307-	●	●	●
14	COVER; DUST,SPIDER 2ND	1-37319-012-0	04	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-		●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	02	1	1307-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1307-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1307-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1307-		●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	02	1	1307-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1307-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	02	1	1307-		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1307-		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
172	BRACKET; CENTER BRG 1ST	1-37515-122-0	01	1	1307-	●
172	BRACKET; CENTER BRG 5500MM 2ND,6500MM 3RD	1-37515-121-0	01	1	1307-	●	●
172	BRACKET; CENTER BRG 1ST	1-37515-118-0	01	1	1307-		●
172	BRACKET; CENTER BRG 2ND	1-37515-120-0	01	1	1307-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1307-		●

64 45 51 46 24 23 22 20 63 1 71 72 9 8 21 25 21 8 9 1 128 225 106 9 8 74 57 56 104 56 57 74 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-	●	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP (D) L=931	1-37153-239-0	01	1	1307-		●
1	SHAFT; PROP (B) L=684	8-98091-093-0	01	1	1307-			●
1	SHAFT; PROP (A) L=649	8-98091-129-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-		●
14	COVER; DUST,SPIDER 2ND,3RD	1-37319-012-0	08	1	1307-1505		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	1307-	●	●	●
14	COVER; DUST,SPIDER 2ND	1-37319-012-0	04	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-		●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	02	1	1307-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1307-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1307-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1307-		●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	02	1	1307-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1307-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	02	1	1307-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1307-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1307-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1307-		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1307-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1307-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1307-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1307-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1307-	●	●	●

57 56 8 9 1 63 60 64 173 177 172 20 51 46 21 24 25 23 22 21 9 17 14 19 8 74 9 106 225 1 128 9 8 74 57 56 104 56 57 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-	●	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP (D) L=931	1-37153-239-0	01	1	1307-		●
1	SHAFT; PROP (B) L=684	8-98091-093-0	01	1	1307-			●
1	SHAFT; PROP (A) L=649	8-98091-129-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD	1-37300-102-1	AR	1	1307-1505		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-		●
14	COVER; DUST,SPIDER 2ND,3RD	1-37319-012-0	08	1	1307-1505		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	1307-	●	●	●
14	COVER; DUST,SPIDER 2ND	1-37319-012-0	04	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-		●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	02	1	1307-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1307-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1307-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1307-		●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	02	1	1307-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1307-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	02	1	1307-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1307-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1307-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	1307-		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1307-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1307-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1307-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1307-	●	●	●
172	BRACKET; CENTER BRG 1ST	1-37515-122-0	01	1	1307-	●
172	BRACKET; CENTER BRG 5500MM 2ND,6500MM 3RD	1-37515-121-0	01	1	1307-	●	●
172	BRACKET; CENTER BRG 1ST	1-37515-118-0	01	1	1307-		●
172	BRACKET; CENTER BRG 2ND	1-37515-120-0	01	1	1307-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1307-		●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1307-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
