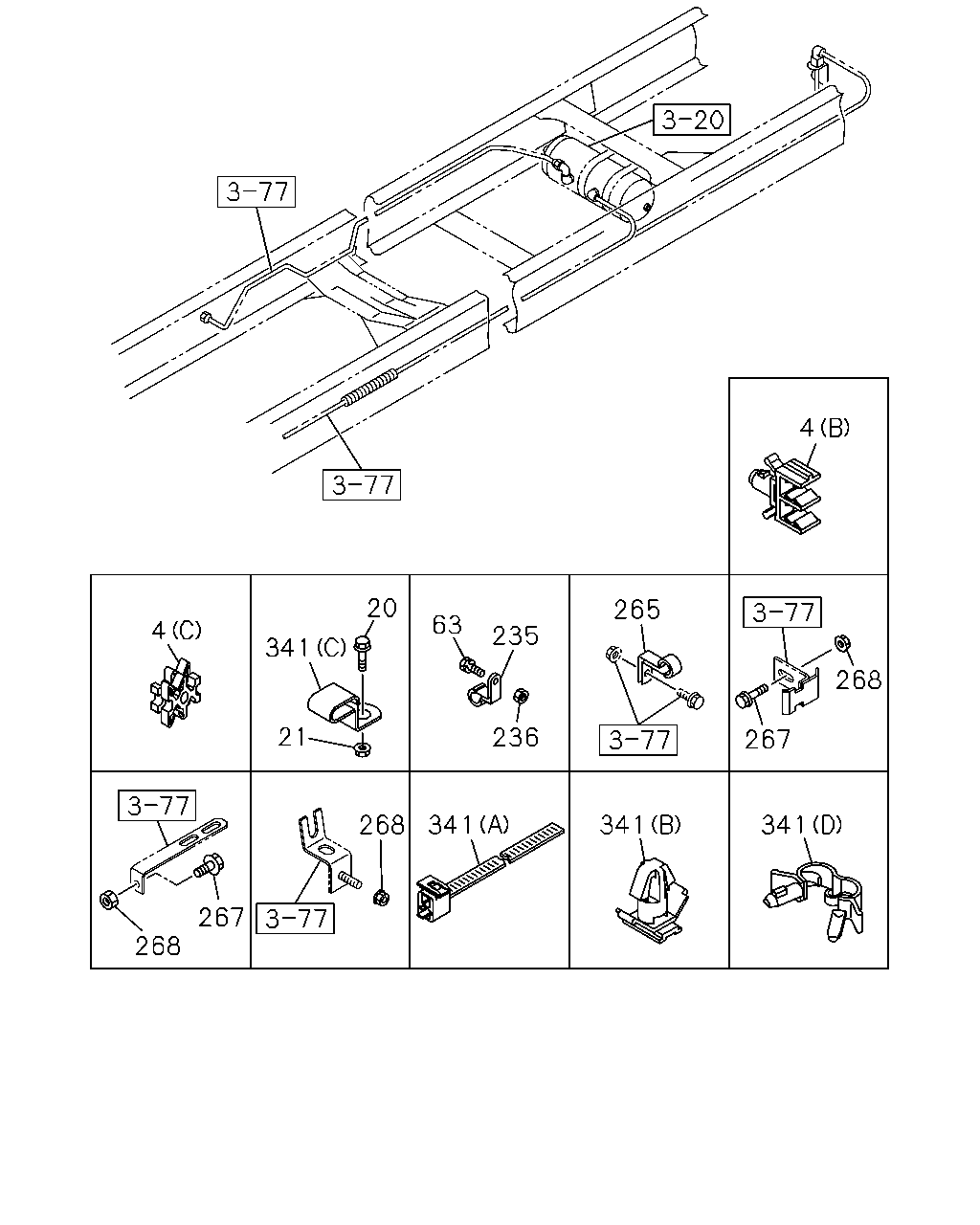

3-78 — FIXING PARTS; AIR PIPING (#124297) — 112 parça

4 267 268 341 20 21 268 63 235 236 341 265 341 4 268 267 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	08	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	08	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	05	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	05	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1401-	●	●
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
21	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
21	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
63	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	08	1	1307-	●
63	BOLT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
63	BOLT; CLIP WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312	●
63	BOLT; CLIP WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	1401-	●	●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 6500MM(65W) ID=11 H=20 L=20	8-98033-780-0	08	1	1307-	●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	02	1	1307-	●
235	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	1307-1312	●
235	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	1401-	●	●
236	NUT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	08	1	1307-	●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1307-	●
236	NUT; CLIP WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
236	NUT; CLIP WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1401-	●	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-1312	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1401-	●	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-		●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1401-		●
268	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
268	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
341	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	1307-1312	●
341	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	1401-	●	●
341	CLIP; HARNESS (B) OD=9 H=6	1-09709-178-0	02	1	1307-1312	●
341	CLIP; HARNESS (B) OD=9 H=6	1-09709-178-0	02	1	1401-	●	●
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1307-1312	●
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1401-	●	●
341	CLIP; HARNESS (C) ID=17.5X2 L=25	5-09700-358-0	01	1	1307-1312	●
341	CLIP; HARNESS (C) ID=17.5X2 L=25	5-09700-358-0	01	1	1401-	●	●

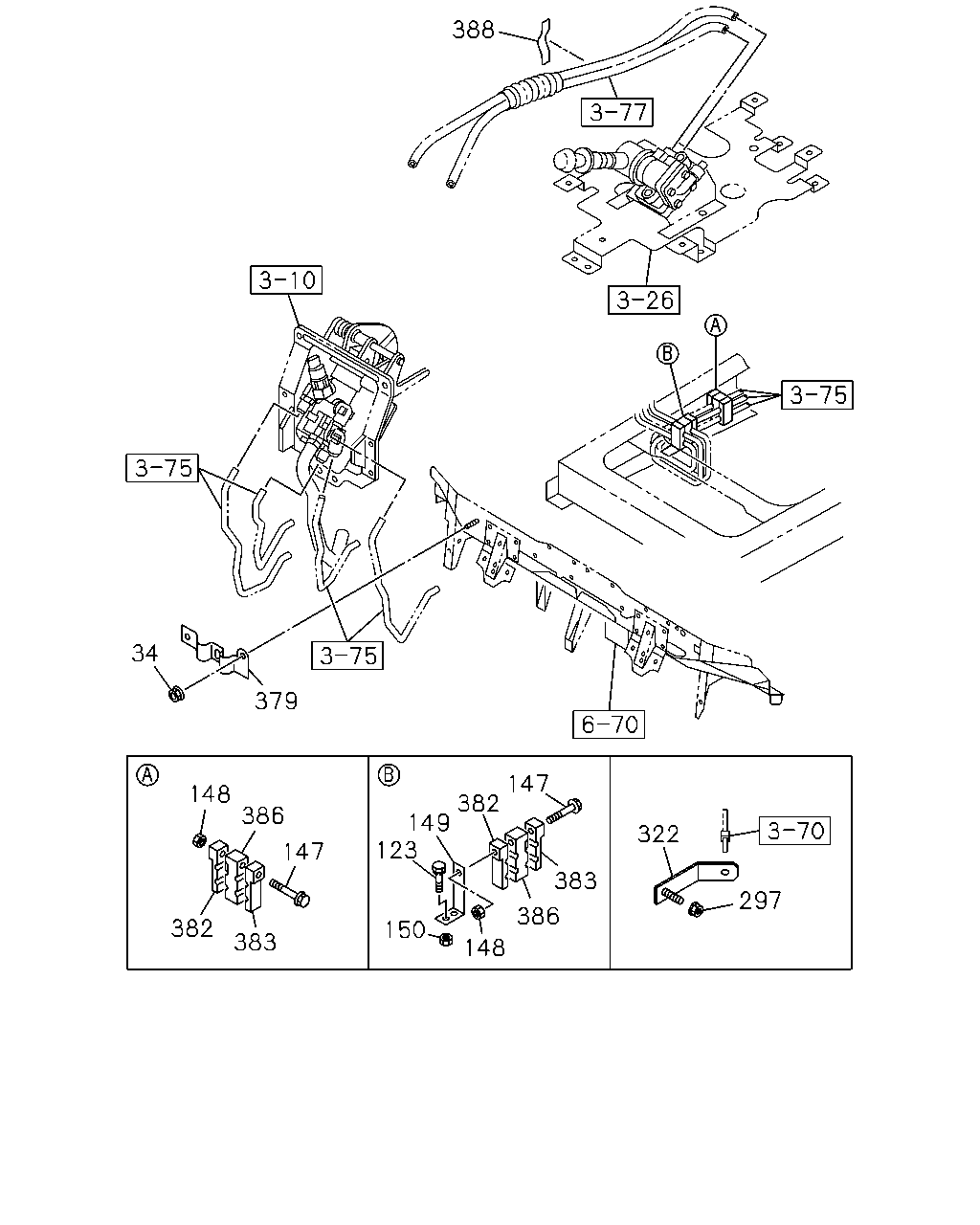

148 386 147 383 382 123 150 148 386 147 382 149 383 322 297 34 379 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1307-1312	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1401-	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1307-1312	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1307-1312	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1401-1409	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
297	NUT; BRKT WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1307-	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
297	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1401-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-		●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W)	1-47479-936-1	02	1	1307-	●
322	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-47479-936-1	01	1	1307-1312	●
322	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-47479-936-1	01	1	1401-	●
322	BRACKET; CLIP	1-47479-936-1	01	1	1401-		●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1307-1312	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1401-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1307-1312	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1401-	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	1307-1312	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	1401-	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1307-1312	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1401-	●	●
388	SEAL DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40	1-72498-019-1	02	1	1307-	●
388	SEAL 100X40	1-72498-022-1	03	1	1307-1312	●
388	SEAL 100X40	1-72498-022-1	03	1	1401-	●	●

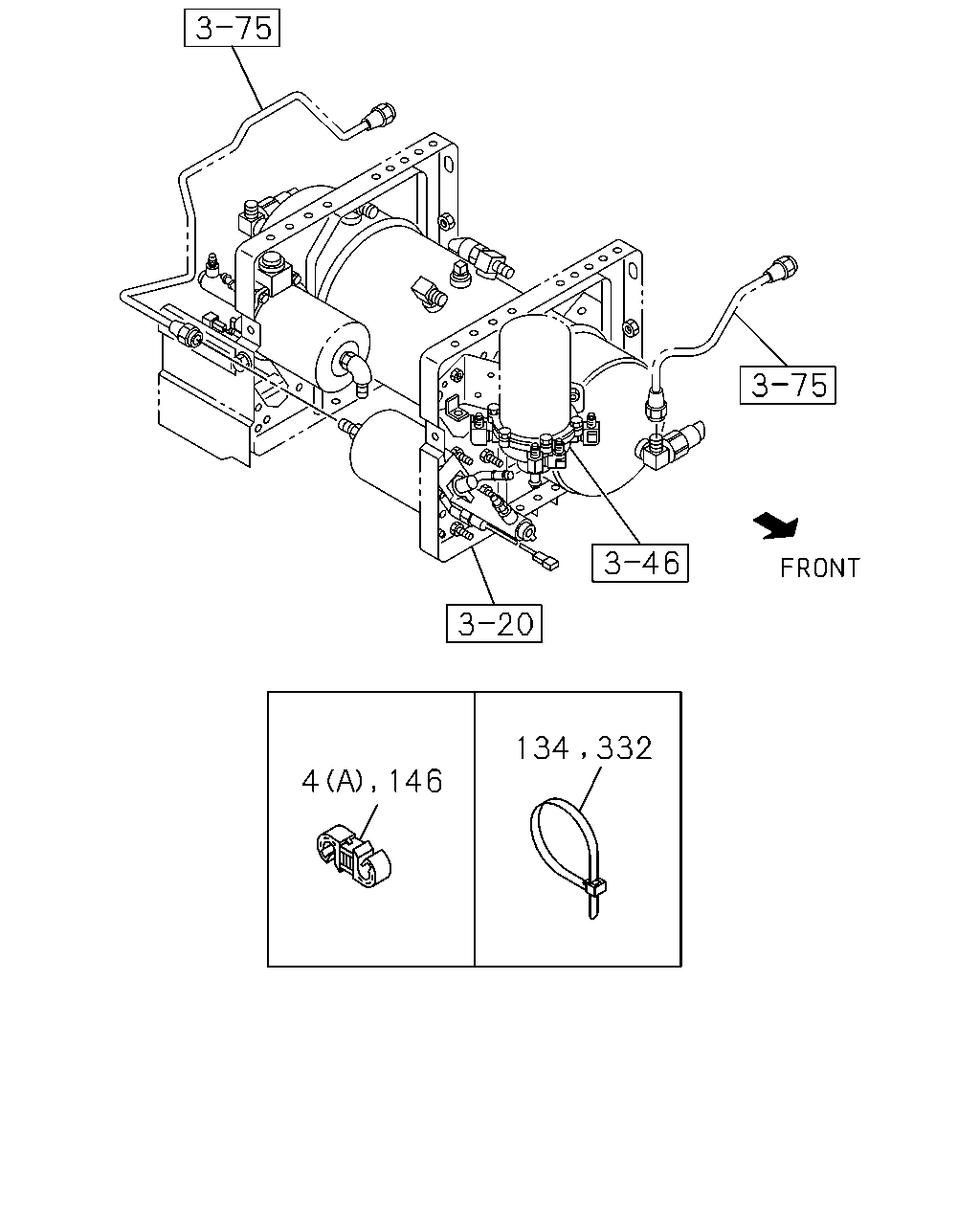

4 146 134 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	08	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	08	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	05	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	05	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1401-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1307-1312	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1401-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
332	CLIP; BAND L=250	1-09707-126-0	05	1	1307-1312	●
332	CLIP; BAND L=250	1-09707-126-0	05	1	1401-	●	●
