◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#124296) — 128 parça

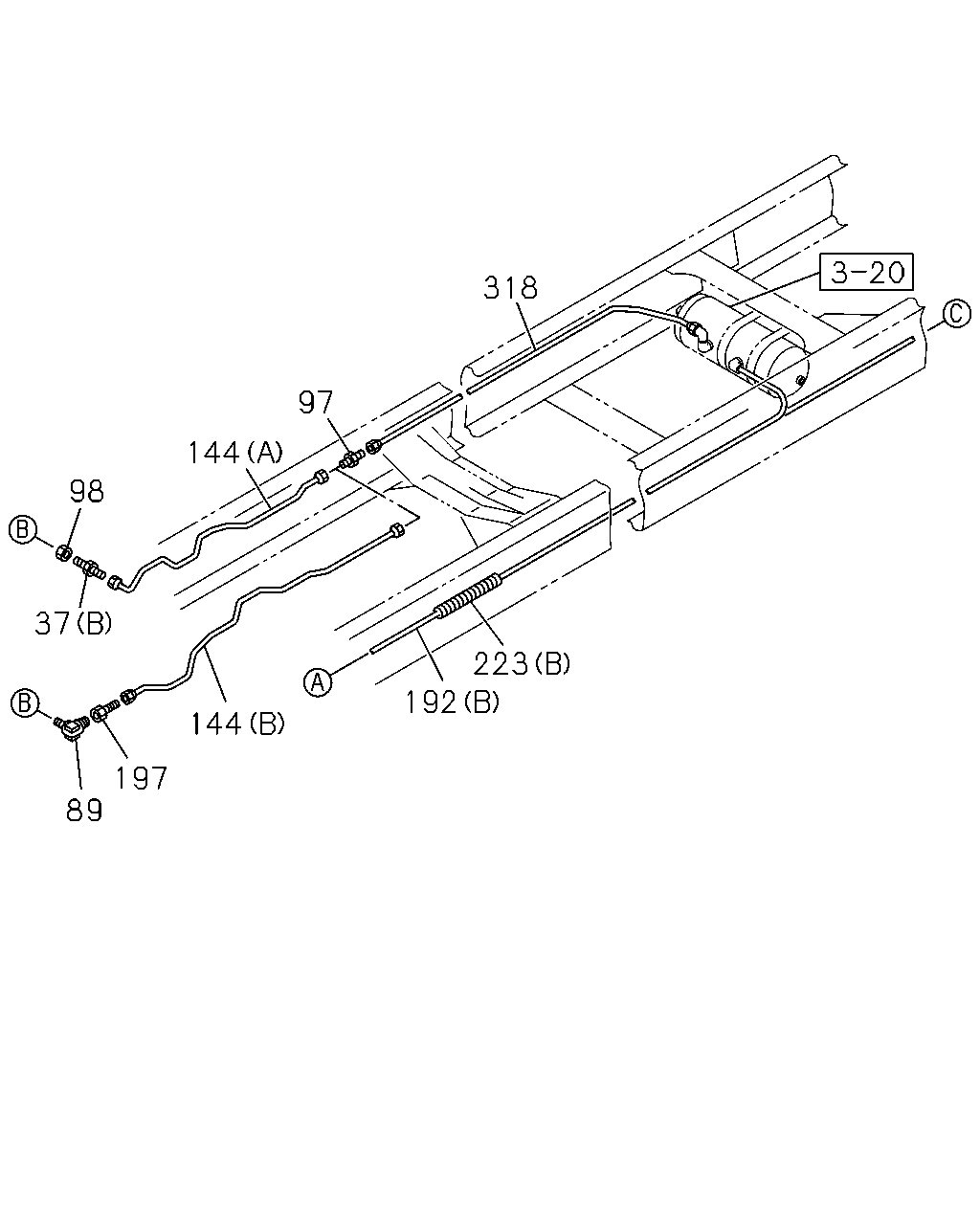

çizim 363430
318 97 144 98 37 89 197 144 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
89 CONNECTOR; NYLON TUBE
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307-1312 ●
89 CONNECTOR; NYLON TUBE
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1401- ● ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307-1312 ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1401- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ●
144 PIPE; AIR,UNION TO UNION
MZW6P M/T(RSZ) WHEEL BASE 3700MM(37W) (A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 1307-1312 ●
144 PIPE; AIR,UNION TO UNION
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 1401- ● ●
144 PIPE; AIR,UNION TO UNION
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W) (B) L=824 SERVICED BY L=900 		1-47428-873-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W) (B) L=1323 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1312 ●
144 PIPE; AIR,UNION TO UNION
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5500MM(55W) (B) L=1323 SERVICED BY L=1400 		1-47428-878-0 01 1 1401- ● ●
192 TUBE; NYLON
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1307- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98242-542-1 01 1 1307- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
197 UNION ASM; NYLON TUBE
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1307-1312 ●
197 UNION ASM; NYLON TUBE
LCT2500 A/T ALLISON(Y5W) WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1401- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=8000 ID=15 		1-87411-220-0 AR 1 1307- ● ●
318 PIPE; AIR,UNION TO AIR TANK
L=1950 SERVICED BY L=2100 		1-47428-882-0 01 1 1401- ●
318 PIPE; AIR,UNION TO AIR TANK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 6500MM(65W) L=2862 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ●
318 PIPE; AIR,UNION TO AIR TANK
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 1307- ●
318 PIPE; AIR,UNION TO AIR TANK
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) L=1856 SERVICED BY L=1900 		1-47428-881-0 01 1 1307- ●

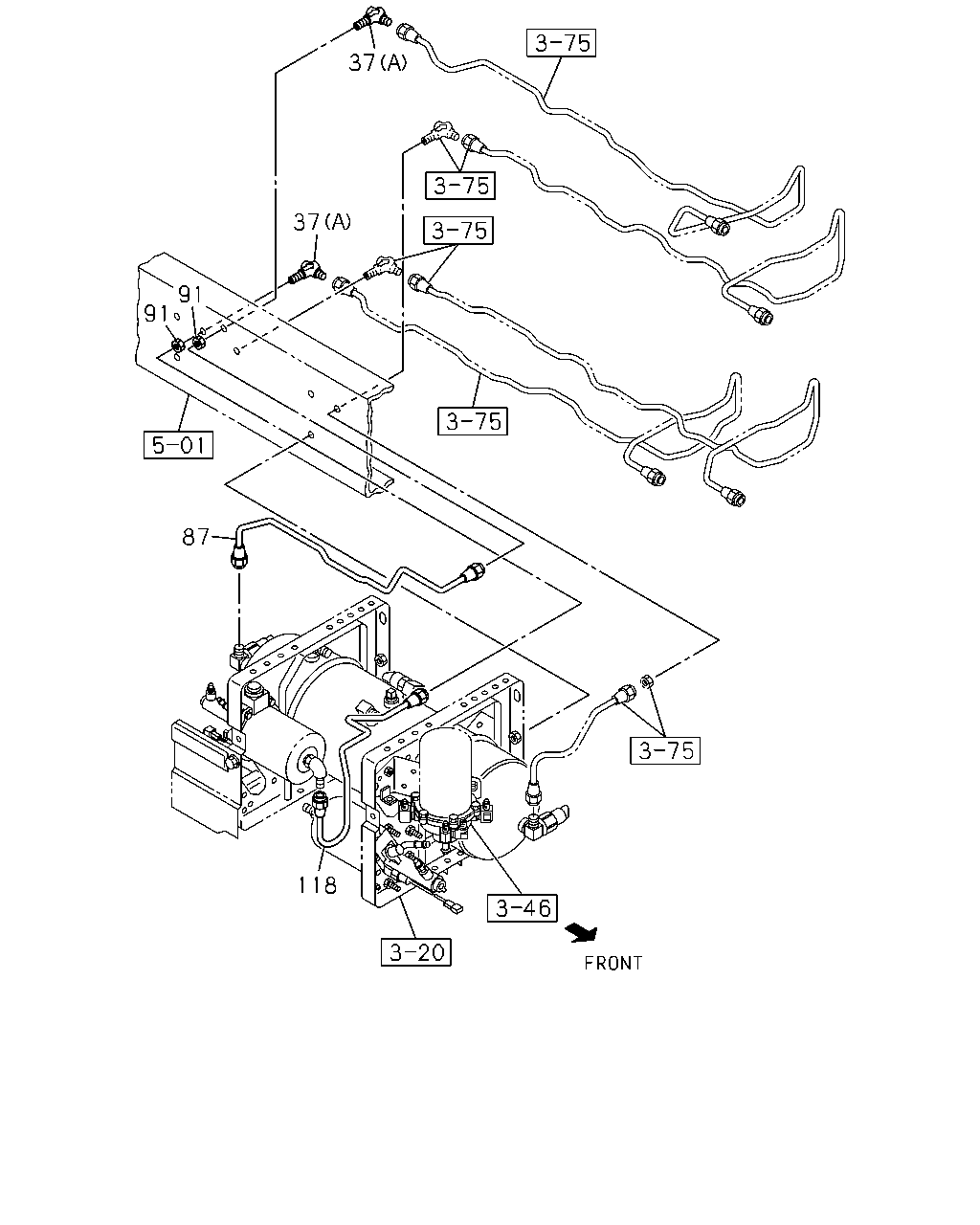

çizim 363641
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1307-1312 ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1401- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1307-1312 ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1401- ● ●

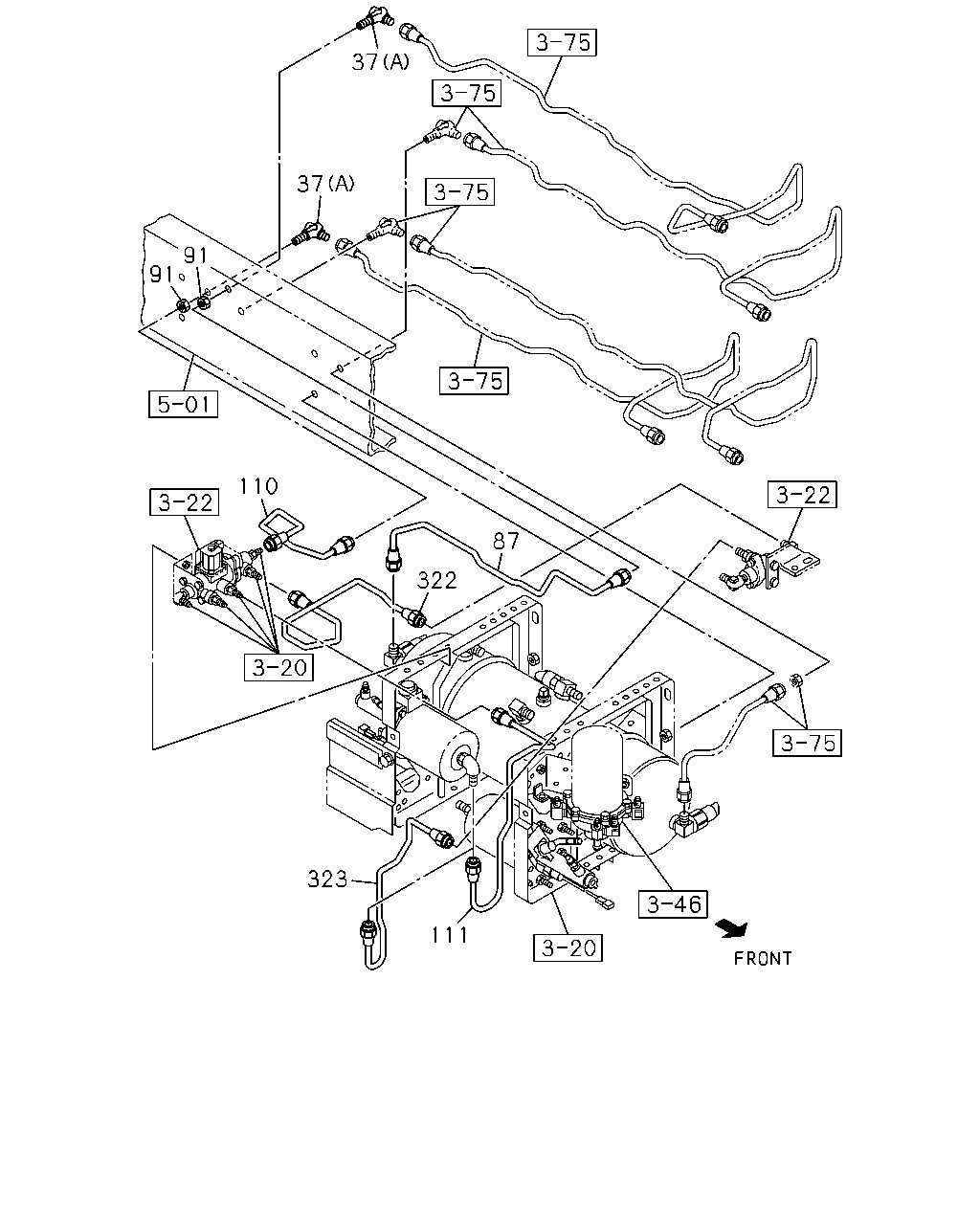

çizim 363671
37 37 91 91 110 322 323 111 87
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1307-1312 ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1401- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1307-1312 ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1401- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1312 ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1401- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
323 PIPE; AIR,DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1307-1312 ●
323 PIPE; AIR,DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1401- ● ●

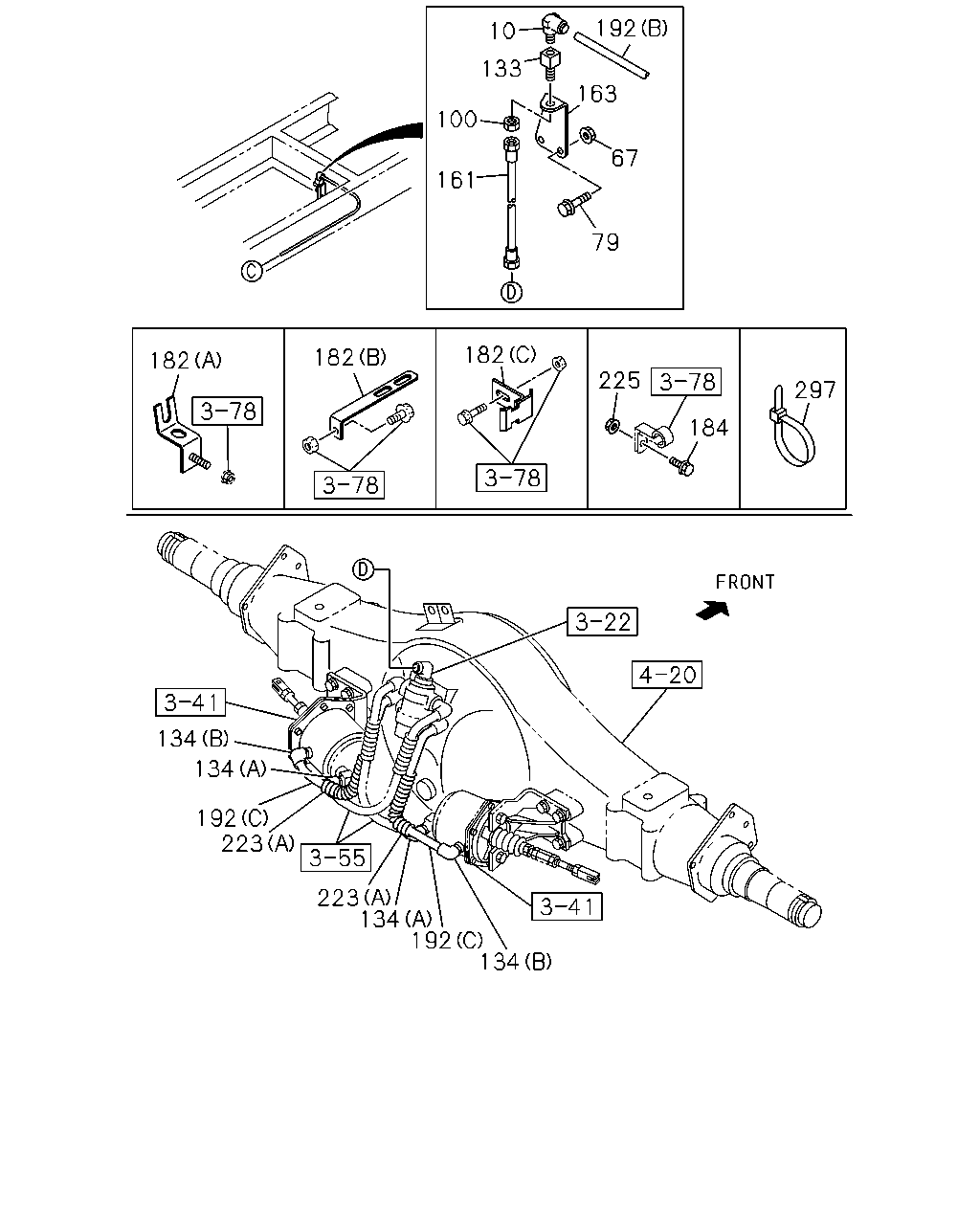

çizim 364364
10 133 100 161 192 163 67 79 182 182 182 225 184 297 134 134 192 223 223 134 192 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ●
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1307-1312 ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1401- ● ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1307-1312 ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1401- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1307-1312 ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1307-1312 ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 1401- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1307- ●
163 BRACKET; FLEX HOSE 8-98241-571-0 01 1 1401- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1307- ●
182 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 1401- ●
182 BRACKET; TUBE CLIP
(C) 		1-47479-693-0 01 1 1401- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W) (A) 		8-98096-272-0 01 1 1307-1312 ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W) (A) 		8-98096-272-0 01 1 1401- ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
192 TUBE; NYLON
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1307- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98242-542-1 01 1 1307- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=8000 ID=15 		1-87411-220-0 AR 1 1307- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 10 1 1401- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 04 1 1307- ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 09 1 1307- ●
297 CLIP; BAND
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 12 1 1307- ●
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1307-1312 ●
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1401- ● ●

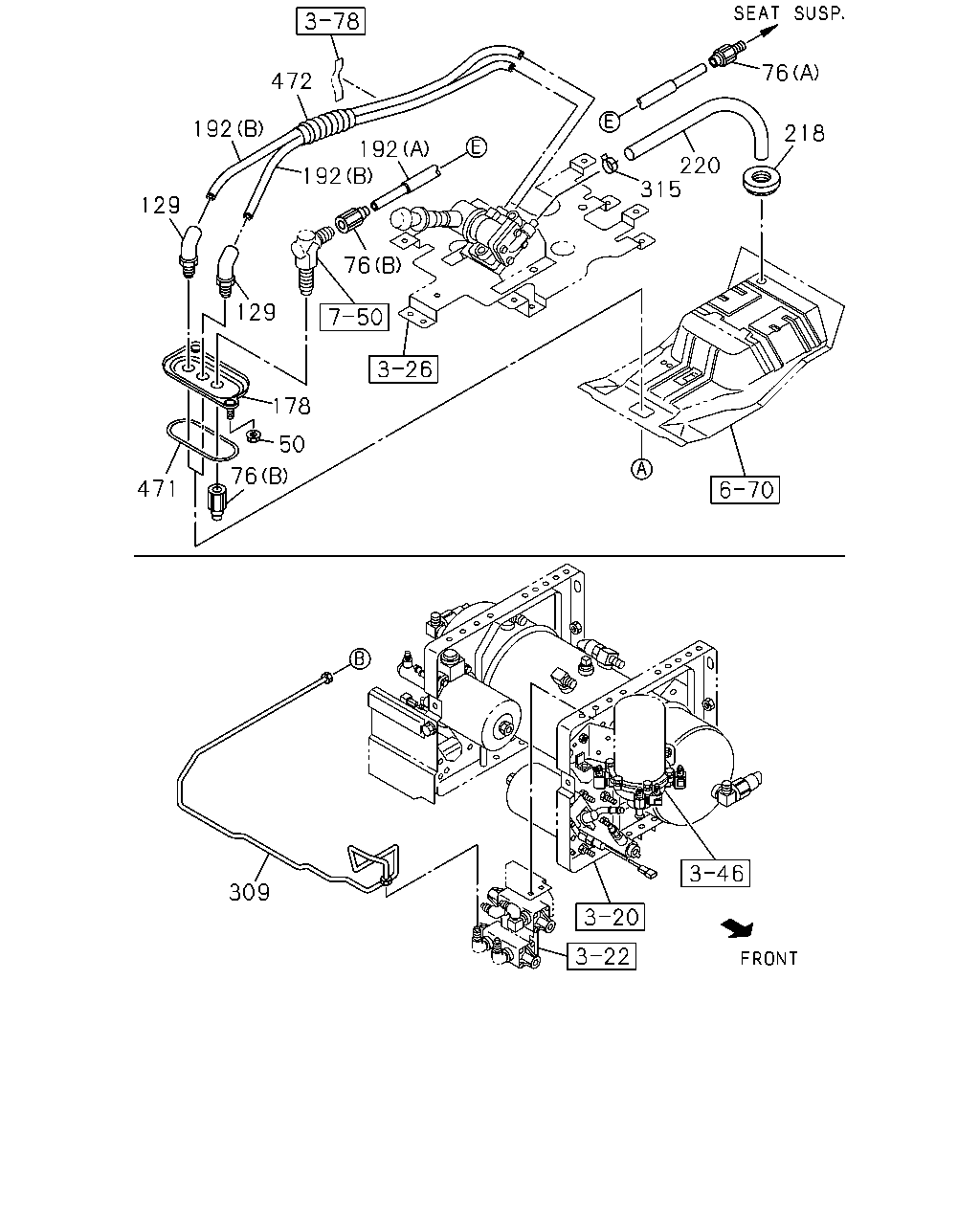

çizim 364383
472 192 126 192 192 76 129 178 76 50 471 315 220 218 76 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1307- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1307- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1307-1312 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1401- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1307-1312 ●
178 BRACKET; UNION 8-98017-054-1 01 1 1401- ● ●
192 TUBE; NYLON
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1307- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98242-542-1 01 1 1307- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1307-1312 ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1401- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1307-1312 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1401- ● ●
309 PIPE; AIR,MPV TO UNION
MZW6P M/T(RSZ) L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1312 ●
309 PIPE; AIR,MPV TO UNION
MZW6P M/T(RSZ) L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1401- ● ●
309 PIPE; AIR,MPV TO UNION
LCT2500 A/T ALLISON(Y5W) L=1345 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1312 ●
309 PIPE; AIR,MPV TO UNION
LCT2500 A/T ALLISON(Y5W) L=1345 SERVICED BY L=1400 		1-47428-878-0 01 1 1401- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1307-1312 ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1401- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1307-1312 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1401- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1307-1312 ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1401- ● ●
