◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#124294) — 150 parça

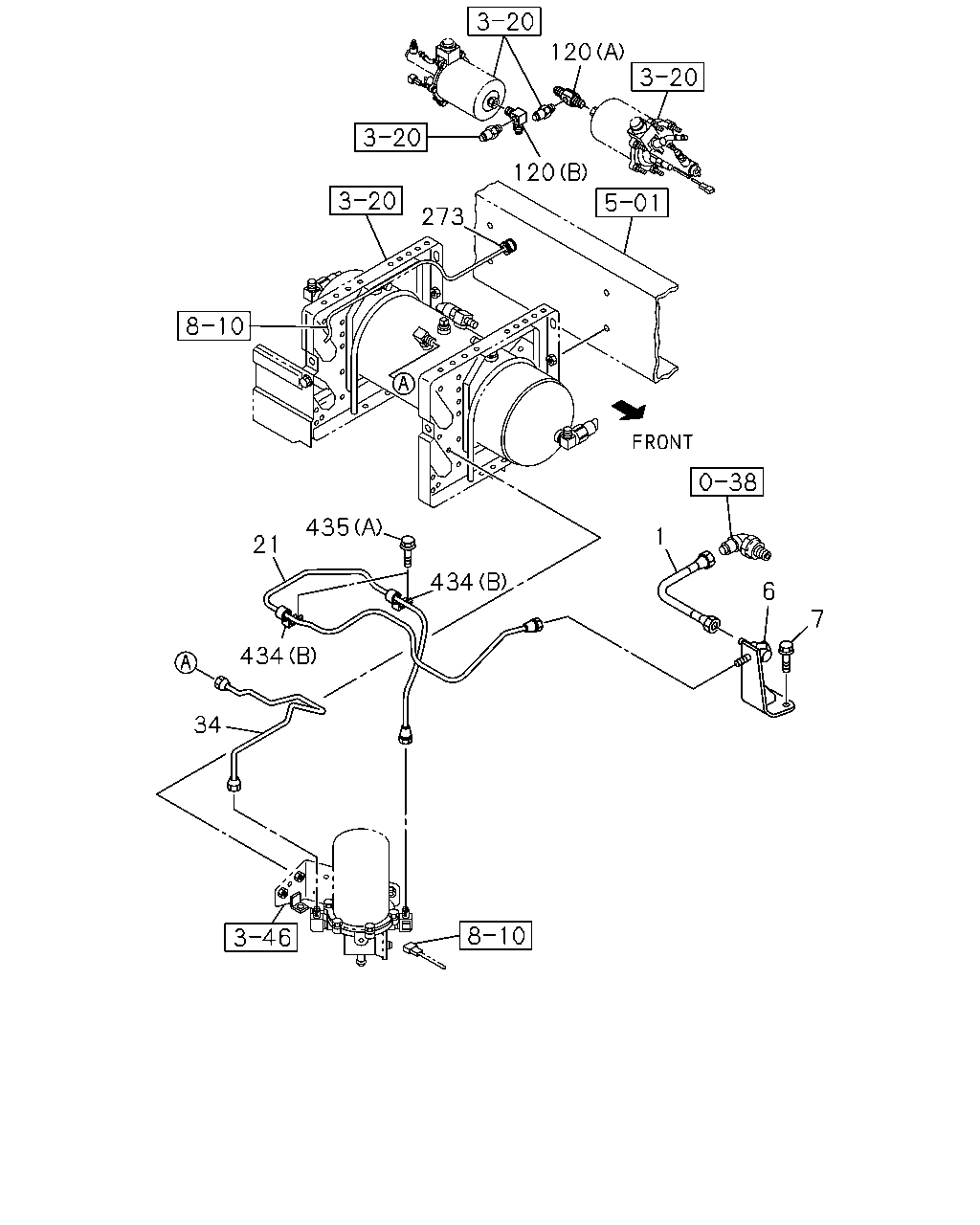

çizim 363515
273 120 120 434 435 434 21 1 6 7 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1307-1312 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1401- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1307-1312 ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1401- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1816 		8-98083-100-0 01 1 1307-1312 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1816 		8-98083-100-0 01 1 1401- ● ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1307-1312 ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1401- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1307-1312 ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1401- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1307-1312 ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1401- ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1307-1312 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1401- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1401- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1401- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1307- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1307- ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1307-1312 ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1401- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●

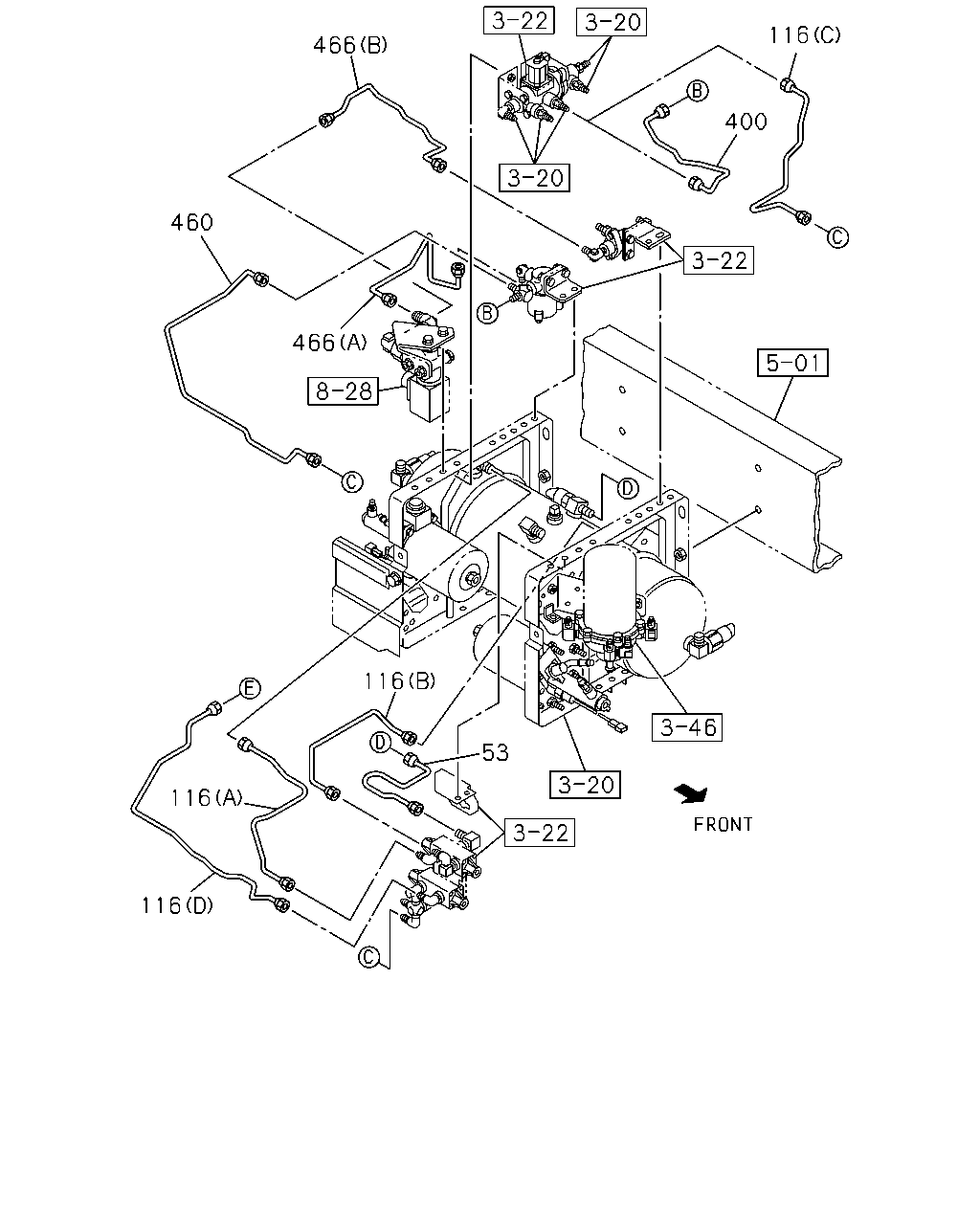

çizim 363571
466 116 400 466 460 116 116 116 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1307-1312 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1401- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1307-1312 ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1401- ● ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1307-1312 ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1401- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1307-1312 ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1401- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●

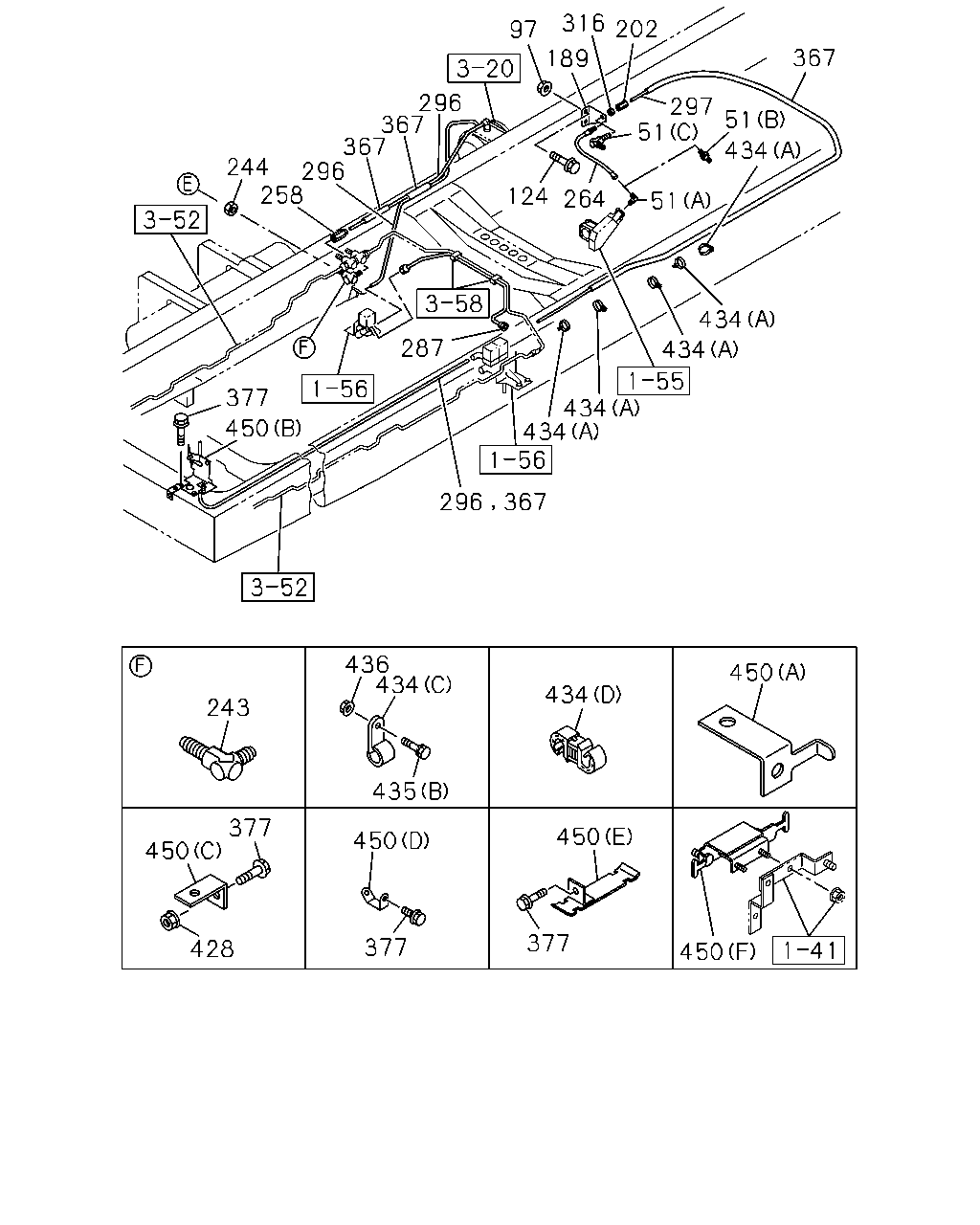

çizim 366228
244 258 296 367 367 296 97 316 189 202 297 367 51 51 434 51 264 124 434 434 434 434 296 367 450 377 287 243 436 434 435 434 450 450 450 450 450 377 428 377 377
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
WHEEL BASE 3700MM(37W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 ELBOW 		0-92125-006-0 01 1 1307-1312 ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 ELBOW 		0-92125-006-0 01 1 1401- ●
51 UNION
(C) M12 ELBOW 		0-92125-006-0 01 1 1401- ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-1312 ●
51 UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
97 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
97 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ●
124 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
124 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W) 		8-98054-640-0 01 1 1307- ●
189 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-47479-914-0 01 1 1307-1312 ●
189 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-47479-914-0 01 1 1401- ●
189 BRACKET; FLEX HOSE 1-47479-914-0 01 1 1401- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-1312 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1401- ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307-1312 ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1401- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1307-1312 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1401- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-1312 ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1401- ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=340 		1-09363-622-0 01 1 1307- ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=240 		1-09363-671-0 01 1 1307-1312 ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=240 		1-09363-671-0 01 1 1401- ●
264 HOSE; FLEX
L=240 		1-09363-671-0 01 1 1401- ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1307-1312 ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1307- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1307- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1307-1312 ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1307- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1307- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1307- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 01 1 1401- ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1307-1312 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1401- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1401- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1401- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1307- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1307- ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1307-1312 ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1401- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 1307-1312 ●
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 1401- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1307-1312 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1401- ● ●
450 BRACKET; CLIP
(F) 		8-98077-895-1 01 1 1307-1312 ●
450 BRACKET; CLIP
(F) 		8-98077-895-1 01 1 1401- ● ●
450 BRACKET; CLIP
(D) 		8-98117-686-0 03 1 1307-1312 ●
450 BRACKET; CLIP
(D) 		8-98117-686-0 03 1 1401- ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (E) 		8-98116-680-0 01 1 1307- ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98100-216-1 01 1 1307-1312 ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98100-216-1 01 1 1401- ●
450 BRACKET; CLIP
(A) 		8-98100-216-1 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
