Isuzu WW
▶
TRUCKS
▶
FSR
▶
11550 - FSR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#124293) — 18 parça
Tümü
A - FCR5MS
B - FCD5MS
◀

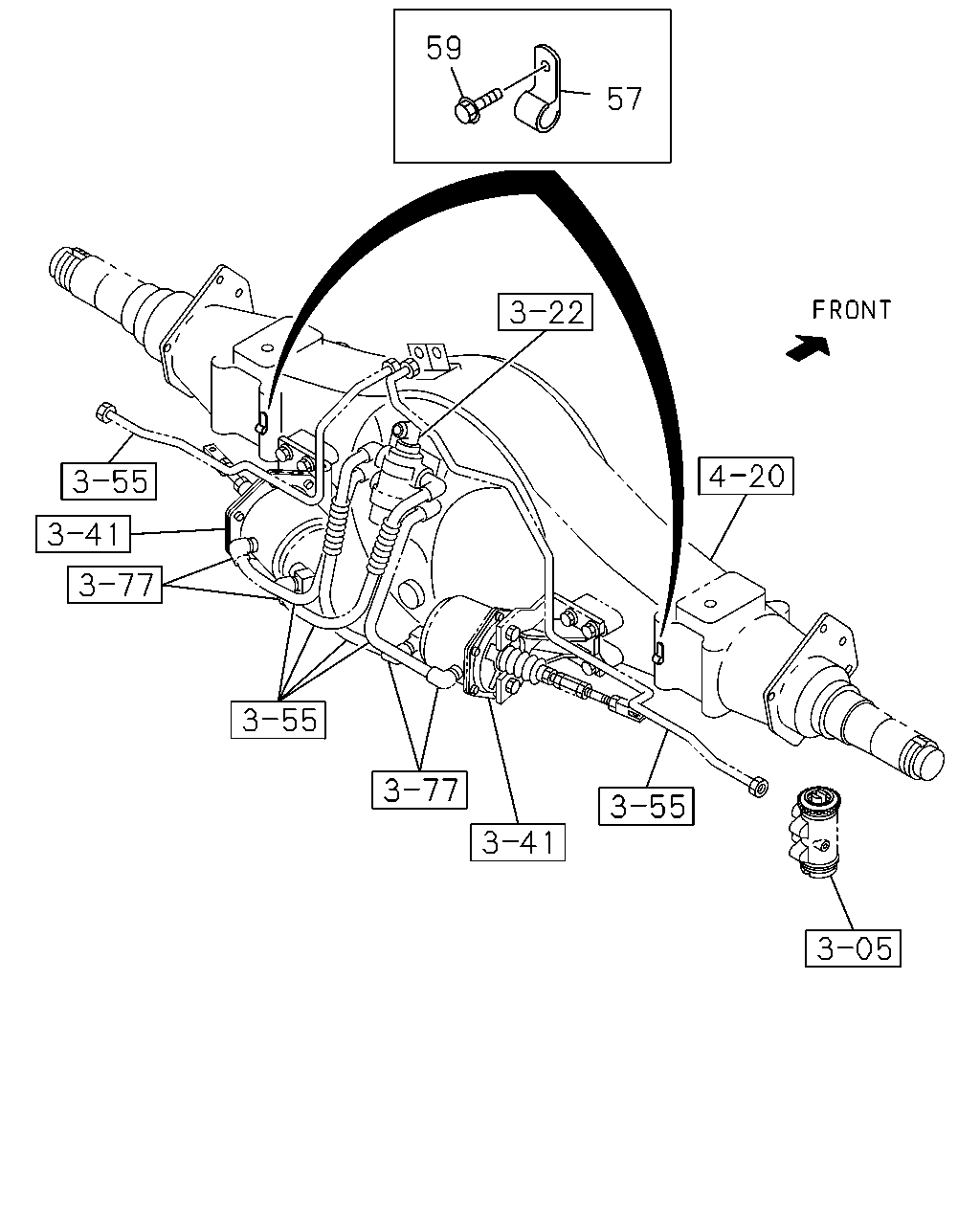

[358A] REAR AXLE SIDE (4 parça)

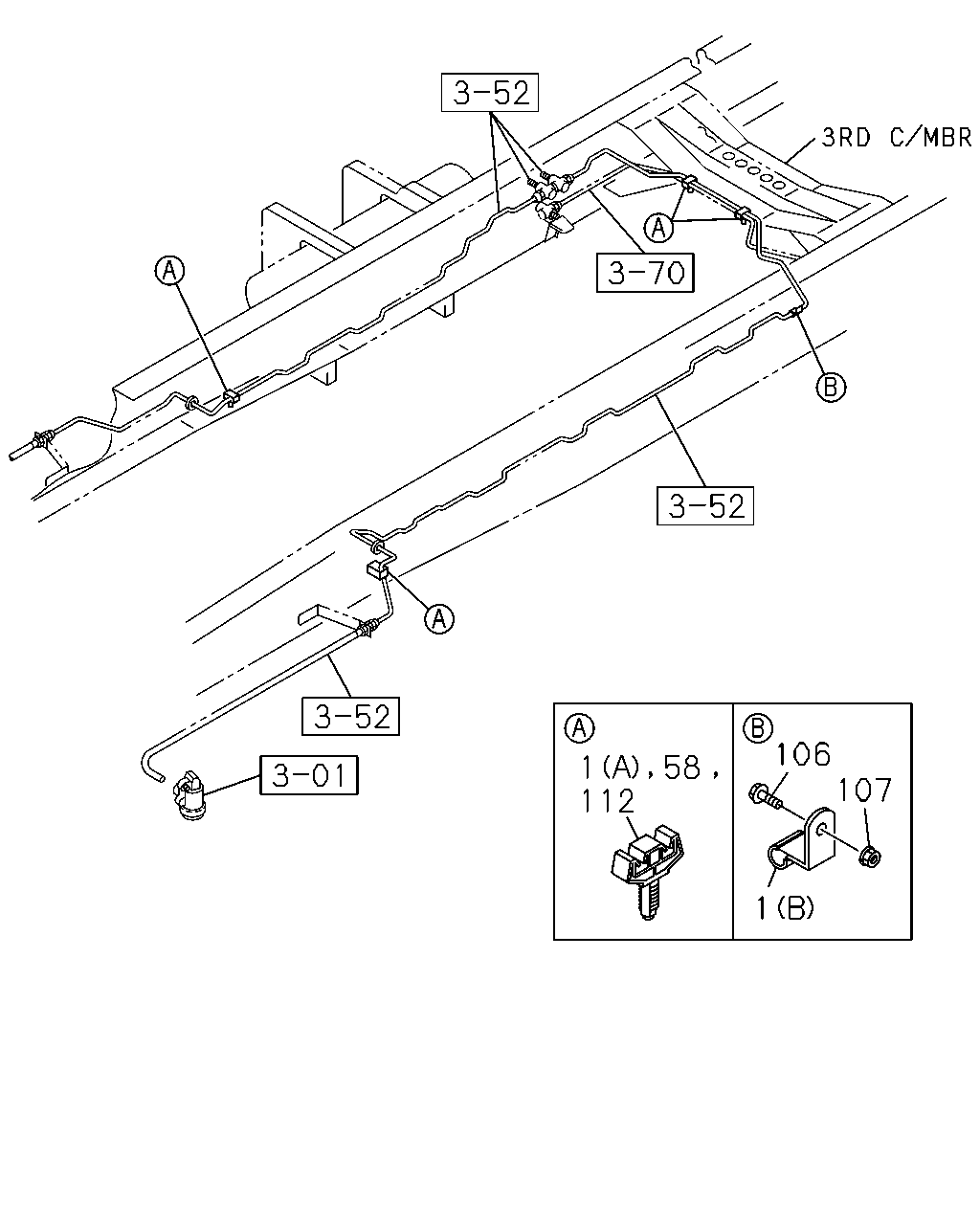

[358A] FRAME SIDE (14 parça)
▶
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1307-1312
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1401-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1307-1312
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1401-
●
●
1
112
58
106
107
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1307-1312
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1401-
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
05
1
1307-1312
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
05
1
1401-
●
●
58
CLIP; OIL PIPE
8-98012-254-1
04
1
1401-
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1307-
●
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
05
1
1307-1312
●
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
05
1
1401-
●
●
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
05
1
1307-1312
●
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
05
1
1401-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
02
1
1307-
●
112
CLIP; OIL PIPE
WHEEL BASE 5500MM(55W)
8-98012-254-1
07
1
1307-1312
●
112
CLIP; OIL PIPE
WHEEL BASE 5500MM(55W)
8-98012-254-1
07
1
1401-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 6500MM(65W)
8-98012-254-1
09
1
1307-
●
