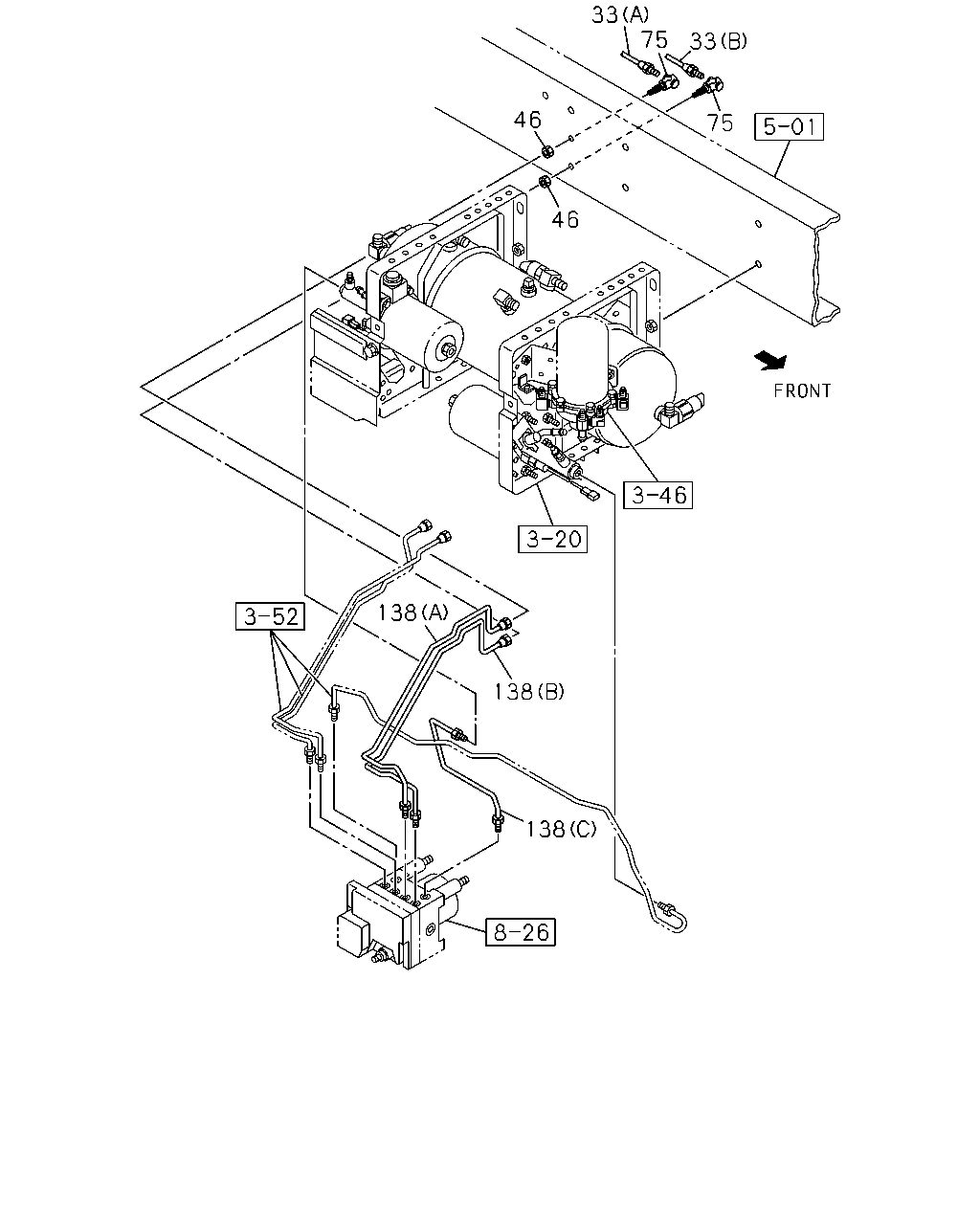

3-55 — BRAKE PIPING; OIL,REAR (#124292) — 60 parça

33 75 33 75 46 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1113	8-98232-793-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (B) RH LINE L=1060	8-98232-794-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824	8-98232-801-0	01	1	1307-1312	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824	8-98232-801-0	01	1	1401-	●
33	PIPE; OIL,UNION TO UNION (A) LH LINE L=2824	8-98232-801-0	01	1	1401-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779	8-98232-802-0	01	1	1307-1312	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779	8-98232-802-0	01	1	1401-	●
33	PIPE; OIL,UNION TO UNION (B) RH LINE L=2779	8-98232-802-0	01	1	1401-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6500MM(65W) (C) L=994	8-98076-998-0	02	1	1307-	●
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	1307-1312	●
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	1401-	●	●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1307-1312	●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1401-	●	●
138	PIPE; HYDRAULIC UNIT (A) L=657	8-98012-129-0	01	1	1307-1312	●
138	PIPE; HYDRAULIC UNIT (A) L=657	8-98012-129-0	01	1	1401-	●	●
138	PIPE; HYDRAULIC UNIT (B) L=703	8-98012-146-0	01	1	1307-1312	●
138	PIPE; HYDRAULIC UNIT (B) L=703	8-98012-146-0	01	1	1401-	●	●
138	PIPE; HYDRAULIC UNIT (C) L=296	8-98066-107-0	01	1	1307-1312	●
138	PIPE; HYDRAULIC UNIT (C) L=296	8-98066-107-0	01	1	1401-	●	●

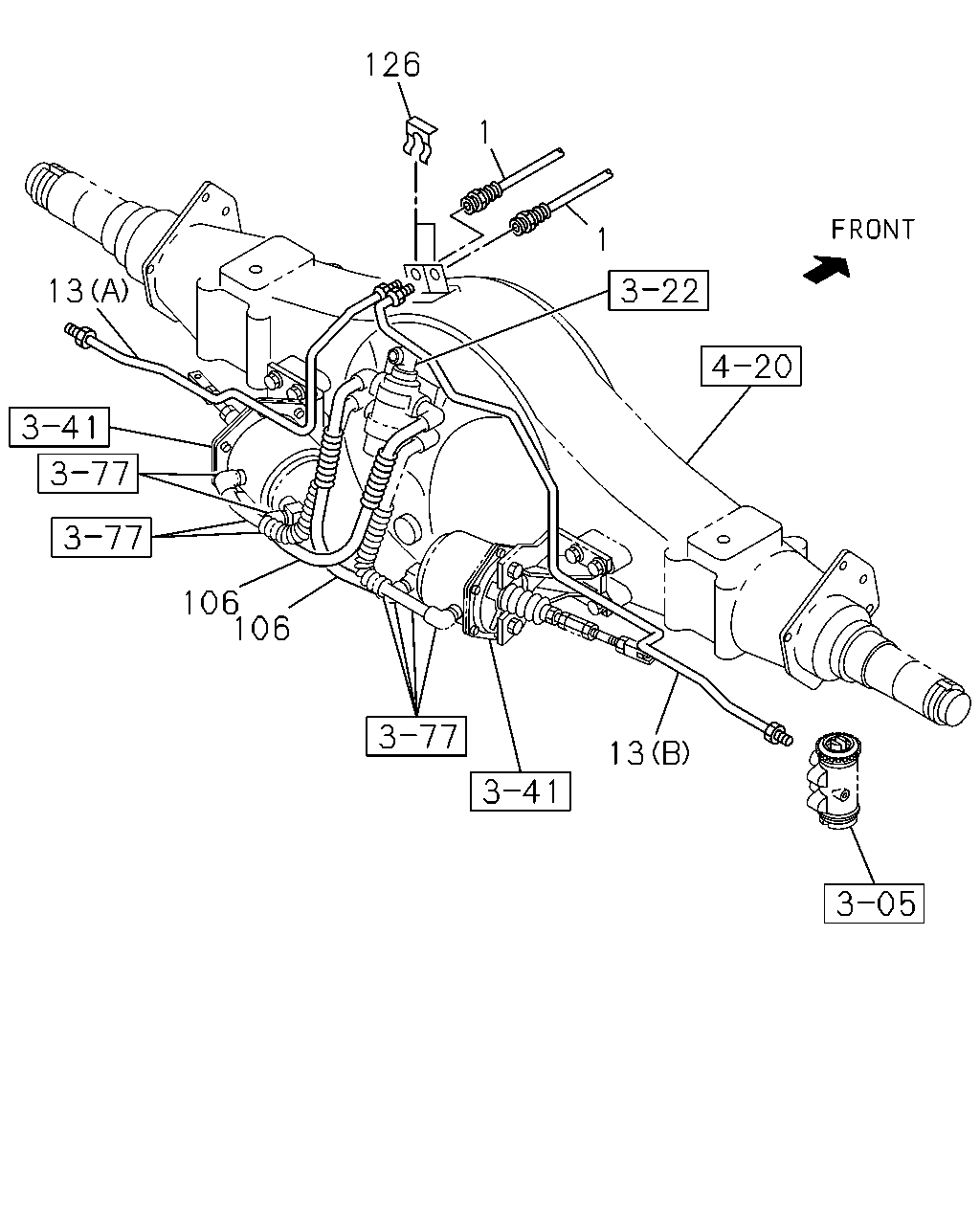

1 1 126 13 106 106 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=310	8-98023-168-0	02	1	1401-		●
1	HOSE; FLEX,RR BRK L=350	8-97138-885-0	02	1	1307-	●
13	PIPE; BRK,RR AXLE (B)	8-98207-113-0	01	1	1307-1312	●
13	PIPE; BRK,RR AXLE (B)	8-98207-113-0	01	1	1401-	●	●
13	PIPE; BRK,RR AXLE (A)	8-98207-114-0	01	1	1307-1312	●
13	PIPE; BRK,RR AXLE (A)	8-98207-114-0	01	1	1401-	●	●
106	TUBE; NYLON	8-98061-971-0	02	1	1307-1312	●
106	TUBE; NYLON	8-98061-971-0	02	1	1401-	●	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1307-1312	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1401-	●	●

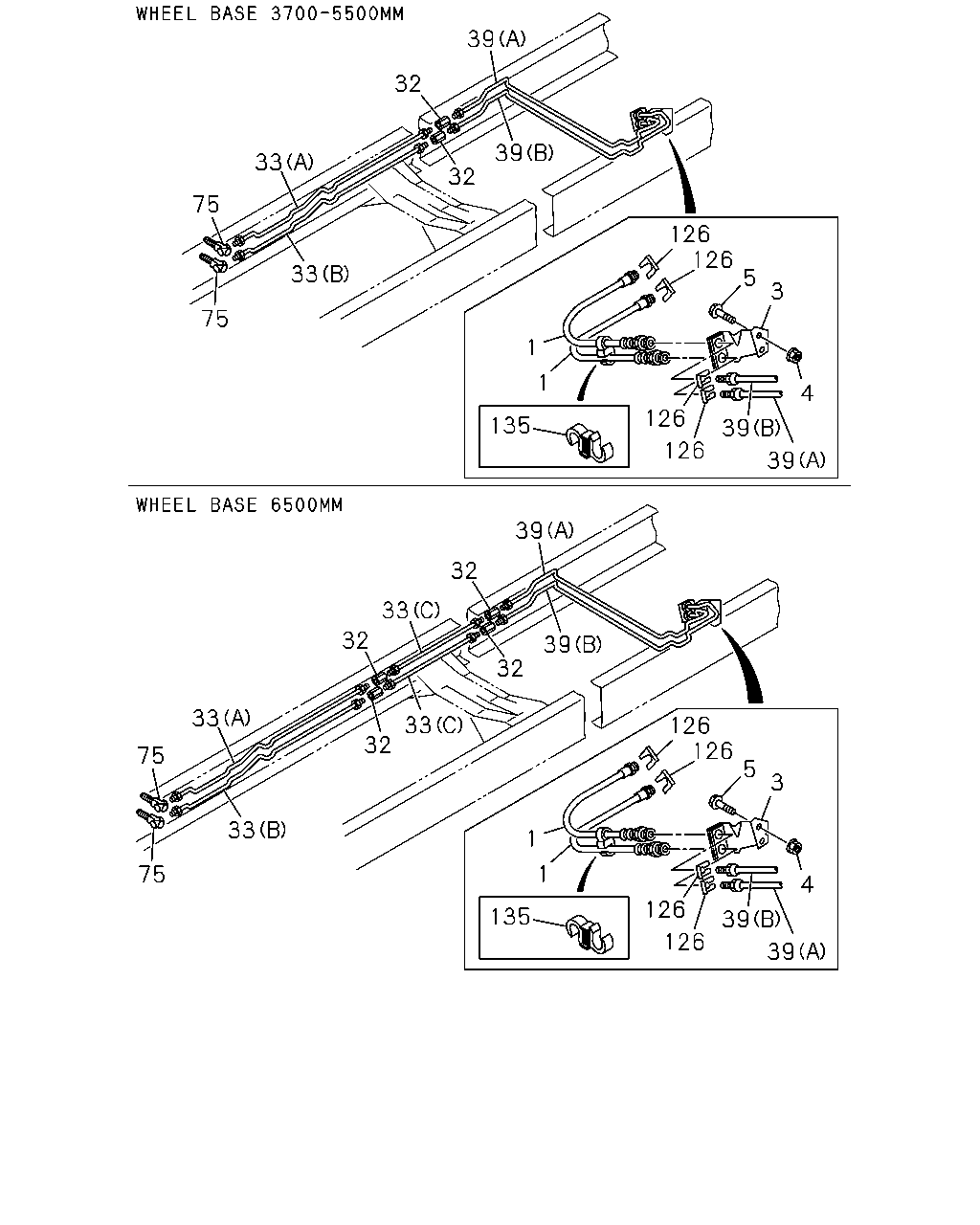

32 39 33 32 39 33 75 75 126 126 5 3 4 1 1 126 126 39 39 135 39 32 33 32 32 39 33 32 33 33 75 75 126 126 5 3 4 1 1 126 126 39 39 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=310	8-98023-168-0	02	1	1401-		●
1	HOSE; FLEX,RR BRK L=350	8-97138-885-0	02	1	1307-	●
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1307-1312	●
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1401-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1307-1312	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	1307-1312	●
32	UNION; OIL PIPE WHEEL BASE 6500MM(65W) M10 STRAIGHT	0-92107-005-0	02	1	1307-1312	●
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	1401-	●	●
32	UNION; OIL PIPE WHEEL BASE 6500MM(65W) M10 STRAIGHT	0-92107-005-0	02	1	1401-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1113	8-98232-793-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (B) RH LINE L=1060	8-98232-794-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824	8-98232-801-0	01	1	1307-1312	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824	8-98232-801-0	01	1	1401-	●
33	PIPE; OIL,UNION TO UNION (A) LH LINE L=2824	8-98232-801-0	01	1	1401-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779	8-98232-802-0	01	1	1307-1312	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779	8-98232-802-0	01	1	1401-	●
33	PIPE; OIL,UNION TO UNION (B) RH LINE L=2779	8-98232-802-0	01	1	1401-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6500MM(65W) (C) L=994	8-98076-998-0	02	1	1307-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1612	8-98241-576-0	01	1	1401-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) RH LINE L=1676	8-98241-577-0	01	1	1401-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1710	8-98106-485-0	01	1	1307-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) RH LINE L=1772	8-98106-486-0	01	1	1307-	●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1307-1312	●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1401-	●	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1307-1312	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1401-	●	●
135	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	1307-1312	●
135	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	1401-	●	●
