◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#124284) — 212 parça

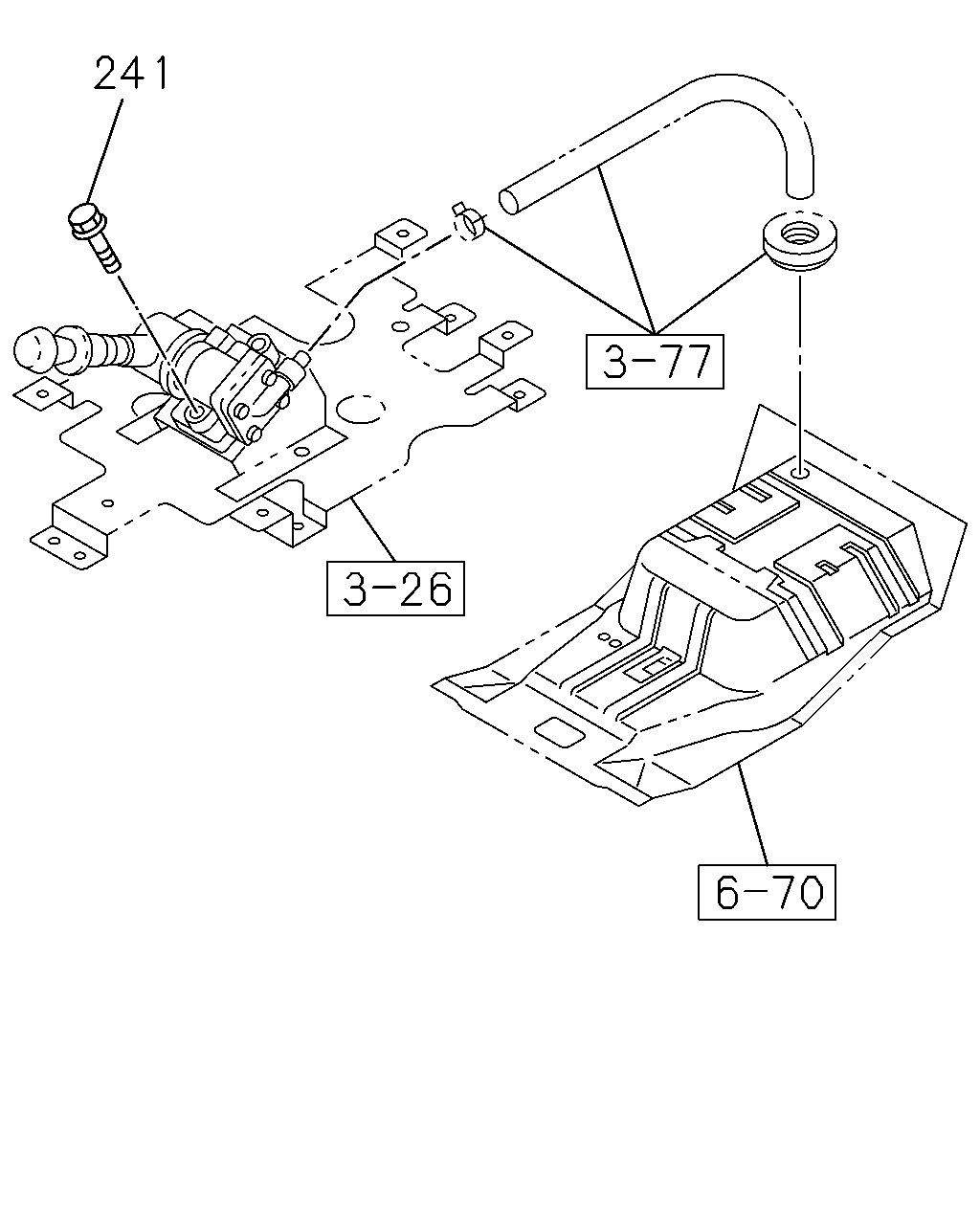

çizim 363219
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1307-1312 ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ● ●

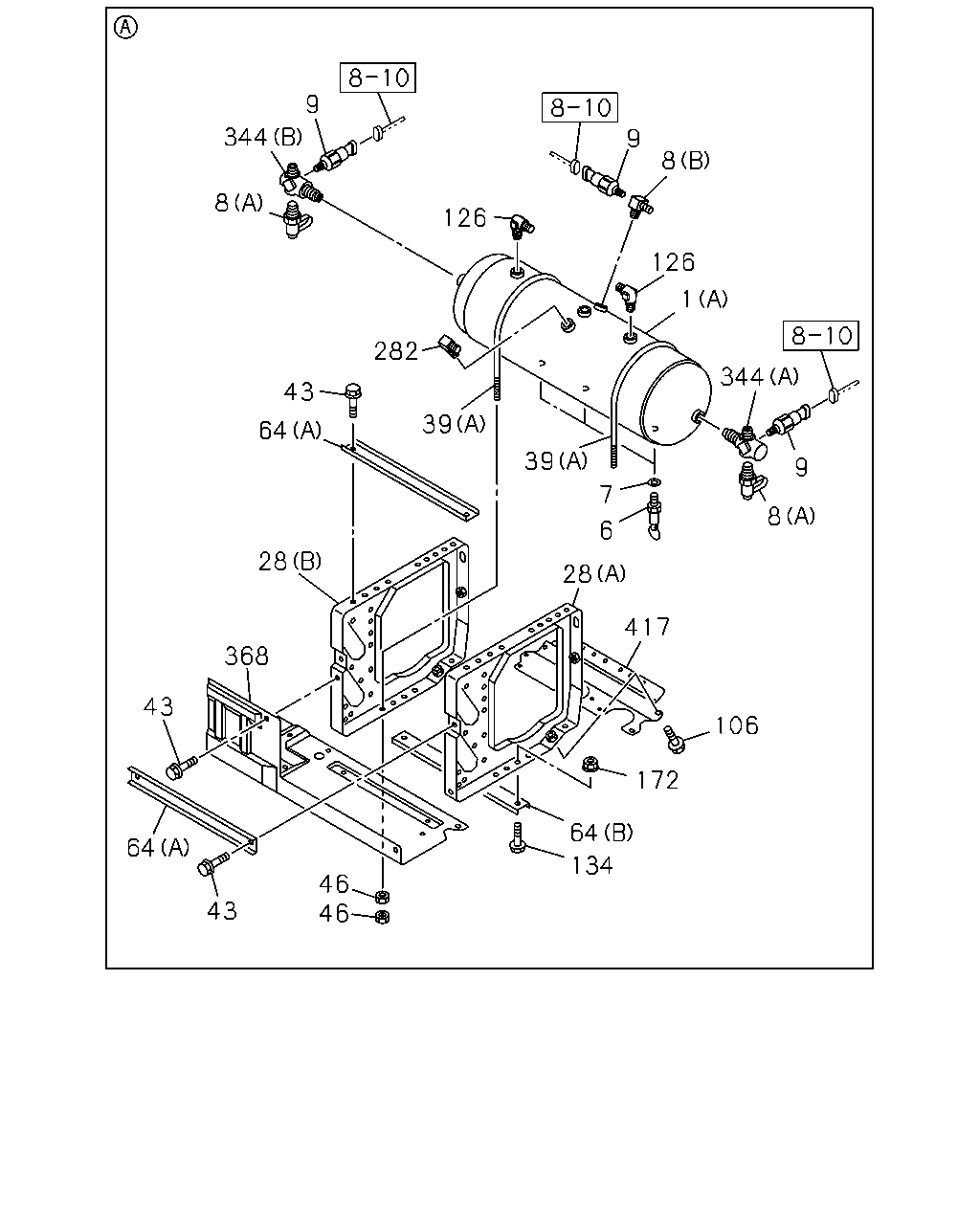

çizim 364037
9 344 8 126 282 43 64 28 368 43 64 43 46 46 134 64 172 106 417 28 6 7 39 39 126 9 8 1 344 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1307-1312 ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1401- ● ●
1 TANK ASM; AIR
6HK1-TCN ENG(82L) (C) 		8-98081-870-1 01 1 1307-1312 ●
1 TANK ASM; AIR
6HK1-TCN ENG(82L) (C) 		8-98081-870-1 01 1 1401- ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1307-1312 ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L) 		1-48312-015-0 01 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ● ●
7 GASKET; DRAIN COCK
6HK1-TCN ENG(82L) ID=14 		1-09630-145-0 01 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
6HK1-TCN ENG(82L) ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
8 CONNECTOR; AIR TANK
(C) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(C) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 1307-1312 ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 1401- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1307-1312 ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1401- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1307-1312 ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1401- ● ●
28 BRACKET; AIR TANK
6HK1-TCN ENG(82L) (C) 		8-98100-165-3 01 1 1307-1312 ●
28 BRACKET; AIR TANK
6HK1-TCN ENG(82L) (C) 		8-98100-165-3 01 1 1401- ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1401- ●
39 U-BOLT; AIR TANK
6HK1-TCN ENG(82L) (B) L=210 		1-48317-458-1 02 1 1307-1312 ●
39 U-BOLT; AIR TANK
6HK1-TCN ENG(82L) (B) L=210 		1-48317-458-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1307-1312 ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1401- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 1307-1312 ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ●
46 NUT; U-BOLT
6HK1-TCN ENG(82L) M8 		0-91110-508-0 08 1 1307-1312 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
6HK1-TCN ENG(82L) M8 		0-91110-508-0 08 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1307-1312 ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1401- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1307-1312 ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1401- ● ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ●
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1307-1312 ●
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1401- ● ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1307-1312 ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1401- ● ●
344 CONNECTOR; 4WAY
(B) 		1-09656-726-0 01 1 1307-1312 ●
344 CONNECTOR; 4WAY
(B) 		1-09656-726-0 01 1 1401- ● ●
344 CONNECTOR; 4WAY
(A) 		1-09656-767-0 01 1 1307-1312 ●
344 CONNECTOR; 4WAY
(A) 		1-09656-767-0 01 1 1401- ● ●
368 COVER; AIR TANK 8-98061-625-3 01 1 1307-1312 ●
368 COVER; AIR TANK 8-98061-625-3 01 1 1401- ● ●
417 COVER; HARNESS 8-98111-401-0 01 1 1307-1312 ●
417 COVER; HARNESS 8-98111-401-0 01 1 1401- ● ●

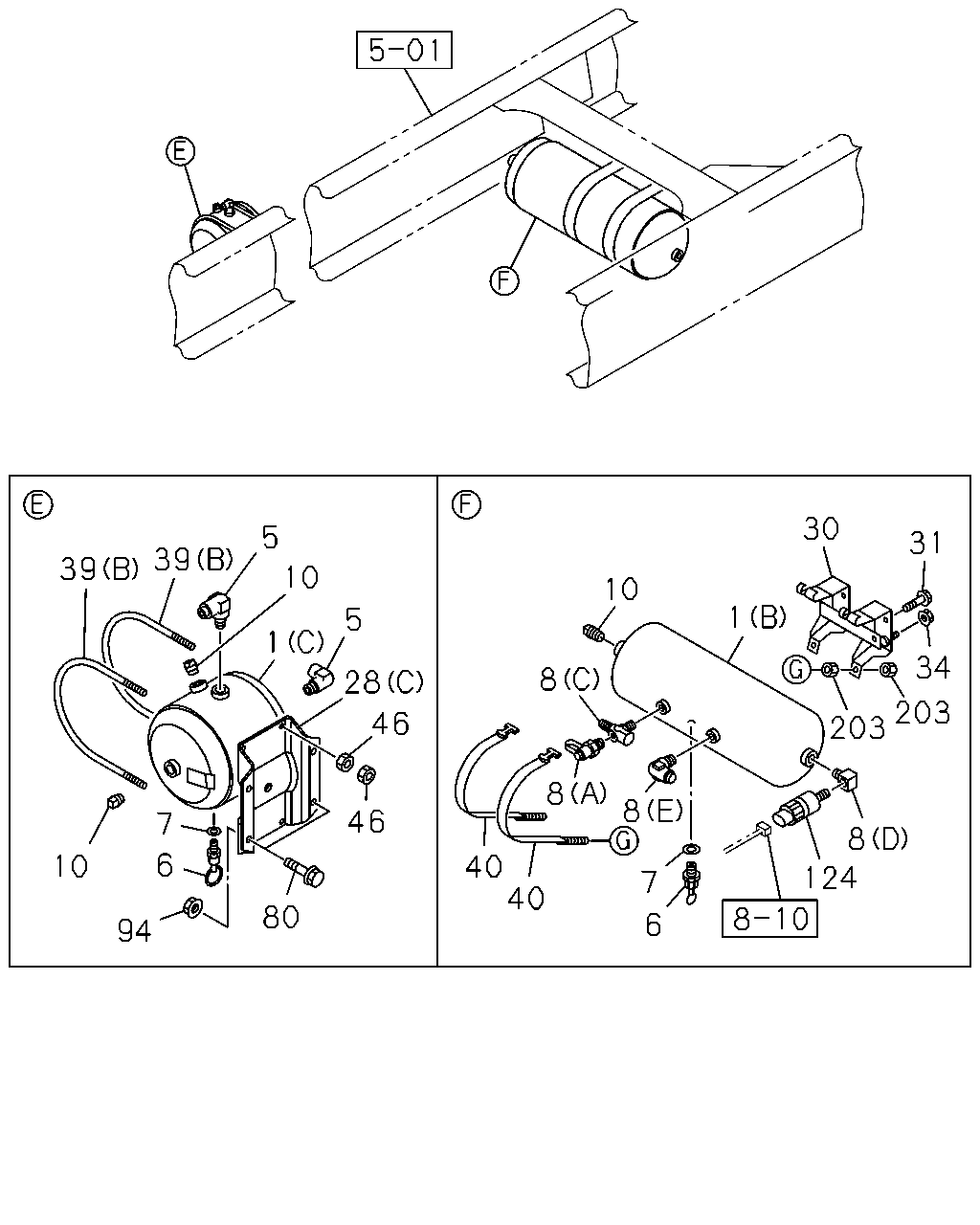

çizim 364113
39 39 5 10 5 1 28 46 46 80 7 6 10 94 8 10 1 30 31 34 203 203 8 8 7 6 124 8 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1307-1312 ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1401- ● ●
1 TANK ASM; AIR
6HK1-TCN ENG(82L) (C) 		8-98081-870-1 01 1 1307-1312 ●
1 TANK ASM; AIR
6HK1-TCN ENG(82L) (C) 		8-98081-870-1 01 1 1401- ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1307-1312 ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1401- ● ●
5 UNION; AIR TANK
6HK1-TCN ENG(82L) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1307-1312 ●
5 UNION; AIR TANK
6HK1-TCN ENG(82L) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1401- ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1401- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L) 		1-48312-015-0 01 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ● ●
7 GASKET; DRAIN COCK
6HK1-TCN ENG(82L) ID=14 		1-09630-145-0 01 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
6HK1-TCN ENG(82L) ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
8 CONNECTOR; AIR TANK
(C) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(C) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ●
10 PLUG; AIR TANK
6HK1-TCN ENG(82L) PT3/8 		9-09204-517-0 02 1 1307-1312 ●
10 PLUG; AIR TANK
6HK1-TCN ENG(82L) PT3/8 		9-09204-517-0 02 1 1401- ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1401- ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1307-1312 ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1307-1312 ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1401- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1401- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1307-1312 ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1401- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1307-1312 ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1401- ● ●
28 BRACKET; AIR TANK
6HK1-TCN ENG(82L) (C) 		8-98100-165-3 01 1 1307-1312 ●
28 BRACKET; AIR TANK
6HK1-TCN ENG(82L) (C) 		8-98100-165-3 01 1 1401- ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1401- ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 1307-1312 ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 1401- ● ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1307-1312 ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1401- ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
39 U-BOLT; AIR TANK
6HK1-TCN ENG(82L) (B) L=210 		1-48317-458-1 02 1 1307-1312 ●
39 U-BOLT; AIR TANK
6HK1-TCN ENG(82L) (B) L=210 		1-48317-458-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1307-1312 ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1401- ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 1307-1312 ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ●
46 NUT; U-BOLT
6HK1-TCN ENG(82L) M8 		0-91110-508-0 08 1 1307-1312 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
6HK1-TCN ENG(82L) M8 		0-91110-508-0 08 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ●
80 BOLT; BRKT
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ●
80 BOLT; BRKT
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 03 1 1401- ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ●
94 NUT; BRKT FIX
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ●
94 NUT; BRKT FIX
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 1401- ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1401- ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1307-1312 ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1401- ● ●
203 NUT
M8 		0-91110-508-0 04 1 1307-1312 ●
203 NUT
M8 		0-91110-508-0 04 1 1401- ● ●

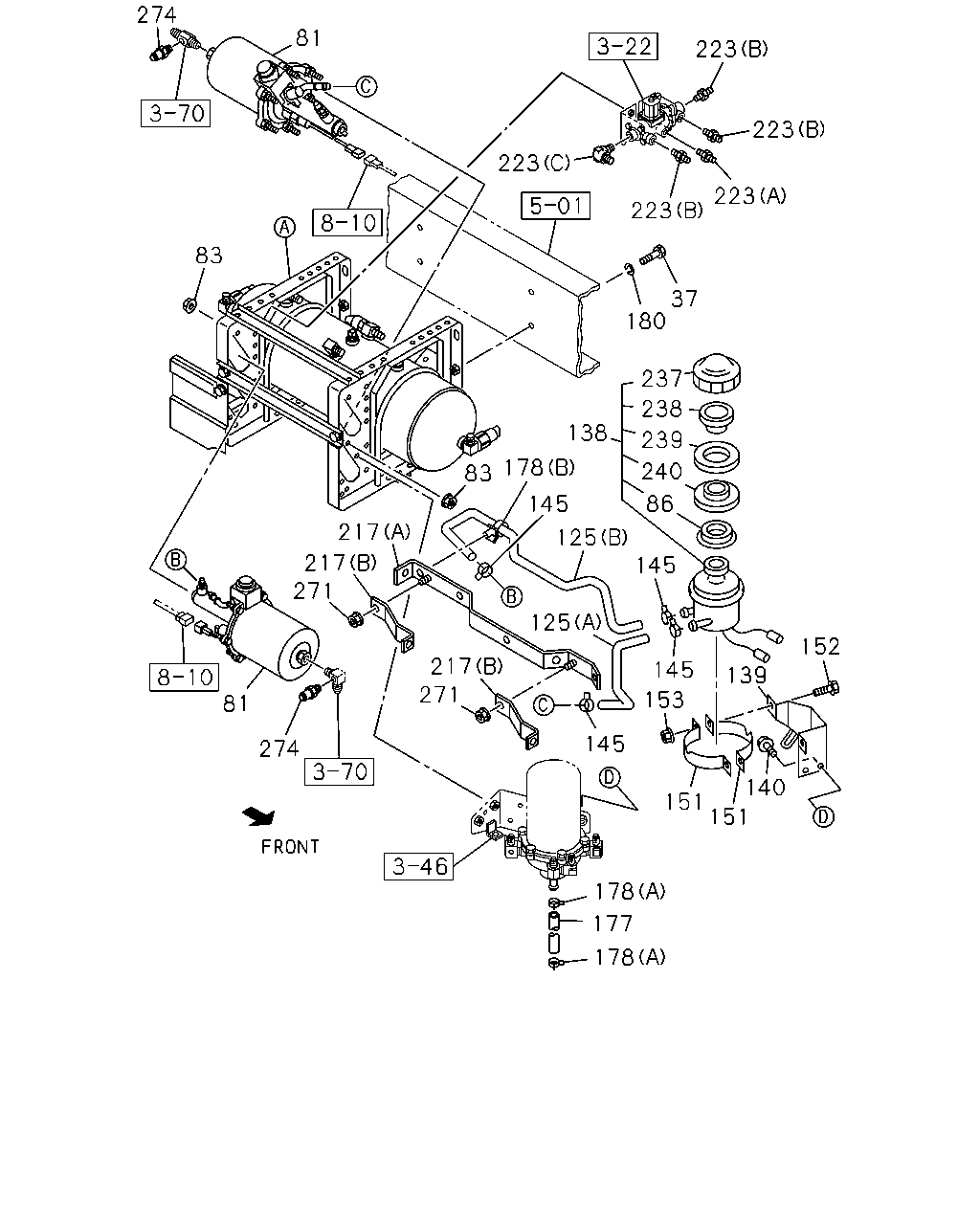

çizim 366197
274 81 83 223 223 223 223 223 37 180 138 178 83 217 217 271 81 274 271 217 145 125 125 145 145 145 153 151 151 152 178 177 178 139 86 240 239 238 237 140
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1307-1312 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1401- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1307-1312 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1401- ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1307-1312 ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1401- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1307-1312 ●
86 SEAL; DUST 1-47529-019-0 01 1 1401- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1307-1312 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1401- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1307-1312 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1401- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1307-1312 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1401- ● ●
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1307-1312 ●
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1401- ● ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1307-1312 ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1401- ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1307-1312 ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1401- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1307-1312 ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1401- ● ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1307-1312 ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1401- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1307-1312 ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1401- ● ●
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1307-1312 ●
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1401- ● ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1307-1312 ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1401- ● ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1307-1312 ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1401- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-1312 ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1307-1312 ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1401- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307-1312 ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1401- ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1307-1312 ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1401- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1307-1312 ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1401- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1307-1312 ●
239 FILTER; DUST 1-47529-017-0 01 1 1401- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1307-1312 ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1401- ● ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
