3-01 — FRONT WHEEL BRAKE (#124278) — 108 parça

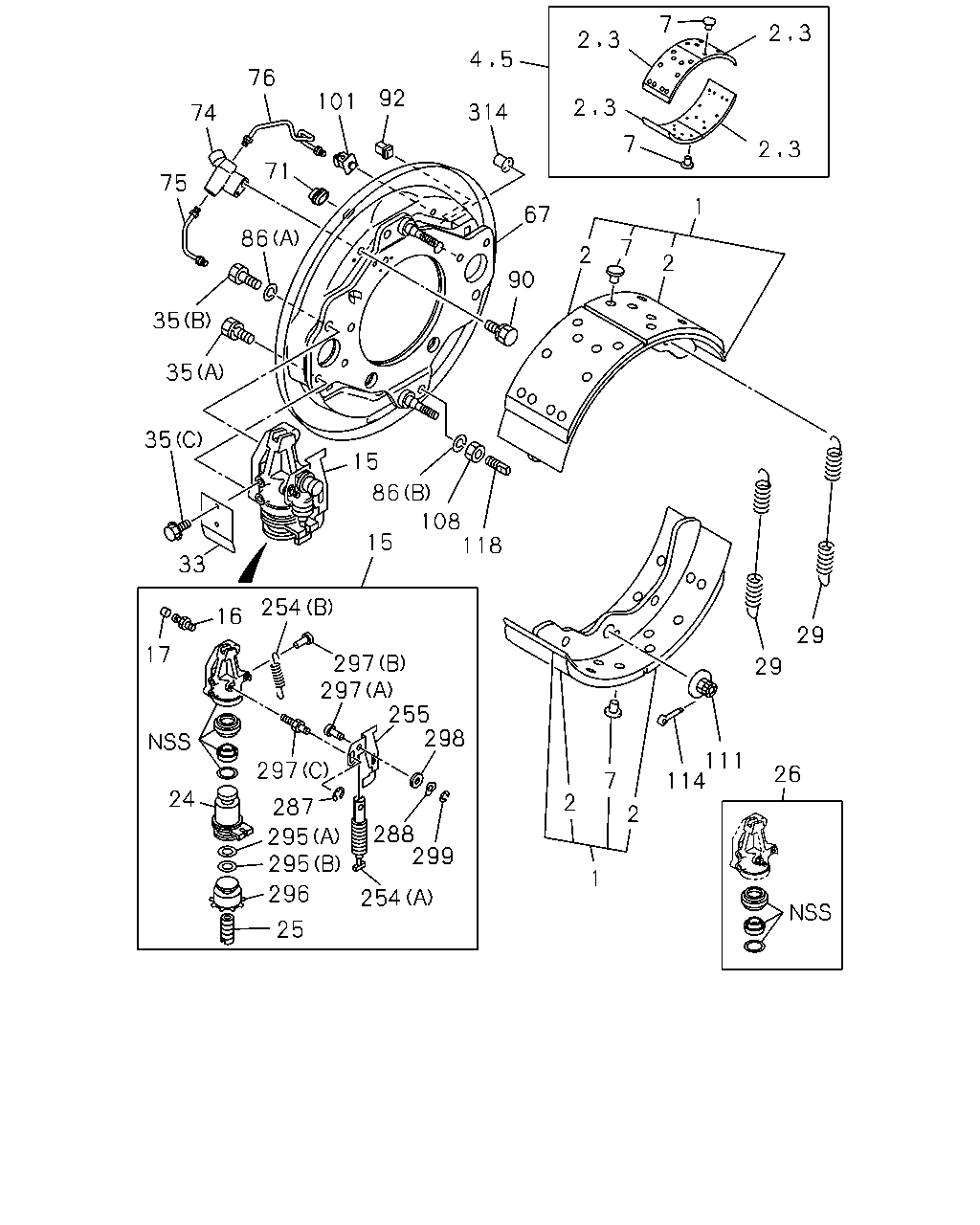

çizim 367235
2 3 2 3 7 7 2 3 2 3 1 2 7 2 4 5 314 67 90 118 108 86 15 15 33 35 35 35 86 75 71 74 76 92 101 17 16 254 297 297 255 298 288 299 254 25 297 287 295 295 296 24 29 29 111 114 2 1 2 26 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47120-999-1 04 1 1307-1312 ●
1 SHOE; BRK,FRT 1-47120-999-1 04 1 1401- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-161-0 08 1 1307-1312 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-161-0 08 1 1401- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-162-0 08 1 1307-1312 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-162-0 08 1 1401- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88310-839-1 02 1 1307-1312 ●
4 LINING SET; FRT BRK,STANDARD 1-88310-839-1 02 1 1401- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-840-1 02 1 1307-1312 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-840-1 02 1 1401- ● ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 96 1 1307-1312 ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 96 1 1401- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-134-0 02 1 1307-1312 ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-134-0 02 1 1401- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-135-0 02 1 1307-1312 ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-135-0 02 1 1401- ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 04 1 1307-1312 ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 04 1 1401- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 04 1 1307-1312 ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 04 1 1401- ● ●
24 PISTON; FRT WHEEL CYL 1-47624-394-0 02 1 1307-1312 ●
24 PISTON; FRT WHEEL CYL 1-47624-394-0 02 1 1401- ● ●
24 PISTON; FRT WHEEL CYL 1-47624-395-0 02 1 1307-1312 ●
24 PISTON; FRT WHEEL CYL 1-47624-395-0 02 1 1401- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 		1-47622-061-0 02 1 1307-1312 ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 		1-47622-061-0 02 1 1401- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 LH THREAD 		1-47622-062-0 02 1 1307-1312 ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 LH THREAD 		1-47622-062-0 02 1 1401- ● ●
26 CUP SET; FRT WHEEL CYL 1-87831-176-0 04 1 1307-1312 ●
26 CUP SET; FRT WHEEL CYL 1-87831-176-0 04 1 1401- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-346-0 04 1 1307-1312 ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-346-0 04 1 1401- ● ●
33 COVER; WHEEL CYL 1-47159-163-0 04 1 1307-1312 ●
33 COVER; WHEEL CYL 1-47159-163-0 04 1 1401- ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1307-1312 ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1401- ● ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47119-111-0 08 1 1307-1312 ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47119-111-0 08 1 1401- ● ●
35 BOLT; FRT WHEEL CYL
(C) M6X10 FLANGE 		8-94134-103-0 08 1 1307-1312 ●
35 BOLT; FRT WHEEL CYL
(C) M6X10 FLANGE 		8-94134-103-0 08 1 1401- ● ●
67 PLATE; BACK,FRT BRK 1-47150-678-0 01 1 1307-1312 ●
67 PLATE; BACK,FRT BRK 1-47150-678-0 01 1 1401- ● ●
67 PLATE; BACK,FRT BRK 1-47150-679-0 01 1 1307-1312 ●
67 PLATE; BACK,FRT BRK 1-47150-679-0 01 1 1401- ● ●
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1307-1312 ●
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1401- ● ●
74 CONNECTOR; FRT BRK 1-47630-035-0 01 1 1307-1312 ●
74 CONNECTOR; FRT BRK 1-47630-035-0 01 1 1401- ● ●
74 CONNECTOR; FRT BRK 1-47630-036-0 01 1 1307-1312 ●
74 CONNECTOR; FRT BRK 1-47630-036-0 01 1 1401- ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-735-0 01 1 1307-1312 ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-735-0 01 1 1401- ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-737-0 01 1 1307-1312 ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-737-0 01 1 1401- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-736-0 01 1 1307-1312 ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-736-0 01 1 1401- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-738-0 01 1 1307-1312 ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-738-0 01 1 1401- ● ●
86 WASHER; LK,FRT WHEEL CYL
(B) ID=12.2 		0-91510-512-0 04 1 1307-1312 ●
86 WASHER; LK,FRT WHEEL CYL
(B) ID=12.2 		0-91510-512-0 04 1 1401- ● ●
86 WASHER; LK,FRT WHEEL CYL
(A) 		1-47159-131-0 08 1 1307-1312 ●
86 WASHER; LK,FRT WHEEL CYL
(A) 		1-47159-131-0 08 1 1401- ● ●
90 BOLT; CONNECTOR 5-09030-016-1 02 1 1307-1312 ●
90 BOLT; CONNECTOR 5-09030-016-1 02 1 1401- ● ●
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 1307-1312 ●
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 1401- ● ●
101 PROTECTOR; OIL PIPE,FRT BRK 1-47143-008-0 02 1 1307-1312 ●
101 PROTECTOR; OIL PIPE,FRT BRK 1-47143-008-0 02 1 1401- ● ●
108 NUT 1-09400-100-0 04 1 1307-1312 ●
108 NUT 1-09400-100-0 04 1 1401- ● ●
111 NUT; FLANGE,SHOE HOLD 1-09440-003-0 04 1 1307-1312 ●
111 NUT; FLANGE,SHOE HOLD 1-09440-003-0 04 1 1401- ● ●
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1307-1312 ●
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1401- ● ●
118 BOLT; STOPPER 1-47162-050-0 04 1 1307-1312 ●
118 BOLT; STOPPER 1-47162-050-0 04 1 1401- ● ●
254 SPRING; ADJ LEVER
(B) 		1-09583-345-0 04 1 1307-1312 ●
254 SPRING; ADJ LEVER
(B) 		1-09583-345-0 04 1 1401- ● ●
254 SPRING; ADJ LEVER
(A) 		1-47629-141-0 04 1 1307-1312 ●
254 SPRING; ADJ LEVER
(A) 		1-47629-141-0 04 1 1401- ● ●
255 LEVER; ADJ 1-47629-142-0 02 1 1307-1312 ●
255 LEVER; ADJ 1-47629-142-0 02 1 1401- ● ●
255 LEVER; ADJ 1-47629-143-0 02 1 1307-1312 ●
255 LEVER; ADJ 1-47629-143-0 02 1 1401- ● ●
287 RING; SNAP 1-47629-263-0 04 1 1307-1312 ●
287 RING; SNAP 1-47629-263-0 04 1 1401- ● ●
288 WASHER; WAVE 1-47619-107-0 04 1 1307-1312 ●
288 WASHER; WAVE 1-47619-107-0 04 1 1401- ● ●
295 WASHER; PL,FRT WHEEL CYL
(A) 		1-47629-135-0 04 1 1307-1312 ●
295 WASHER; PL,FRT WHEEL CYL
(A) 		1-47629-135-0 04 1 1401- ● ●
295 WASHER; PL,FRT WHEEL CYL
(B) 		1-47629-136-0 04 1 1307-1312 ●
295 WASHER; PL,FRT WHEEL CYL
(B) 		1-47629-136-0 04 1 1401- ● ●
296 GEAR; WHEEL CYL 1-47629-133-0 02 1 1307-1312 ●
296 GEAR; WHEEL CYL 1-47629-133-0 02 1 1401- ● ●
296 GEAR; WHEEL CYL 1-47629-134-0 02 1 1307-1312 ●
296 GEAR; WHEEL CYL 1-47629-134-0 02 1 1401- ● ●
297 PIN; RETAINING
(A) 		1-47619-106-0 04 1 1307-1312 ●
297 PIN; RETAINING
(A) 		1-47619-106-0 04 1 1401- ● ●
297 PIN; RETAINING
(B) 		1-47629-112-0 04 1 1307-1312 ●
297 PIN; RETAINING
(B) 		1-47629-112-0 04 1 1401- ● ●
297 PIN; RETAINING
(C) 		1-47629-268-0 04 1 1307-1312 ●
297 PIN; RETAINING
(C) 		1-47629-268-0 04 1 1401- ● ●
298 WASHER; PL 1-47619-108-0 04 1 1307-1312 ●
298 WASHER; PL 1-47619-108-0 04 1 1401- ● ●
299 RETAINER; LEVER 1-47619-109-0 04 1 1307-1312 ●
299 RETAINER; LEVER 1-47619-109-0 04 1 1401- ● ●
314 COVER; CYL,FRT WHEEL CYL 1-47154-008-0 04 1 1307-1312 ●
314 COVER; CYL,FRT WHEEL CYL 1-47154-008-0 04 1 1401- ● ●
