◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#124265) — 80 parça

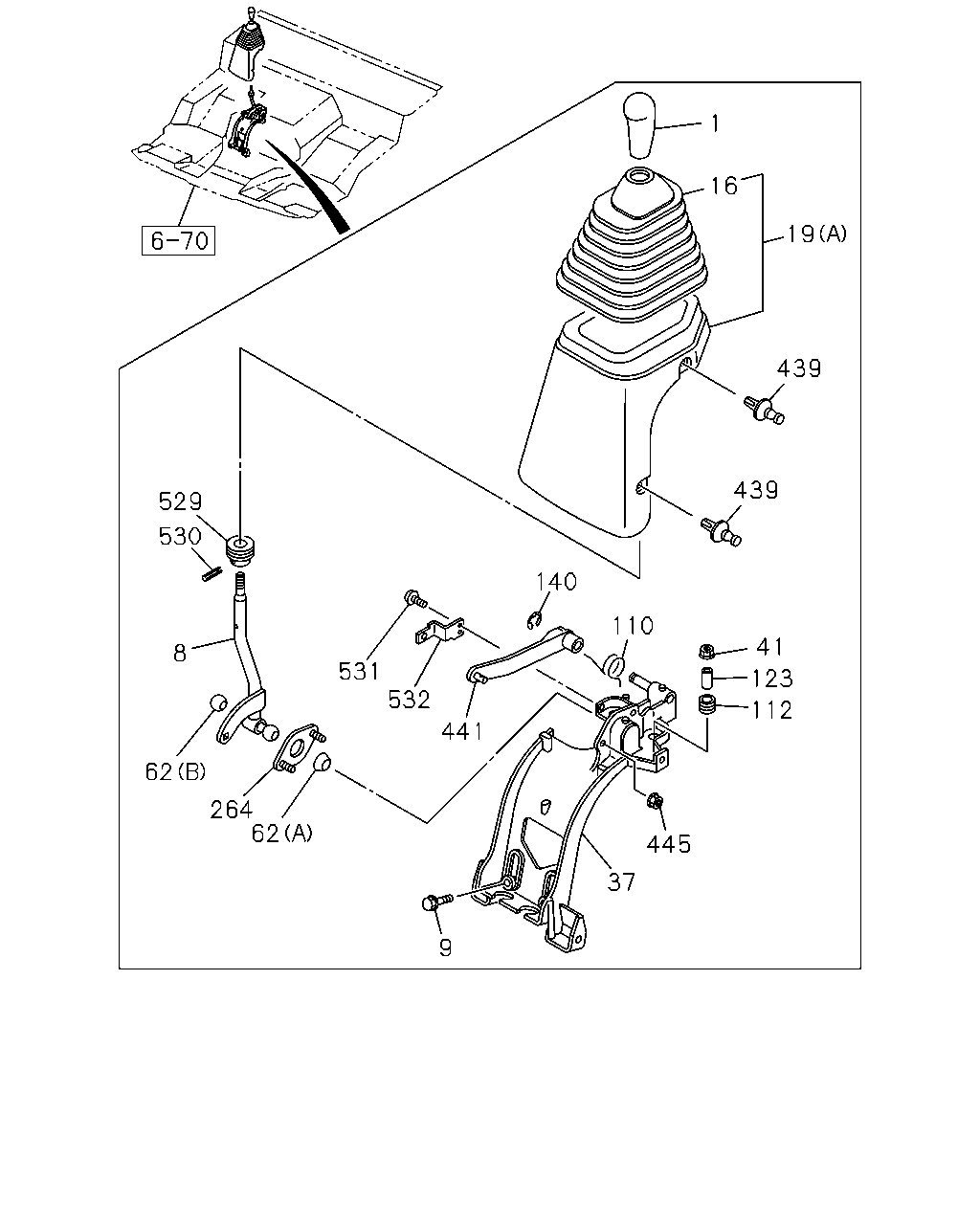

çizim 363160
1 529 8 530 62 264 62 531 532 140 441 9 37 110 41 123 112 445 16 439 439 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1307-1312 ●
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1401- ● ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1307-1312 ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1401- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1307-1311 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1312 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1401-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1307-1312 ●
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1401- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1307-1312 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1401- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1307-1312 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1401- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1307-1312 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1401- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1307-1312 ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1401- ● ●
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1307-1312 ●
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1401- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1307-1312 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1401- ● ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1307-1312 ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1401- ● ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1307-1312 ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1401- ● ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1307-1312 ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1401- ● ●
112 RUBBER; CUSHION
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-426-0 04 1 1307-1312 ●
112 RUBBER; CUSHION
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-426-0 04 1 1401- ● ●
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-427-0 04 1 1307-1312 ●
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-427-0 04 1 1401- ● ●
140 RING; SNAP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1307-1312 ●
140 RING; SNAP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1401- ● ●
264 PLATE; COVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1307-1312 ●
264 PLATE; COVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1401- ● ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1307-1312 ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1401- ● ●
441 LEVER; SELECT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1307-1312 ●
441 LEVER; SELECT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1401- ● ●
445 NUT; PLATE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
445 NUT; PLATE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1401- ● ●
529 RING; BOOT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 1307-1312 ●
529 RING; BOOT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 1401- ● ●
530 PIN; SPRING
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 1307-1312 ●
530 PIN; SPRING
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 1401- ● ●
531 SCREW; STAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1307-1312 ●
531 SCREW; STAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1401- ● ●
532 STAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1307-1312 ●
532 STAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1401- ● ●

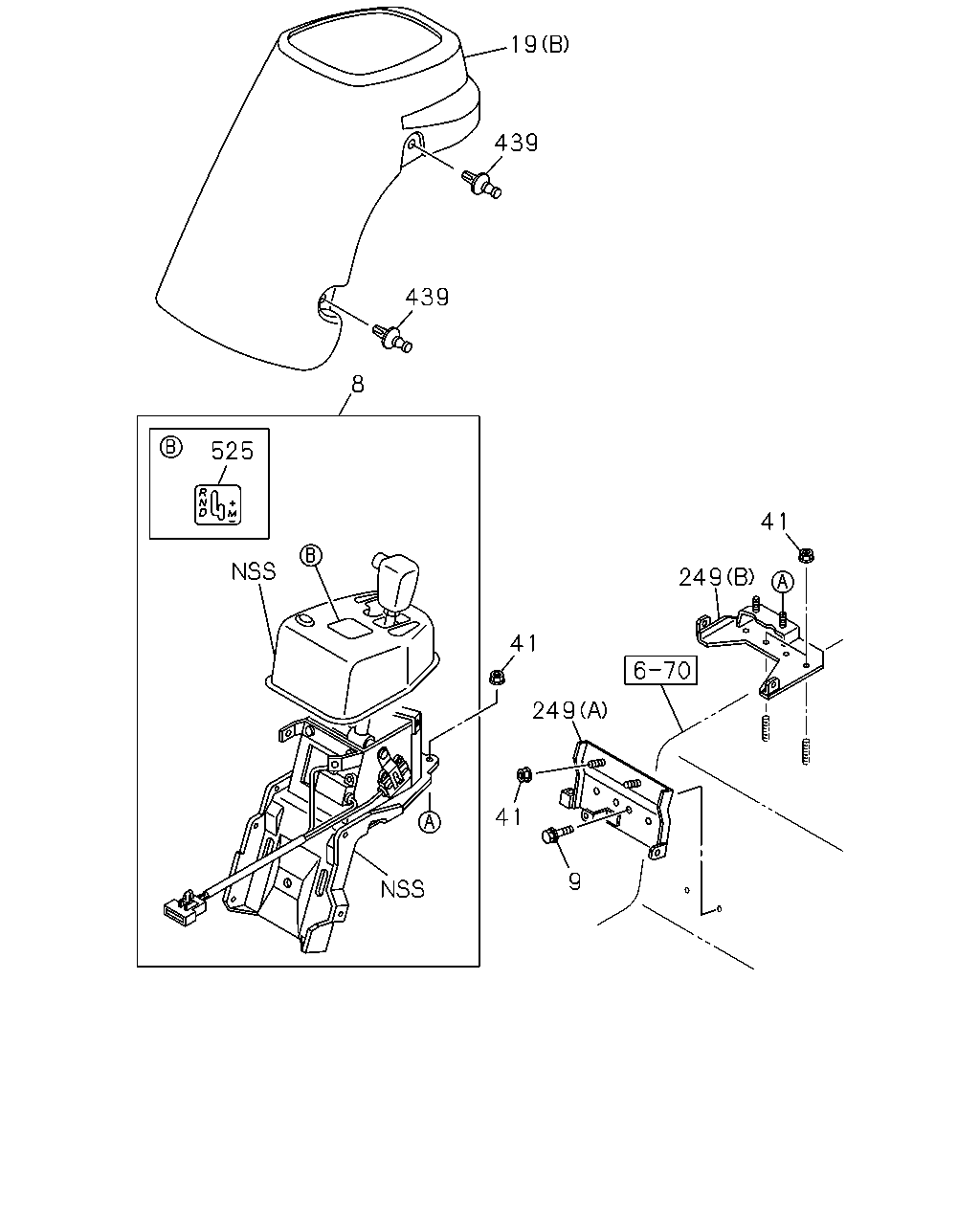

çizim 366546
19 439 439 8 525 41 41 249 9 249 41
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1307-1312 ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1401- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1307-1311 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1312 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1401-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1307-1312 ●
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1401- ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1307-1312 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1401- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1307-1312 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1401- ● ●
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1307-1312 ●
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1401- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1307-1312 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1401- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1307-1312 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1401- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 1307-1312 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 1401- ● ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1307-1312 ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1401- ● ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1307-1312 ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1401- ● ●

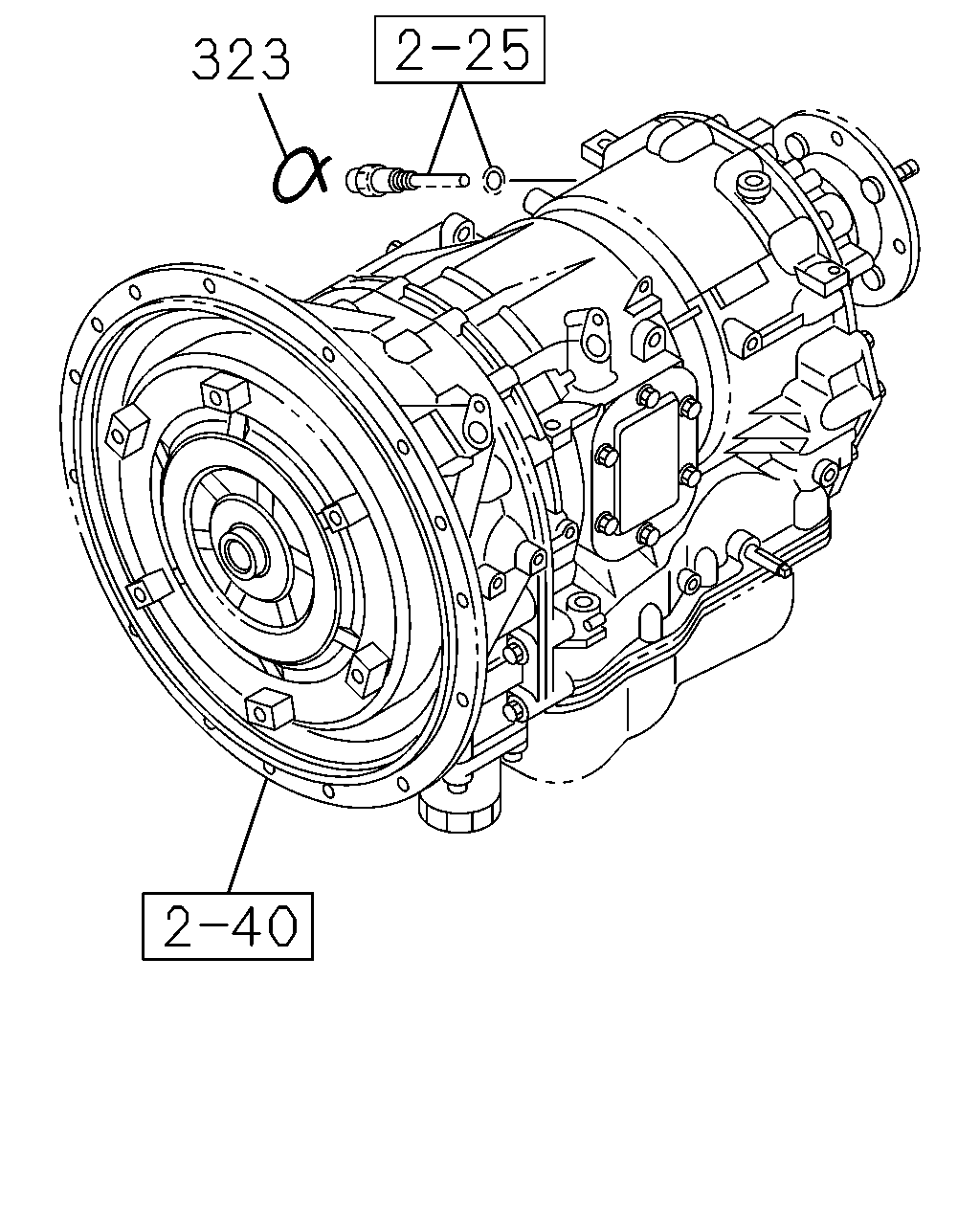

çizim 366723
323
BalonParca AdiParca NoAdetTipApplied Date A B
323 WIRE; SEAL
LCT2500 A/T ALLISON(Y5W) 		9-81325-446-0 01 1 1307-1503 ● ●
323 WIRE; SEAL
LCT2500 A/T ALLISON(Y5W) 		9-81325-446-0 01 1 1504- ● ●
