2-20A — MANUAL TRANSMISSION ASM AND CASE (#124259) — 88 parça

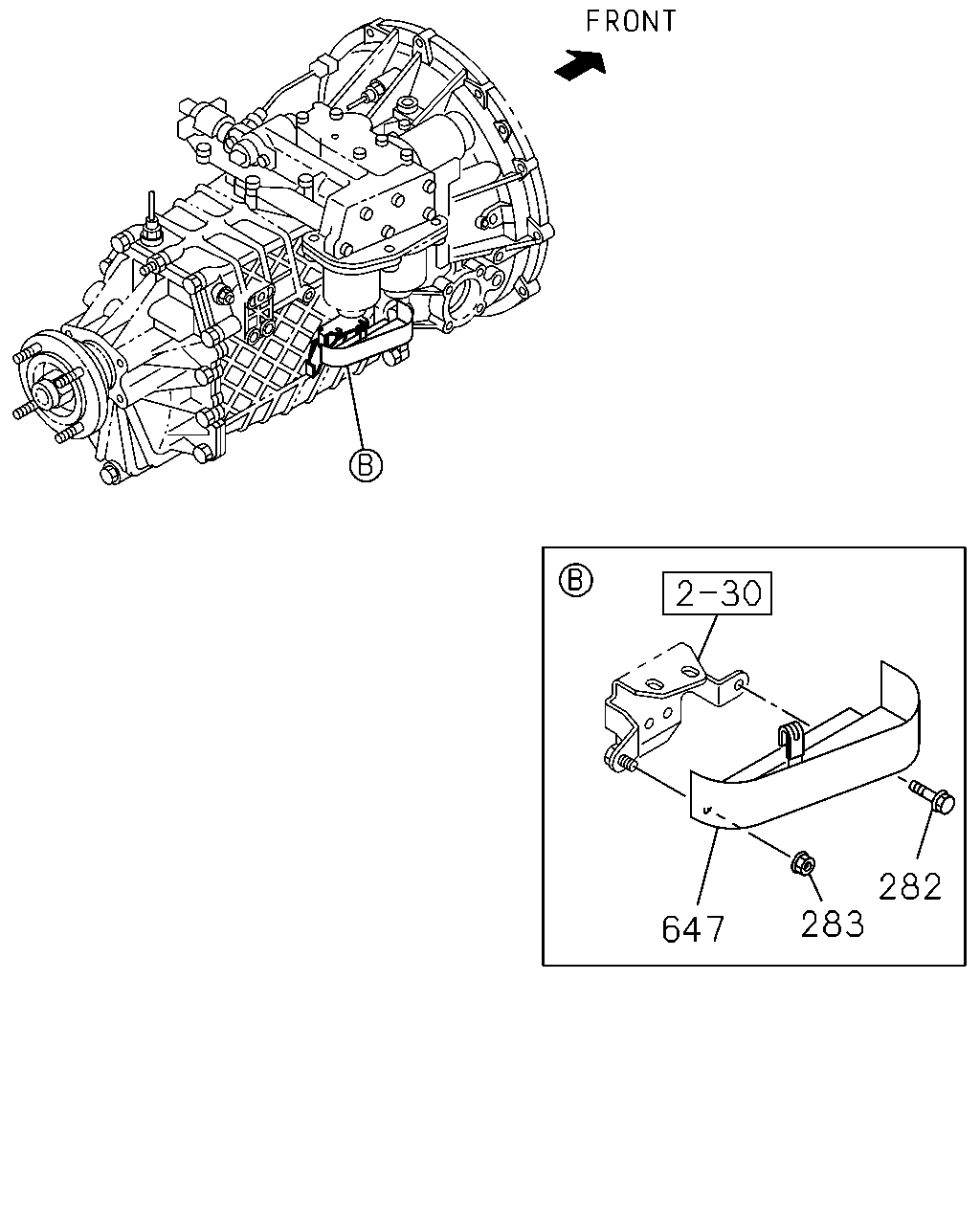

çizim 362853
282 283 647
BalonParca AdiParca NoAdetTipApplied Date
282 BOLT; PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1307-
283 NUT; PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 01 1 1307-
647 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-465-0 01 1 1307-

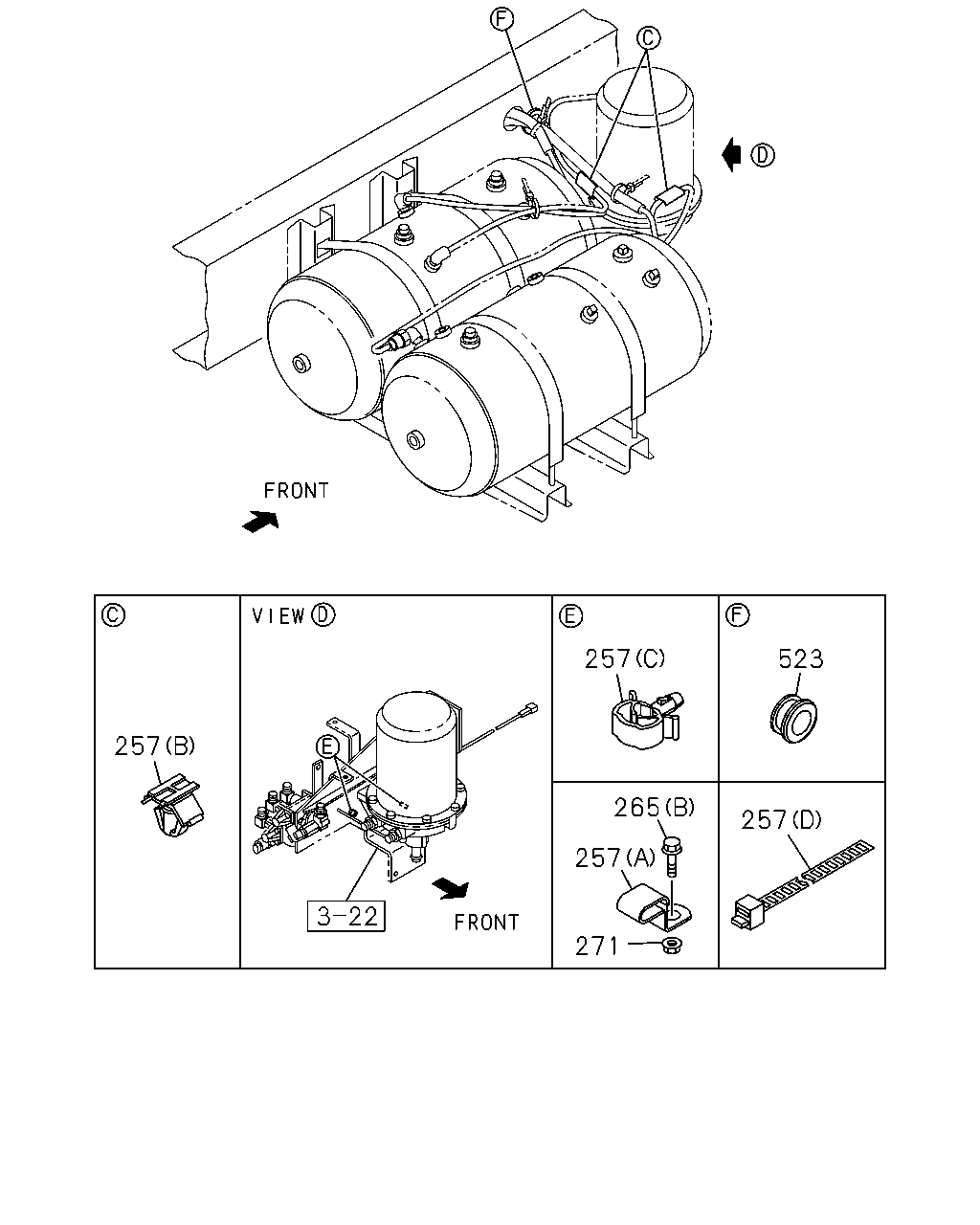

çizim 362907
257 257 523 265 257 271 257
BalonParca AdiParca NoAdetTipApplied Date
257 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8 		8-97329-633-0 01 1 1307-
265 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 01 1 1307-

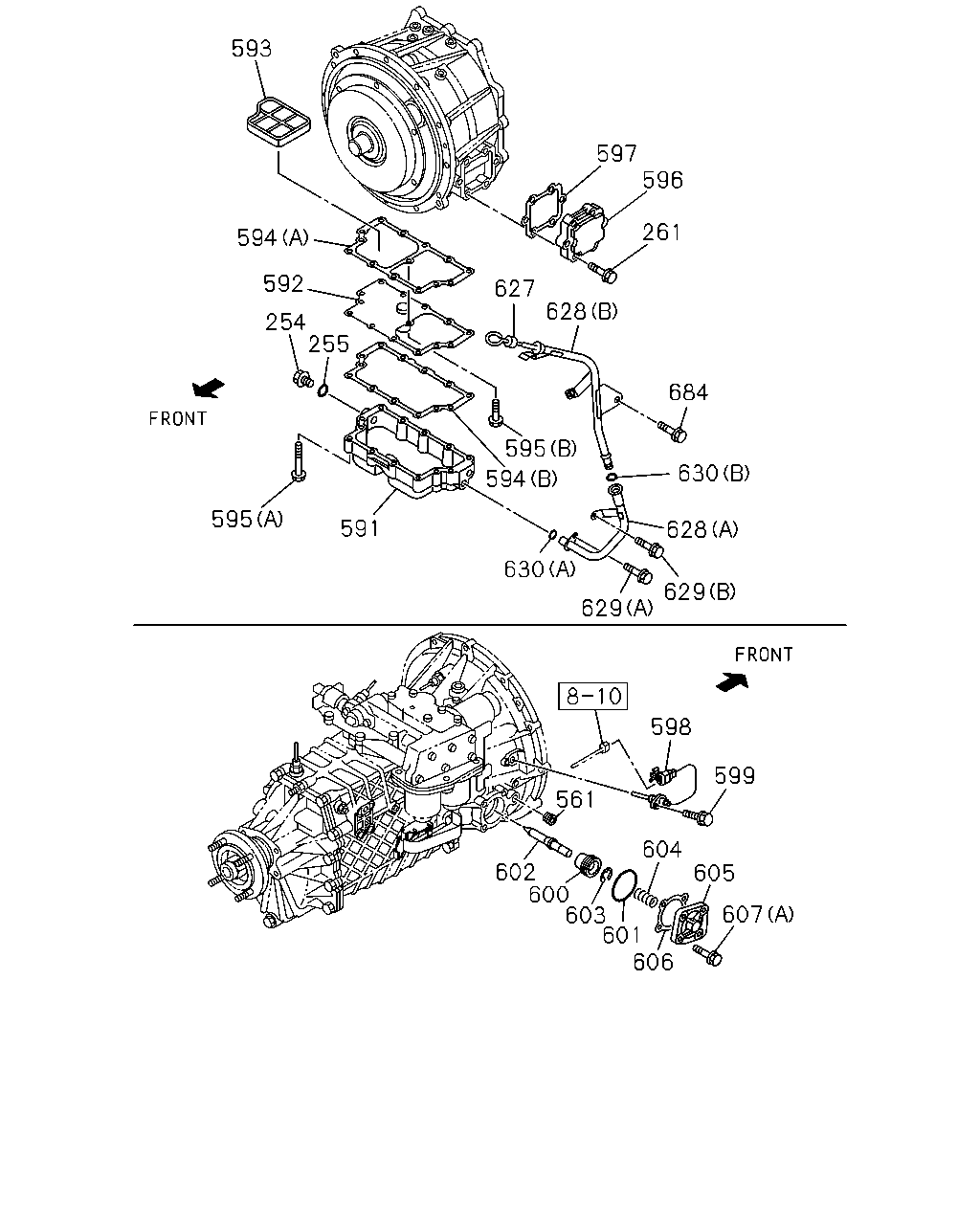

çizim 363011
593 597 596 261 627 684 630 628 629 629 594 595 628 630 598 599 561 605 607 606 602 600 603 601 595 255 254 592 594 604 591
BalonParca AdiParca NoAdetTipApplied Date
254 PLUG; DRAIN,OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-374-0 01 1 1307-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17 		8-97115-712-0 01 1 1307-
261 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE 		0-28650-635-0 06 1 1307-
561 PLUG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97320-204-0 01 1 1307-
591 PAN; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97256-429-2 01 1 1307-
592 COVER; STRAINER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-771-1 01 1 1307-
593 FILTER; STRAINER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97256-438-1 01 1 1307-
594 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97256-430-1 01 1 1307-
594 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97289-772-0 01 1 1307-
595 BOLT; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
595 BOLT; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE 		0-28650-635-0 13 1 1307-
596 COVER; OIL PAN
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-773-0 01 1 1307-
597 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-774-0 01 1 1307-
598 SENSOR; TURBINE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-495-1 01 1 1307-
599 BOLT; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
600 PISTON; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-652-1 01 1 1307-
601 SEAL; PISTON
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-755-0 01 1 1307-
602 PLUNGER; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-306-1 01 1 1307-
603 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8 		9-09185-008-0 01 1 1307-
604 SPRING; PISTON
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-467-0 01 1 1307-
605 COVER; CYLINDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-756-0 01 1 1307-
606 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-757-0 01 1 1307-
607 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1307-
607 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1307-
627 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98024-424-0 01 1 1307-
628 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98003-673-0 01 1 1307-
628 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98005-327-0 01 1 1307-
629 BOLT; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE 		0-28151-016-0 01 1 1307-
629 BOLT; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
630 GASKET; OIL FILLER TUBE,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8 		8-97305-656-0 01 1 1307-
630 GASKET; OIL FILLER TUBE,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3 		8-97313-558-0 01 1 1307-
684 BOLT; OIL FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE 		0-28151-016-0 02 1 1307-

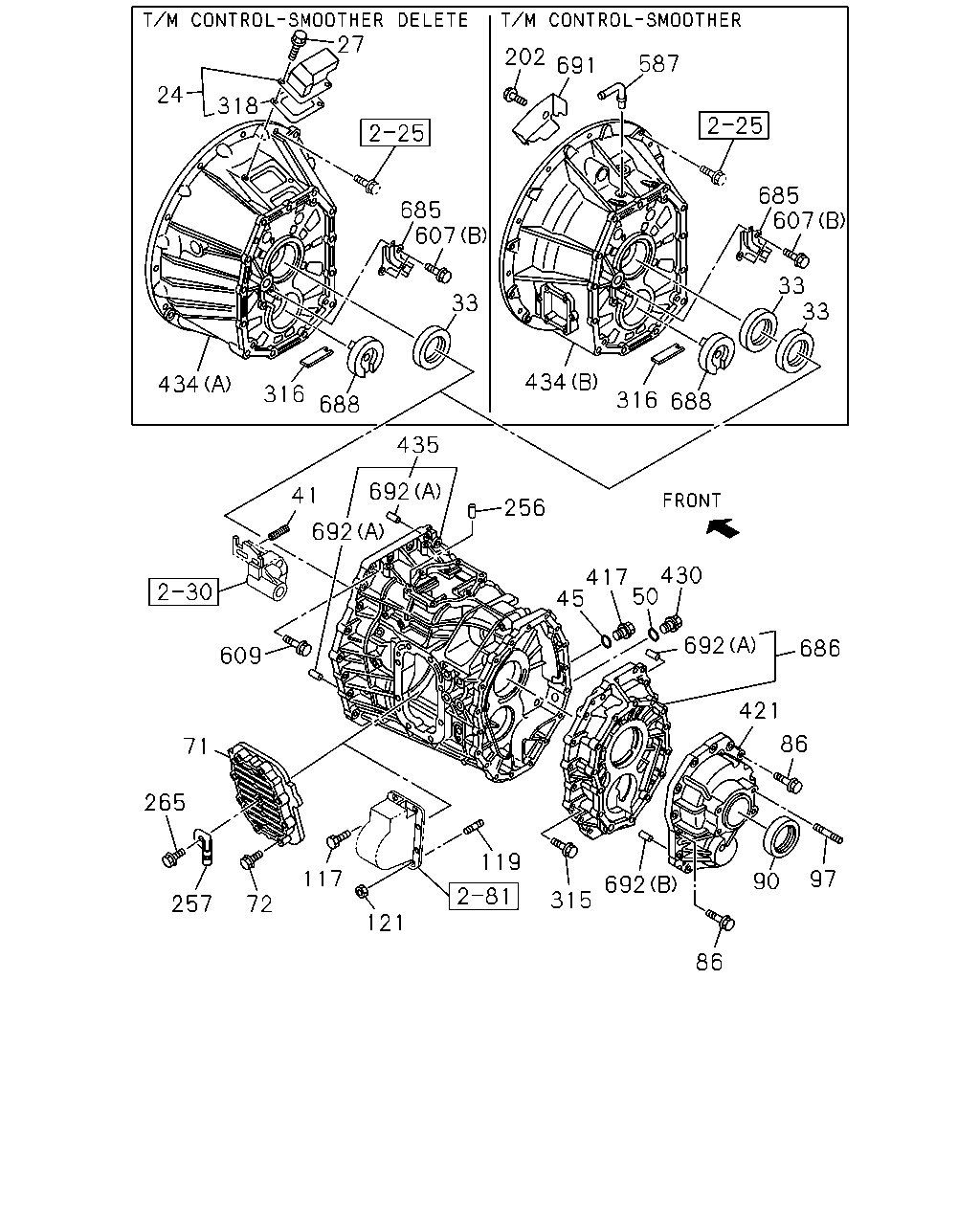

çizim 366232
587 691 202 685 33 607 434 316 688 33 33 607 685 256 417 430 45 50 692 686 86 421 97 90 86 692 315 119 121 117 72 257 265 71 609 41 692 435 692 688 316 434 318 27 24
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31131-041-0 01 1 1307-1410
24 COVER; CHECK HOLE,DUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98283-062-0 01 1 1411-
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE 		0-28050-812-0 02 1 1307-1410
27 BOLT; COVER TO CLU HSG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 1411-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97377-947-0 01 1 1307-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-187-0 02 1 1307-
41 SPRING; DETENT BALL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-140-0 01 1 1307-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 1307-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 1307-1404
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 02 1 1405-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98122-318-0 01 1 1307-1408
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98270-265-1 01 1 1409-
72 BOLT; SIDE COVER
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		1-09044-081-0 08 1 1307-
86 BOLT; RR COVER
M10X40 FLANGE 		8-98045-397-0 14 1 1307-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97377-948-0 01 1 1307-
97 STUD; PARKING BRK
M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1307-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE 		0-28151-040-0 02 1 1307-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50 		0-44011-035-0 06 1 1307-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 06 1 1307-
202 BOLT; PLATE
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1307-
256 PIN; KNOCK
OD=6 L=12 		9-08150-612-0 02 1 1307-
257 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8 		8-97329-633-0 01 1 1307-
265 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 01 1 1307-
315 BOLT; CASE
M8X40 FLANGE 		0-28050-840-0 18 1 1307-
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 1307-
318 GASKET; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31139-023-0 01 1 1411-
417 PLUG; OIL FILLER,TRANS
M20X10.5 		8-98009-333-0 01 1 1307-
421 COVER; RR,TRANS 8-98004-790-1 01 1 1307-
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 1307-1404
430 PLUG; OIL DRAIN 8-97365-374-0 02 1 1405-
434 HOUSING; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98004-506-2 01 1 1307-
434 HOUSING; CLU
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98100-982-1 01 1 1307-
435 CASE; TRANS 8-98186-449-0 01 1 1307-1404
435 CASE; TRANS 8-98236-421-1 01 1 1405-
587 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-318-0 01 1 1307-
607 BOLT; COVER
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1307-
607 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1307-
609 BOLT; HSG TO CASE
M8X40 FLANGE 		0-28050-840-0 22 1 1307-
685 COVER; OIL PORT 8-98018-864-1 01 1 1307-
686 CASE; RR,TRANS 8-97388-873-1 01 1 1307-
688 NOZZLE; OIL,COUNTER 8-98202-402-0 01 1 1307-1508
688 NOZZLE; OIL,COUNTER 8-98309-860-0 01 1 1509-
691 PLATE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-428-0 01 1 1307-
692 PIN; DOWEL
(A) OD=11 L=8 		9-11229-058-1 04 1 1307-
692 PIN; DOWEL
(B) OD=14 L=10 		9-11319-065-3 02 1 1307-

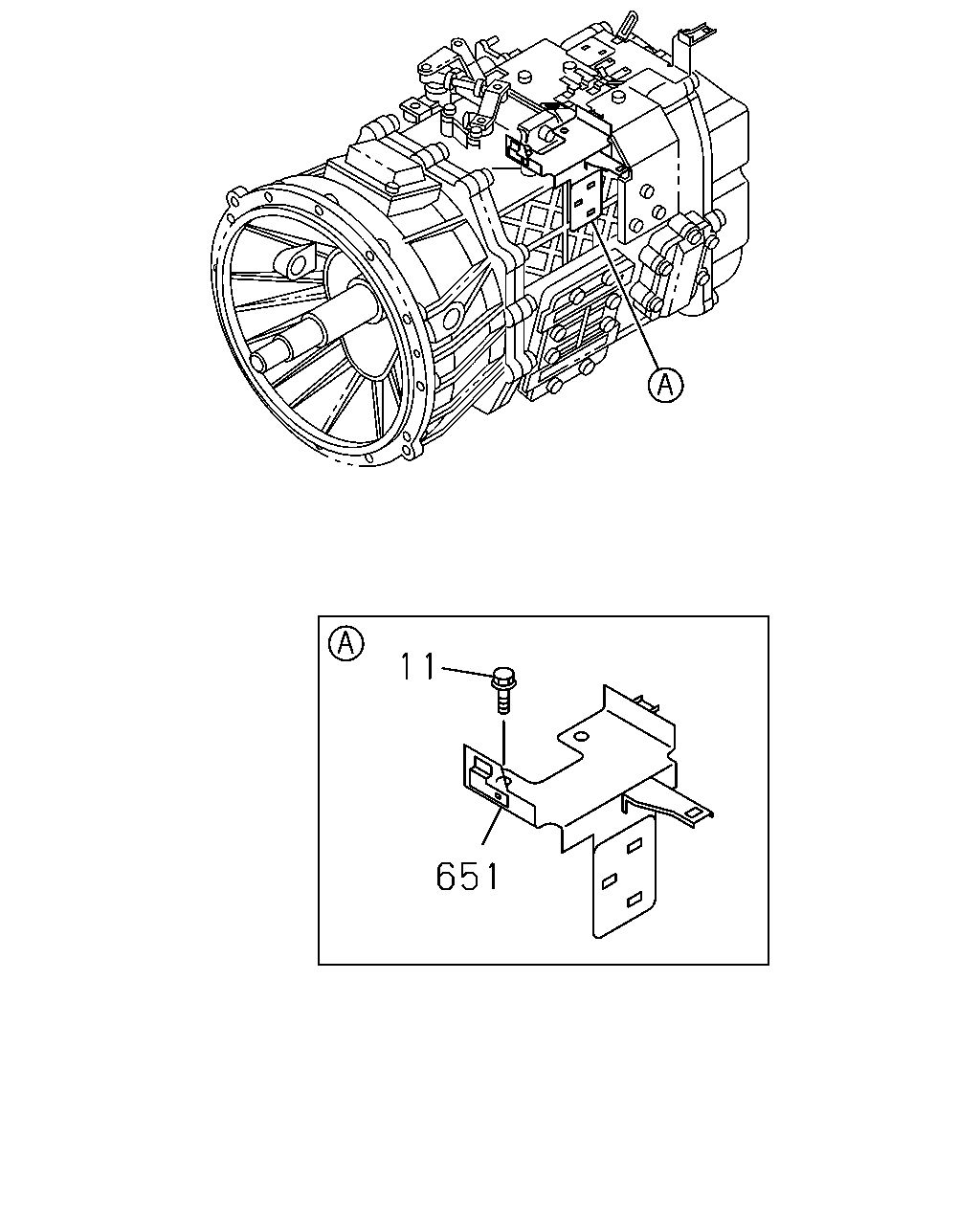

çizim 366975
11 651
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		0-28650-835-0 02 1 1307-
651 BRACKET; T/M HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97610-090-3 01 1 1307-

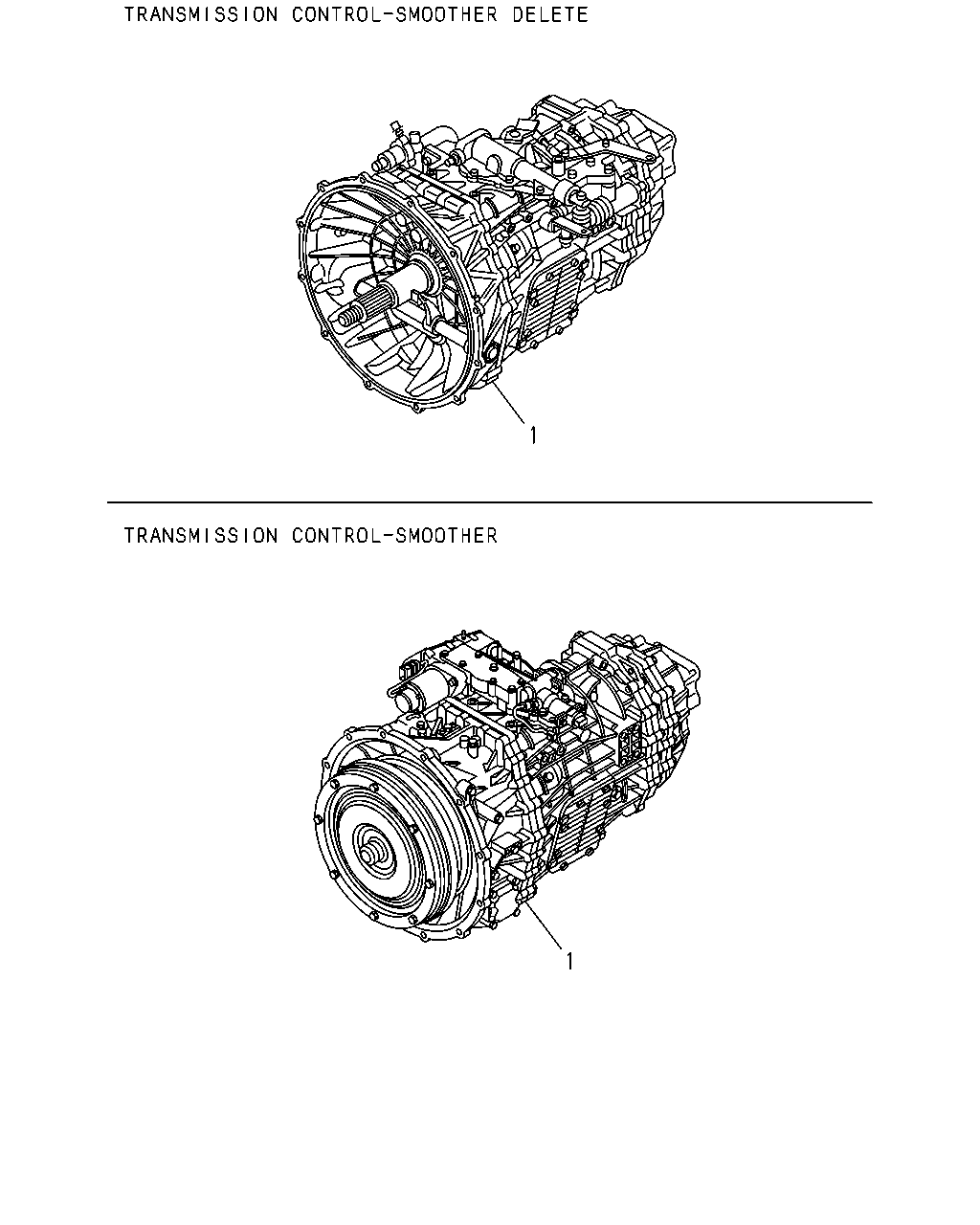

çizim 367224
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98134-520-0 01 1 1307-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-520-0 01 1 1307-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98134-568-0 01 1 1307-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-568-0 01 1 1307-
