2-05 — CLUTCH PIPING (#124255) — 51 parça

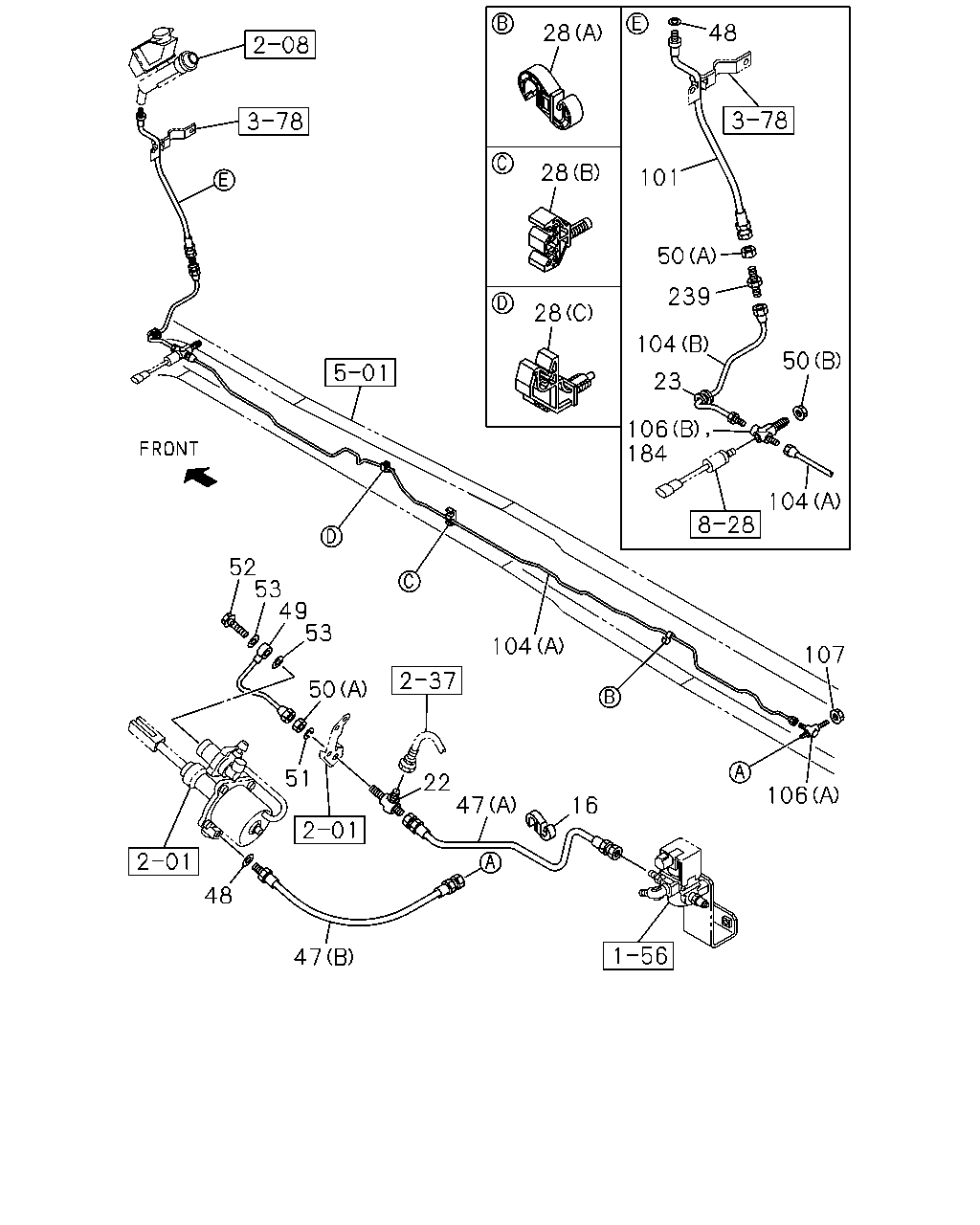

çizim 362966
47 106 16 47 22 51 50 53 49 53 52 104 107 104 184 106 50 23 104 239 50 101 48 28 28 28 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 02 1 1307-1312 ●
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 02 1 1401- ● ●
22 UNION; CLU PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1307-1312 ●
22 UNION; CLU PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1401- ● ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1307-1312 ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1401- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1401- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1307-1312 ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1401- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1401- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1307-1312 ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1401- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1307-1312 ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1401- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) L=239 		1-49117-401-0 01 1 1307-1312 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) L=239 		1-49117-401-0 01 1 1401- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1307-1312 ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1307-1312 ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1401- ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1401- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1307-1312 ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1401- ● ●
51 WASHER; LK
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1307-1312 ●
51 WASHER; LK
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1401- ● ●
52 BOLT; EYE,AIR PIPE
MZW6P M/T(RSZ) M14X27 FLANGE 		1-09675-086-0 01 1 1307-1312 ●
52 BOLT; EYE,AIR PIPE
MZW6P M/T(RSZ) M14X27 FLANGE 		1-09675-086-0 01 1 1401- ● ●
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1307-1312 ●
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-1401 ●
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1307-1312 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1401- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1307-1312 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1401- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1307-1312 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1401- ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1307-1312 ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1401- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY 		8-98051-113-0 01 1 1307-1312 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY 		8-98051-113-0 01 1 1401- ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		0-91111-512-0 01 1 1307-1312 ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		0-91111-512-0 01 1 1401- ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1307-1312 ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1401- ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1307-1312 ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1401- ● ●
