Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

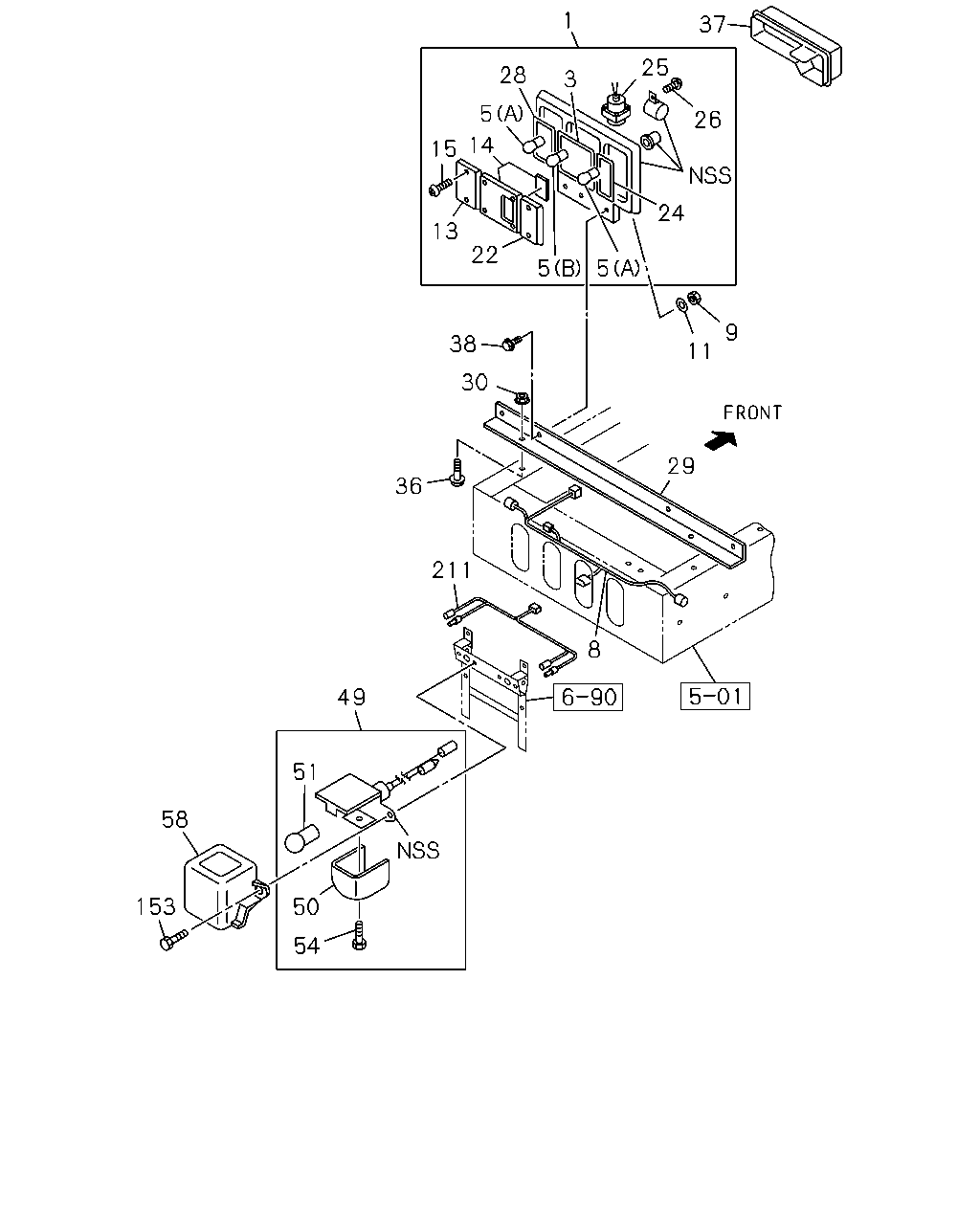

8-03 — LAMP; REAR AND REAR SIDE
(#124251) — 32 parça
37
1
28
25
26
24
3
5
15
14
13
5
5
22
9
11
29
38
36
30
211
8
49
51
50
54
58
153
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
1306-
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
1306-
3
GASKET; RR COMB LAMP
8-94257-505-0
02
1
1306-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
04
1
1306-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
1306-
8
HARNESS; RR COMB LAMP
EXC. FULL TRAILER PIPING<Z25>
8-98144-644-2
01
1
1306-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
1306-
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
1306-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
1306-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
1306-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
1306-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
1306-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1306-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
02
1
1306-
24
GASKET; BACK,LAMP
8-94257-506-0
02
1
1306-
25
HORN ASM; BACK
8-94257-518-0
01
1
1306-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1306-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1306-
28
GASKET; TURN,LAMP
8-94257-507-0
02
1
1306-
29
BRACKET; LAMP,RR COMB
1-53487-021-1
01
1
1306-
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
02
1
1306-
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28651-040-0
02
1
1306-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
1306-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
1306-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
1306-
49
LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
1306-
50
LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
1306-
51
BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
1306-
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
1306-
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
1306-
153
BOLT; LICENSE PLATE LAMP
M5X20
9-93490-520-0
04
1
1306-
211
HARNESS; EXT
8-98131-066-0
01
1
1306-
