Sayfa 7-60 - Isuzu EPC

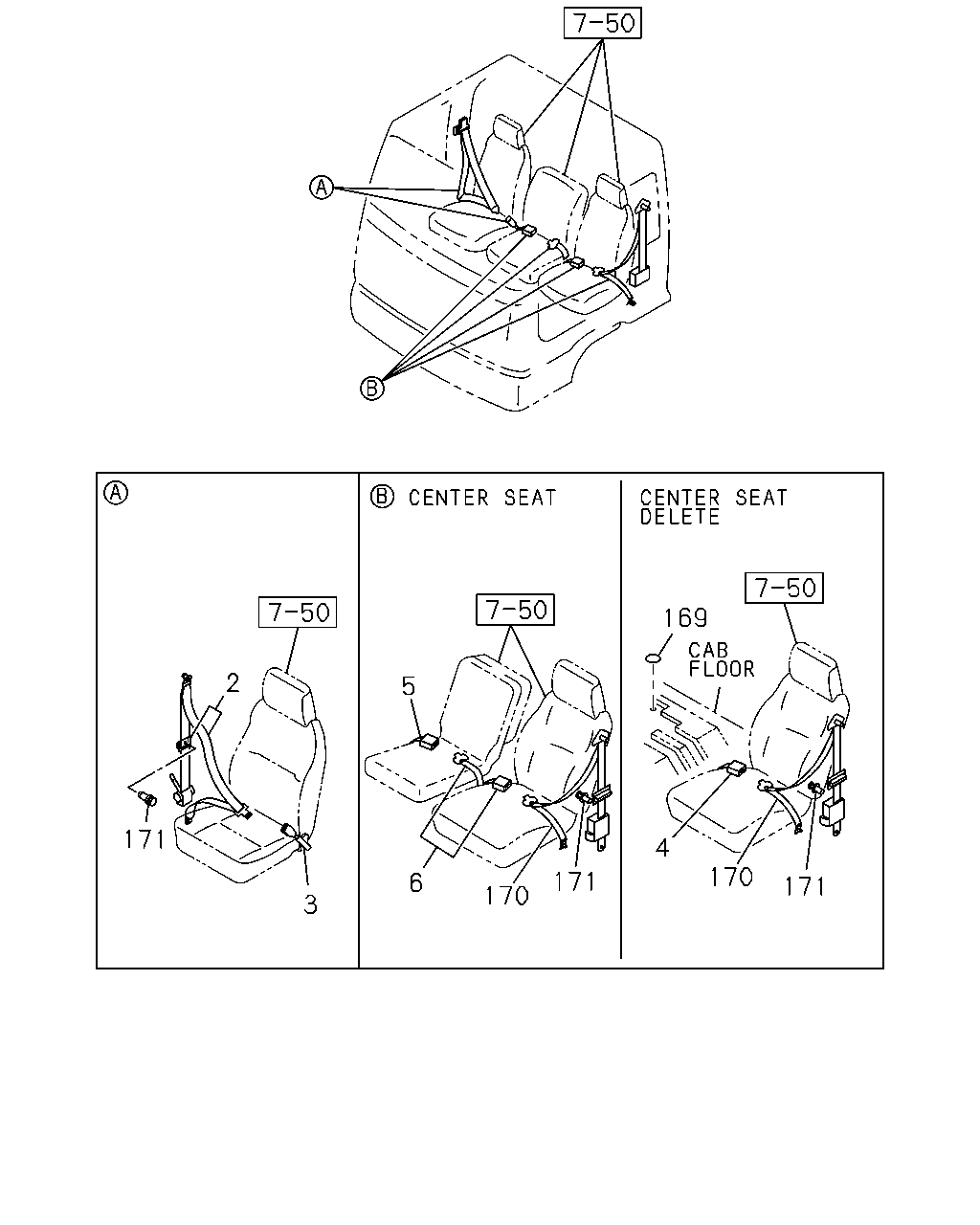

7-60 — SEAT BELT (#124248) — 9 parça

171 170 4 169 171 170 6 5 3 171 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	8-98223-515-0	01	1	1306-
3	BELT; SEAT,BUCKLE SIDE	8-97386-846-0	01	1	1306-1401
3	BELT; SEAT,BUCKLE SIDE	8-98270-818-0	01	1	1402-
4	BELT; PASSENGER SEAT,BUCKLE SIDE CENTER SEAT DELETE(SP9)	1-75617-546-1	01	1	1306-
5	BELT; CENTER SEAT,BUCKLE SIDE CENTER SEAT(SA1)	8-98184-487-2	01	1	1306-
6	BELT; CENTER SEAT,TONGUE SIDE CENTER SEAT(SA1)	8-98184-488-1	01	1	1306-
169	SEAL CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	01	1	1306-
170	BELT; PASSENGER SEAT,TONGUE SIDE	8-98184-486-1	01	1	1306-
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
