Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#124246) — 41 parça
◀

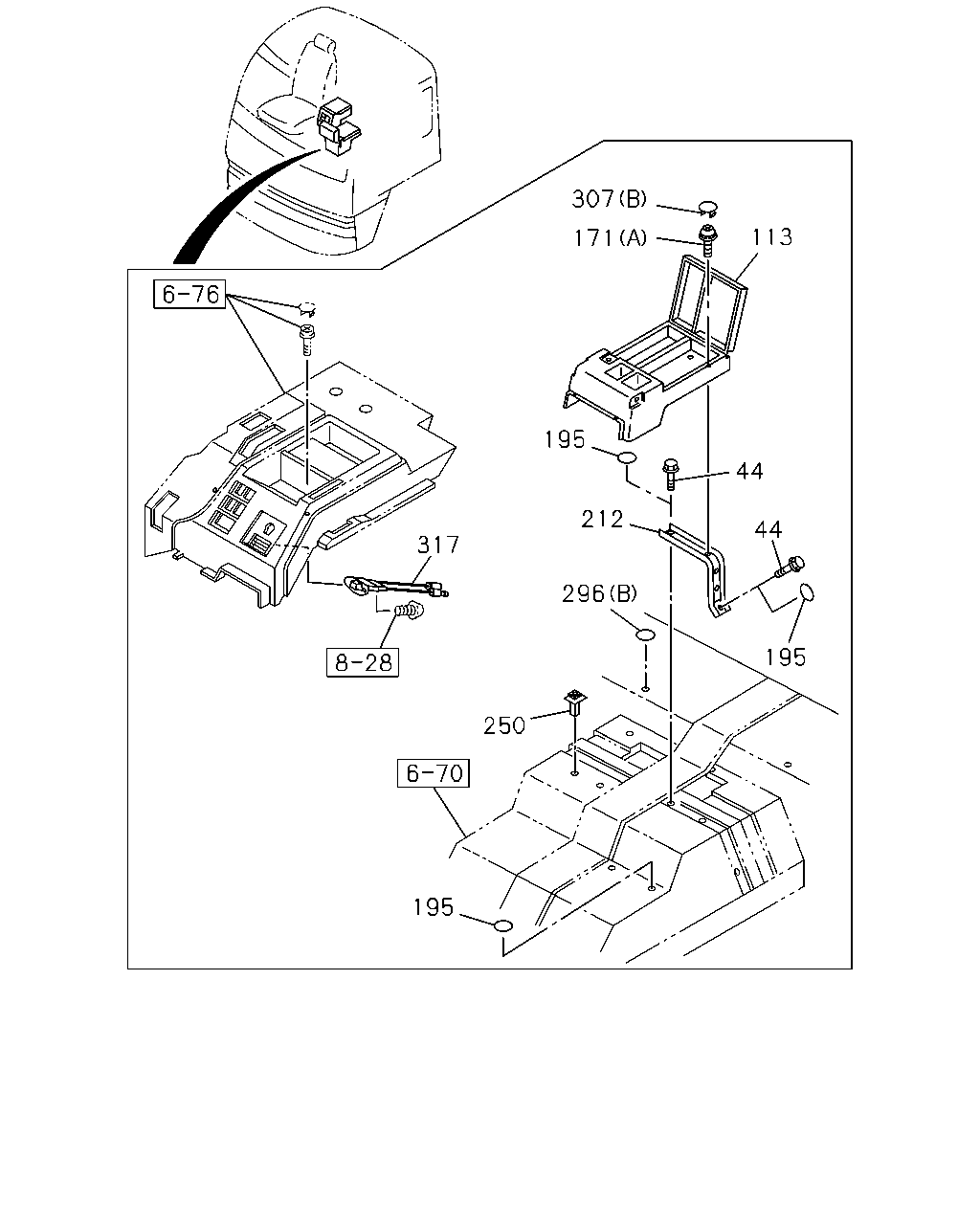

[745A] CONSOLE BOX AND OTHER PARTS (13 parça)

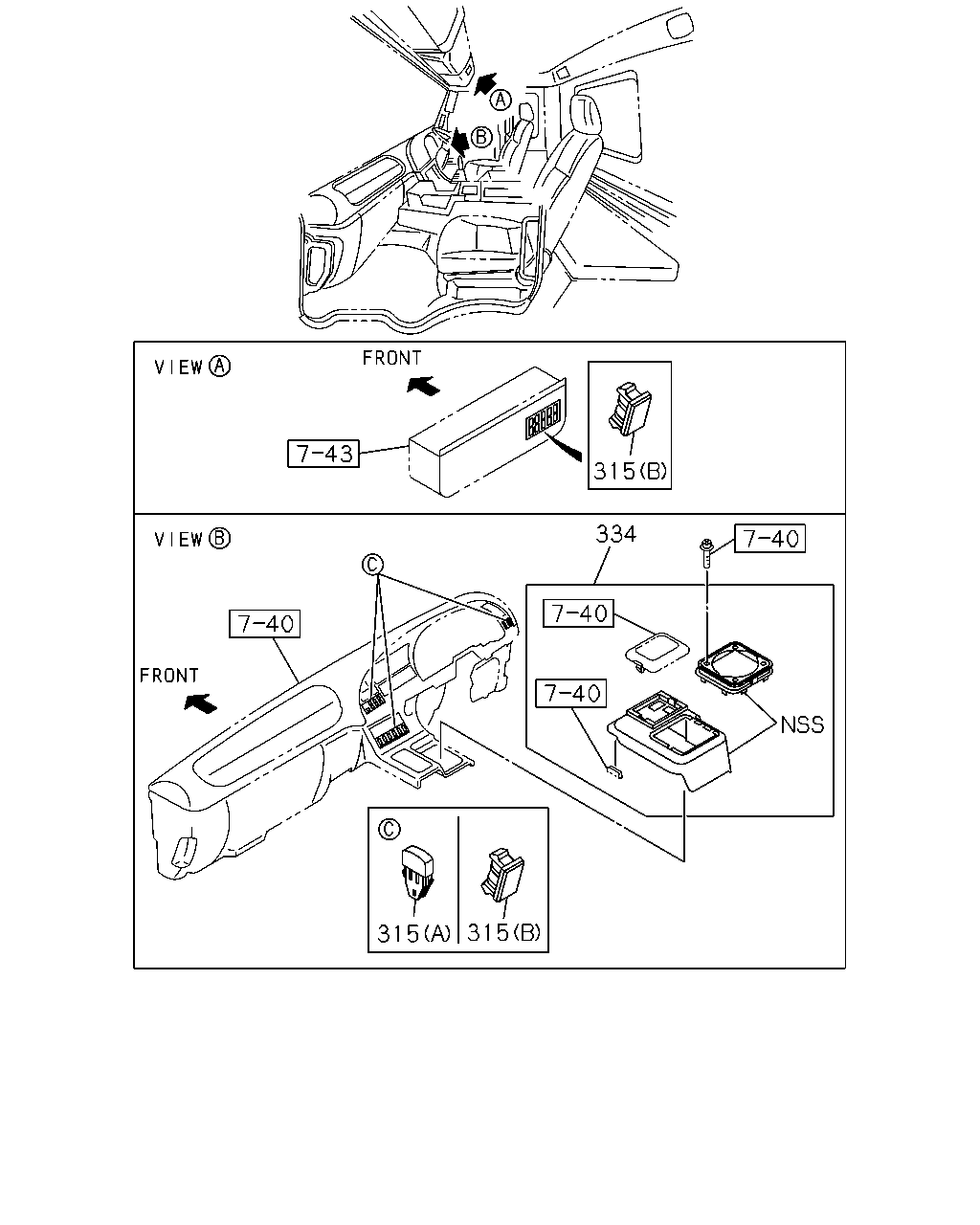

[745A] SWITCH HOLE COVER (3 parça)

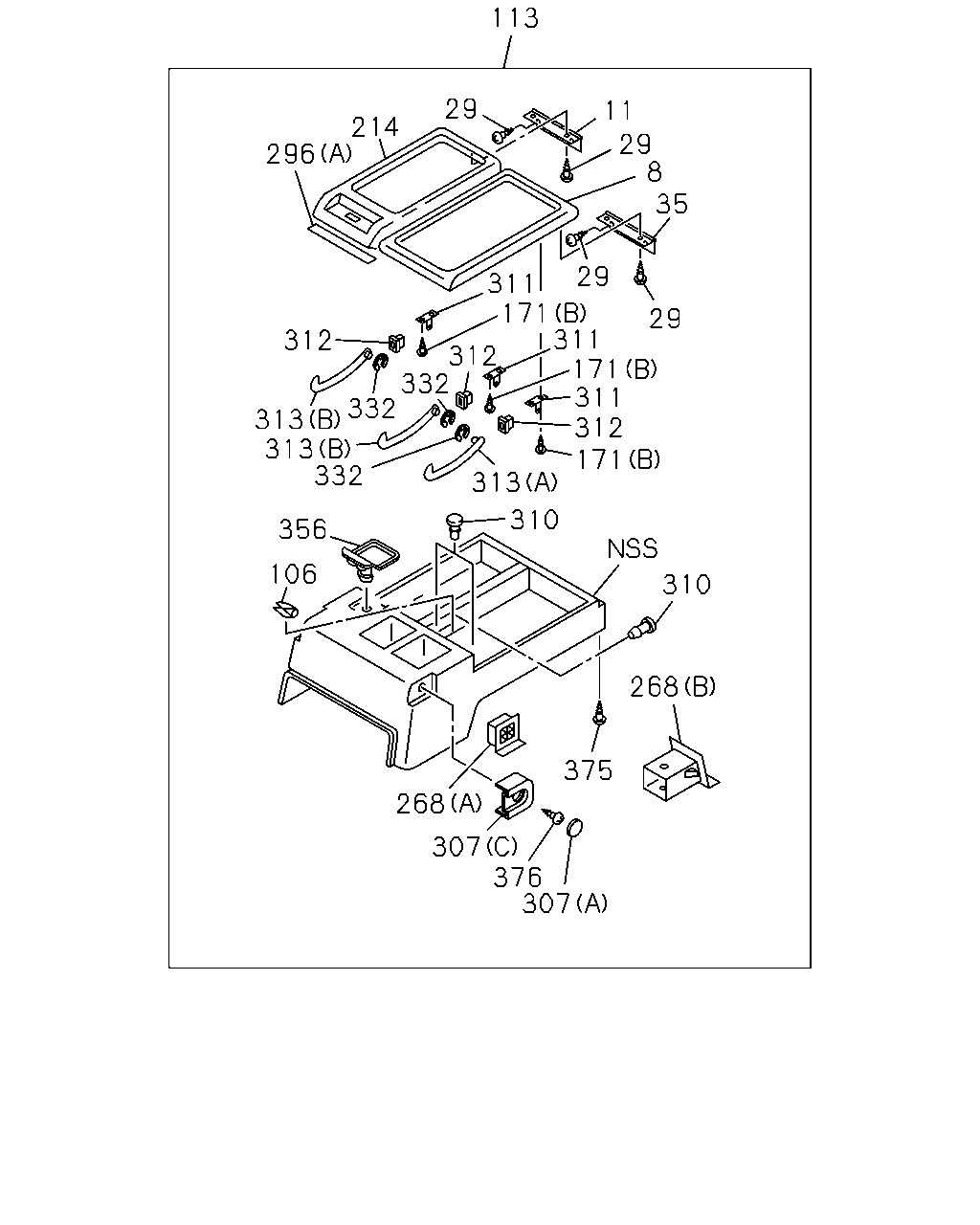

[745A] CONSOLE BOX COMPONENT (25 parça)
▶
44
44
195
113
307
171
195
212
296
250
317
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
113
BOX; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-325-1
01
1
1306-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1306-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1306-
195
SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
05
1
1306-
212
SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9)
1-72537-095-1
01
1
1306-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
1306-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1306-
296
SEAL
CENTER SEAT DELETE(SP9) (A)
1-72537-094-1
01
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72537-188-0
02
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C)
1-72537-270-1
02
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-76337-461-0
04
1
1306-
317
CONSENT
1-82523-020-2
01
1
1306-
334
315
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
1306-
315
COVER; HOLE,SW
(A)
8-98025-954-1
AR
1
1306-
334
COVER; CHANGE LEVER
SMOOTHER-G(C1W)
1-72447-969-1
01
1
1306-
113
11
35
8
29
29
29
311
171
311
312
171
313
310
310
268
375
307
376
307
268
106
356
332
313
313
312
332
332
312
171
311
29
214
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-332-0
01
1
1306-
11
HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9)
1-72537-070-2
01
1
1306-
29
SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD
1-72537-168-0
08
1
1306-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-182-1
01
1
1306-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9)
1-72537-079-0
02
1
1306-
113
BOX; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-325-1
01
1
1306-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1306-
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1306-
214
LID; CONSOLE
CENTER SEAT DELETE(SP9)
1-72537-339-0
01
1
1306-
268
COVER; DUCT
CENTER SEAT DELETE(SP9) (B)
1-72537-268-0
01
1
1306-
268
COVER; DUCT
CENTER SEAT DELETE(SP9) (A)
1-72537-269-0
01
1
1306-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1306-
296
SEAL
CENTER SEAT DELETE(SP9) (A)
1-72537-094-1
01
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72537-188-0
02
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C)
1-72537-270-1
02
1
1306-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-76337-461-0
04
1
1306-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-187-0
02
1
1306-
311
HOLDER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-188-2
03
1
1306-
312
STOPPER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-186-1
03
1
1306-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72538-184-3
01
1
1306-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-72538-185-3
02
1
1306-
332
RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9)
1-72537-170-0
03
1
1306-
356
COVER; KNOB
CENTER SEAT DELETE(SP9)
1-72537-271-1
01
1
1306-
375
SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20
1-72537-319-0
02
1
1306-
376
SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14
1-72537-320-0
03
1
1306-
