Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#124245) — 64 parça
◀
[743A] ASSIST GRIP;CAB INSIDE (21 parça)

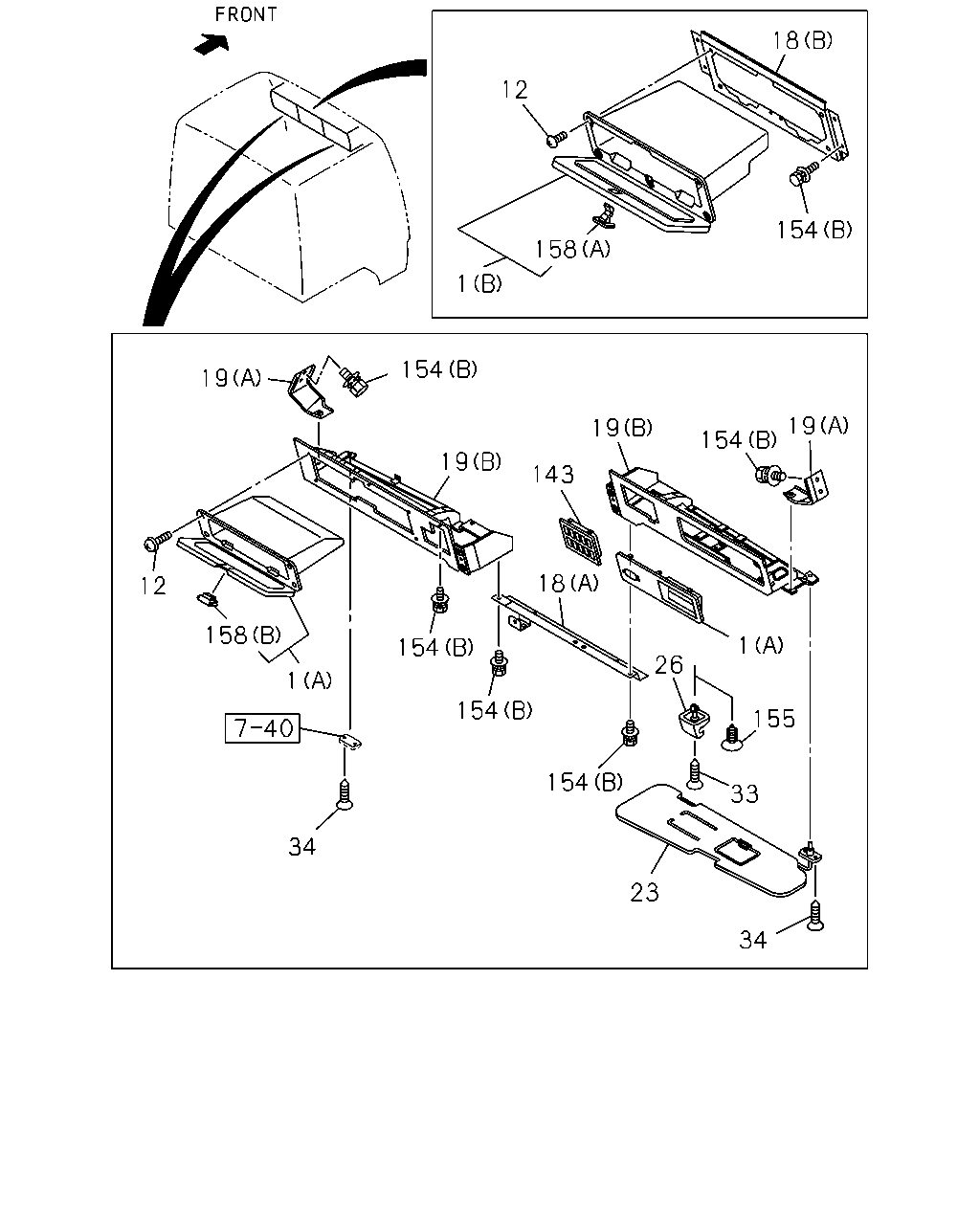

[743A] HEADER SHELF AND SUN VISOR (24 parça)

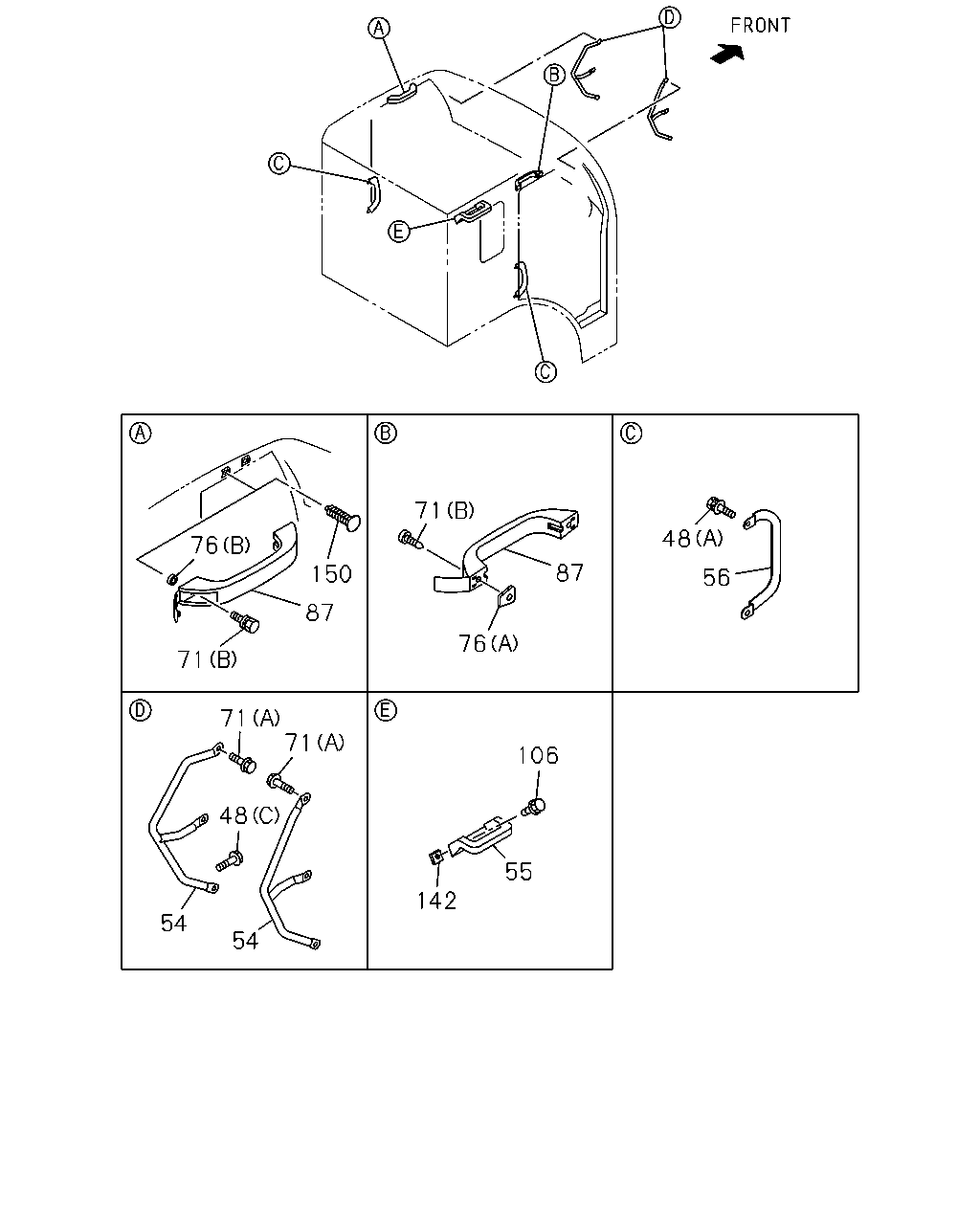

[743A] ASSIST GRIP;CAB OUTSIDE (19 parça)
▶
71
87
48
56
76
150
87
76
71
71
71
106
55
142
54
54
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1306-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1306-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1306-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1306-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1306-
54
GRIP; ASSIST,QUARTER SIDE
8-98153-870-1
01
1
1306-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
01
1
1403-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE,DRIVER & PASSENGER<W63>
1-73618-169-1
02
1
1403-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1306-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1306-
71
SCREW
(B) M6X30 W/LK WASHER
5-09981-064-0
04
1
1306-
71
SCREW
(A) M6X34 W/LK&PL WASHER
8-94279-411-0
05
1
1306-
76
SPACER; ASSIST GRIP
(B) OD=13 T=4.5
8-94230-464-1
02
1
1306-
76
SPACER; ASSIST GRIP
(A)
1-73618-180-0
02
1
1306-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
02
1
1306-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
02
1
1403-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1403-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> 25X25
8-94272-533-0
02
1
1403-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> 25X25
8-94272-533-0
04
1
1403-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1306-
19
154
19
143
19
154
19
12
1
158
34
154
154
154
23
33
34
155
26
18
1
154
18
12
158
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B)
1-72447-968-0
01
1
1306-
1
BOARD; HEADER SHELF
(A)
1-72447-761-6
01
1
1306-
1
BOARD; HEADER SHELF
(A)
1-72447-876-4
01
1
1306-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1306-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1306-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1306-
18
SUPPORT; HEADER SHELF CENTER
(A)
8-98118-217-1
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-879-7
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1306-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1306-
23
SUN VISOR
1-73138-156-1
01
1
1306-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1306-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1306-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1306-
143
BEZEL
1-72447-768-2
01
1
1306-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1403-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1403-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1306-1402
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1403-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1306-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1306-
158
LOCK; HEADER SHELF
(A)
1-72538-312-0
01
1
1306-
158
LOCK; HEADER SHELF
(B)
1-72448-376-0
01
1
1306-
154
69
66
103
48
59
59
48
48
48
48
59
48
69
66
103
59
48
62
48
48
48
62
64
64
64
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1306-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1306-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1306-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1306-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1306-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1306-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1306-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1306-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1306-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1306-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1306-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1306-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1306-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1403-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1403-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1306-1402
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1403-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
