◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#124244) — 114 parça

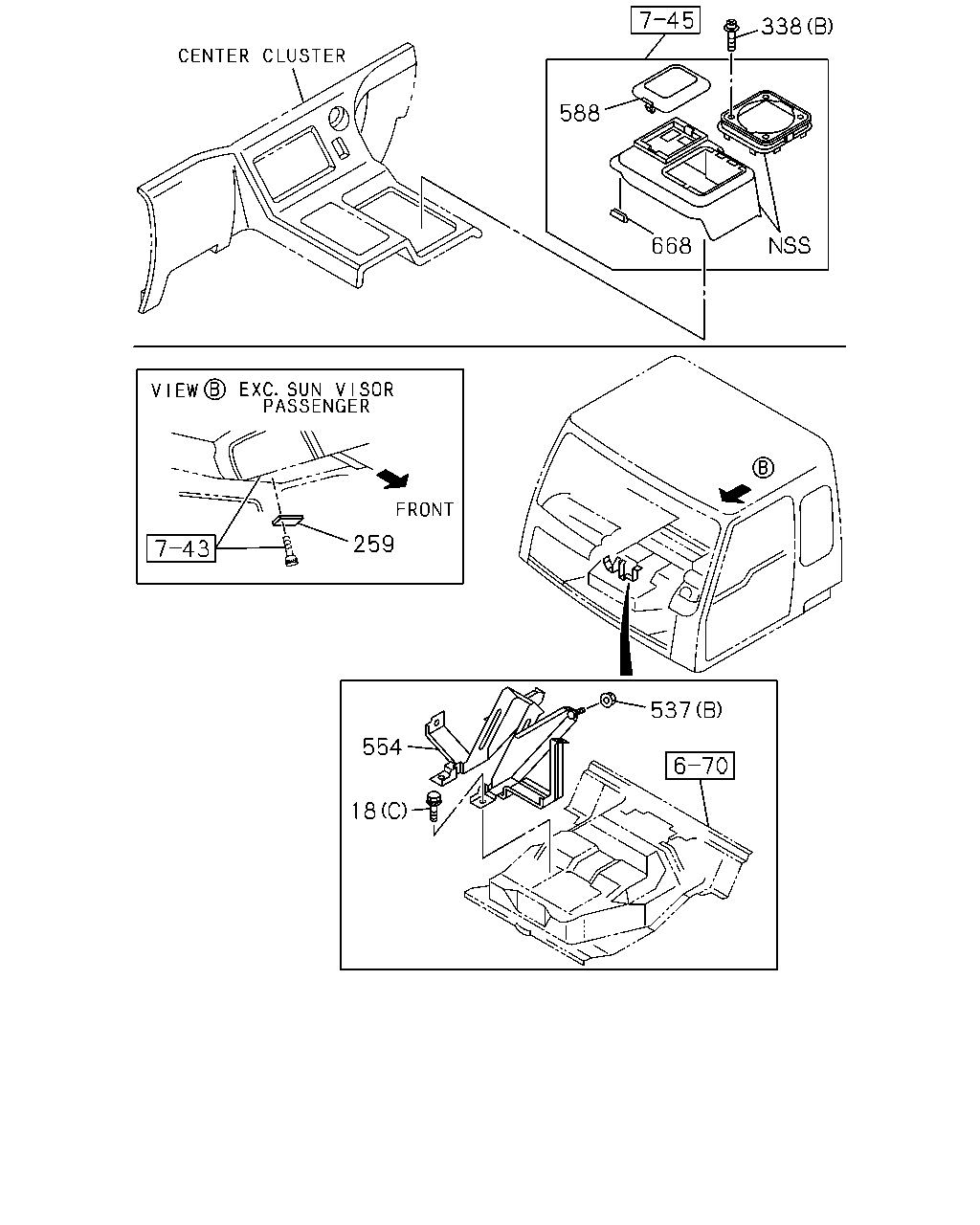

çizim 363449
259 537 554 18 668 588 338
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1306-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1306-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1306-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1306-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1306-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1306-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1306-
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1306-
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1306-

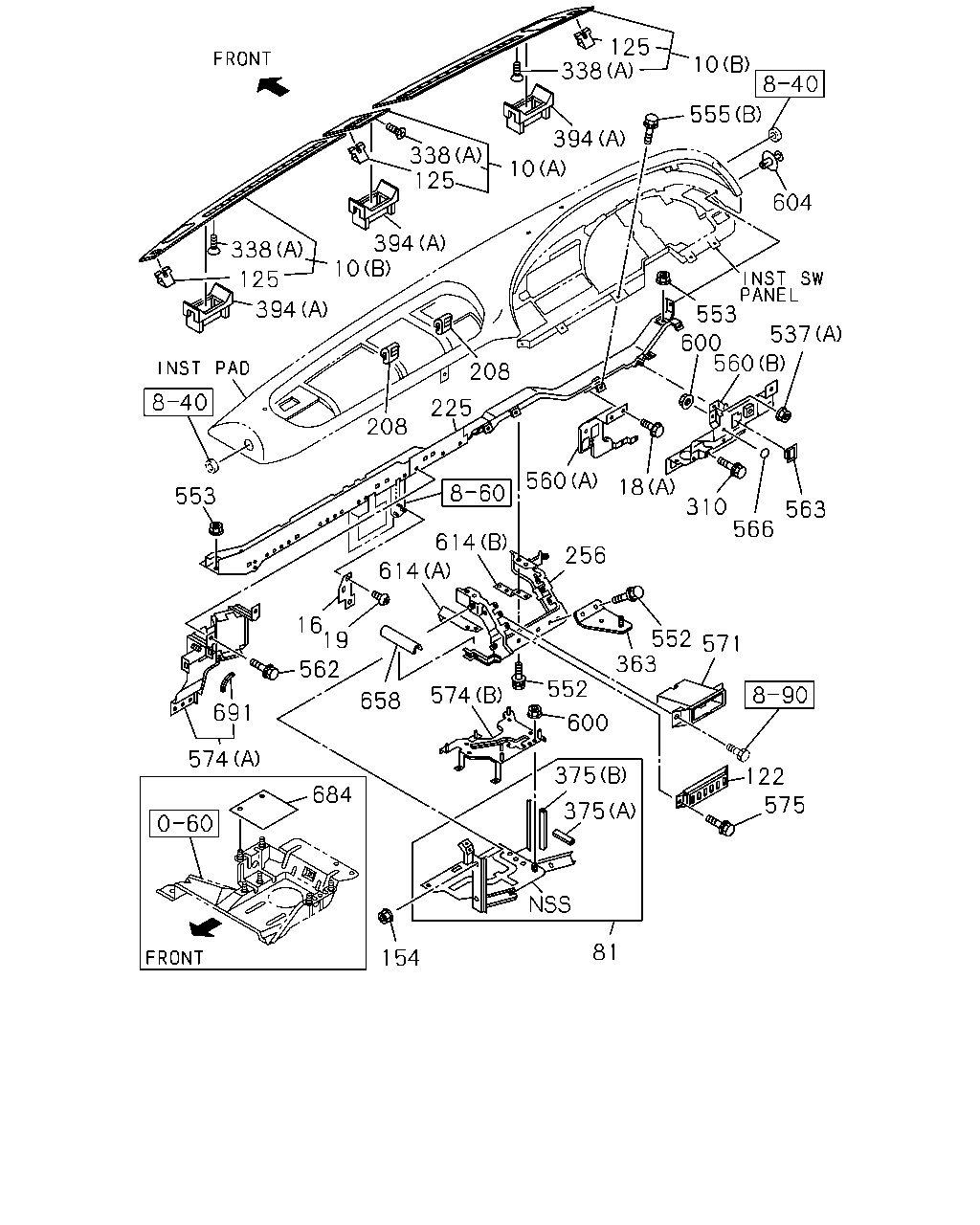

çizim 365613
125 10 555 604 394 338 10 338 125 553 537 600 560 563 566 310 18 560 256 208 225 394 10 338 125 394 553 16 19 562 691 684 81 154 375 375 575 122 571 552 363 600 552 574 658 614 614 208 574
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1306-
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 1306-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1306-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1306-
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 1306-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1306-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1306-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1306-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1306-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1306-
225 FRAME; FACIA 1-65671-725-8 01 1 1306-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1306-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1306-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1306-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1306-
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1306-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1306-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1306-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1306-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1306-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306-
560 BRACKET
(A) 		1-65681-197-2 01 1 1306-
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-772-4 01 1 1306-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72448-410-3 01 1 1306-
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-
571 BEZEL; POCKET 1-72438-151-3 01 1 1306-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1306-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1306-
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 1306-1411
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-73907-690-2 01 1 1412-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
600 NUT; PANEL
CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 03 1 1306-1411
600 NUT; PANEL
CAB SUSPENSION-FULL FLOATING(SMK) M6 FLANGE 		0-91180-106-0 03 1 1412-
604 CLIP; INST PAD 1-09983-123-0 01 1 1306-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1306-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1306-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306-
684 RUBBER; HARNESS 1-82698-417-1 01 1 1306-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1306-

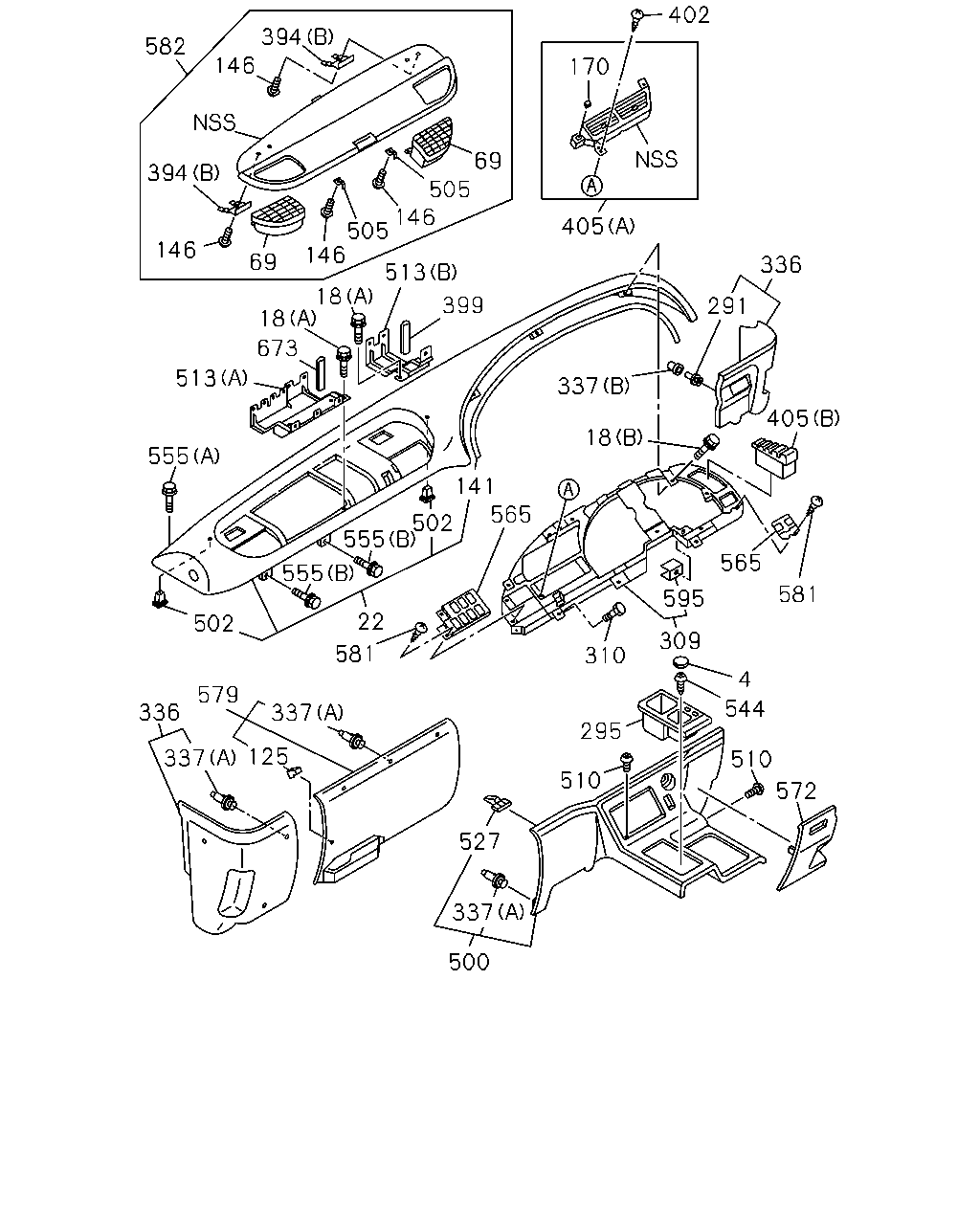

çizim 366363
402 170 405 336 291 394 69 505 146 505 146 69 146 394 146 582 405 581 565 18 337 513 18 18 513 555 502 581 510 310 4 595 673 555 502 555 565 141 22 572 510 544 295 500 527 337 337 125 579 336 337 309 399
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306-
22 PAD; INST 1-72317-372-1 01 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1306-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1306-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1306-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1306-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1306-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1306-
170 COVER; HOLE 1-76367-068-0 01 1 1306-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1306-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1306-
309 PANEL; SW,INST 1-72418-009-6 01 1 1306-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1306-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1306-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1306-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306-
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (A) 		1-72438-124-2 02 1 1306-1405
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) (A) 		1-72438-124-2 02 1 1406-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1306-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1306-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1306-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1406-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) 		1-72437-619-0 01 1 1306-1405
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-619-0 01 1 1406-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1306-
505 LOCK; LID 1-72558-024-2 02 1 1306-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1306-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1306-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1306-
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) 		8-97217-066-0 04 1 1306-1405
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) 		8-97217-066-0 04 1 1406-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1306-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1306-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1306-
572 COVER; INSPECTION 1-72437-634-0 01 1 1306-
579 COVER; INST PNL 1-72437-626-0 01 1 1306-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1306-
595 NUT; HOOK 1-72418-013-0 11 1 1306-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1306-
