◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#124241) — 103 parça

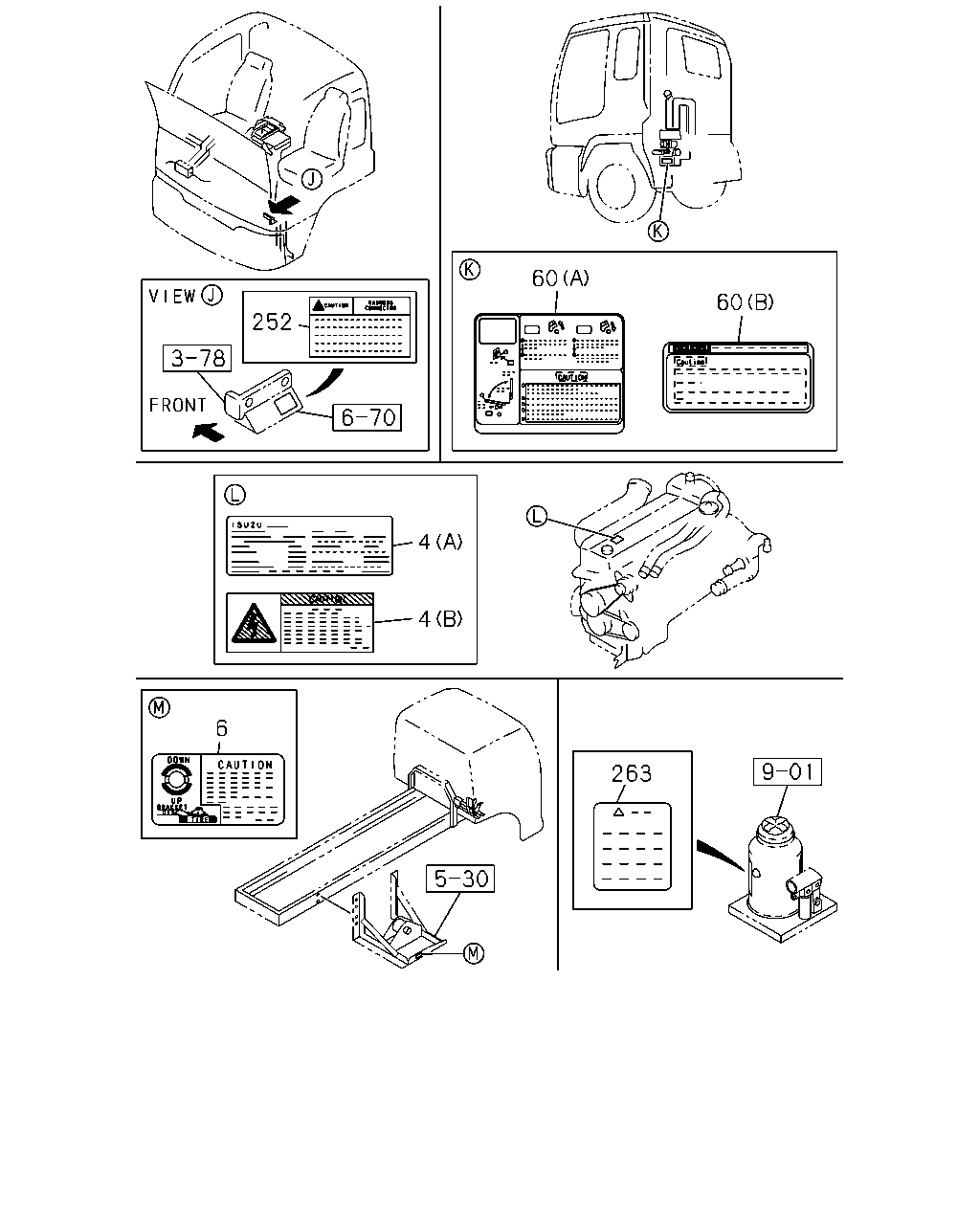

çizim 363448
60 60 252 4 4 6 263
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
CAUTIONS ARABIAN<WJ7> (B) 		8-98088-627-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS ARABIAN<WJ7> (A) 		8-98088-630-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS ENGLISH<RR8> (B) 		8-94391-524-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (A) 		1-85875-462-1 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS FRENCH<WJ8> (A) 		8-98160-129-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS FRENCH<WJ8> (B) 		8-98160-132-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS PORTUGUESE<NAT> (A) 		8-98160-127-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS PORTUGUESE<NAT> (B) 		8-98160-131-0 01 1 1306-
4 LABEL; ENG MAINTENANCE
CAUTIONS SPANISH<YN1> (B) 		8-98160-130-0 01 1 1306-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 01 1 1306-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1306-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1306-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1306-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> (A) 		8-98192-182-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> (B) 		8-98192-184-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (A) 		8-98174-581-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (B) 		8-98174-582-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> (A) 		8-98237-661-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> (B) 		8-98237-663-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> (A) 		8-98237-662-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> (B) 		8-98237-664-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> (A) 		8-98192-183-0 01 1 1306-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> (B) 		8-98192-185-0 01 1 1306-
252 PLATE; CAUTION,HARNESS
CAUTIONS ARABIAN<WJ7> 		8-97623-996-0 01 1 1306-
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 1306-
252 PLATE; CAUTION,HARNESS
CAUTIONS FRENCH<WJ8> 		1-85878-560-0 01 1 1306-
252 PLATE; CAUTION,HARNESS
CAUTIONS PORTUGUESE<NAT> 		8-97636-218-0 01 1 1306-
252 PLATE; CAUTION,HARNESS
CAUTIONS SPANISH<YN1> 		1-85878-559-0 01 1 1306-
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7> 		8-98094-561-0 01 1 1306-

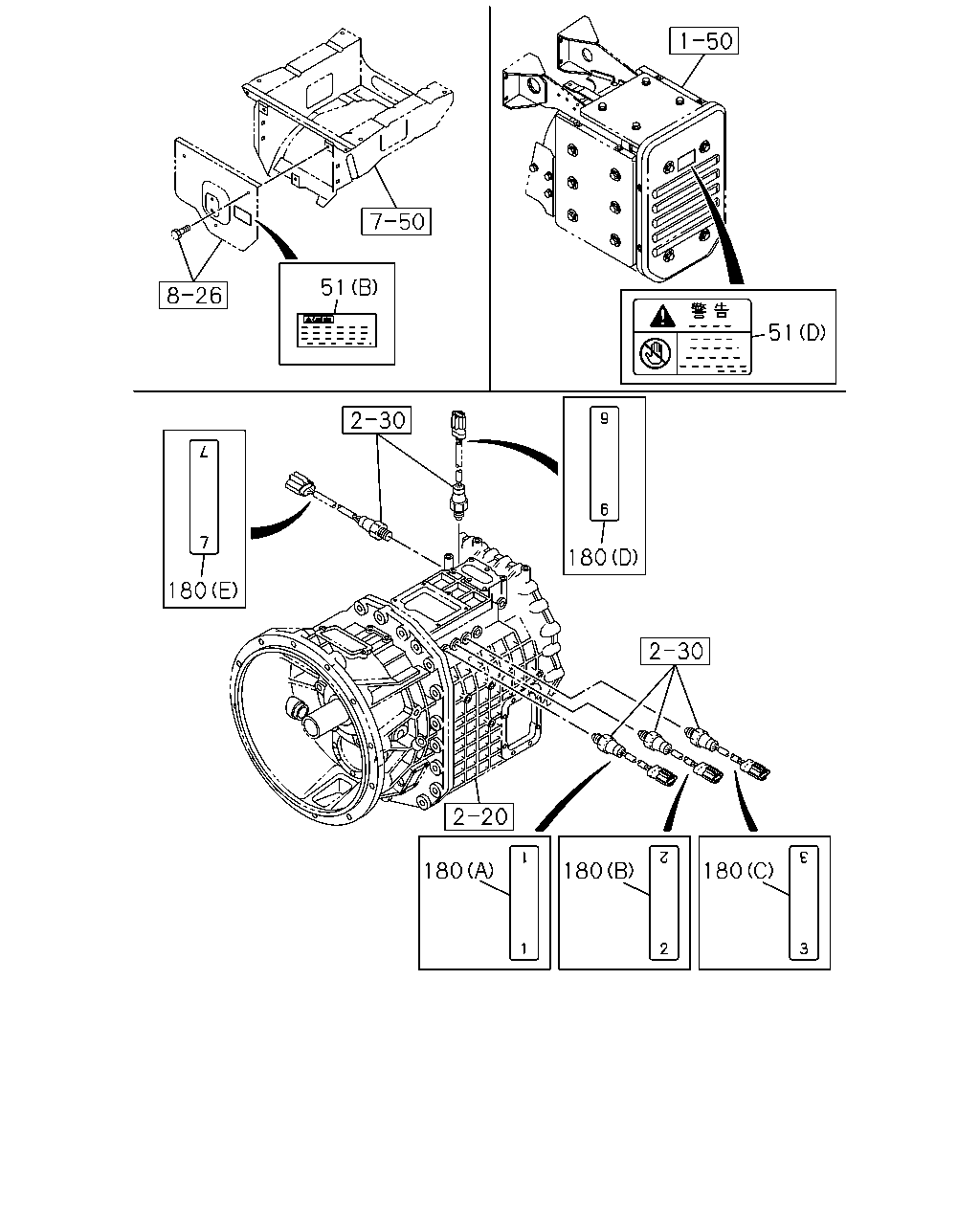

çizim 363542
51 180 180 180 180 180 51
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-787-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (A) 		1-85880-777-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-786-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		8-98161-460-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (A) 		1-85880-785-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (C) 		8-97624-052-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ARABIAN<WJ7> (C) 		8-97624-052-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (B) 		8-97633-742-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS FRENCH<WJ8> (B) 		8-97633-742-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (C) 		8-98162-838-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS PORTUGUESE<NAT> (C) 		8-98162-838-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (B) 		8-97613-336-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS SPANISH<YN1> (B) 		8-97613-336-0 01 1 1306-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 1306-1506
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-85881-872-0 01 1 1306-1506
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-85881-871-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-85881-873-0 01 1 1306-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-85881-880-0 01 1 1306-1506
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		1-85881-880-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) 		1-85881-881-0 01 1 1306-1506
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (E) 		1-85881-881-0 01 1 1507-

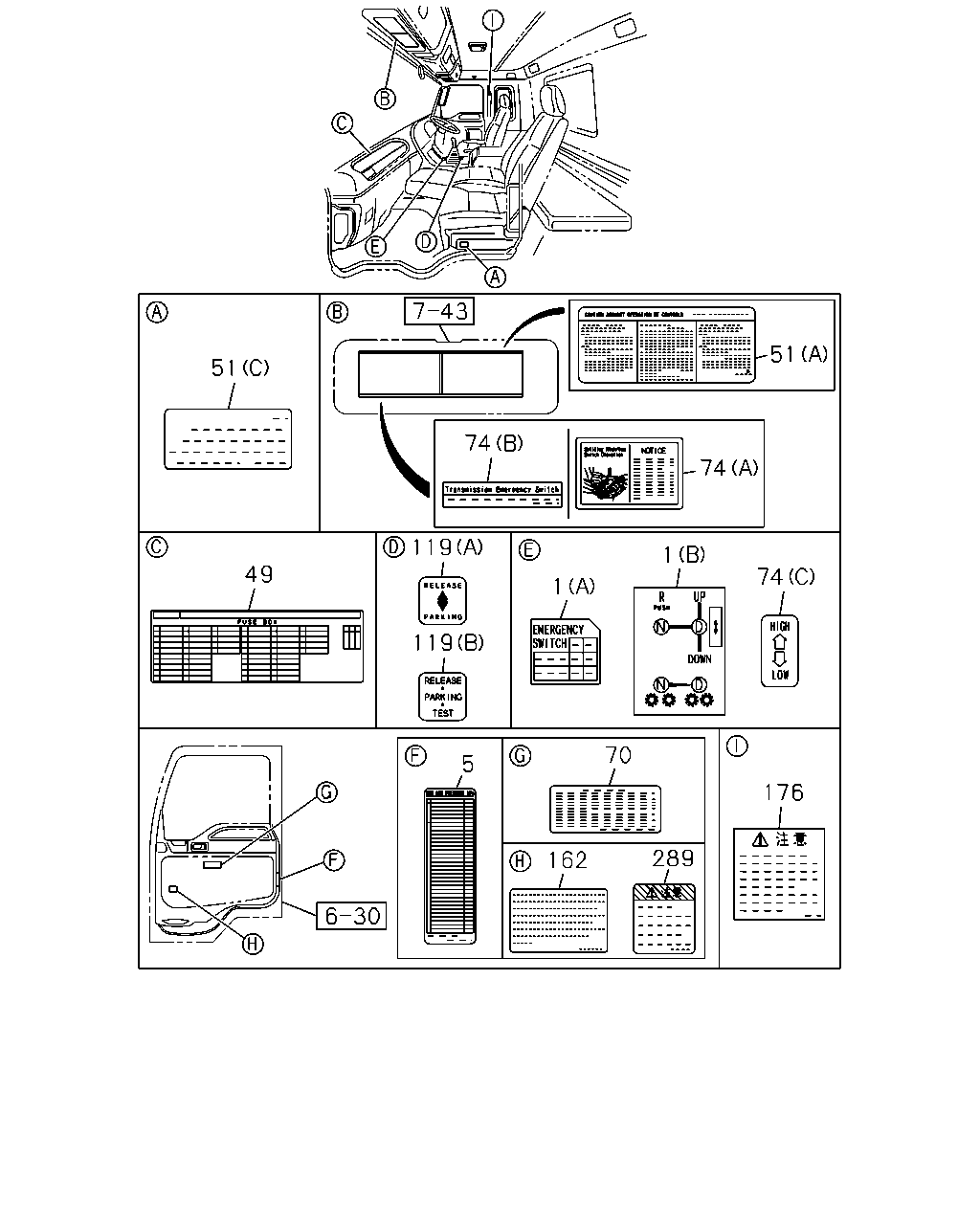

çizim 365003
51 74 1 74 1 119 49 51 119 70 176 289 162 5 74
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 1306-
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 1306-
5 LABEL; TIRE AIR PRESSURE
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIREFT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X),TIRE 29 5/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE315/80R22.5-156/150 K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUGOFF ROAD(5N4),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS ENGLISH<RR8> 		1-85880-778-0 01 1 1306-
5 LABEL; TIRE AIR PRESSURE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16RIBLUG OFF ROAD(5N4),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85880-778-0 01 1 1306-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-97646-256-0 01 1 1306-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-97623-001-0 01 1 1306-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-97646-257-0 01 1 1306-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		8-97646-255-0 01 1 1306-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-97646-258-0 01 1 1306-
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-787-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (A) 		1-85880-777-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-786-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		8-98161-460-0 01 1 1306-
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (A) 		1-85880-785-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (C) 		8-97624-052-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ARABIAN<WJ7> (C) 		8-97624-052-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (B) 		8-97633-742-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS FRENCH<WJ8> (B) 		8-97633-742-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (C) 		8-98162-838-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS PORTUGUESE<NAT> (C) 		8-98162-838-0 01 1 1306-
51 PLATE; CAUTION,WARNING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (B) 		8-97613-336-0 01 1 1306-
51 PLATE; CAUTION,WARNING
SMOOTHER-G(C1W) CAUTIONS SPANISH<YN1> (B) 		8-97613-336-0 01 1 1306-
70 PLATE; CAUTION,ACT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> 		1-85878-484-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> (B) 		1-85881-869-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98118-493-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ARABIAN<WJ7> (A) 		8-98124-445-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS ENGLISH<RR8> (A) 		1-85881-836-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS FRENCH<WJ8> (A) 		1-85881-970-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS PORTUGUESE<NAT> (A) 		8-98164-667-0 01 1 1306-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) CAUTIONS SPANISH<YN1> (A) 		1-85881-946-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ARABIAN<WJ7> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-85881-979-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-85881-759-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS FRENCH<WJ8> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-85881-945-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS PORTUGUESE<NAT> EXC. FULL TRACTOR TRUCK<RD6> (A) 		8-98161-151-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS SPANISH<YN1> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-85881-944-0 01 1 1306-
119 PLATE; CAUTION,HAND BRK LEVER
FULL TRACTOR TRUCK<RD6> CAUTIONS ENGLISH<RR8> (B) 		1-85881-791-0 01 1 1306-
162 PLATE; CAUTION,FUEL
CAUTIONS ENGLISH<RR8> 		8-97623-712-0 01 1 1306-
162 PLATE; CAUTION,FUEL
CAUTIONS FRENCH<WJ8> 		8-97621-140-0 01 1 1306-
162 PLATE; CAUTION,FUEL
CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> 		8-98083-160-0 01 1 1306-
162 PLATE; CAUTION,FUEL
CAUTIONS SPANISH<YN1> 		8-97635-806-0 01 1 1306-
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-486-0 01 1 1306-
289 PLATE; CAUTION,DRIVING
CAUTIONS ARABIAN<WJ7> 		8-98093-472-0 01 1 1306-
çizim 366920
181 181 144
BalonParca AdiParca NoAdetTipApplied Date
144 PLATE; CAUTION,CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-85878-345-0 01 1 1306-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1306-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
