6-76 — FLOOR EQUIPMENT AND SEALING (#124233) — 24 parça

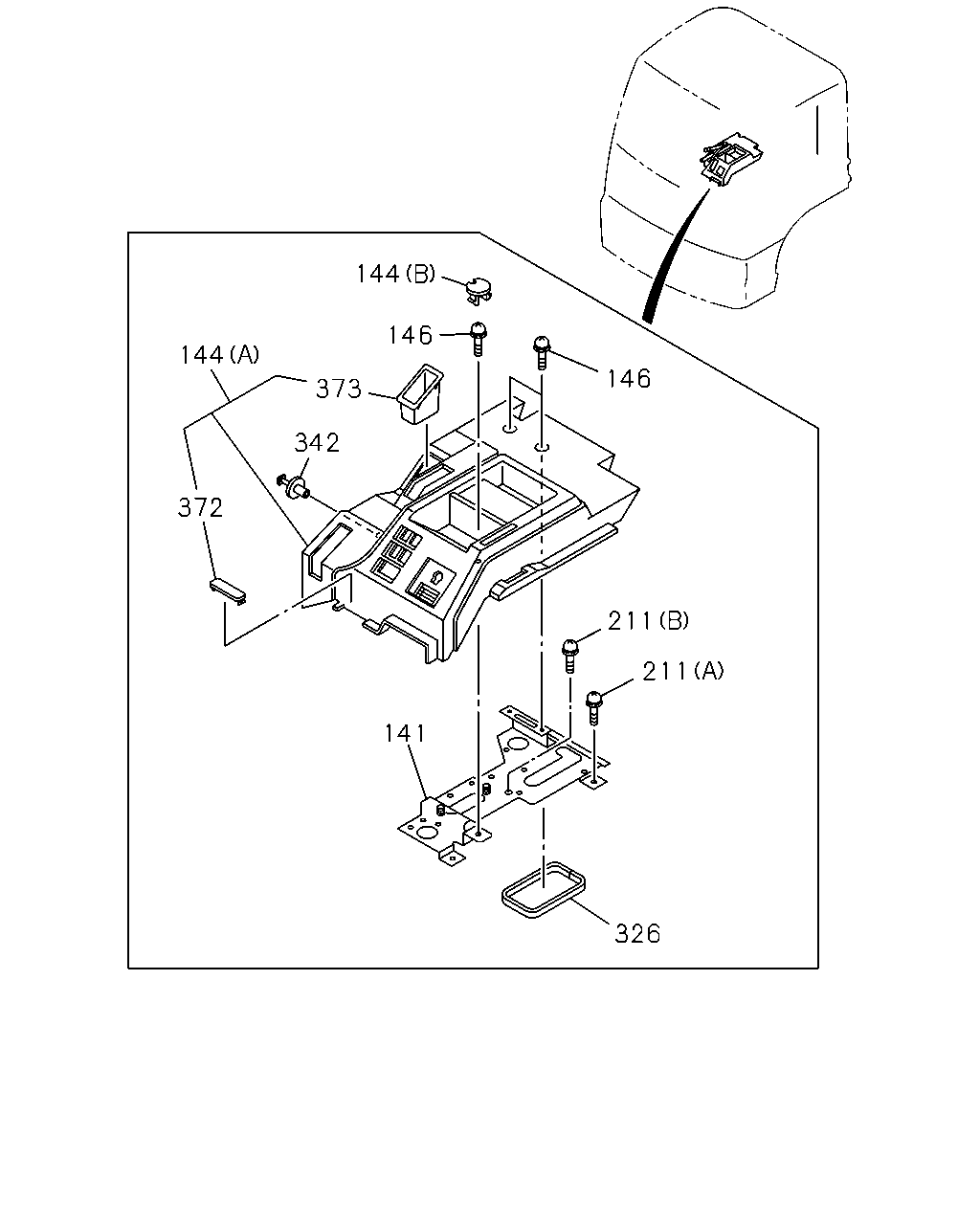

çizim 363537
144 146 146 211 211 326 141 342 373 144 372
BalonParca AdiParca NoAdetTipApplied Date
141 HOLDER
EXC. FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1306-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 1306-
144 COVER; HAND BRK VLV
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-72417-341-1 01 1 1306-
144 COVER; HAND BRK VLV
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-72417-338-1 01 1 1306-
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A) 		1-72417-348-1 01 1 1306-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 1306-
211 BOLT; COVER
EXC. FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306-
211 BOLT; COVER
EXC. FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1306-
326 SEAL; COVER
EXC. FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1306-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 1306-
372 COVER; CONSOLE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> EXC. TRAILER BRAKE HAND CONTROL<NLG> 		1-72537-124-0 01 1 1306-
372 COVER; CONSOLE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-72537-124-0 01 1 1306-
373 COVER; HOLE
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> EXC. TRAILER BRAKE HAND CONTROL<NLG> 		1-72537-194-0 01 1 1306-
373 COVER; HOLE
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		1-72537-194-0 01 1 1306-

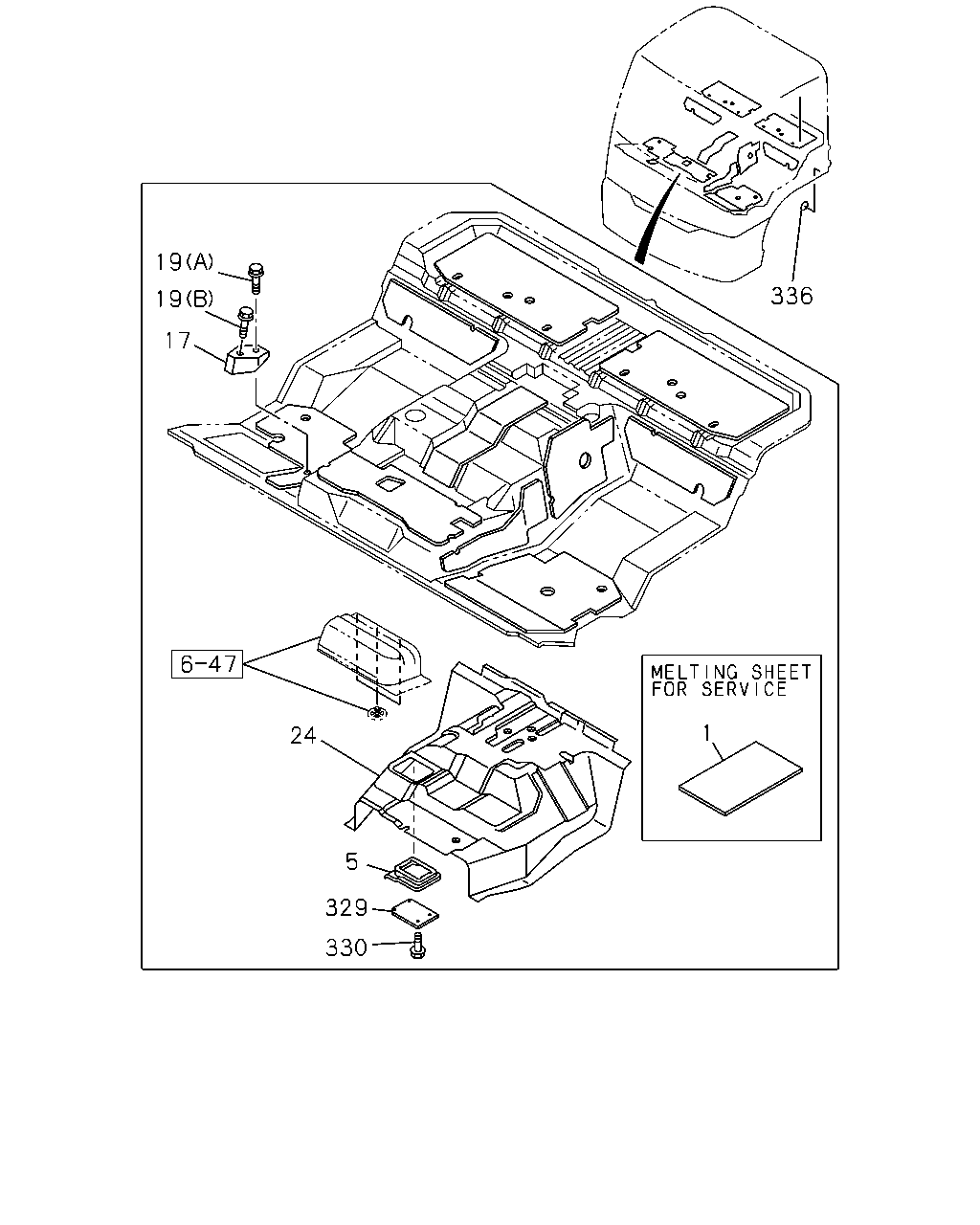

çizim 367229
19 19 17 24 5 329 330 336 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 1306-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 1306-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 1306-
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1306-
24 INSULATOR; HEAT,FRT
FULL TRAILER PIPING<Z25> 		1-71907-711-2 01 1 1306-
24 INSULATOR; HEAT,FRT
EXC. FULL TRAILER PIPING<Z25> 		1-71907-712-2 01 1 1306-
329 BRACKET; PANEL
SMOOTHER-G(C1W) 		1-33619-465-0 01 1 1306-
330 BOLT; BRKT
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 04 1 1306-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 1306-
