◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#12423) — 41 parça

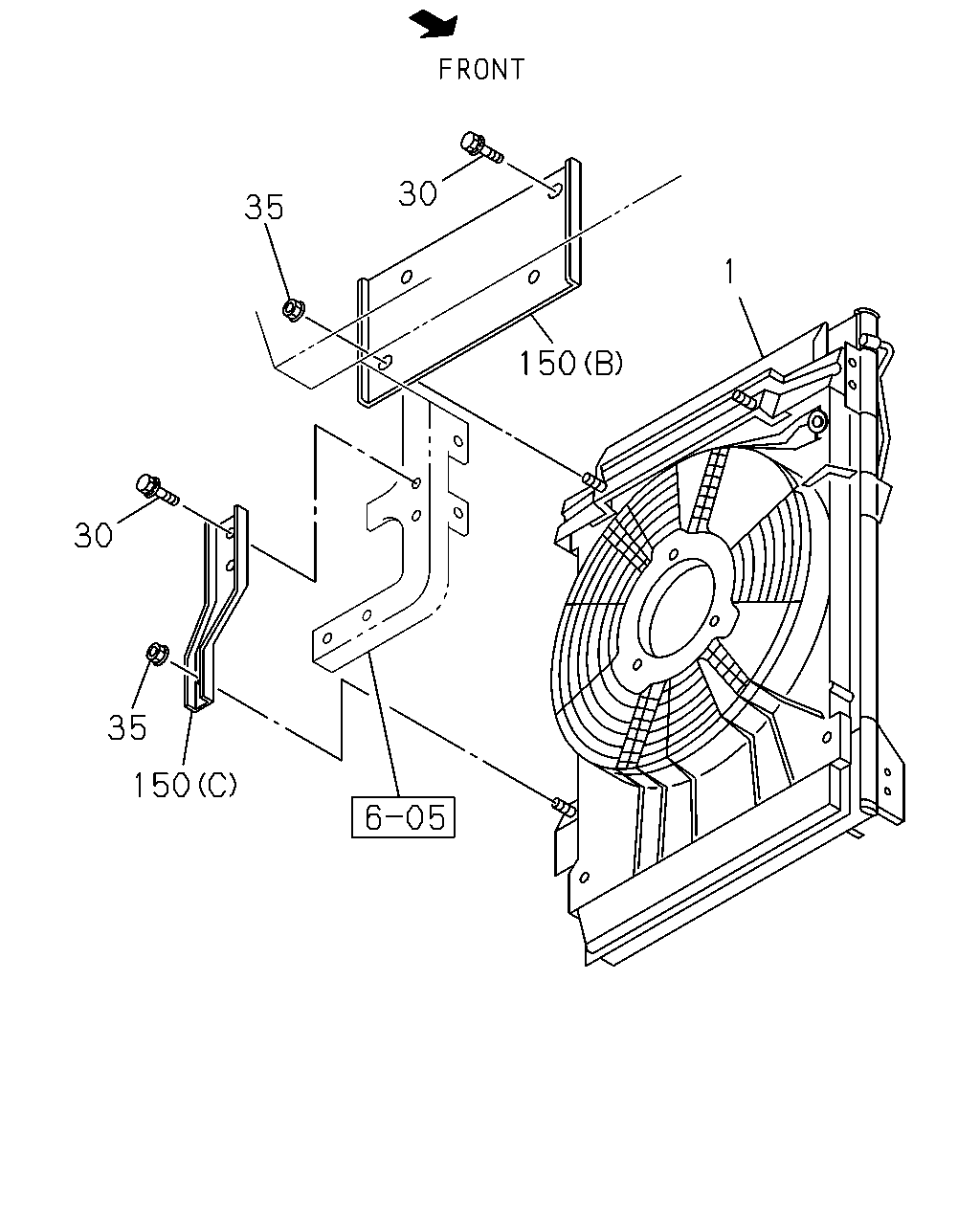

çizim 21965
30 35 1 150 30 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-206-2 01 1 0105-0509
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98024-412-1 01 1 0510-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 0105-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-982-1 01 1 0105-0206
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-241-0 01 1 0207-0301
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 0302-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 0105-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 0105-

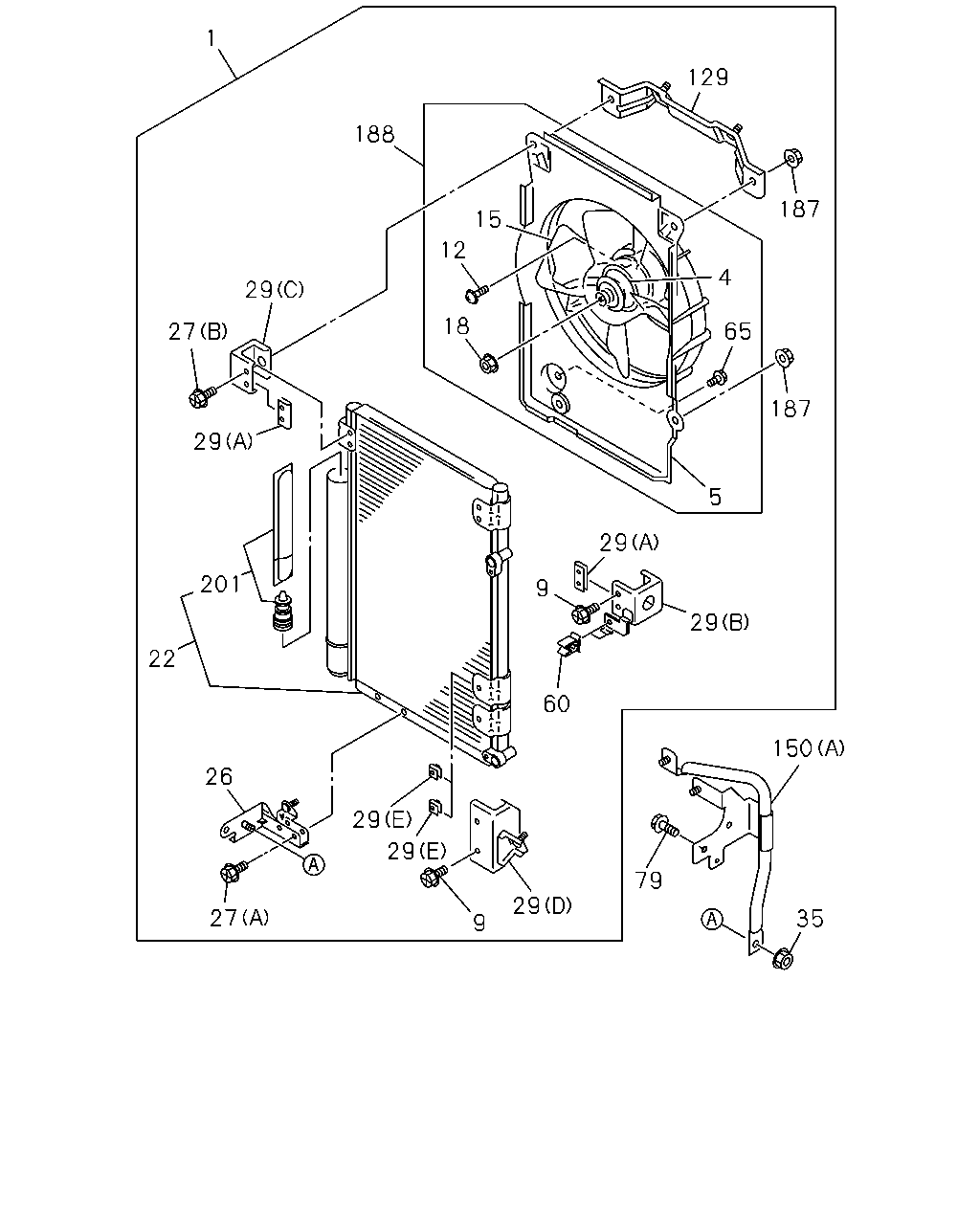

çizim 77461
1 129 188 187 15 12 4 29 18 65 27 187 29 5 29 201 9 29 22 60 150 26 29 29 79 29 27 35 9
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-206-2 01 1 0105-0509
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98024-412-1 01 1 0510-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-139-3 01 1 0105-0509
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98014-458-0 01 1 0510-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-362-1 01 1 0105-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 04 1 0105-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 0105-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-140-0 01 1 0105-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 0105-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-231-1 01 1 0105-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-128-1 01 1 0105-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16 		8-97096-525-0 02 1 0105-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25 		8-97178-770-0 02 1 0105-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-010-0 02 1 0105-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-125-0 01 1 0105-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-126-0 01 1 0105-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83573-127-1 01 1 0105-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97180-263-0 02 1 0105-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 0105-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 0105-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 0105-
79 BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 		8-97103-452-0 01 1 0105-0204
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-1 01 1 0105-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-982-1 01 1 0105-0206
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-241-0 01 1 0207-0301
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 0302-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 0105-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 0105-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 0105-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-162-2 01 1 0105-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97255-561-0 01 1 0105-0209
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 0210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
